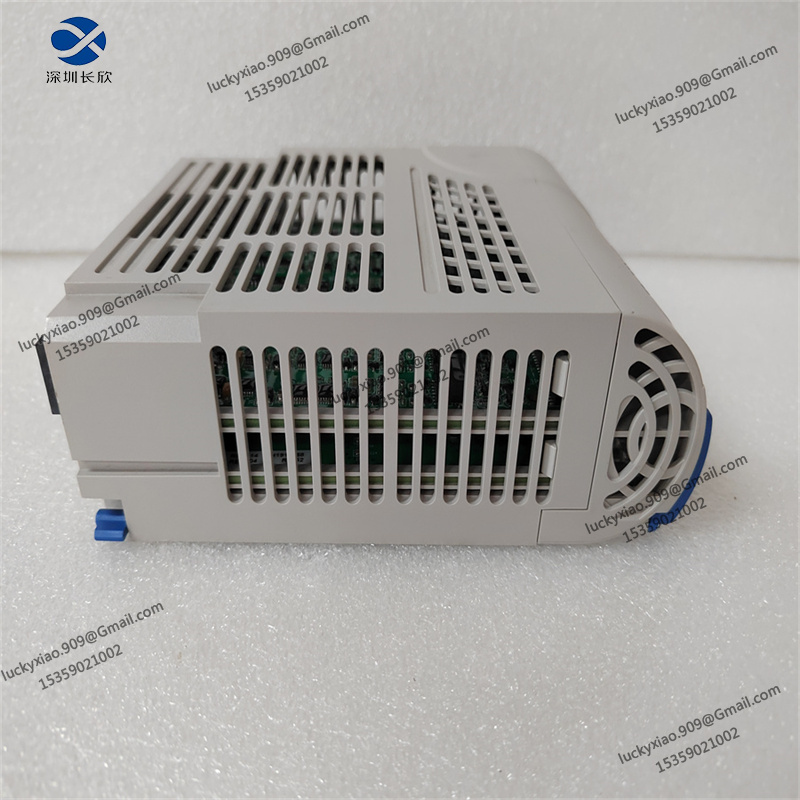

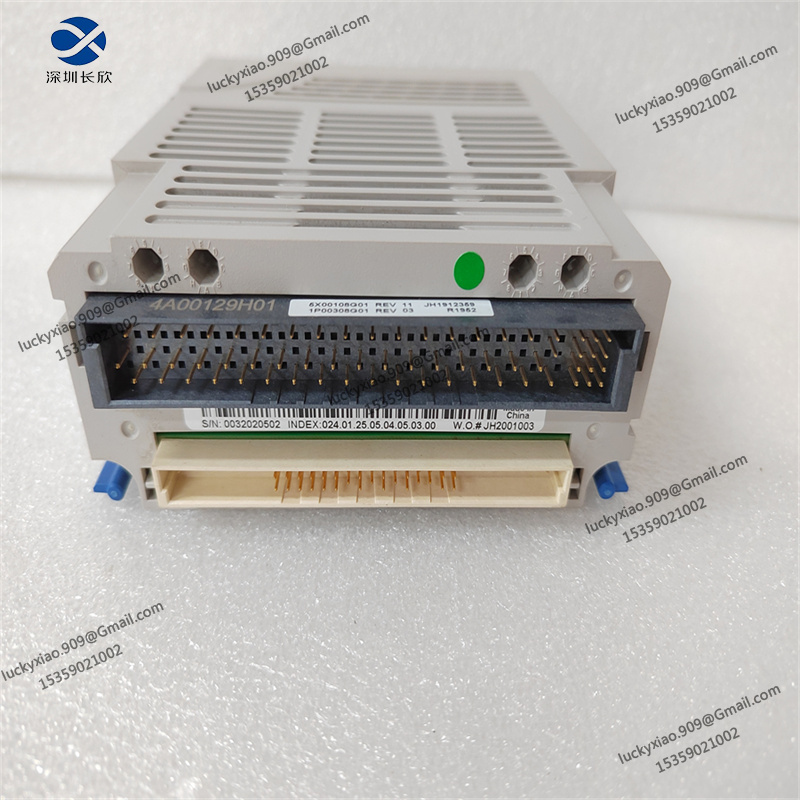

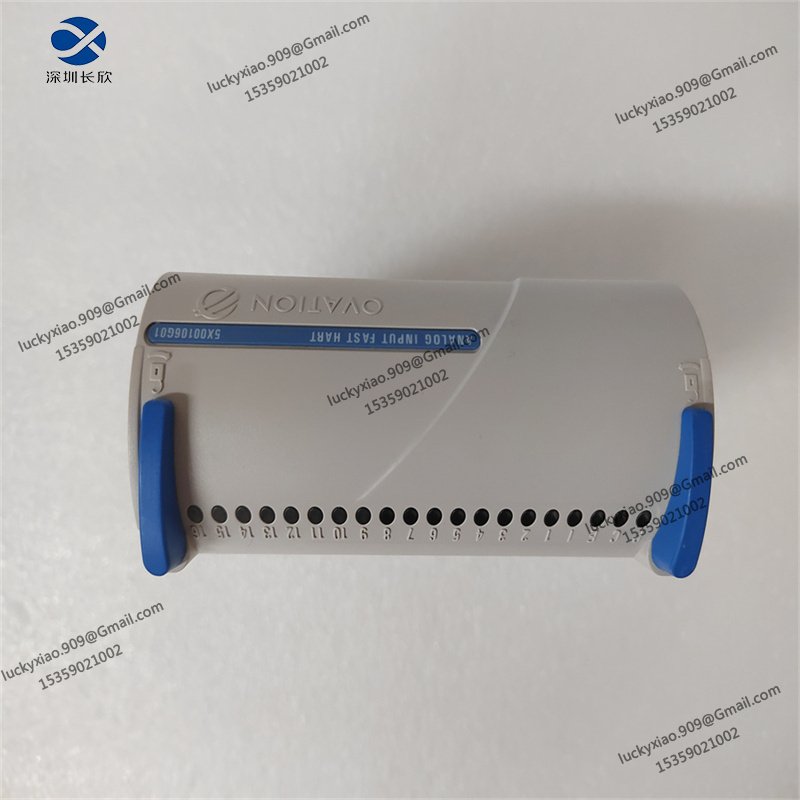

Emerson 5X00106G01 is an 8-channel high-performance analog input module exclusively designed for the Ovation DCS, integrated with HART communication capability to connect seamlessly with HART-enabled field devices like temperature transmitters and pressure sensors. It supports input signals such as ±20mA and ±10V, boasts 14-bit A/D resolution and ±0.1% full-scale reference accuracy, and features configurable sampling rates (20 samples/s for 60Hz rejection and 25 samples/s for 50Hz rejection). With 1000VAC/VDC galvanic isolation between channels and logic, it effectively resists electromagnetic interference, while its 120dB common mode rejection further ensures signal integrity. Operating reliably within a temperature range of -40°C to 85°C and 5%-95% non-condensing humidity, it enables remote diagnostics and configuration for predictive maintenance. This factory-certified module is widely used in power generation and petrochemical industries, providing precise real-time data acquisition to support critical industrial process control.
Emerson’s Ovation system is a distributed control system (DCS) specifically designed for the power generation and water/wastewater treatment industries. As a reliable innovation platform, it provides comprehensive control capabilities and powerful system integration. The main components of Ovation system include:
1. Host: It is the core of the entire system, responsible for data processing, storage, and forwarding, as well as controlling the execution of logic.
2. Screen: It is an interface for users to interact with the system, used to display real-time data, alarm information, trend charts, etc., and allows users to set parameters and control operations.
3. Sound system: Provides sound alarm function. When the system detects abnormal situations or faults, it will emit sound prompts through the sound system, so that operators can respond in a timely manner.
4. Projector: In some applications, it may be used for large screen display, allowing multiple people to simultaneously view system status and operation information.
5. Touch devices: such as touch screens, provide an intuitive operating interface, allowing users to easily perform various controls and settings.
6. Control system: including control logic, algorithms, and strategies, used to achieve precise control of industrial processes.
7. I/O modules and interfaces: used for connecting and exchanging data with external devices such as sensors, actuators, etc. These modules can convert signals from external devices into digital signals that the system can recognize, or convert control signals from the system into instructions that external devices can execute.
8. Communication and network equipment: Ensure data communication and information sharing between internal components of the system and between the system and other external systems.
9. Software and firmware: including operating systems, control software, databases, etc., to provide necessary support and guarantees for the normal operation of the system.
