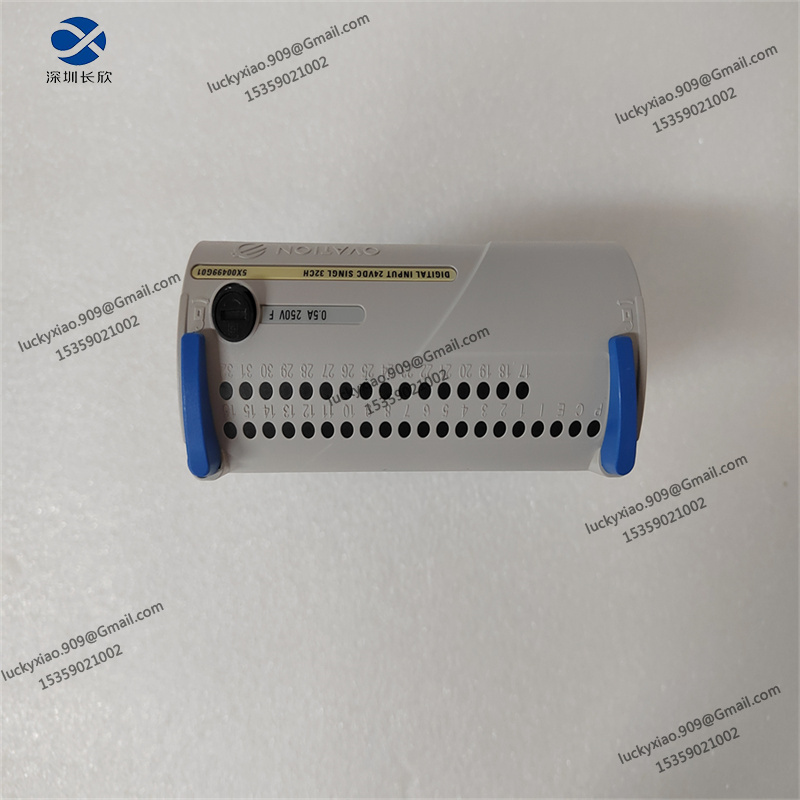

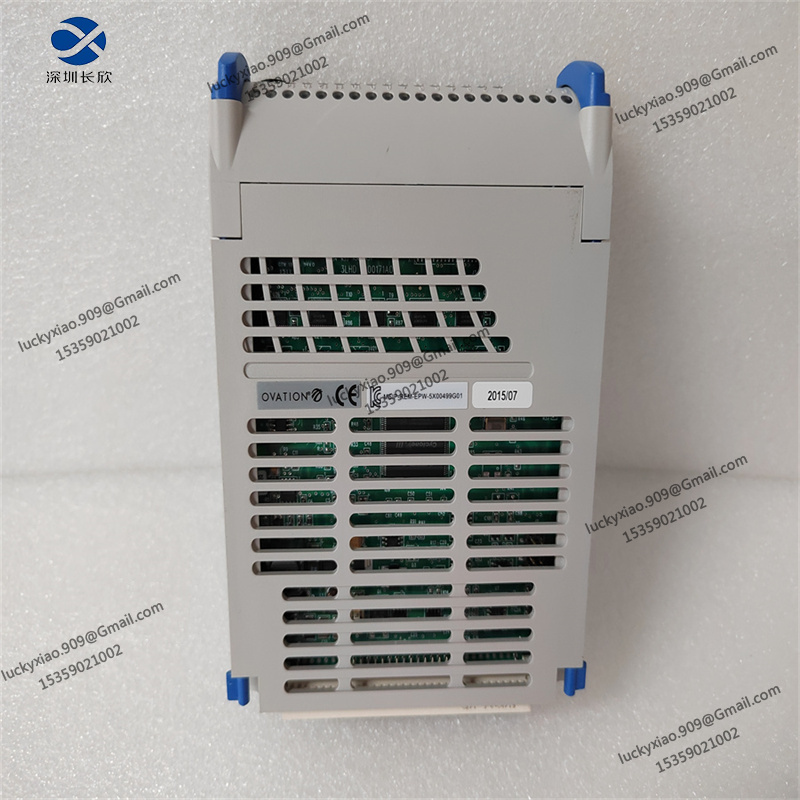

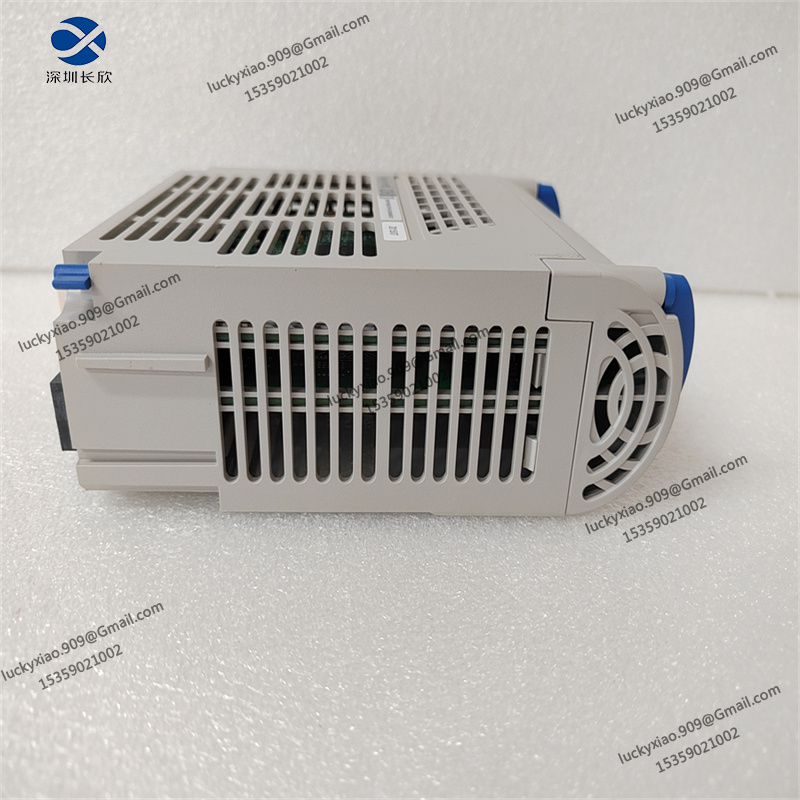

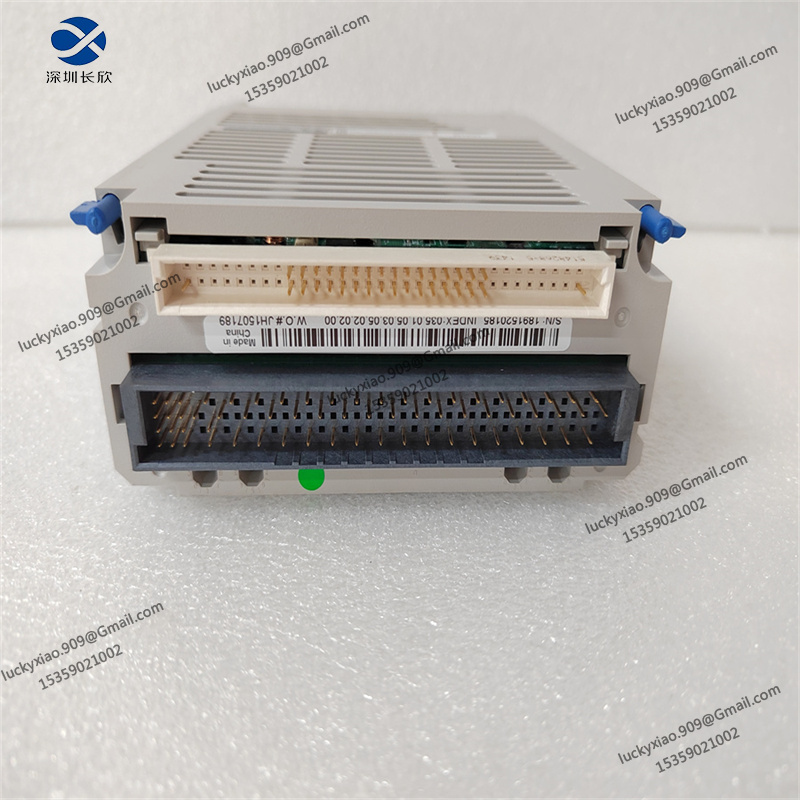

Emerson 5X00499G01 is a 32-channel single-ended digital input module specifically tailored for the Ovation Distributed Control System (DCS). It is specialized in collecting discrete on-off signals from field devices like limit switches, pushbuttons and photoelectric sensors, and transmitting them to the Ovation controller for processing. The module supports common 24VDC input, has an input impedance of 100 kΩ and a high data acquisition rate of up to 10 kHz, with power consumption less than 1W for energy efficiency. It features excellent electrical isolation to resist electromagnetic interference in harsh industrial environments and supports redundant configuration for automatic failover, ensuring uninterrupted system operation. Compatible with hot-swap, it allows module replacement without system shutdown for easy maintenance. It is widely used in power generation, petrochemicals and water treatment industries to reliably monitor equipment status and safety interlock signals.
Emerson’s Ovation system is a distributed control system (DCS) specifically designed for the power generation and water/wastewater treatment industries. As a reliable innovation platform, it provides comprehensive control capabilities and powerful system integration. The main components of Ovation system include:
1. Host: It is the core of the entire system, responsible for data processing, storage, and forwarding, as well as controlling the execution of logic.
2. Screen: It is an interface for users to interact with the system, used to display real-time data, alarm information, trend charts, etc., and allows users to set parameters and control operations.
3. Sound system: Provides sound alarm function. When the system detects abnormal situations or faults, it will emit sound prompts through the sound system, so that operators can respond in a timely manner.
4. Projector: In some applications, it may be used for large screen display, allowing multiple people to simultaneously view system status and operation information.
5. Touch devices: such as touch screens, provide an intuitive operating interface, allowing users to easily perform various controls and settings.
6. Control system: including control logic, algorithms, and strategies, used to achieve precise control of industrial processes.
7. I/O modules and interfaces: used for connecting and exchanging data with external devices such as sensors, actuators, etc. These modules can convert signals from external devices into digital signals that the system can recognize, or convert control signals from the system into instructions that external devices can execute.
8. Communication and network equipment: Ensure data communication and information sharing between internal components of the system and between the system and other external systems.
9. Software and firmware: including operating systems, control software, databases, etc., to provide necessary support and guarantees for the normal operation of the system.
