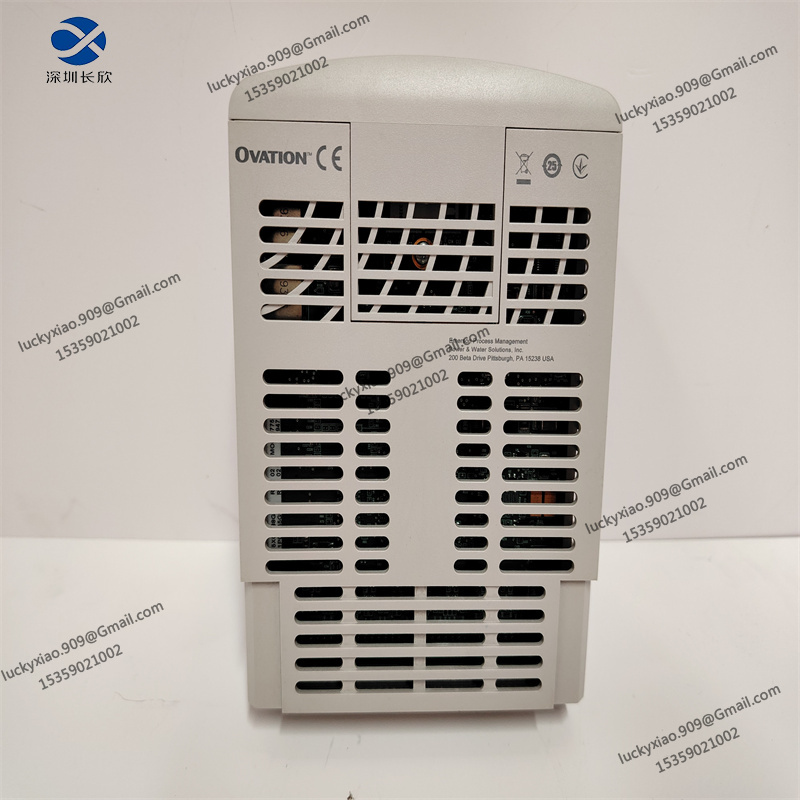

The Emerson 5X00790G01 is a compact and high-performance controller module tailored for the Ovation distributed control system (DCS). Equipped with a dual-core Arm Cortex-A9 CPU and paired with 256MB DDR3 SDRAM and 1GB USB flash storage, it efficiently undertakes real-time data processing, control logic execution and field signal management tasks. It supports multiple industrial protocols like Modbus TCP, Profibus DP and OPC UA, and comes with dual Ethernet ports while enabling both simplex and redundant configurations for seamless integration and reliable failover in critical scenarios. Built to endure harsh industrial environments, it operates stably at -40°C to 70°C, resists vibration, and has anti-interference capabilities. With hot-swappable design and built-in self-diagnostic functions, it simplifies on-site maintenance and troubleshooting, making it a reliable choice for power generation, petrochemicals, water treatment and other industries for critical process automation.
Emerson’s Ovation system is a distributed control system (DCS) specifically designed for the power generation and water/wastewater treatment industries. As a reliable innovation platform, it provides comprehensive control capabilities and powerful system integration. The main components of Ovation system include:
1. Host: It is the core of the entire system, responsible for data processing, storage, and forwarding, as well as controlling the execution of logic.
2. Screen: It is an interface for users to interact with the system, used to display real-time data, alarm information, trend charts, etc., and allows users to set parameters and control operations.
3. Sound system: Provides sound alarm function. When the system detects abnormal situations or faults, it will emit sound prompts through the sound system, so that operators can respond in a timely manner.
4. Projector: In some applications, it may be used for large screen display, allowing multiple people to simultaneously view system status and operation information.
5. Touch devices: such as touch screens, provide an intuitive operating interface, allowing users to easily perform various controls and settings.
6. Control system: including control logic, algorithms, and strategies, used to achieve precise control of industrial processes.
7. I/O modules and interfaces: used for connecting and exchanging data with external devices such as sensors, actuators, etc. These modules can convert signals from external devices into digital signals that the system can recognize, or convert control signals from the system into instructions that external devices can execute.
8. Communication and network equipment: Ensure data communication and information sharing between internal components of the system and between the system and other external systems.
9. Software and firmware: including operating systems, control software, databases, etc., to provide necessary support and guarantees for the normal operation of the system.
