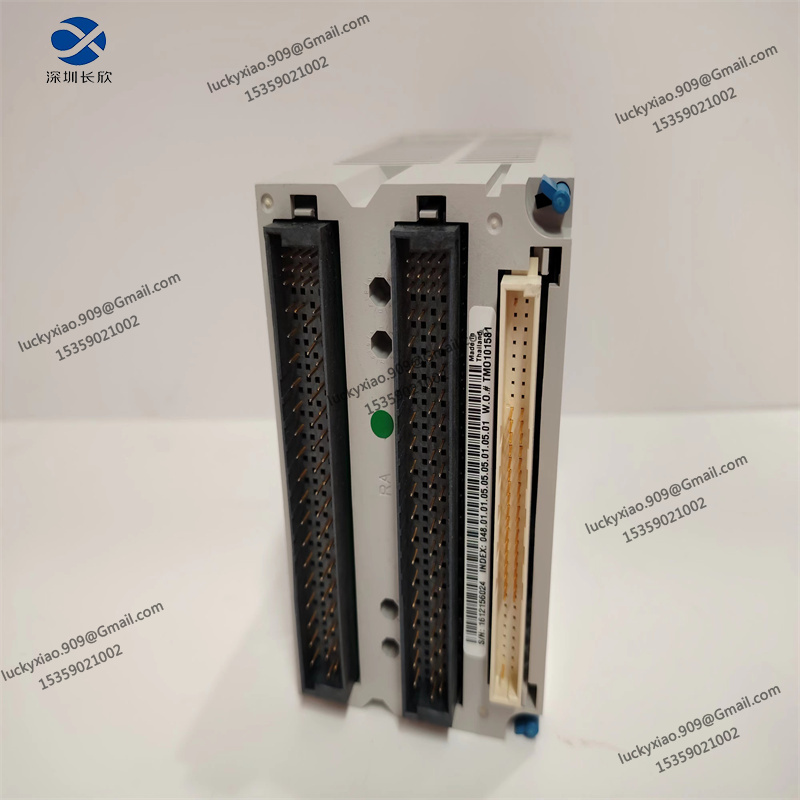

The Emerson 5X00846G01 is a specialized I/O module tailored for the Ovation distributed control system (DCS), primarily serving as a digital input module with versatile performance. It comes with 16 isolated digital input channels and supports a wide voltage range of 24VDC to 125VDC/AC, which allows it to seamlessly capture and convert binary signals from various field devices into standardized inputs compatible with the Ovation DCS. Boasting 500V RMS channel-to-channel and channel-to-ground isolation plus EMI/RFI suppression, it maintains stable and accurate signal transmission even in high-noise industrial settings. Its hot-swappable design enables maintenance without system downtime, while built-in channel-level diagnostics and per-channel LED indicators simplify troubleshooting by detecting short circuits, open circuits and overvoltage issues. With an IP20 protection rating, it operates reliably at -40°C to 70°C and is widely applied in power generation, petrochemical and water treatment industries for real-time equipment status monitoring and process control.
Emerson’s Ovation system is a distributed control system (DCS) specifically designed for the power generation and water/wastewater treatment industries. As a reliable innovation platform, it provides comprehensive control capabilities and powerful system integration. The main components of Ovation system include:
1. Host: It is the core of the entire system, responsible for data processing, storage, and forwarding, as well as controlling the execution of logic.
2. Screen: It is an interface for users to interact with the system, used to display real-time data, alarm information, trend charts, etc., and allows users to set parameters and control operations.
3. Sound system: Provides sound alarm function. When the system detects abnormal situations or faults, it will emit sound prompts through the sound system, so that operators can respond in a timely manner.
4. Projector: In some applications, it may be used for large screen display, allowing multiple people to simultaneously view system status and operation information.
5. Touch devices: such as touch screens, provide an intuitive operating interface, allowing users to easily perform various controls and settings.
6. Control system: including control logic, algorithms, and strategies, used to achieve precise control of industrial processes.
7. I/O modules and interfaces: used for connecting and exchanging data with external devices such as sensors, actuators, etc. These modules can convert signals from external devices into digital signals that the system can recognize, or convert control signals from the system into instructions that external devices can execute.
8. Communication and network equipment: Ensure data communication and information sharing between internal components of the system and between the system and other external systems.
9. Software and firmware: including operating systems, control software, databases, etc., to provide necessary support and guarantees for the normal operation of the system.
