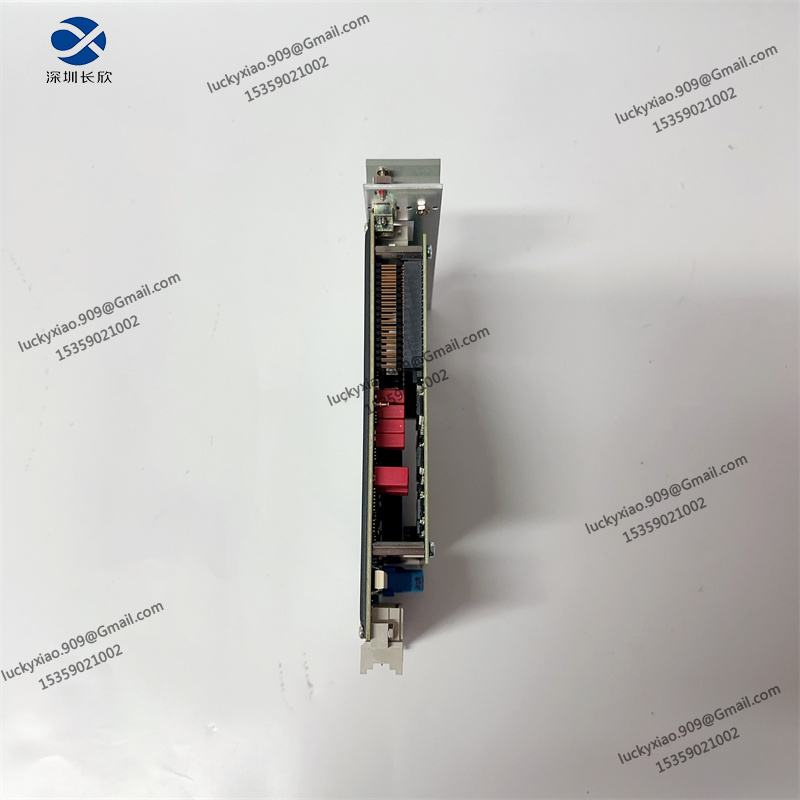

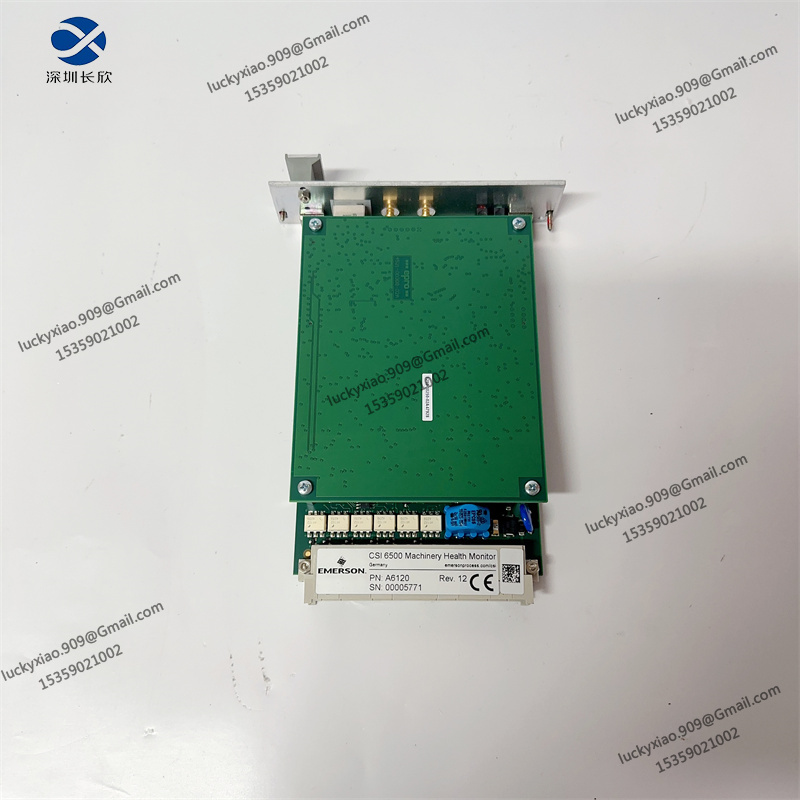

Emerson 9199 – 00002 A6120 is a dual – channel case seismic electro – dynamic vibration monitor belonging to the CSI 6500 series, which complies with API 670 standards. It adopts a compact 1 – slot design, weighs about 0.3kg, and supports hot – swapping, greatly saving cabinet space and facilitating maintenance. Equipped with two independent differential electro – dynamic inputs compatible with 9266, 9267 and 9268 sensors, it has an input voltage range of – 5 to + 15 VDC and an adjustable input frequency range of 1 or 5 Hz (lower cutoff) to 50 – 2000 Hz (upper cutoff), with a measurement accuracy of ± 0.5% of full scale. It offers 0/4 – 20 mA and 0 – 10 V outputs, and integrates with PlantWeb and AMS Suite for advanced diagnostics, while supporting Modbus TCP/IP for remote access to analysis parameters. Front – panel LEDs indicate channel status and alarms, and it operates stably in harsh industrial environments, being widely used to monitor steam turbines, compressors and hydro – turbomachinery in oil, gas and power industries to prevent equipment failure and reduce downtime.
Emerson’s Ovation system is a distributed control system (DCS) specifically designed for the power generation and water/wastewater treatment industries. As a reliable innovation platform, it provides comprehensive control capabilities and powerful system integration. The main components of Ovation system include:
1. Host: It is the core of the entire system, responsible for data processing, storage, and forwarding, as well as controlling the execution of logic.
2. Screen: It is an interface for users to interact with the system, used to display real-time data, alarm information, trend charts, etc., and allows users to set parameters and control operations.
3. Sound system: Provides sound alarm function. When the system detects abnormal situations or faults, it will emit sound prompts through the sound system, so that operators can respond in a timely manner.
4. Projector: In some applications, it may be used for large screen display, allowing multiple people to simultaneously view system status and operation information.
5. Touch devices: such as touch screens, provide an intuitive operating interface, allowing users to easily perform various controls and settings.
6. Control system: including control logic, algorithms, and strategies, used to achieve precise control of industrial processes.
7. I/O modules and interfaces: used for connecting and exchanging data with external devices such as sensors, actuators, etc. These modules can convert signals from external devices into digital signals that the system can recognize, or convert control signals from the system into instructions that external devices can execute.
8. Communication and network equipment: Ensure data communication and information sharing between internal components of the system and between the system and other external systems.
9. Software and firmware: including operating systems, control software, databases, etc., to provide necessary support and guarantees for the normal operation of the system.
