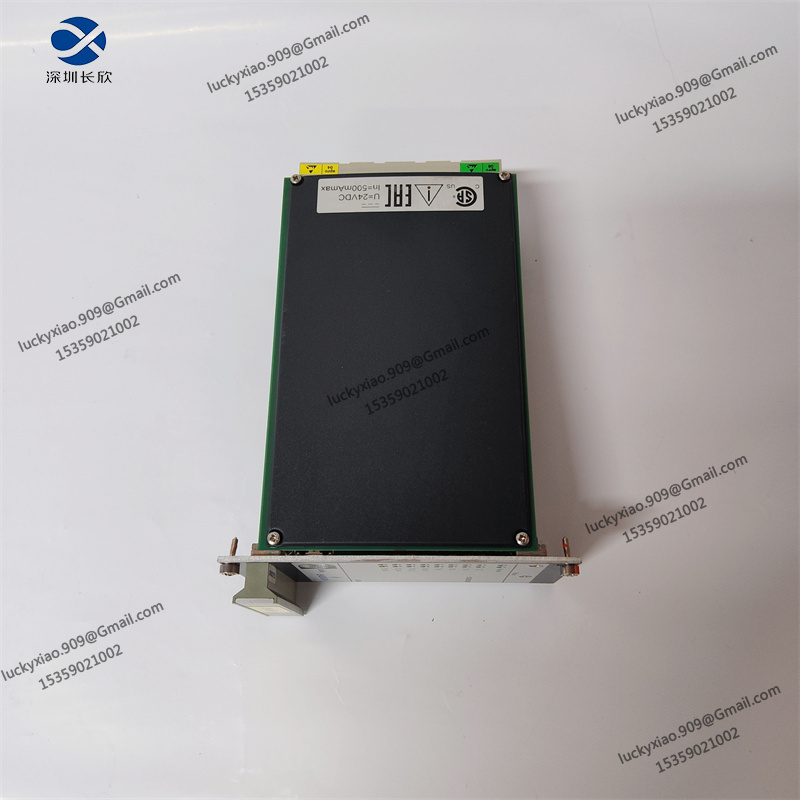

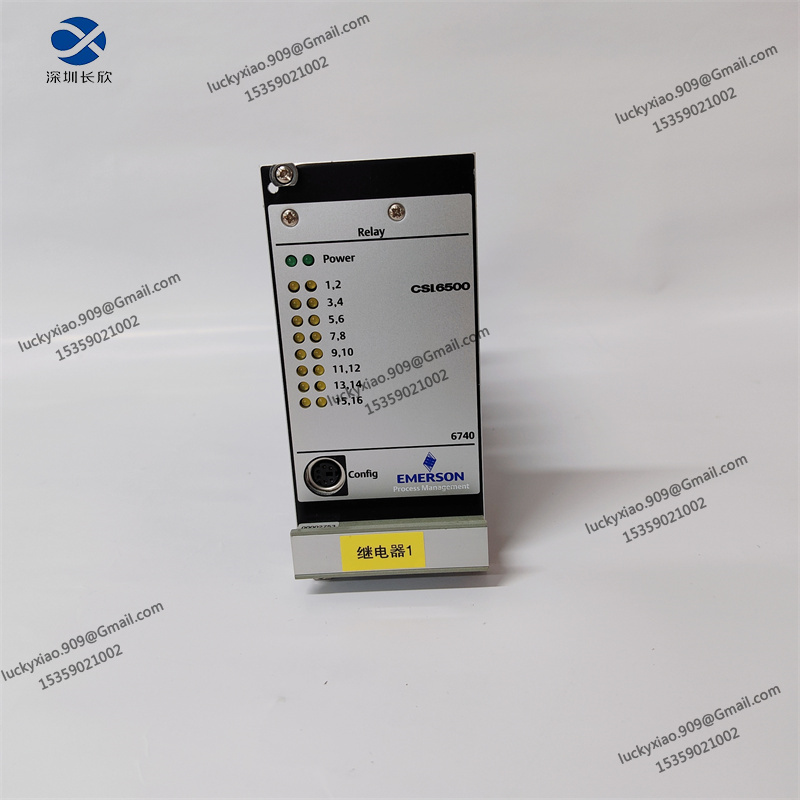

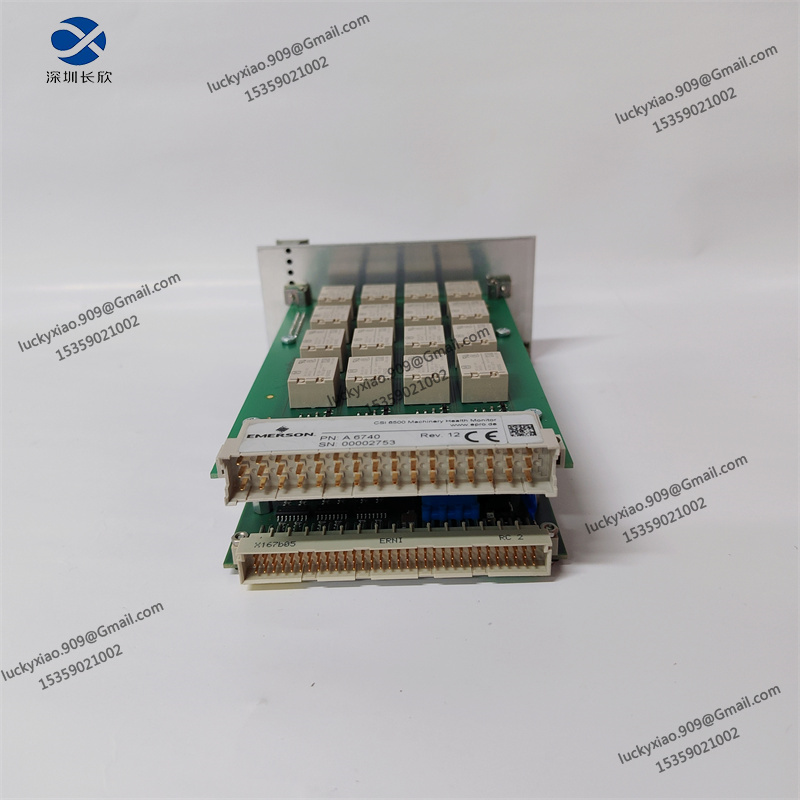

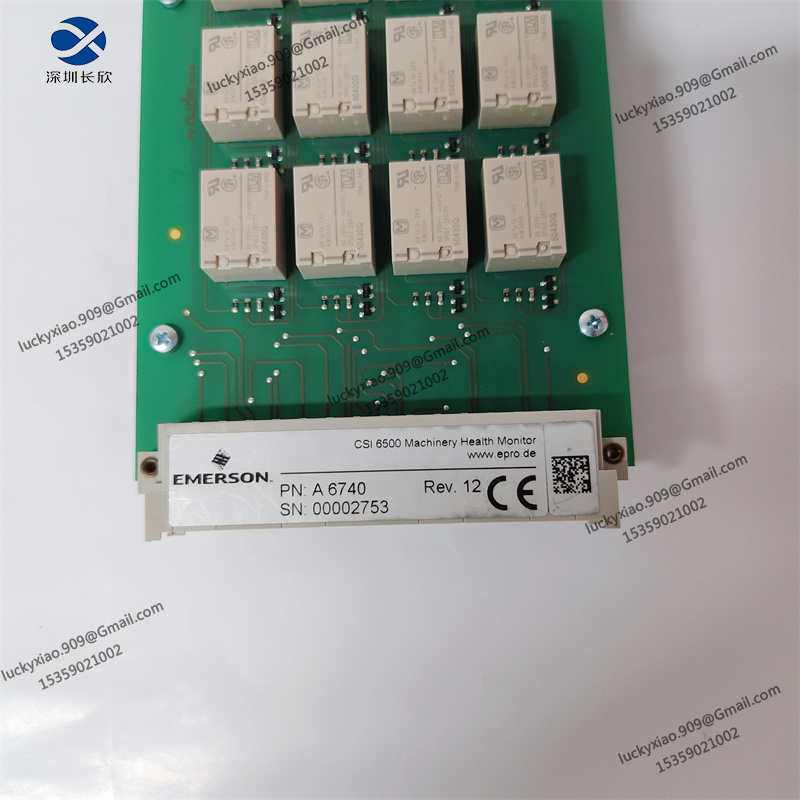

Emerson A6740 is a 16-channel output relay module specifically designed to pair with the AMS 6500 Machinery Health Monitor, forming a complete API 670-compliant machinery protection system. As a 3U-sized 2-slot plug-in module, it saves much cabinet space compared to traditional 6U cards and supports hot-swapping for easy maintenance, with a handle for easy card removal and an identification plate for module and sensor labeling. It boasts 60 inputs (including channel clear, alert and danger signals), 30 configurable logical expressions and 16 relay outputs, and allows 0 – 30 seconds of time delay while its user-friendly software with graphical logic displays simplifies configuration. Operating stably at 0 – 65°C and tolerating 5 – 95% non-condensing humidity, it excels in harsh industrial settings. Widely used to protect critical rotating equipment like steam turbines, gas turbines and compressors, it provides reliable switching and alarm-related control to minimize costly downtime in oil, gas and power generation industries.
Emerson’s Ovation system is a distributed control system (DCS) specifically designed for the power generation and water/wastewater treatment industries. As a reliable innovation platform, it provides comprehensive control capabilities and powerful system integration. The main components of Ovation system include:
1. Host: It is the core of the entire system, responsible for data processing, storage, and forwarding, as well as controlling the execution of logic.
2. Screen: It is an interface for users to interact with the system, used to display real-time data, alarm information, trend charts, etc., and allows users to set parameters and control operations.
3. Sound system: Provides sound alarm function. When the system detects abnormal situations or faults, it will emit sound prompts through the sound system, so that operators can respond in a timely manner.
4. Projector: In some applications, it may be used for large screen display, allowing multiple people to simultaneously view system status and operation information.
5. Touch devices: such as touch screens, provide an intuitive operating interface, allowing users to easily perform various controls and settings.
6. Control system: including control logic, algorithms, and strategies, used to achieve precise control of industrial processes.
7. I/O modules and interfaces: used for connecting and exchanging data with external devices such as sensors, actuators, etc. These modules can convert signals from external devices into digital signals that the system can recognize, or convert control signals from the system into instructions that external devices can execute.
8. Communication and network equipment: Ensure data communication and information sharing between internal components of the system and between the system and other external systems.
9. Software and firmware: including operating systems, control software, databases, etc., to provide necessary support and guarantees for the normal operation of the system.
