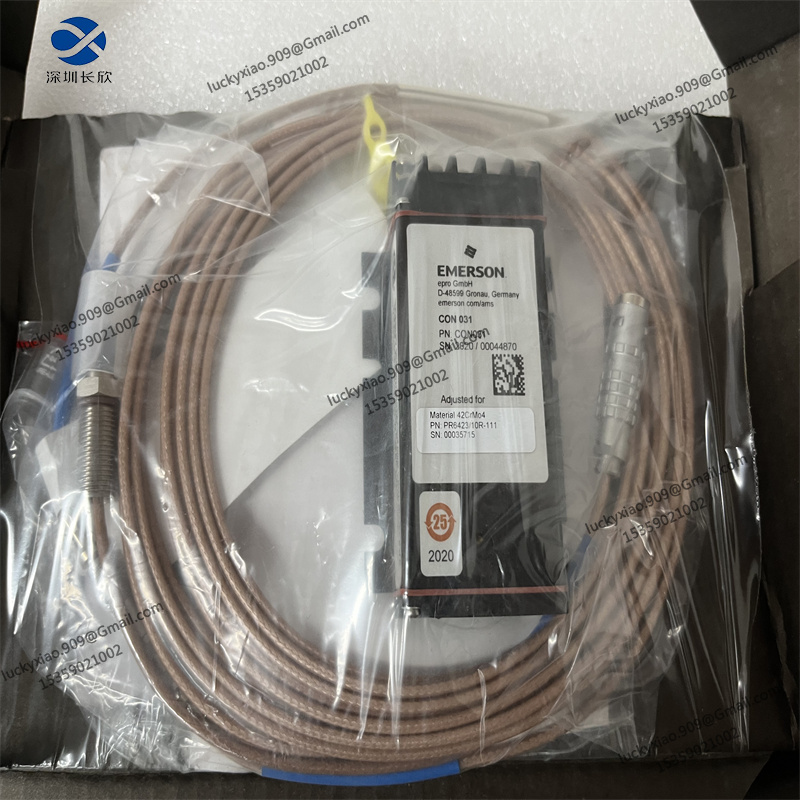

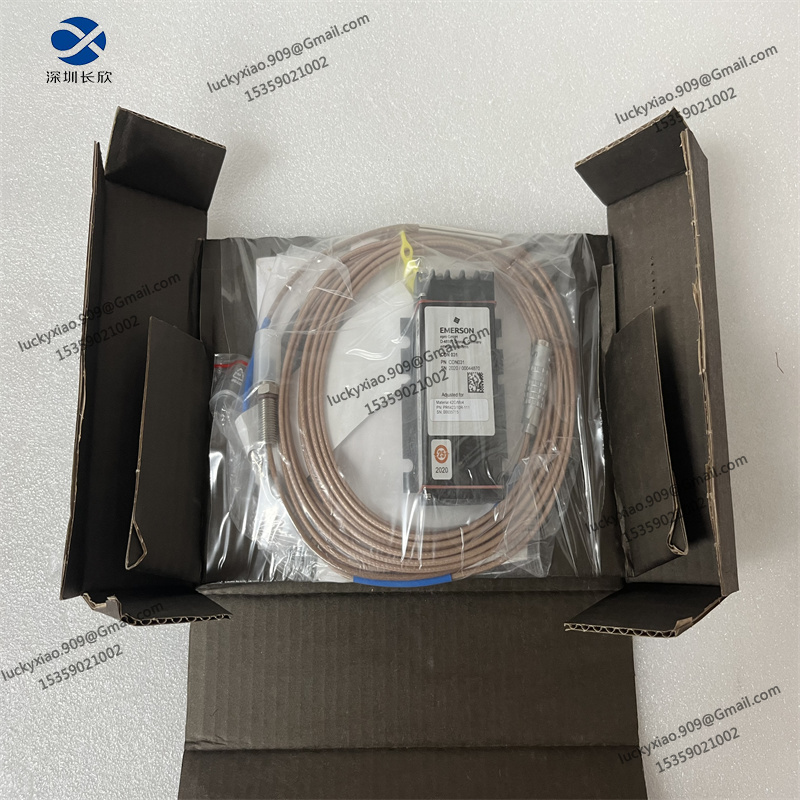

Emerson PR6423/008-110+CON041 is an integrated eddy – current measurement system consisting of the PR6423/008-110 non – contact eddy – current sensor and the CON041 signal converter, tailored for critical turbomachinery monitoring. The PR6423/008 – 110 sensor accurately captures non – contact measurements of radial/axial shaft displacement, position, eccentricity and rotational speed of equipment like turbines and compressors, while the CON041 converter transforms the sensor’s weak impedance change signals into standard – usable electrical signals (-4V to -20V DC). It boasts a 0 – 20,000Hz frequency range and a rise time under 15µs, enabling rapid response to dynamic signal changes, and its ±1% accuracy ensures reliable data input. Withstanding 5g vibration at 60°C and operating stably between -30°C and 100°C with an IP20 protection rating, this rugged system suits harsh industrial settings. It is widely applied in power, petrochemical and energy sectors to monitor steam turbines, compressors and gearboxes, providing crucial data for equipment fault early warning and operational protection.
Emerson’s Ovation system is a distributed control system (DCS) specifically designed for the power generation and water/wastewater treatment industries. As a reliable innovation platform, it provides comprehensive control capabilities and powerful system integration. The main components of Ovation system include:
1. Host: It is the core of the entire system, responsible for data processing, storage, and forwarding, as well as controlling the execution of logic.
2. Screen: It is an interface for users to interact with the system, used to display real-time data, alarm information, trend charts, etc., and allows users to set parameters and control operations.
3. Sound system: Provides sound alarm function. When the system detects abnormal situations or faults, it will emit sound prompts through the sound system, so that operators can respond in a timely manner.
4. Projector: In some applications, it may be used for large screen display, allowing multiple people to simultaneously view system status and operation information.
5. Touch devices: such as touch screens, provide an intuitive operating interface, allowing users to easily perform various controls and settings.
6. Control system: including control logic, algorithms, and strategies, used to achieve precise control of industrial processes.
7. I/O modules and interfaces: used for connecting and exchanging data with external devices such as sensors, actuators, etc. These modules can convert signals from external devices into digital signals that the system can recognize, or convert control signals from the system into instructions that external devices can execute.
8. Communication and network equipment: Ensure data communication and information sharing between internal components of the system and between the system and other external systems.
9. Software and firmware: including operating systems, control software, databases, etc., to provide necessary support and guarantees for the normal operation of the system.
