Introduction to FURUNO 65P3002 PCB CARD

FURUNO 65P3002 Product Introduction

FURUNO 65P3002 PCB Card is a high-reliability printed circuit board card, a key component in FURUNO’s marine navigation and communication equipment series. It is specifically designed to match the brand’s marine radar, echo sounder and navigation systems, serving as a core functional module for signal processing, data transmission and equipment control. The card integrates stable circuit design and industrial-grade electronic components, ensuring accurate signal conversion and real-time data interaction in complex marine environments. With excellent anti-corrosion, anti-vibration and anti-electromagnetic interference capabilities, it can adapt to harsh marine working conditions such as high humidity, salt fog and temperature changes, providing reliable technical support for safe navigation of ships and stable operation of marine equipment.

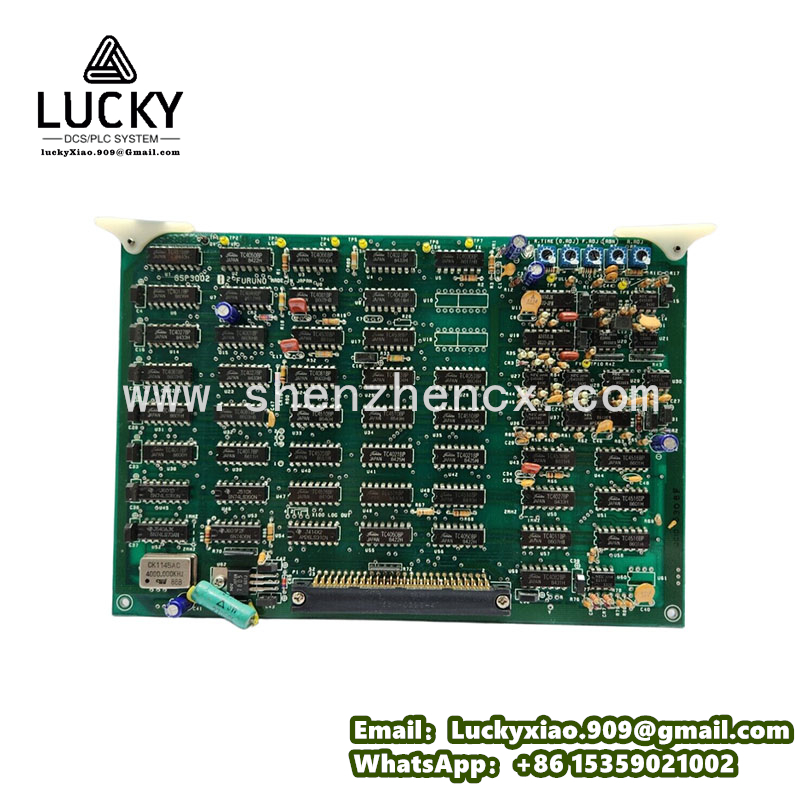

FURUNO 65P3002

FURUNO 65P3002 Technical Specifications

• Product Model: 65P3002
• Product Type: Marine Equipment Matching PCB Card (FURUNO Marine Navigation Series)
• Core Functions: Signal processing and conversion for marine navigation equipment; Real-time data transmission between functional modules; Stable circuit protection and fault self-inspection; Compatible with FURUNO marine radar and echo sounder systems.
• Electrical Parameters: Operating Voltage: 12-24 V DC (marine standard voltage range); Operating Current: Max 2 A; Signal Transmission Rate: Up to 100 Mbps; Working Frequency: 50-60 Hz (industrial standard frequency).
• Environmental Parameters: Operating Temperature: -20°C ~ 70°C; Storage Temperature: -40°C ~ 85°C; Relative Humidity: 5%~95% (non-condensing), salt fog resistant; Vibration Resistance: 10 g RMS (10-2000 Hz).
• Mechanical & Other Parameters: Dimensions (approx.): 150mm×100mm×15mm (standard PCB size); Weight: About 0.15 kg; Material: Corrosion-resistant PCB substrate; Compliance with marine equipment industry standards.

Recommended FURUNO Same-Series Models

1. 03P9565: Marine radar matching PCB card, specialized in radar signal receiving and processing.
2. 03P9244-I: Modulation function PCB card, suitable for FURUNO marine communication equipment.
3. 03P9335B: IF circuit PCB card, optimized for intermediate frequency signal processing of marine radar.
4. 10P6611-01: Marine navigation system PCB card, supporting real-time navigation data transmission.
5. 65P3003: Enhanced version of 65P3002, with improved anti-interference performance for harsh marine environments.
6. 04P7822: Echo sounder matching PCB card, specialized in underwater depth signal processing.
7. 10P6602: Marine GPS navigation PCB card, facilitating satellite positioning signal conversion.
8. 03P9411: VHF radio communication PCB card, ensuring stable marine short-distance communication.
9. 65P3001: Entry-level matching PCB card, cost-effective for basic marine equipment signal processing.
10. 05P8233: Marine satellite communication PCB card, supporting long-distance data interaction at sea.
11. 10P6612: Dual-channel signal processing PCB card, suitable for complex marine navigation systems.
12. 03P9245: Radar display control PCB card, optimizing radar image signal output and display.
13. 65P3004: Low-power consumption PCB card, ideal for marine equipment with limited power supply.
14. 04P7823: Marine depth measurement auxiliary PCB card, improving depth data measurement accuracy.
15. 10P6603: Marine safety alarm system PCB card, supporting real-time fault alarm signal transmission.
