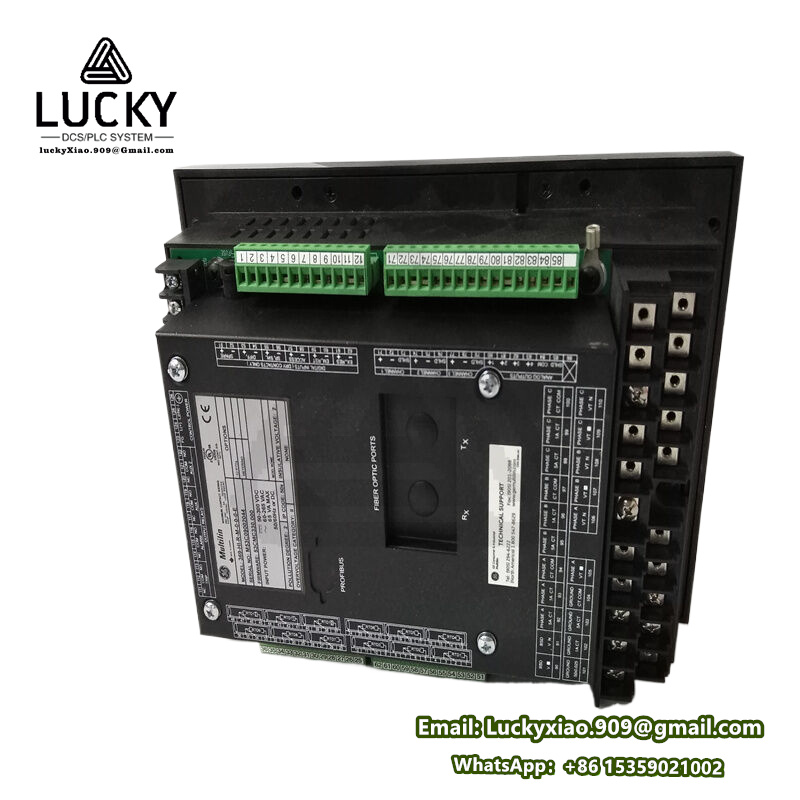

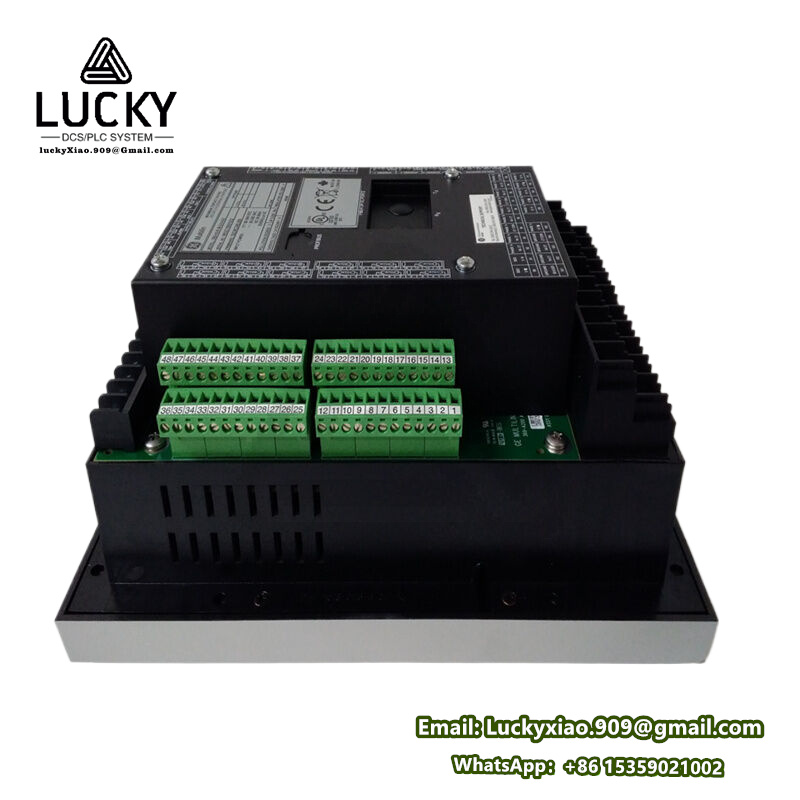

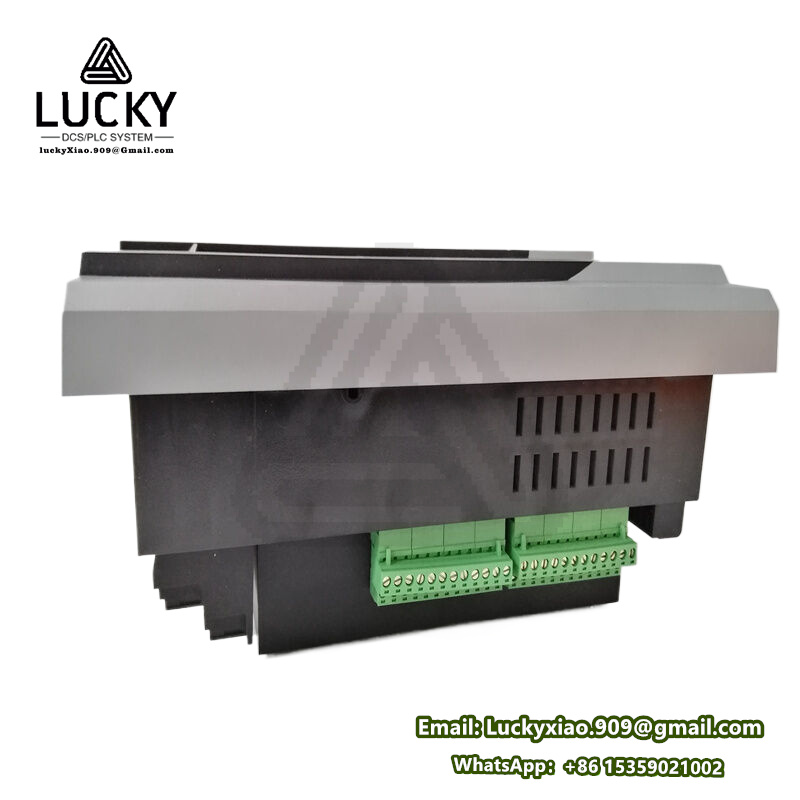

GE Multilin 369-HI-R-0-0-0-0-E – Motor Management Relay (Base Configuration)
- Series: GE Multilin 369 Series (Hi-Tech family).
- Function: Comprehensive protection, monitoring, control, and diagnostics for medium-voltage and high-voltage motors.
- Primary Role: Prevents motor damage by detecting faults (overload, stall, phase imbalance, ground fault, etc.), provides critical operational data, and enables control sequences.
- Key Features:
- Advanced Protection: Extensive suite of ANSI/IEEE-protected functions (see parameters).

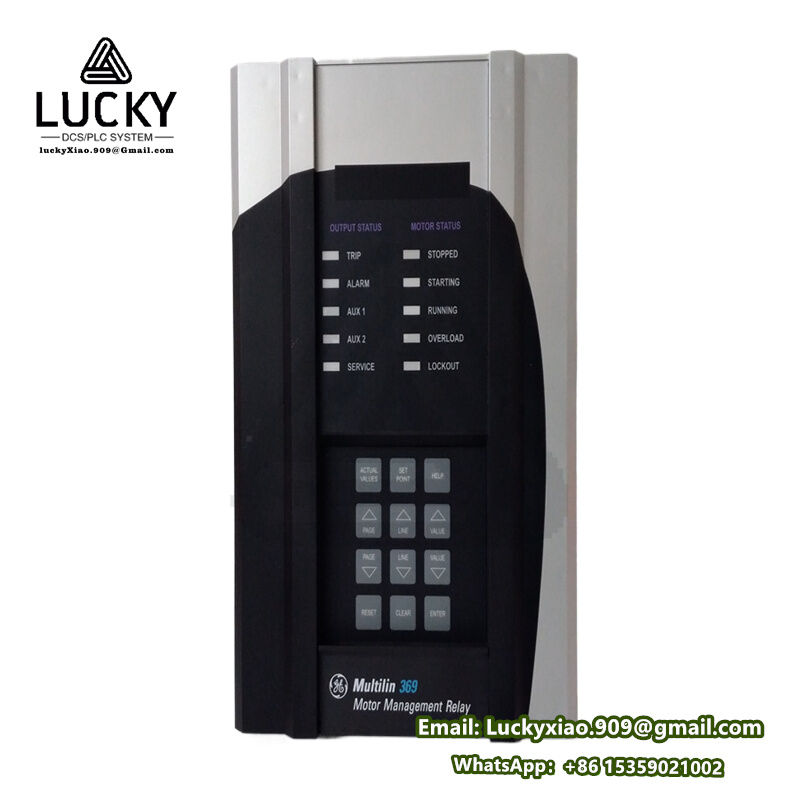

- Integrated Human Interface (HI): Front-pallet mounted LCD display and keypad for local configuration, monitoring, and control (indicated by “HI”).
- Form Factor: Standard “R” relay chassis for panel mounting.
- Robust Control: 8 programmable output relays, 9 digital inputs.
- Enhanced Monitoring: Real-time measurements (currents, voltage, power, energy, power factor, frequency, thermal capacity), oscillographic capture (up to 64 cycles), event recording (> 100 events).
- Motor Diagnostics: Starts/hour, starts between cooling, thermal capacity used, stall acceleration time, load profile, unbalance severity.
- Modular Design: Supports optional communication modules (Modbus, Ethernet, Profibus DP, DeviceNet, Genius Bus) but none included in this suffix.
- Flexible Logic: Programmable scheme logic (FlexLogic™).
- Multiple Setpoints: 4 protection groups with multiple setting banks.
- Self-Diagnostics: Continuous hardware and software monitoring.
- Purpose: To maximize motor reliability, minimize downtime, prevent catastrophic failure, optimize performance, and provide critical data for maintenance planning.
- Applications & Use Cases:
- Protecting critical motors (pumps, fans, compressors, conveyors, crushers).
- Monitoring motor health and efficiency.
- Sequencing motor start/stop (across-the-line, soft-start, reduced voltage).
- Ground fault protection.
- Locked rotor / stall protection.
- Jam protection.
- Undercurrent (loss of load) protection.
- Application Fields:
- Power Generation (boiler feed pumps, ID/FD fans, cooling water pumps).
- Oil & Gas (offshore platforms, pipelines – compressors, pumps).
- Mining & Metals (crushers, conveyors, mills).
- Water & Wastewater (large pumps, aeration blowers).
- Pulp & Paper (refiners, conveyors, pumps).
- Chemical Processing (mixers, reactors, compressors).
GE Multilin 369-HI-R-0-0-0-0-E Product Parameters & Specifications
|
Parameter Category
|
Parameter
|
Specification / Value
|
Notes
|
|---|---|---|---|
|
General
|
GE Part Number
|
369-HI-R-0-0-0-0-E
|
Suffix Decoder:
HI=Human Interface, R=Relay Chassis, 0-0-0-0=No Comm Options, E=Std AC/DC |
|
|
Device Type
|
Motor Management Relay
|
|
|
|
Series
|
Multilin 369 Series (Hi-Tech)
|
|
|
Human Interface (HI)
|
Interface Type
|
Integrated LCD Display & Keypad
|
Mounted on removable front pallet
|
|
Physical
|
Form Factor
|
“R” Relay Chassis
|
Standard panel mounting (19″ rack compatible options exist)
|
|
|
Dimensions (H x W x D)
|
Approx. 355 mm x 218 mm x 220 mm (14″ x 8.6″ x 8.7″)
|
Excludes mounting hardware & wiring space
|
|
Inputs/Outputs (I/O)
|
Digital Inputs
|
9 programmable DC inputs
|
Configurable voltage range (24-250V DC typical)
|
|
|
Output Relays
|
8 programmable Form-C (SPDT) relays
|
Contact Rating: 5A @ 250V AC / 30V DC
|
|
|
Analog Output (Optional)
|
None in this suffix
|
Requires
-A suffix option |
|
Protection Functions
|
Primary Protection
|
Overload (Thermal Model), Locked Rotor / Stall, Jam, Short Circuit (Inst. Phase), Start Protect
|
All based on ANSI/IEEE numbers
|
|
|
|
Phase Unbalance / Loss, Ground Fault (Inst., Def. T, Dir.), Undercurrent / Load Loss
|
|
|
|
|
Under/Over Voltage, Under/Over Frequency, Negative Sequence Overload
|
|
|
|
|
RTD Biasing (Requires RTD Module), Broken Rotor Bar Detection
|
|
|
Monitoring & Metering
|
Electrical Measurements
|
True RMS Phase & Ground Currents, Voltage (LL/LN), Power (kW, kVAR, kVA, PF), Energy
|
Voltage input requires optional VT module
|
|
|
|
Frequency, Motor Thermal Capacity (%)
|
|
|
|
Motor Diagnostics
|
Starts/Hour Counter, Starts Between Cooling Counter, Run Time
|
|
|
|
Recording
|
Event Records: >100 time-stamped events with oscillography
|
|
|
|
|
Oscillographic Capture: Up to 64 cycles pre/post-trigger
|
|
|
|
|
Trip History: Last 8 trips
|
|
|
Power Supply
|
Supply Voltage (Std
E) |
AC: 100-240V AC / 50-60Hz, DC: 100-250V DC
|
“E” suffix indicates standard AC/DC supply
|
|
|
Power Consumption
|
Typically < 15 VA / 20 W
|
|
|
Communications
|
Front Port
|
USB (Type-B) for connection to EnerVista SR3 software
|
Standard
|
|
|
Rear Ports
|
None in this suffix (
0-0-0-0) |
Requires separate Comm Module suffix option (e.g.,
-M=Modbus RTU, -E=Modbus TCP/IP) |
|
Environmental
|
Operating Temperature
|
-20°C to +60°C (-4°F to +140°F)
|
|
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to +185°F)
|
|
|
|
Humidity
|
5% to 95% non-condensing
|
|
|
Standards & Certs
|
Safety
|
UL 508, CSA C22.2 No. 14, CE Marked
|
|
|
|
EMC
|
EN 61000-6-2, EN 61000-6-4, EN 61000-4 (Level 3/4 Surge, EFT, ESD)
|
|
|
|
Environmental
|
EN 60068-2 (Shock, Vibration)
|
|
Key Suffix Interpretation Notes for -0-0-0-0-E:
- 1st
0: No Option 1 (e.g., No Arc Flash Detection Module). - 2nd
0: No Option 2 (e.g., No Profibus DP Module). - 3rd
0: No Option 3 (e.g., No DeviceNet Module). - 4th
0: No Option 4 (e.g., No Genius Bus Module). E: Standard AC/DC Power Supply (100-240V AC / 100-250V DC).
