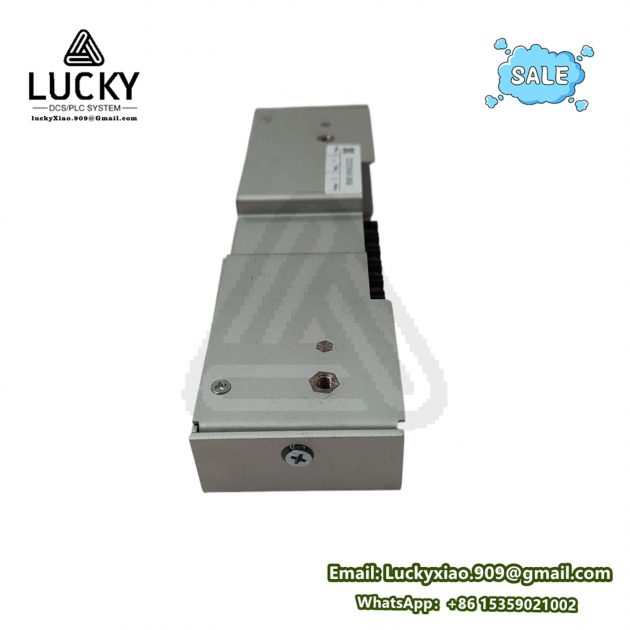

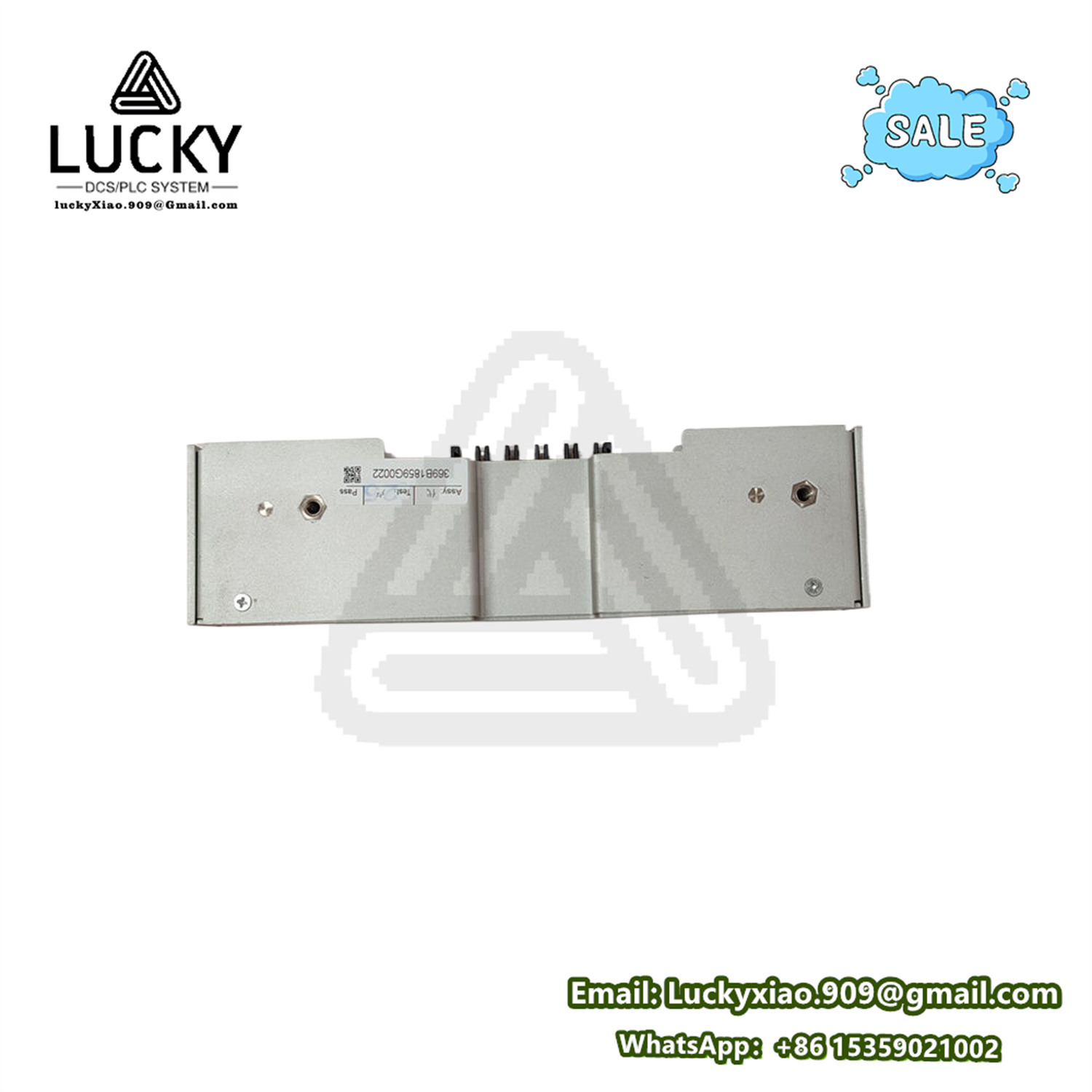

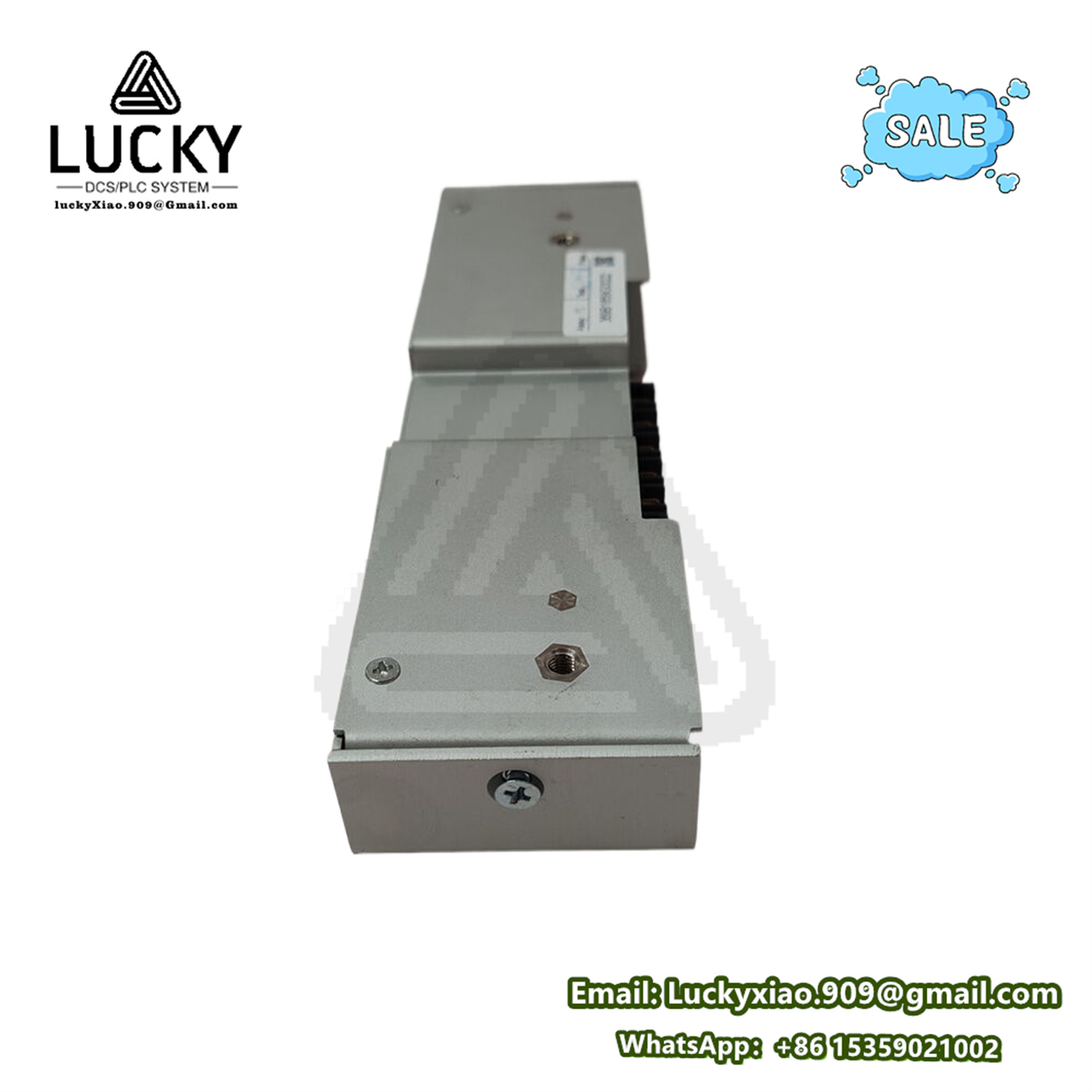

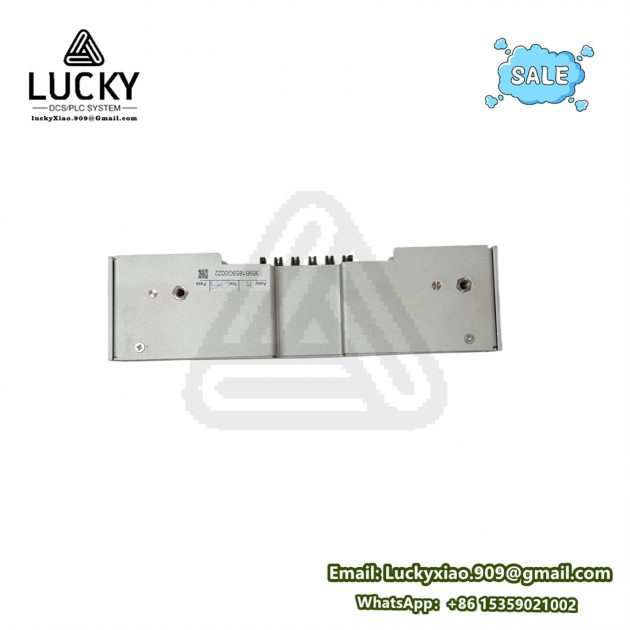

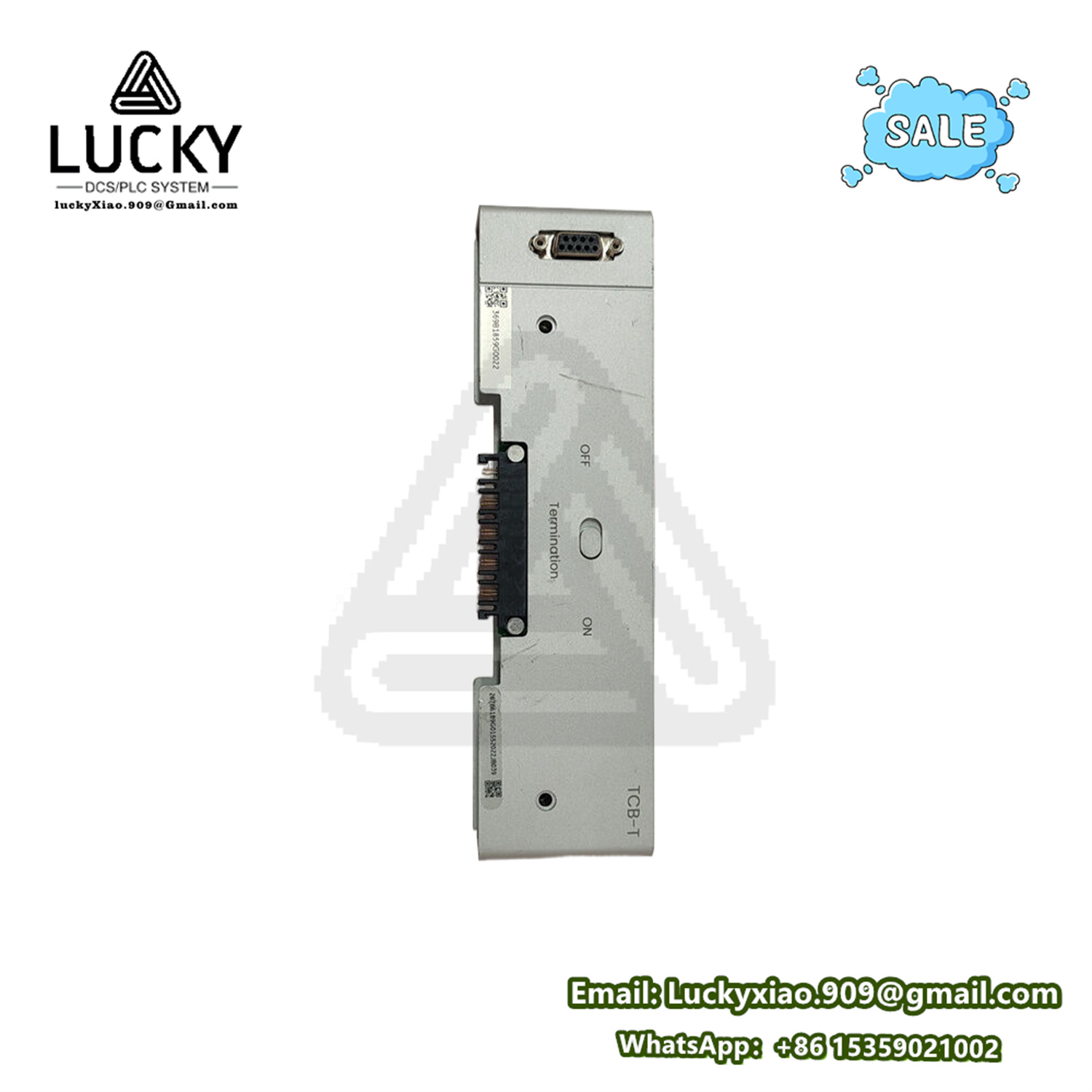

GE 369B1859G0022 Digital motor management relay component
GE 369B1859G0022 Technical Specification
Specification
|
Attribute
|
Detail
|
|---|---|
|
Part Number
|
|
|
Manufacturer
|
General Electric (GE)
|
|
Series
|
Multilin™ 369
|
|
Country of Origin
|
Canada
|
|
Function
|
Motor Management Relay (Advanced Protection & Control)
|
Description
The GE 369B1859G0022 is a digital motor management relay from GE’s Multilin 369 series, designed for comprehensive protection and control of medium-voltage induction motors (500V–15kV). It integrates 51-phase/ground protection, thermal modeling, vibration monitoring, and startup supervision with Modbus RTU/DNP3 connectivity. Features programmable logic (FlexLogic™), waveform capture, and HMI with 8-line LCD display.
Features
- Multi-Tier Protection:
- Thermal overload (I²t, RTD/bi-metallic simulation)
- Stalling protection (2-stage)
- Unbalance/undercurrent (<5% FLA)
- Jam detection & acceleration timer
- Advanced Monitoring:
- Real-time vibration (4–20mA input)
- Starts-per-hour/cycle lockout
- Power quality metrics (kW, PF, THD)
- Control Capabilities:
- Programmable 12× FlexLogic equations
- Dry-contact I/O (6× IN / 4× OUT)
- SCR-based bypass control for soft starters
- Communications:
- Dual RS-485 (Modbus RTU/DNP3.0)
- USB Type-B for local configuration
Electrical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Voltage Range
|
85–265V AC/DC (auto-sensing)
|
|
Current Inputs
|
5A nominal (1A optional), Class 10 accuracy
|
|
Burden
|
<0.1VA per phase
|
|
RTD Inputs
|
3× 100Ω platinum (3-wire)
|
|
Relay Outputs
|
5A @ 250V AC (resistive)
|
|
Operating Temp
|
-40°C to +70°C
|
Product Properties
|
Property
|
Specification
|
|---|---|
|
Display
|
128×64 pixel LCD with backlight
|
|
Enclosure Rating
|
IP52 (front)/IP20 (rear)
|
|
Compliance
|
UL 508, IEC 60255-27, IEEE C37.90
|
|
Communication Protocols
|
Modbus RTU, DNP3.0, GE SRTP
|
|
Certifications
|
ATEX/IECEx Zone 2, DNV-GL marine
|
|
Dimensions
|
144 × 144 × 173 mm (5.7 × 5.7 × 6.8 in)
|
|
Weight
|
1.8 kg (4.0 lbs)
|
Performance Metrics
|
Metric
|
Value
|
|---|---|
|
Trip Response Time
|
<20 ms (phase faults)
|
|
Thermal Model Accuracy
|
±3% (motor thermal capacity)
|
|
Waveform Capture
|
128 cycles @ 64 samples/cycle
|
|
Memory
|
100 event records (+256 SOE)
|
|
Clock Accuracy
|
±2 s/month (battery-backed)
|
Key Applications
- Critical Motor Protection:
- Crushers, compressors, pumps >500 HP
- Conveyor systems in mining
- Refinery HV motors (API 541 compliance)
- Energy Management:
- Load shedding during underfrequency
- Power factor correction control
- Predictive Maintenance:
- Winding temp trending (RTD)
- Vibration spectrum analysis
⚠️ Critical Integration Notes:
- CT Requirements: Use 5P10 class CTs with ≤2.5VA burden for accurate protection.
- Vibration Setup: Requires piezoelectric sensor (4–20mA) with independent 24V DC supply.
- Lockout Logic: Configure “Critical Start Inhibit” for >2 consecutive start failures.
- Firmware Version: Must be ≥V4.0 for DNP3 secure authentication (IEC 62351).
- Grounding: Single-point star grounding mandatory – noise immunity drops >50V CMV.
- Bypass Control: Time delay must exceed starter transition time by ≥150 ms.
