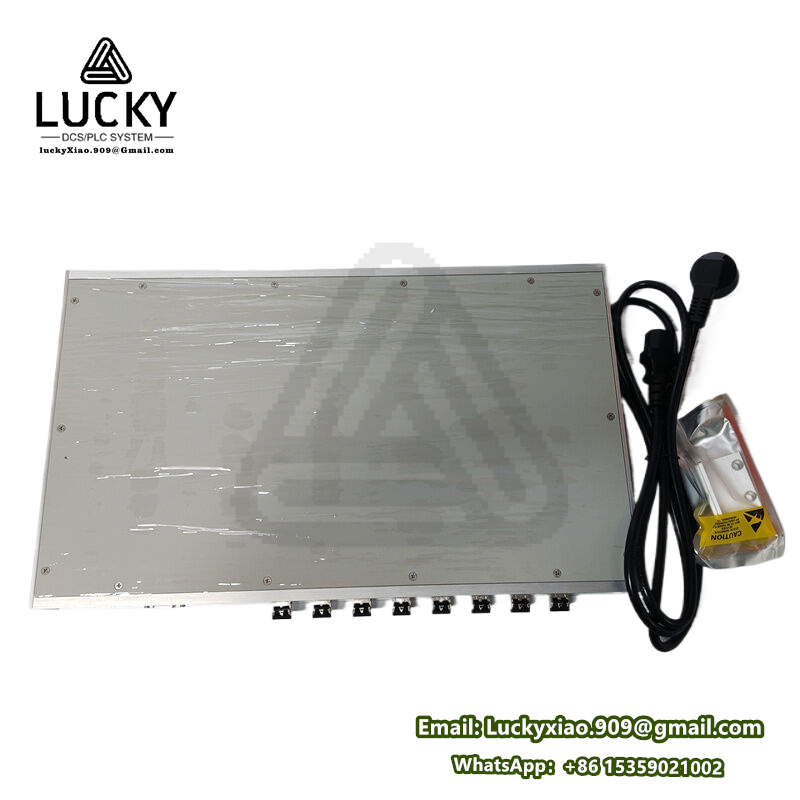

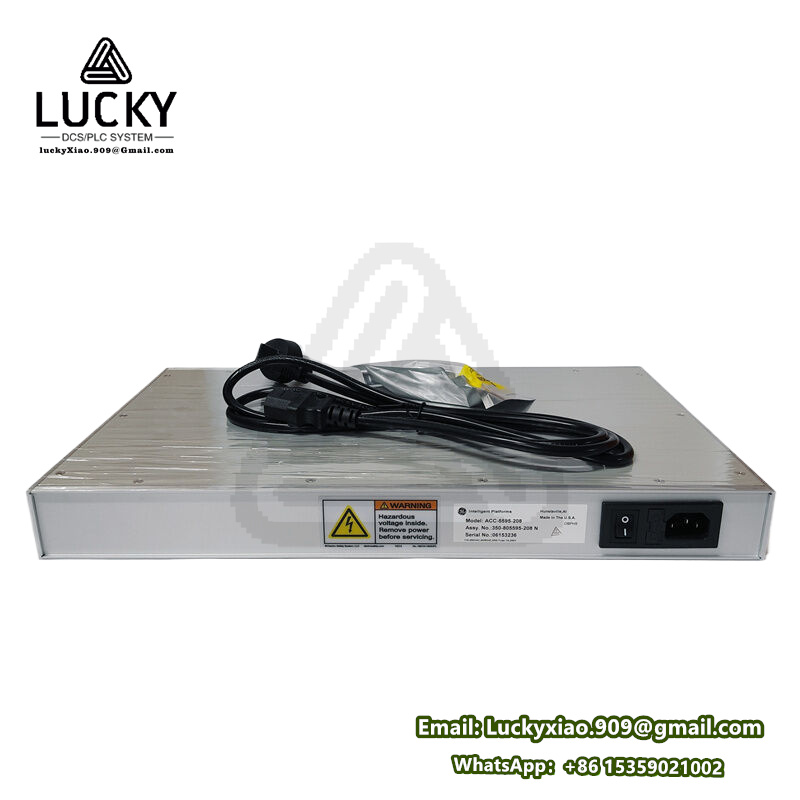

GE ACC-5595-208 Industrial Control Module
1. Product Description
GE ACC-5595-208 is an industrial-grade analog input control module from GE, designed to collect and process analog signals from sensors in industrial automation systems. It’s ideal for use in factory control panels, process monitoring (e.g., water treatment, oil & gas), and HVAC systems—scenarios where real-time data from analog sensors (like temperature, pressure, or flow sensors) needs to be reliably sent to a central controller (e.g., PLC, DCS).
What makes it practical:
- Analog Signal Collection: Reads multiple 4-20mA analog signals (common in industrial sensors) and converts them into digital data for controllers to process. This lets you monitor multiple sensors with one module, saving space.
- Easy to Integrate: Works with GE’s industrial control systems (and most standard PLCs) via simple wiring—no complex programming required. It also has clear LED lights to show if sensors are connected and working.
- Durable for Industrial Use: Built with a tough metal housing that resists dust, vibration, and mild moisture. It works reliably in busy factory floors or outdoor control cabinets with wide temperature changes.
It’s perfect for monitoring multiple pressure sensors in a water treatment plant, or temperature sensors in a factory’s heating system—all needing accurate, real-time data for safe operation.
2. Key Technical Specifications
|
Parameter Category
|
Specific Details
|
|
Analog Input Channels
|
8 channels (each supports 4-20mA DC)
|
|
Input Accuracy
|
±0.1% of full scale
|
|
Signal Isolation
|
500V AC (between channels and power)
|
|
Power Supply
|
208V AC (190V-230V AC wide range)
|
|
Operating Temperature
|
-10°C to +60°C
|
|
Mounting
|
DIN rail (35mm standard) / panel mount
|
|
Size (W×H×D)
|
35mm×120mm×90mm
|
|
Certifications
|
IEC 61010-1, UL 508, CE
|
3. System Integration
The ACC-5595-208 acts as a “sensor data bridge” in industrial systems:
- Signal Collection: Connects to 8 analog sensors (e.g., 4 pressure sensors + 4 temperature sensors) at once. It collects their 4-20mA signals and turns them into digital data that a PLC or DCS can understand.
- Data Reliability: Has built-in noise filtering to reduce electrical interference from nearby motors or power cables. This ensures the data sent to the controller is accurate, avoiding wrong control decisions (e.g., overheating a machine).
- Simple Setup: Uses standard industrial wire (1.0-2.5mm²) for sensor and power connections. It can be added to existing control panels in minutes, without rewiring the entire system.
- Status Monitoring: LEDs next to each input channel show if a sensor is connected (green) or if there’s a signal error (red)—making it easy to fix issues (e.g., a red light = check sensor wiring).
4. Related Models in the Same Series
|
Model
|
Key Differences & Uses
|
|
GE ACC-5595-24V
|
Power supply: 24V DC (instead of 208V AC) – for DC-powered systems (e.g., portable control kits, battery-backed setups).
|
|
GE ACC-5596-208
|
16 analog input channels (instead of 8) – for large systems needing to monitor more sensors (e.g., oil refinery process lines).
|
|
GE ACC-5595-010
|
Input type: 0-10V DC (instead of 4-20mA) – for sensors that use voltage signals (e.g., some flow meters, light sensors).
|
|
GE ACC-5595-ISO
|
Higher isolation (2kV AC) – for high-noise industrial areas (e.g., power plants, heavy machinery) needing stronger interference protection.
|
|
GE ACC-5597-208
|
Combined analog input (4 channels) + digital output (4 channels) – for systems that need to collect sensor data and control small devices (e.g., relays, valves).
|
|
GE ACC-5595-WIDE
|
Wide temperature range (-40°C to +70°C) – for cold storage facilities or high-heat areas (e.g., steel mills, glass factories).
|
|
GE ACC-5595-COMM
|
Built-in RS485 communication – for remote monitoring of sensor data via a central HMI (e.g., factory control rooms).
|
