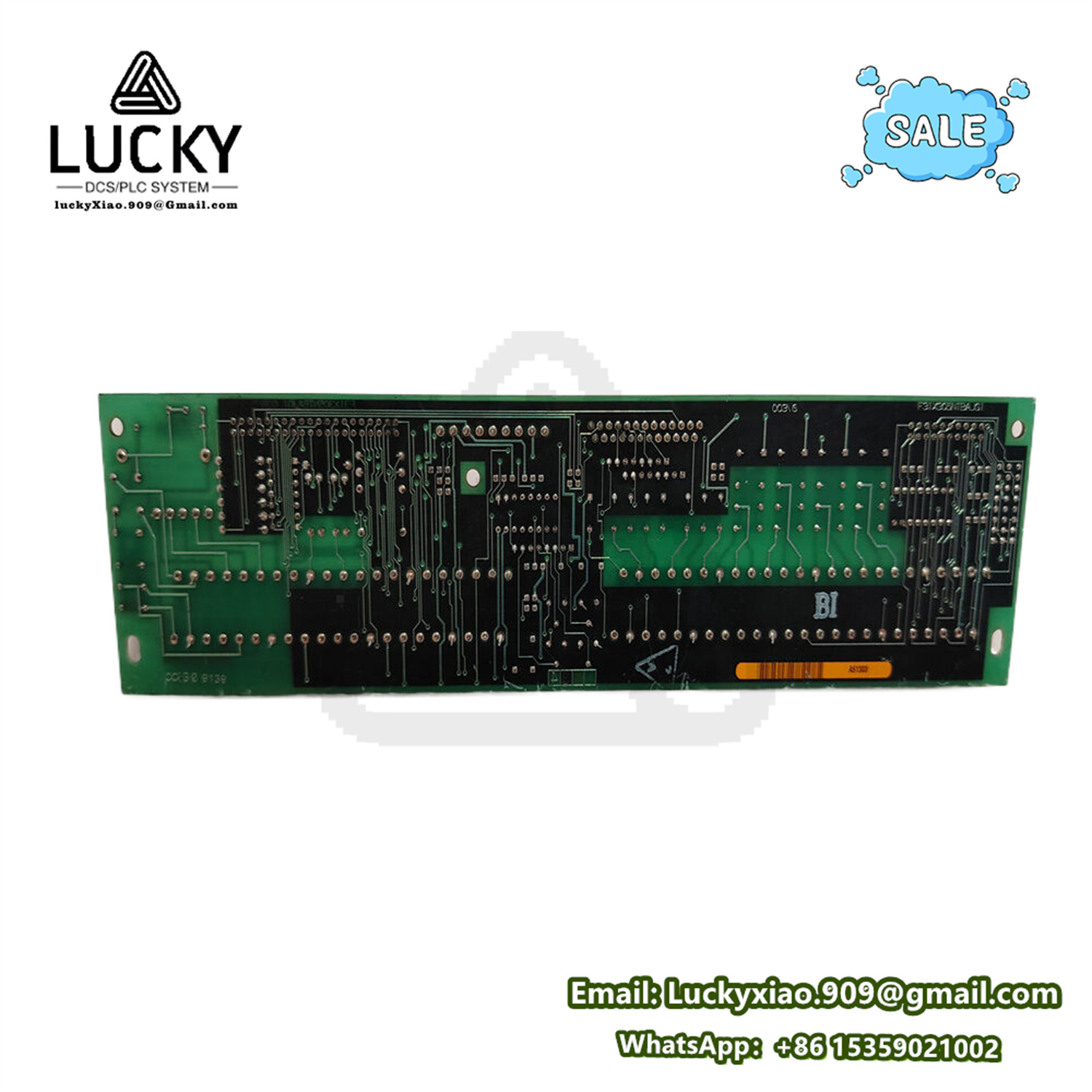

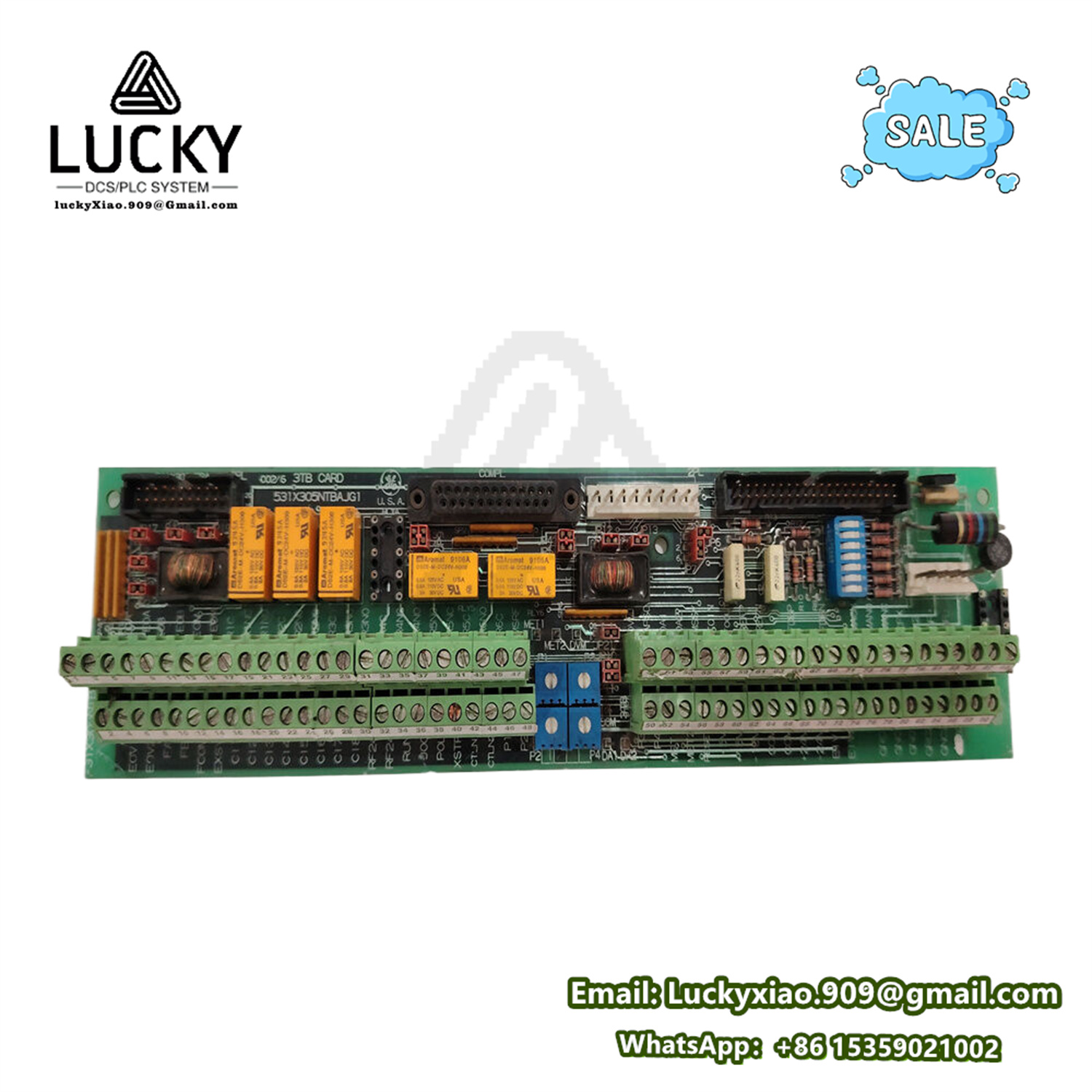

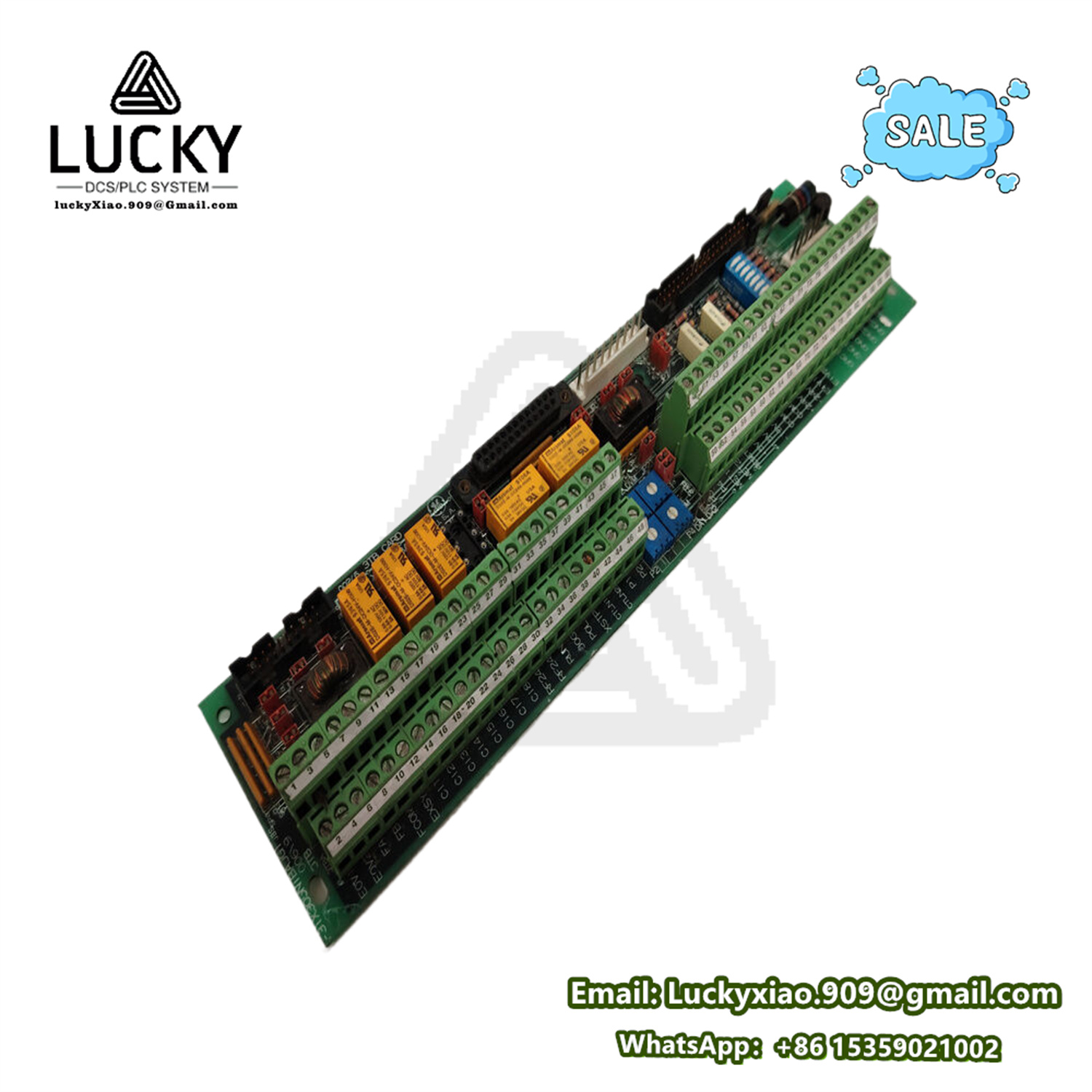

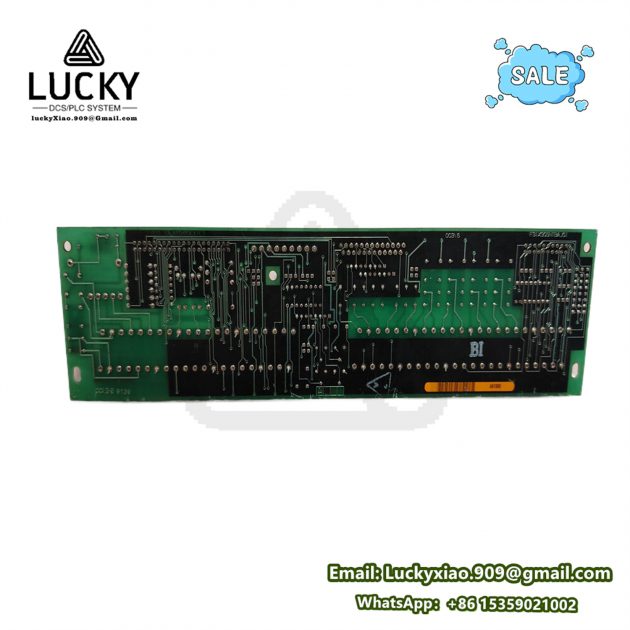

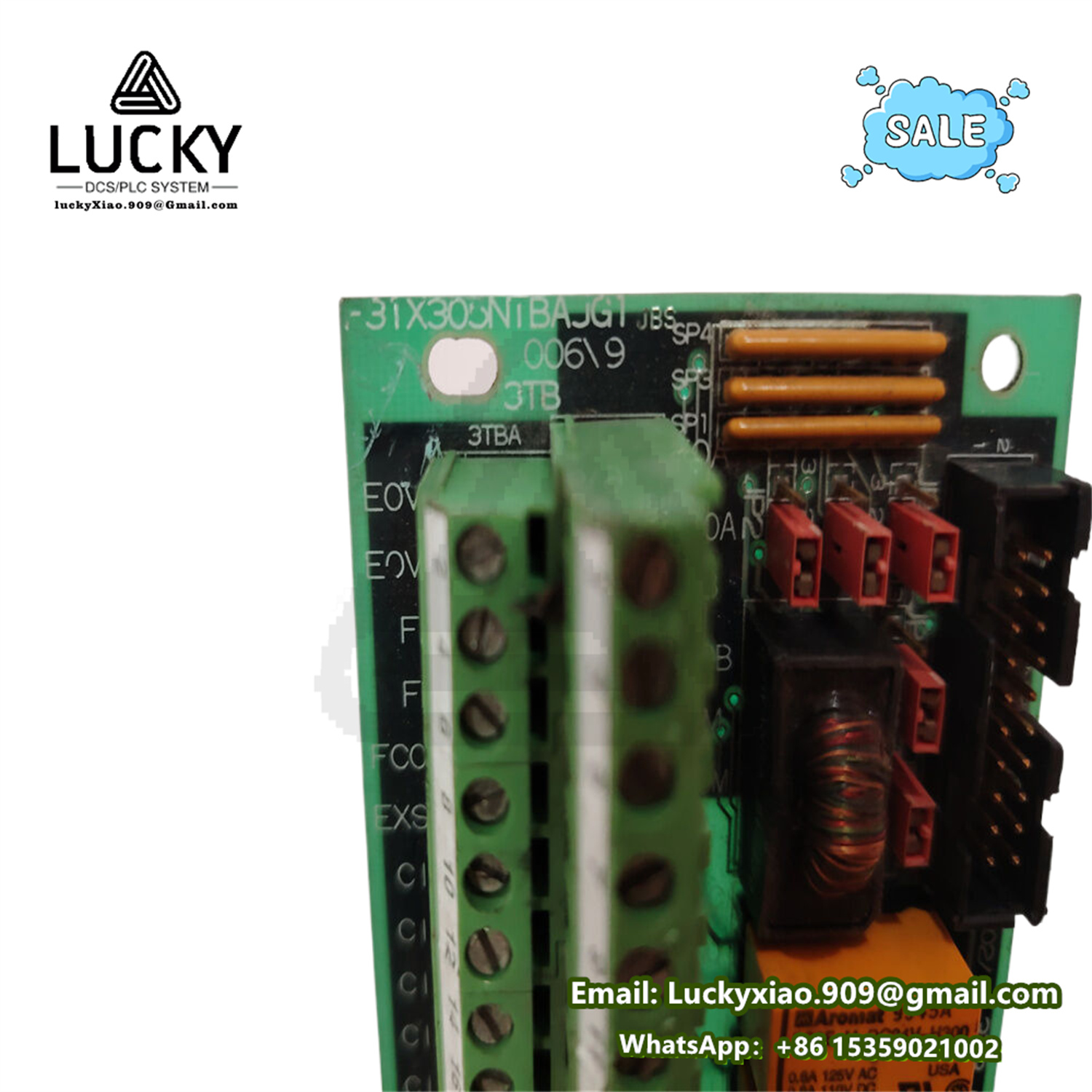

GE Electric | 531X305NTBAJG1 | Thermocouple Input Module
Product Description:
The GE 531X305NTBAJG1 is a High-Density Thermocouple Input Module for the PACSystems™ RX3i PLC platform. It provides isolated temperature monitoring for industrial processes by converting thermocouple signals (mV) into digital values, supporting real-time control and safety interlocks.
Product Parameters / Specifications (531X305NTBAJG1):
|
Feature
|
Specification / Description
|
|---|---|
|
Manufacturer
|
GE Intelligent Platforms (Emerson)
|
|
Series
|
PACSystems™ RX3i (IC695 Series)
|
|
Part Number
|
531X305NTBAJG1
|
|
Module Type
|
Analog Input (Thermocouple)
|
|
Channels
|
16 channels (differential, individually isolated)
|
|
Supported Sensors
|
J, K, T, E, N, R, S, B, C thermocouples
|
|
Measurement Range
|
-200°C to +1820°C (varies by thermocouple type)
|
|
Resolution
|
0.1°C
|
|
Accuracy
|
±0.5°C (Type K/J @ 25°C), ±1°C (full range)
|
|
Sampling Rate
|
50 ms per channel (all channels scanned in 0.8s)
|
|
Isolation
|
250V AC channel-to-channel & channel-to-backplane
|
|
Cold Junction Comp.
|
Integrated per-channel with ±1°C accuracy
|
|
Open-Circuit Detection
|
Auto-detection with alarm
|
|
Power Consumption
|
1.2W @ 5V DC (backplane)
|
|
Operating Temp
|
-40°C to +70°C
|
|
Certifications
|
UL, cULus, CE, IEC 61131-2, RoHS
|
Key Features:
- Multi-Type Flexibility – Auto-scales for 9 thermocouple types without jumpers.
- Noise Immunity – 150dB common-mode rejection at 50/60 Hz.
- Lead Resistance Compensation – Eliminates error from long wiring runs.
- Diagnostic Alarms – Reports sensor break, out-of-range, calibration faults.
- Hot-Swap Capable – Replace without system shutdown (RX3i backplane).
- Rack-Optimized – Compact 2-slot width (saves panel space).
Primary Function & Purpose:
Converts low-voltage thermocouple outputs into precise digital temperature data for:
- Real-time monitoring of critical assets (motors, bearings, reactors).
- Over-temperature safety shutdowns (SIL 2 certified logic).
- Predictive maintenance via thermal trend analysis.
Typical Applications:
- Turbine Monitoring – Bearing/oil temperature in gas/steam turbines.
- Industrial Furnaces – Kiln, oven, and heat treatment zone control.
- Power Transformers – Winding temperature protection.
- Chemical Reactors – Exothermic reaction thermal management.
- HVAC Systems – Duct/boiler temperature feedback.
Application Fields:
Deployed in high-precision thermal control systems across:
- Energy: Fossil/nuclear power plants, wind turbine gearboxes.
- Manufacturing: Metal smelting, glass production, plastic extrusion.
- Oil & Gas: Refinery distillation columns, pipeline heaters.
- Pharmaceutical: Sterilization autoclaves, bioreactor monitoring.
