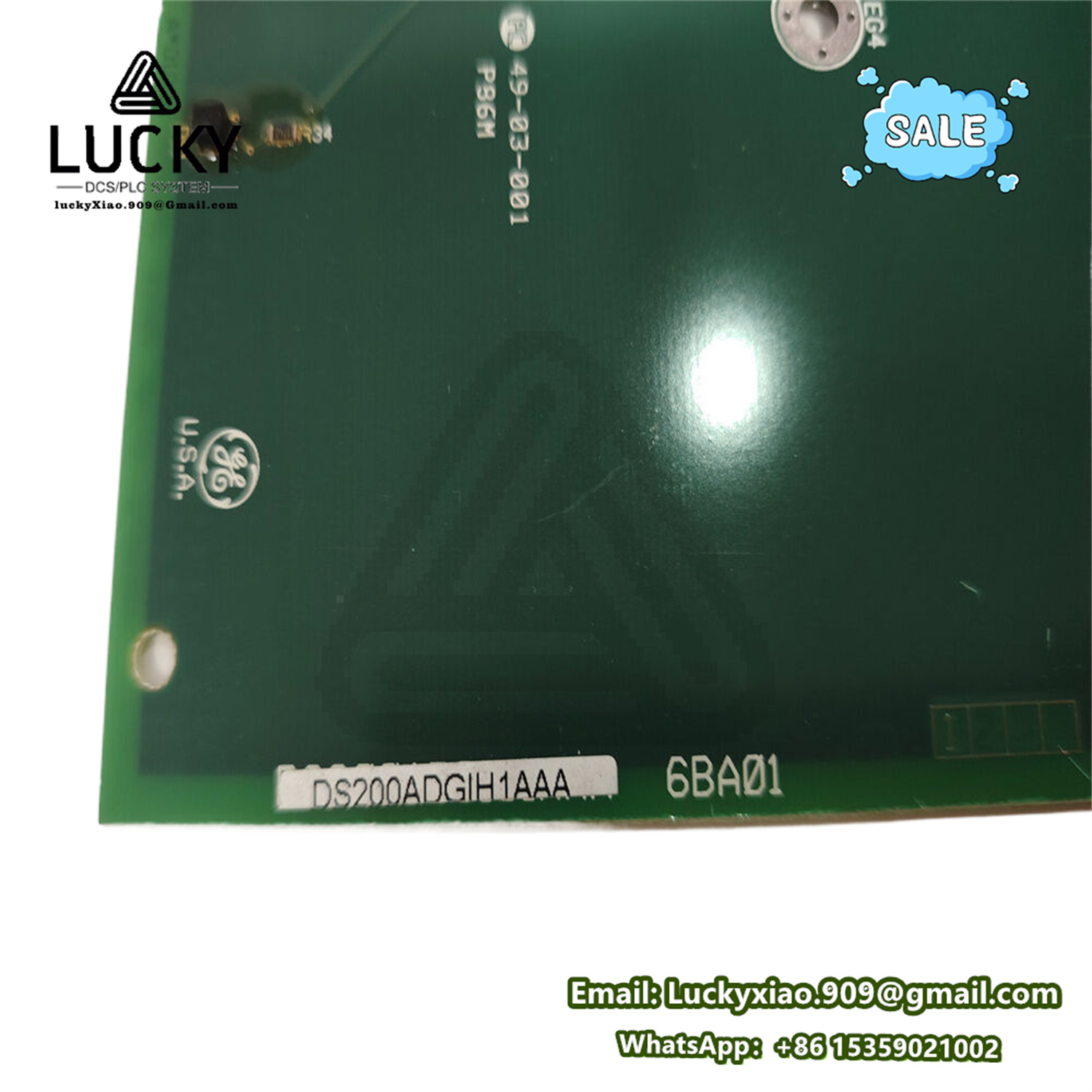

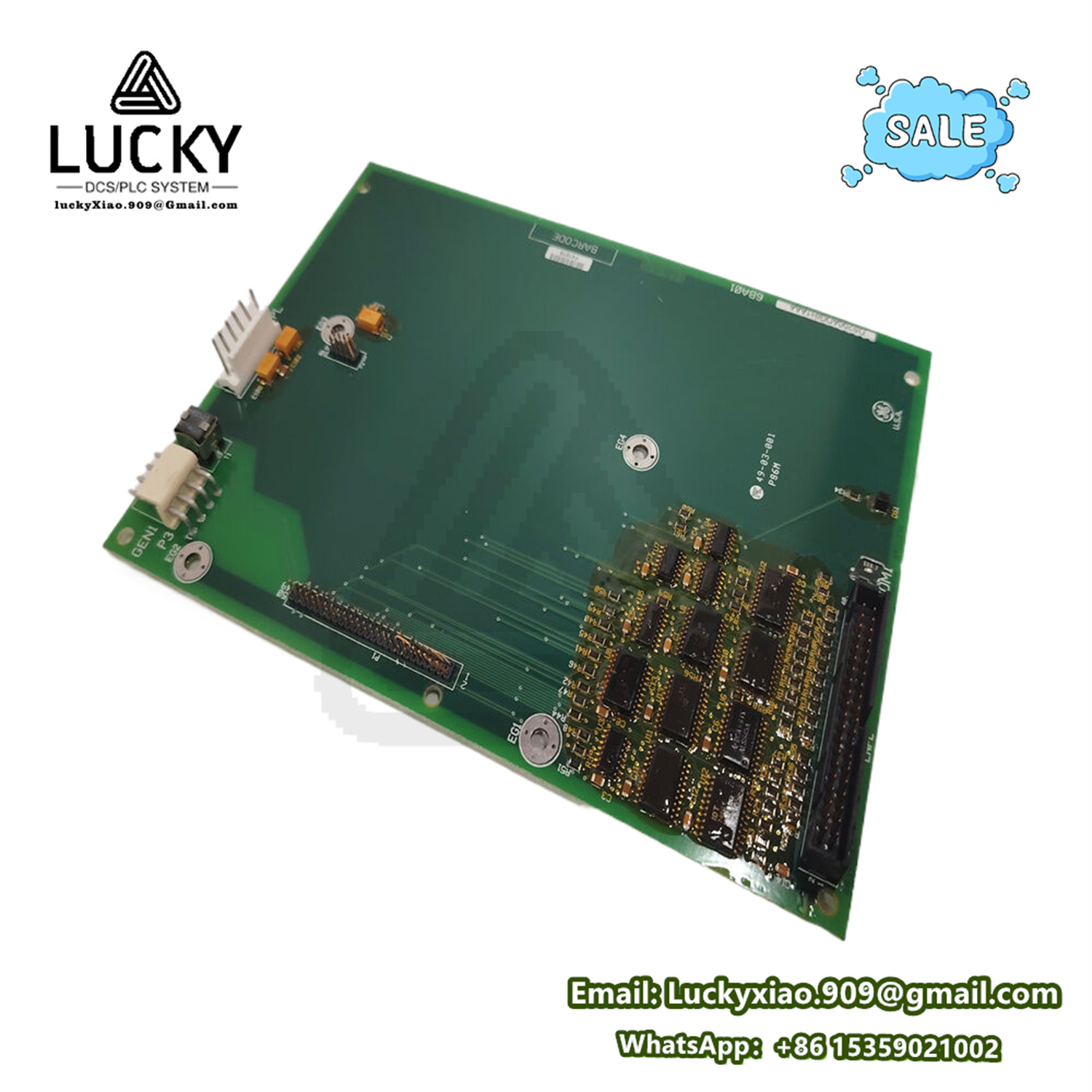

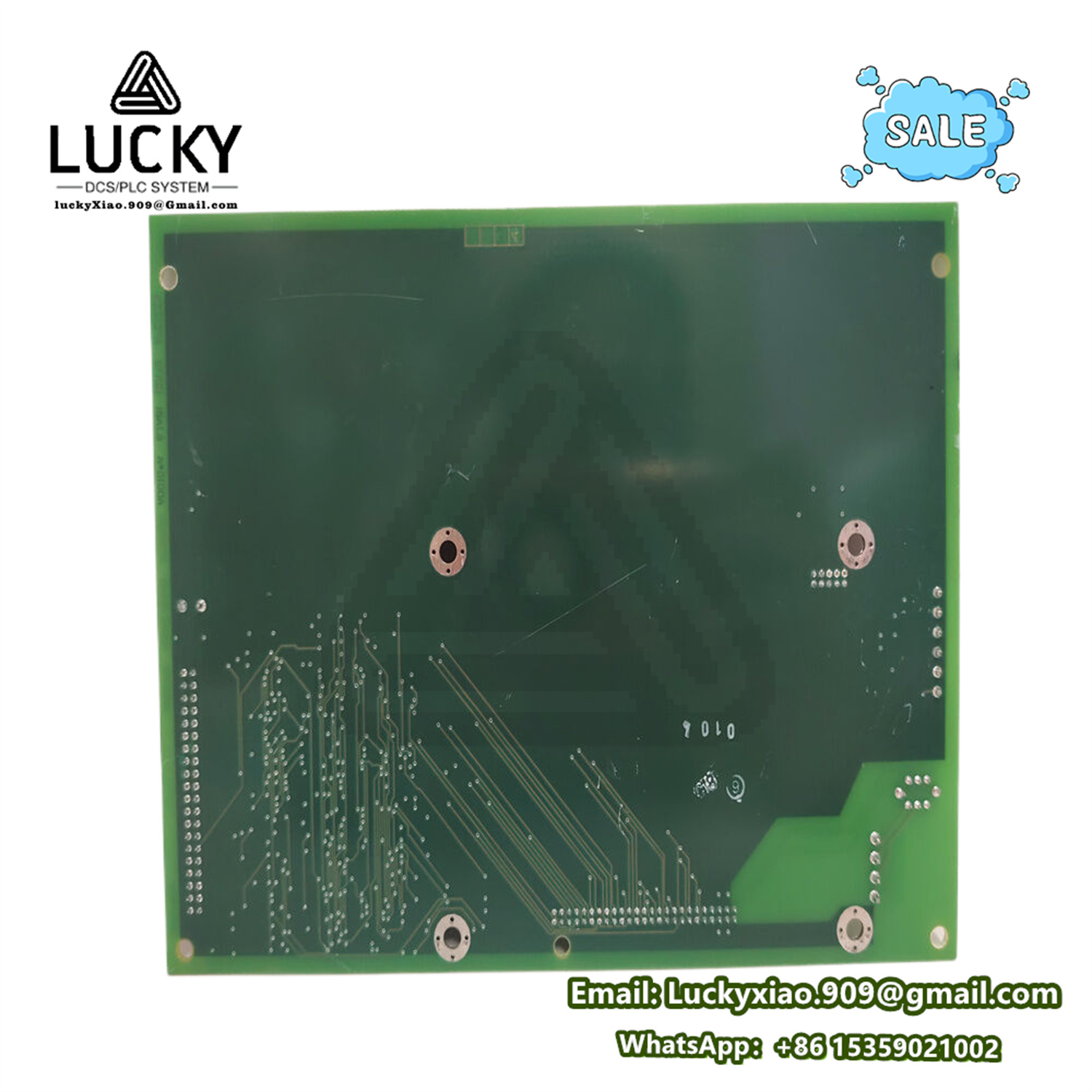

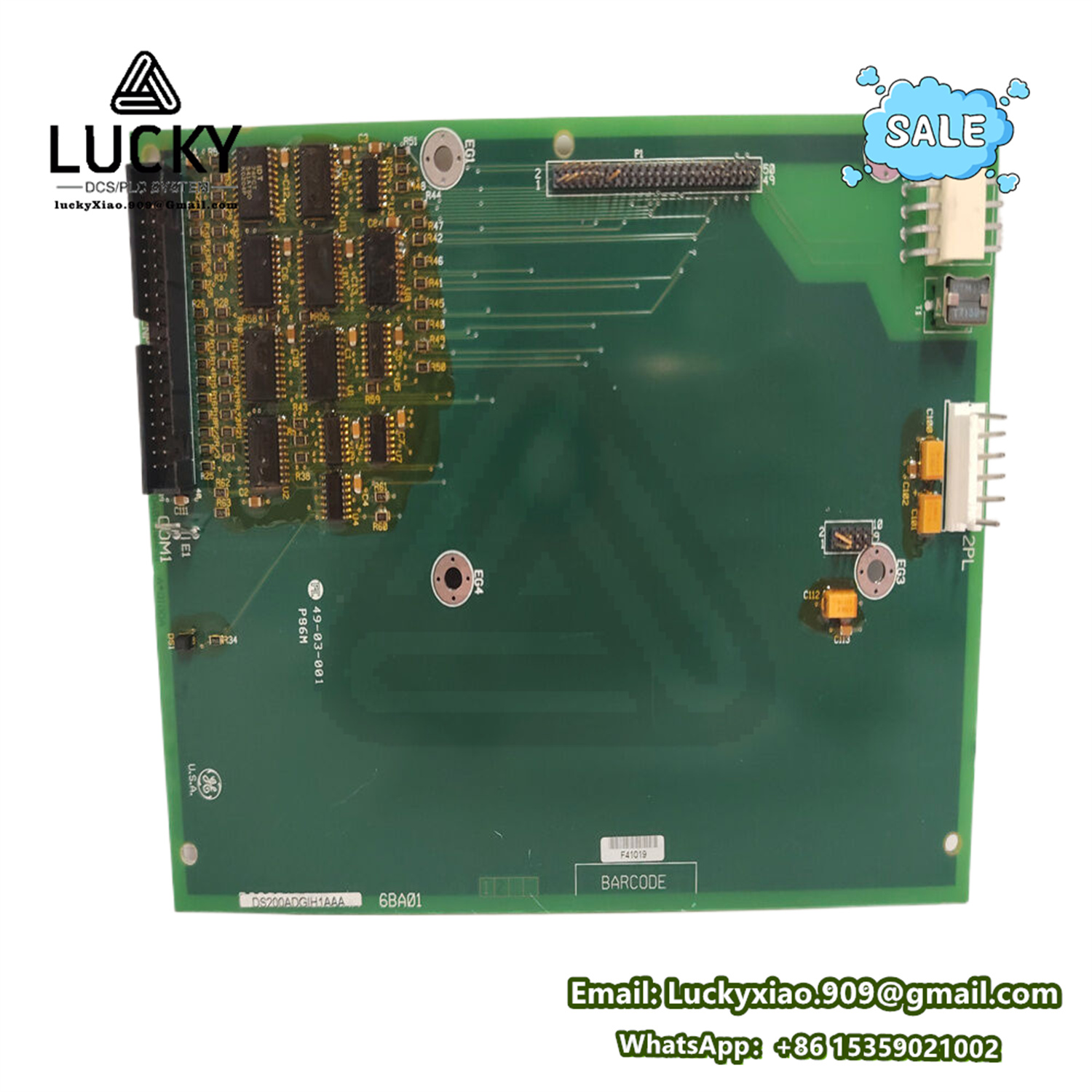

GE Electric | DS200ADGIH1AAA | Generator Excitation Control Interface Module
Product Description:
The GE DS200ADGIH1AAA is a Generator Excitation Control Interface Module designed for Speedtronic™ Mark V turbine control systems. It provides critical signal conditioning, isolation, and monitoring between the turbine controller and generator excitation equipment (e.g., automatic voltage regulators).
Product Parameters / Specifications (DS200ADGIH1AAA):
|
Feature
|
Specification / Description
|
|---|---|
|
Manufacturer
|
GE Energy / GE Industrial Systems
|
|
Series
|
Speedtronic Mark V Turbine Control System
|
|
Part Number
|
DS200ADGIH1AAA
|
|
Module Type
|
Excitation Interface / Analog I/O Card
|
|
Input Signals
|
Generator Field Voltage (0–300 VDC), Field Current (0–10,000 A via Shunt)
|
|
Output Signals
|
Excitation Control (0–10 VDC), Trip Signals (Dry Contact)
|
|
Isolation
|
1500V AC (Channel-to-Backplane)
|
|
Accuracy
|
±0.2% FS (Voltage/Current Measurement)
|
|
ADC Resolution
|
16-bit (Signal Conversion)
|
|
Sampling Rate
|
1 kS/s per Channel
|
|
Overload Protection
|
150% Continuous, 300% for 1s
|
|
Termination
|
Screw Terminal (Field Wiring)
|
|
LED Indicators
|
Power, Fault, Channel Activity
|
|
Power Supply
|
+5 VDC (Backplane), ±15 VDC (Analog)
|
|
Operating Temp
|
-40°C to +70°C
|
|
Compliance
|
UL 508, IEC 61000-6-4 (EMC), IEEE C37.90 (Surge Immunity)
|
|
Safety Rating
|
SIL 2 (IEC 61508) for Excitation Fault Detection
|
Key Features:
- High-Voltage Isolation – Galvanic separation between excitation equipment and control logic.
- Real-Time Monitoring – Tracks generator field voltage/current with <1ms latency.
- Fault Detection – Detects field ground faults, over/under-excitation.
- Redundant Inputs – Dual-channel measurement for critical signals (voting logic).
- Trip Relay Outputs – Hardwired contacts for immediate excitation system shutdown.
- Auto-Calibration – Self-diagnostic routines during startup.
Primary Function & Purpose:
Acts as a secure interface between turbine control and generator excitation systems, ensuring:
- Precise voltage regulation via Automatic Voltage Regulator (AVR) commands.
- Protection against field winding overcurrent/overvoltage.
- Synchronization of generator output with grid frequency.
Typical Applications:
- Generator Excitation Control – Adjusts field current to maintain terminal voltage.
- Protective Relaying – Triggers field breakers during faults (loss-of-field, overfluxing).
- Power Factor Regulation – Manages reactive power (VAR) output.
- Black-Start Support – Controls excitation during grid restoration.
Application Fields:
Critical for grid stability in:
- Power Plants: Gas/steam turbine generators, hydroelectric stations.
- Industrial Cogeneration: Paper mills, chemical plants with self-generation.
- Offshore Platforms: Offshore wind farm collector substations.
- Data Centers: Backup generator excitation management.
