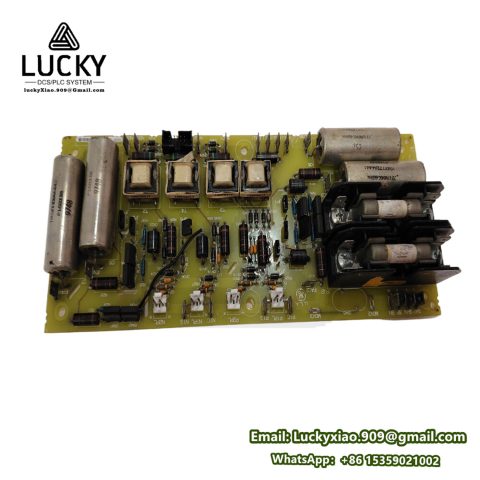

GE Electric | DS200RT8AG3AHC | Relay Output Terminal Board
Product Description:
The GE DS200RT8AG3AHC is a Relay Output Terminal Board for the Mark VI gas/steam turbine control system. It provides configurable relay outputs to interface between the controller and high-power field devices (e.g., actuators, pumps), enabling critical shutdown and safety functions in power generation applications.
Product Parameters / Specifications (DS200RT8AG3AHC):
|
Feature
|
Specification / Description
|
|---|---|
|
Manufacturer
|
GE Power Conversion (formerly GE Industrial Systems)
|
|
Series
|
Mark VI Speedtronic™ Turbine Control System
|
|
Part Number
|
DS200RT8AG3AHC
|
|
Board Type
|
Relay Output Terminal Board
|
|
Channels
|
8 relay channels (Form C contacts)
|
|
Contact Rating
|
5A @ 30VDC / 250VAC (resistive)
|
|
Max. Switching Power
|
62.5W DC / 1250VA AC
|
|
Contact Material
|
Silver Alloy (AgCdO)
|
|
Isolation Voltage
|
1500V AC (channel-to-channel)
|
|
Response Time
|
≤10 ms (operate/release)
|
|
Connection Type
|
Screw terminal blocks (14-22 AWG)
|
|
Status Indication
|
LED per channel (relay state)
|
|
Mounting
|
DIN rail or panel mount
|
|
Operating Temp.
|
-40°C to +85°C
|
|
Compliance
|
UL 508, CE, RoHS
|
Key Features:
- Form C Contacts – SPDT (Single-Pole Double-Throw) with NO/NC options for failsafe design.
- High Surge Handling | Withstands 100A inrush (10 ms) for motor/starter control.
- Galvanic Isolation | 1.5kV between coils/contacts and logic circuits.
- Hot-Replacement | Supports live swap in Mark VI racks without shutdown.
- Diagnostic LEDs | Real-time channel status monitoring.
- Redundancy Support | Compatible with dual-processor Mark VI configurations.
Primary Function & Purpose:
Acts as a high-power interface between Mark VI controllers and field devices to:
- Execute turbine emergency shutdowns (ESD) and permissives.
- Control auxiliary systems (lube oil pumps, cooling fans).
- Trigger alarms/annunciators based on protection logic.
Typical Applications:
- Turbine Protection – Trip solenoid valves on overspeed/vibration events.
- Fuel Systems – Shut off gas/fluid supply valves during faults.
- Generator Control – Enable/disable excitation systems.
- Cooling Circuits – Start/stop auxiliary coolant pumps.
- Fire Suppression – Activate deluge systems during emergencies.
Application Fields:
Critical for power generation safety systems in:
- Gas Turbine Plants: GE Frame 5/6/7/9 series control cabinets.
- Steam Turbines: Boiler feed pump trips, condenser vacuum protection.
- Hydroelectric Plants: Gate actuator control, brake systems.
- Compressor Stations: Pipeline emergency shutdown (ESD) systems.
- Industrial Co-Gen: Backup generator synchronization control.
