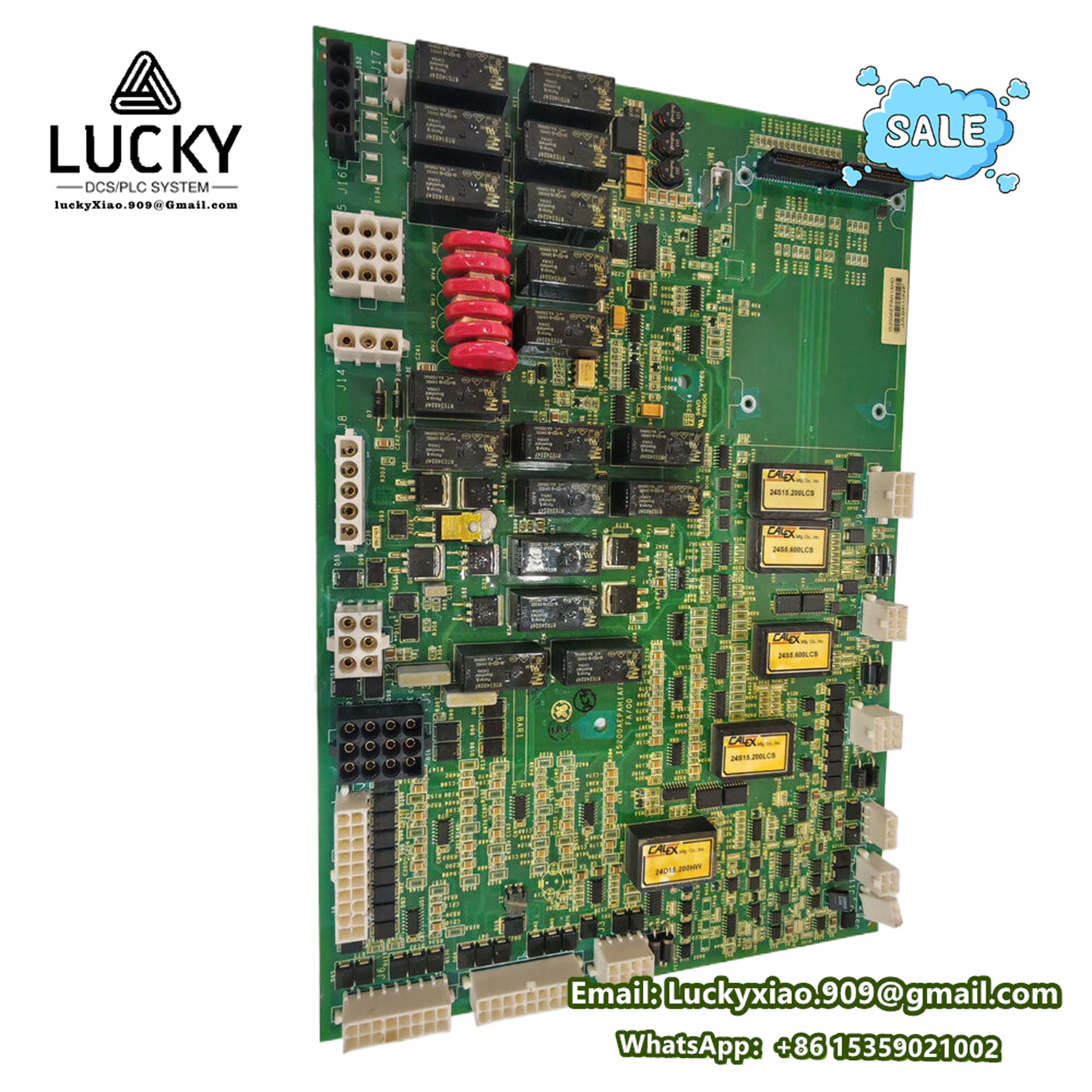

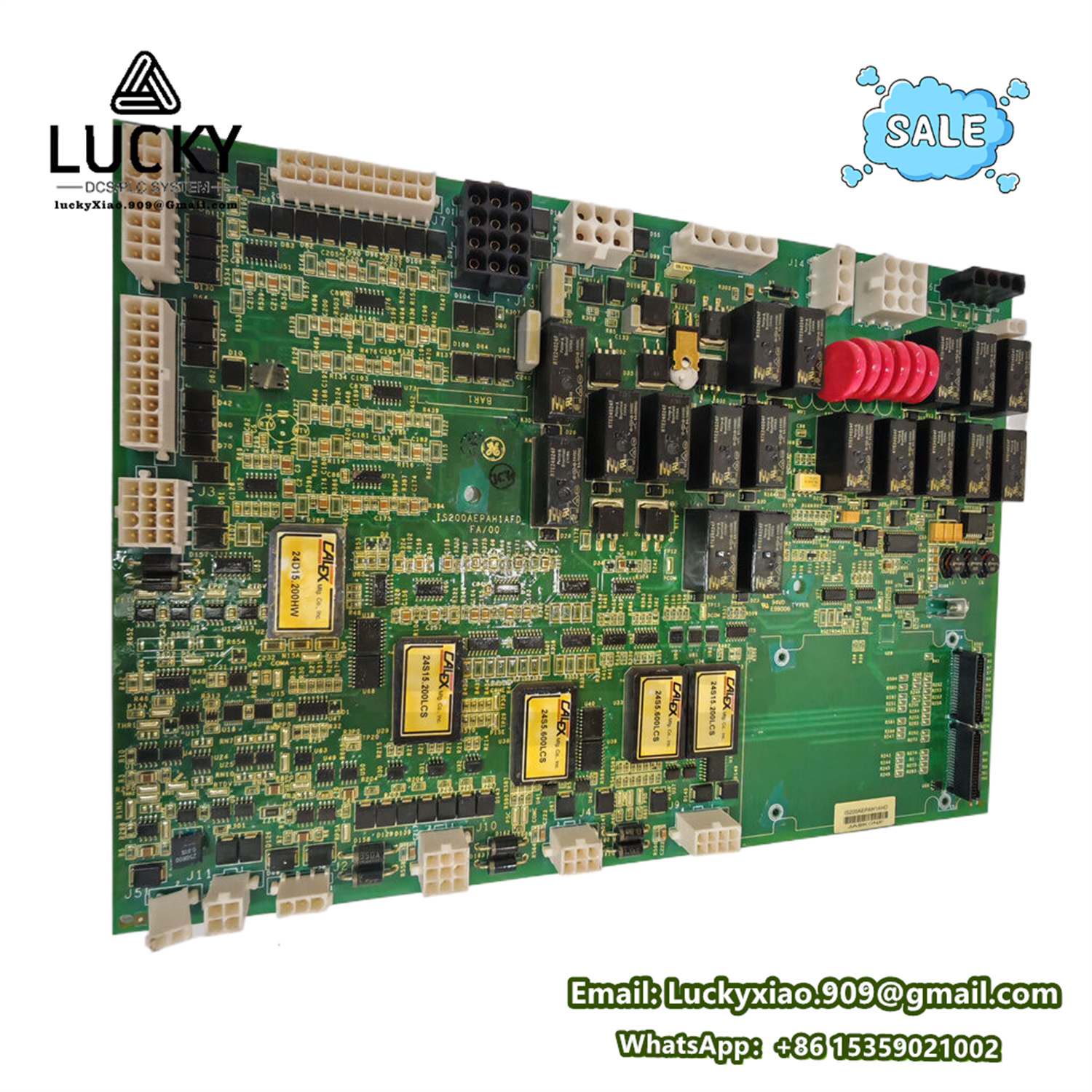

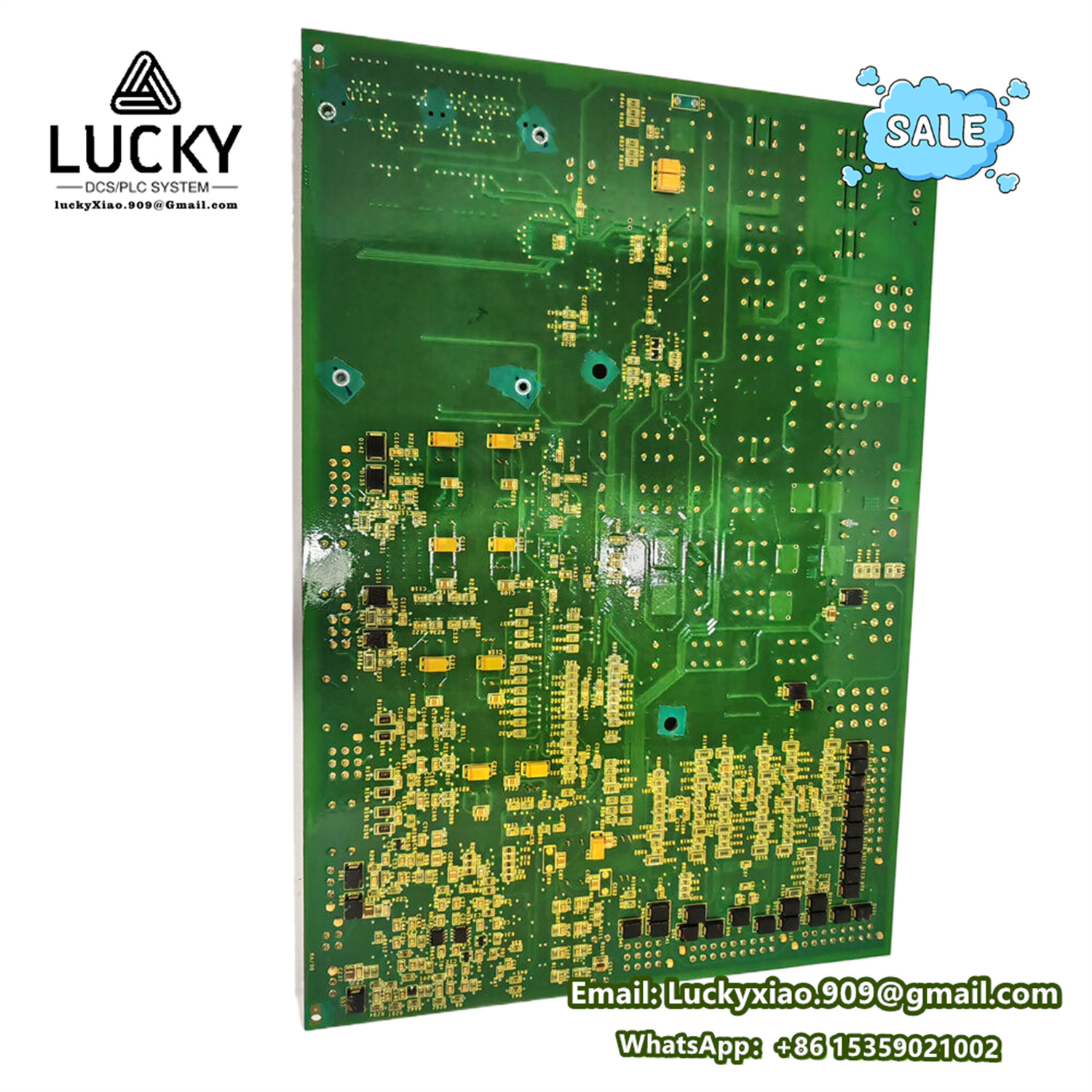

GE Electric | IS200AEPAH1AHD | Power Supply Interface Modul
IS200AEPAH1AHD Product Overview
Functional Description:
The GE IS200AEPAH1AHD is a Power Supply Interface Module for GE Mark VIe turbine control systems. It provides regulated DC power distribution, voltage monitoring, and fault protection to I/O termination boards within the turbine control cabinet.
Key Parameters & Specifications
|
Parameter
|
Specification
|
|---|---|
|
Part Number
|
IS200AEPAH1AHD
|
|
Series
|
GE Mark VIe Turbine Control System
|
|
Function
|
DC Power Distribution & Monitoring
|
|
Input Voltage
|
125 V DC (nominal), Range: 90–150 V DC
|
|
Output Voltages
|
+5 V DC, ±15 V DC, +24 V DC
|
|
Output Current
|
5V: 10A, 15V: 2A, 24V: 8A
|
|
Efficiency
|
>92% (full load)
|
|
Voltage Regulation
|
±1% (line and load variation)
|
|
Protections
|
Overcurrent (latching), Overtemperature, Short-circuit
|
|
Isolation
|
2,000 V AC (input-to-output)
|
|
Connectors
|
48-pin power (in), 64-pin logic (out)
|
|
Operating Temp.
|
-25°C to +70°C
|
|
Certifications
|
UL 508, IEC 61800-5-1, CE, RoHS 3
|
Product Series
- Core component of Mark VIe Power Distribution Series (compatible with PDM cabinets).
Key Features
- Hot-Redundant Inputs: Dual-input terminals for failover power sources.
- Live Status Reporting: Real-time voltage/current via VME backplane.
- Fuse-less Design: Solid-state electronic circuit protection.
- Fan-less Operation: Convection-cooled for reduced maintenance.
- LED Diagnostics: Input OK, Output OK, Fault indicators.
- Surge Immunity: 4 kV/2 kA per IEC 61000-4-5.
Functions & Roles
- Voltage Conversion: Steps down 125 V DC to logic-level voltages.
- Power Sequencing: Controlled ramp-up/down for connected I/O boards.
- Fault Isolation: Automatically disconnects faulty sub-circuits.
- Health Monitoring: Reports undervoltage/overcurrent events to controller.
- Ground Separation: Galvanic isolation between input and output sides.
Applications & Use Cases
|
Industry
|
Application
|
|---|---|
|
Combined Cycle Plants
|
GT/ST control cabinet power backbone
|
|
Wind Farms
|
Power conversion cabinet for turbines
|
|
Steel Mills
|
Rolling mill drive system power distribution
|
|
Marine
|
Propulsion control console power supply
|
|
Mining
|
Conveyor drive control power management
|
Documentation & Support
- Manual: GEH-6854 (Mark VIe Power Supplies)
| Compatible Systems | Monitoring Software |
|————————|——————————-|
| Mark VIe, EX2100e | GE ToolboxST™ (Power Manager) | - Test Points: Front-accessible voltage measurement terminals
- Replacement Kits: IS200AEPAH1Axx series (xx = revision)
Critical Notes:
- Input Polarity: Reverse-polarity protected up to -30V.
- Derating: Derate 3% per °C above 55°C ambient.
- Min Load Requirement: 10% on all outputs for stable operation.
- Safety: Must be installed in UL Type 12 enclosure.
- EMC: Complies with EN 55022 Class A (industrial).
- Legacy Compatibility: Replaces DS200PBA/S1 power modules.
