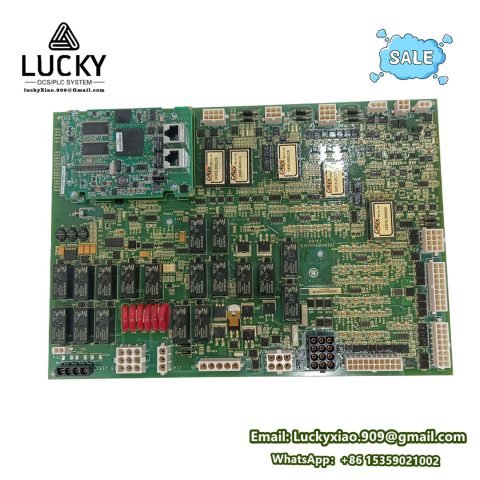

GE Electric | IS200AEPCH1ABC | Excitation control processor module
IS200AEPCH1ABC Product Overview
Functional Description:
The GE IS200AEPCH1ABC is an Excitation Control Processor module from GE’s Mark VI Speedtronic™ series. It manages generator field current regulation, voltage control, and protection functions for synchronous generators in power plants, ensuring grid stability during load changes and faults.
Key Parameters & Specifications
|
Parameter
|
Specification
|
|---|---|
|
Part Number
|
IS200AEPCH1ABC
|
|
Series
|
GE Mark VI Turbine Control System
|
|
Function
|
Generator Excitation Control & Protection
|
|
Input Voltage
|
125 V DC (±10%) via terminal block
|
|
Communication
|
Dual Ethernet + PROFIBUS DP
|
|
I/O Handling
|
Interfaces with excitation I/O packs (e.g., IS200)**
|
|
Processor
|
32-bit RISC (Power Architecture)
|
|
Operating Temp.
|
-20°C to +60°C (-4°F to +140°F)
|
|
Protection Functions
|
Over/Under Excitation, V/Hz Limiting, Loss-of-Field
|
|
Firmware
|
GE ToolboxST™ (v6.0+ for Mark VI)
|
|
Certifications
|
UL 508, CE, ISO 9001, IEEE 421.4
|
Product Series
- Part of GE’s Mark VI platform (predecessor to Mark VIe), optimized for steam/gas turbine-generator control.
Key Features
- Adaptive AVR (Automatic Voltage Regulator): Maintains voltage ±0.25% accuracy.
- Power System Stabilizer (PSS): Damps grid oscillations.
- Multiple Control Modes: Auto/Manual, VAR/PF control.
- Redundant Processor Sync: Hot backup with <50 ms failover.
- Real-Time Diagnostics: Monitors thyristor health, field ground faults.
- Legacy Compatibility: Interfaces with GE EX2000 exciters.
Functions & Roles
- Voltage Regulation: Controls generator output voltage (typically 6.9 kV–24 kV).
- Field Current Management: Limits DC field current surges.
- Protection Logic: Trips generator on overfluxing (V/Hz) or rotor overheating.
- Black Start Support: Enables generator self-excitation during grid outages.
- Data Logging: Records 30+ days of excitation events.
Applications & Use Cases
|
Industry
|
Application
|
|---|---|
|
Power Generation
|
Steam/Gas Turbine Generator Control
|
|
Hydroelectric
|
Brushless Excitation for Hydro Generators
|
|
Industrial Plants
|
Synchronous Motor Drives (Cement, Mining)
|
|
Marine
|
Shipboard Power Management
|
|
Grid Services
|
Reactive Power (VAR) Compensation
|
Documentation & Support
- Manual: GEH-6421A (Mark VI Excitation Control)
- Configuration: GE ToolboxST™ EX2100 software suite
- Compatibility: Requires IS200 excitation I/O packs (e.g., IS200ERPGH1A)
- Lifecycle Status: Active (GE part # PVB793204S)
- Datasheet: GE Support (Search part number)
Critical Notes:
- Requires ±15V DC analog power supply for control circuits.
- Fieldbus protocols: Modbus RTU/TCP, GENIUS Bus.
- Replacement for legacy AEP-101 exciter systems.
