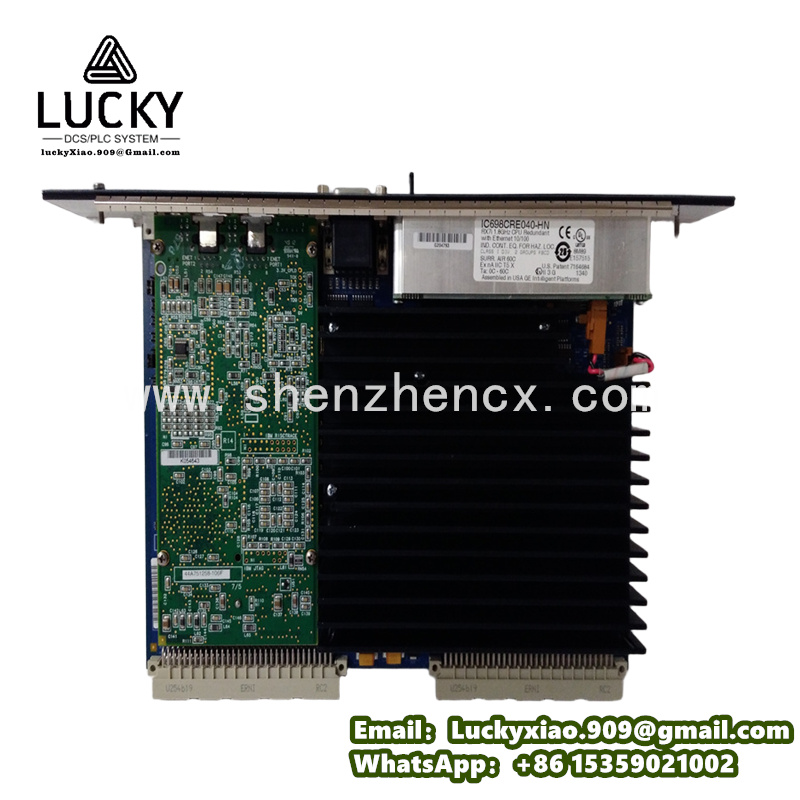

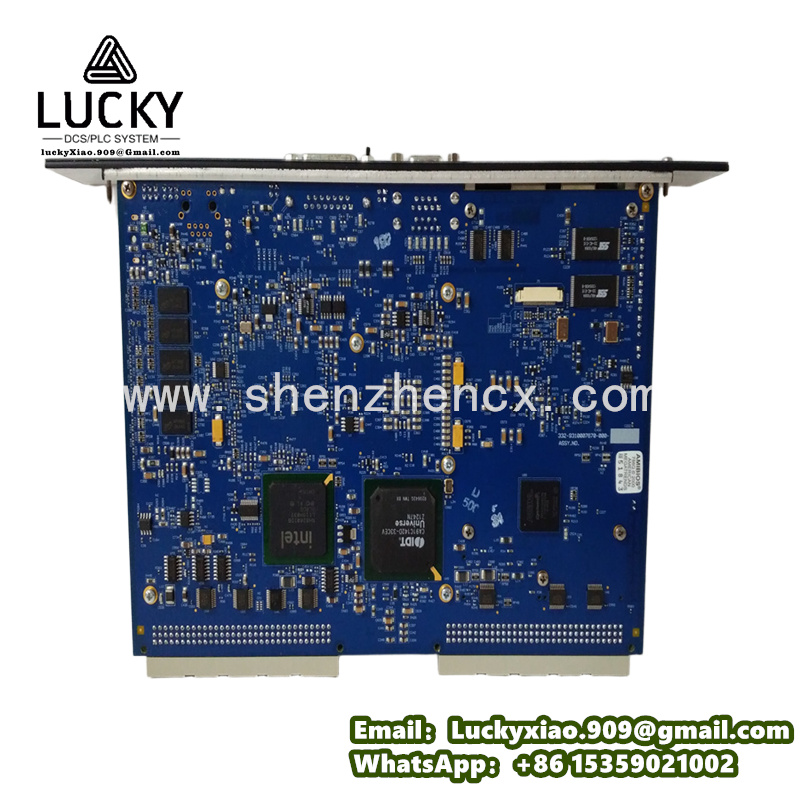

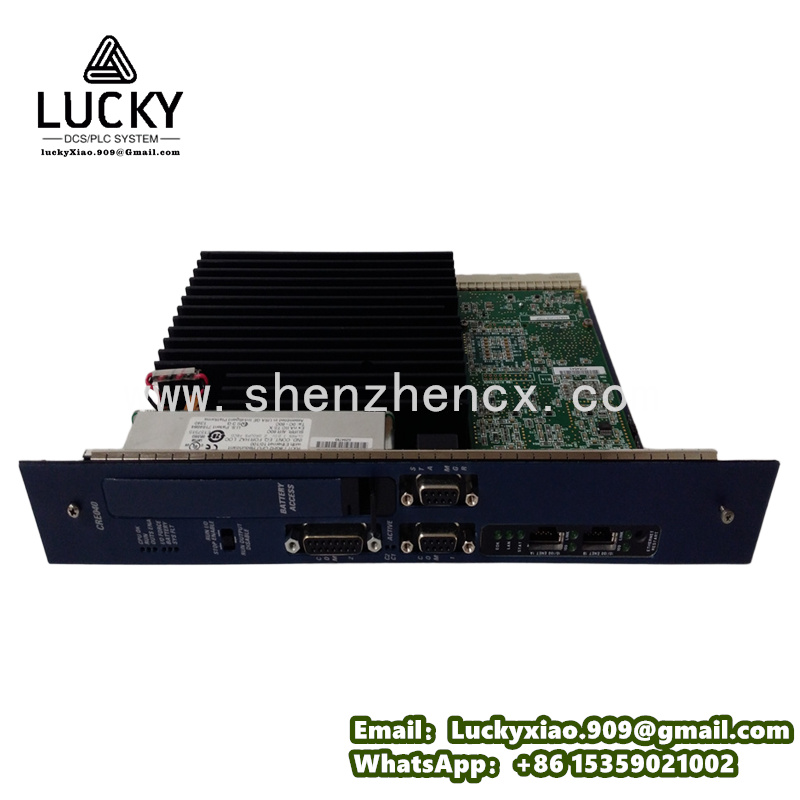

GE IC698CRE040 Introduction
Product Description
GE IC698CRE040 is a high-performance controller module designed for industrial automation systems, serving as a core component in GE‘s RX3i series of programmable logic controllers (PLCs). It is engineered to handle complex control tasks with high efficiency and reliability, making it suitable for a wide range of industrial applications, including manufacturing, process control, and infrastructure management.
The module features a powerful processing unit that enables fast data processing and real-time control, ensuring quick response to dynamic industrial environments. Its robust design allows it to operate stably in harsh conditions, such as temperature fluctuations, electrical noise, and mechanical vibrations. With a compact and modular structure, it can be easily integrated into existing RX3i systems, facilitating system expansion and upgrade. Additionally, it supports various communication protocols, enhancing its compatibility with other industrial devices and systems.
Technical Parameters
- Processor: 32-bit RISC processor with a clock speed of 1 GHz
- Memory: 4 GB flash memory, 1 GB RAM
- Operating Voltage: 24 V DC ± 10%
- Power Consumption: Typical 25 W, Maximum 35 W
- Operating Temperature Range: 0°C to 60°C
- Storage Temperature Range: -40°C to 85°C
- Communication Interfaces: 2 Ethernet ports (10/100/1000 Mbps), 1 USB port (USB 2.0)
- Programming Language: Ladder Logic, Structured Text, Function Block Diagram, Sequential Function Chart
- Protection Rating: IP20 (when installed in a suitable enclosure)
- Dimensions: 140 mm × 100 mm × 60 mm (length × width × height)
- Weight: Approximately 400 g
- Certifications: CE, UL, CSA, ATEX
Usage Method
- Installation: Mount the IC698CRE040 module into the designated slot of the RX3i rack using the provided clips. Ensure the rack is properly grounded and installed in a well-ventilated control cabinet. Connect the 24 V DC power supply to the module’s power terminal, following the polarity instructions in the user manual.
- Wiring Connections: Use Ethernet cables to connect the module’s Ethernet ports to the network switch or other devices for data communication. Connect the USB port to a computer if local programming or configuration is needed. Link the I/O modules to the controller via the backplane bus of the RX3i rack.
- Configuration and Programming: Install GE‘s Proficy Machine Edition software on a computer and establish a connection with the IC698CRE040 module through Ethernet or USB. Configure the module’s parameters, such as network settings and I/O mapping, using the software. Develop control programs using the supported programming languages based on the specific industrial process requirements, then download the programs to the module.
- Operation and Monitoring: Power on the system and start the controller. Monitor the module’s operation status, including running programs, I/O status, and network connections, through the Proficy Machine Edition software or a web browser via the Ethernet interface. Check for error messages or alarms and take appropriate measures if any issues occur.
- Maintenance: Regularly inspect the module’s connections to ensure they are tight and secure. Clean the module’s surface and the surrounding area to prevent dust accumulation. Back up the control programs and configuration data periodically to avoid data loss. Update the module’s firmware through the Ethernet interface when new versions are available to improve performance and security.
System Introduction
GE IC698CRE040 is a key part of GE‘s RX3i series PLC systems, which are widely used in industrial automation to provide comprehensive control and monitoring solutions. The RX3i system consists of the IC698CRE040 controller, various I/O modules, communication modules, and human-machine interfaces (HMIs), forming an integrated control system.
In this system, the IC698CRE040 acts as the central processing unit, responsible for executing control programs, processing data from I/O modules, and communicating with other devices. It collects real-time data from sensors and other field devices through I/O modules, processes the data according to the programmed logic, and sends control signals to actuators to regulate industrial processes.
The controller’s high processing capacity and rich communication interfaces enable it to coordinate the operation of multiple I/O modules and interact with upper-level management systems, such as SCADA (Supervisory Control and Data Acquisition) systems. This allows for centralized monitoring and control of the entire industrial process, improving production efficiency and reducing operational costs.
Whether in automotive manufacturing lines, chemical processing plants, or water treatment facilities, the IC698CRE040, as part of the RX3i system, plays a crucial role in ensuring stable, efficient, and safe industrial operations.
