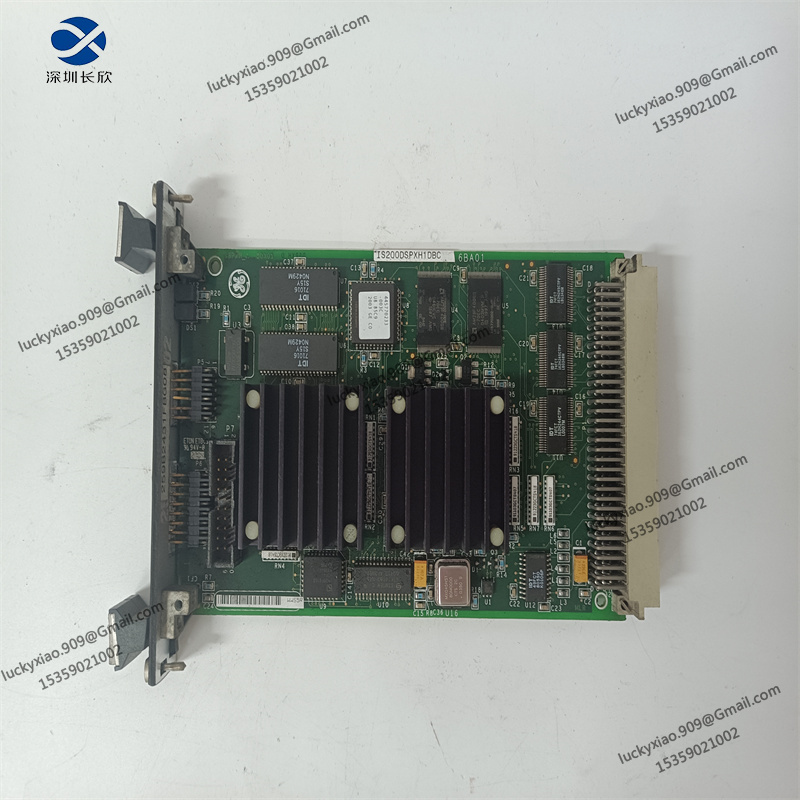

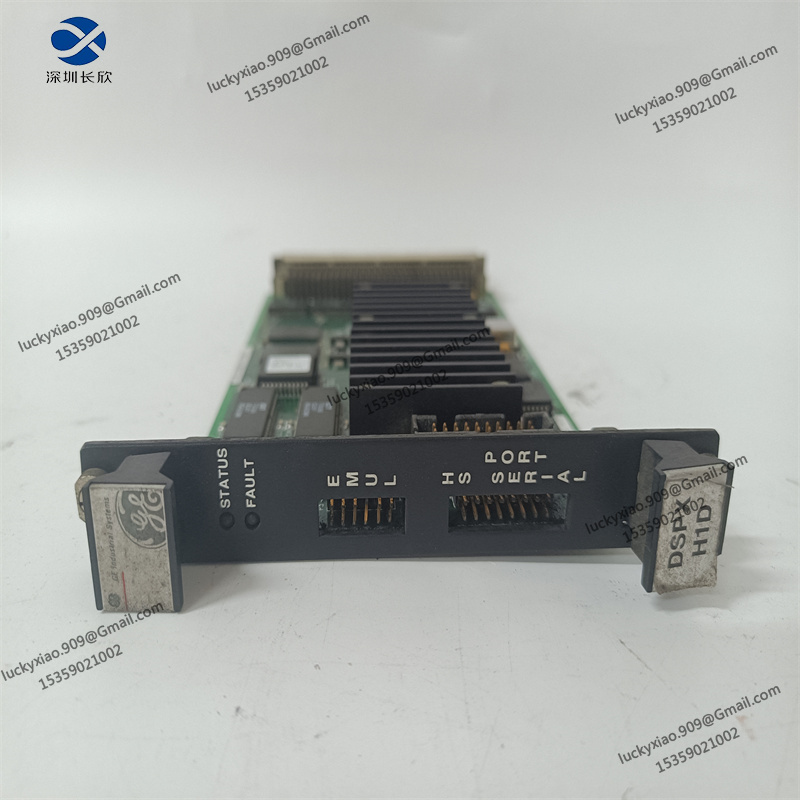

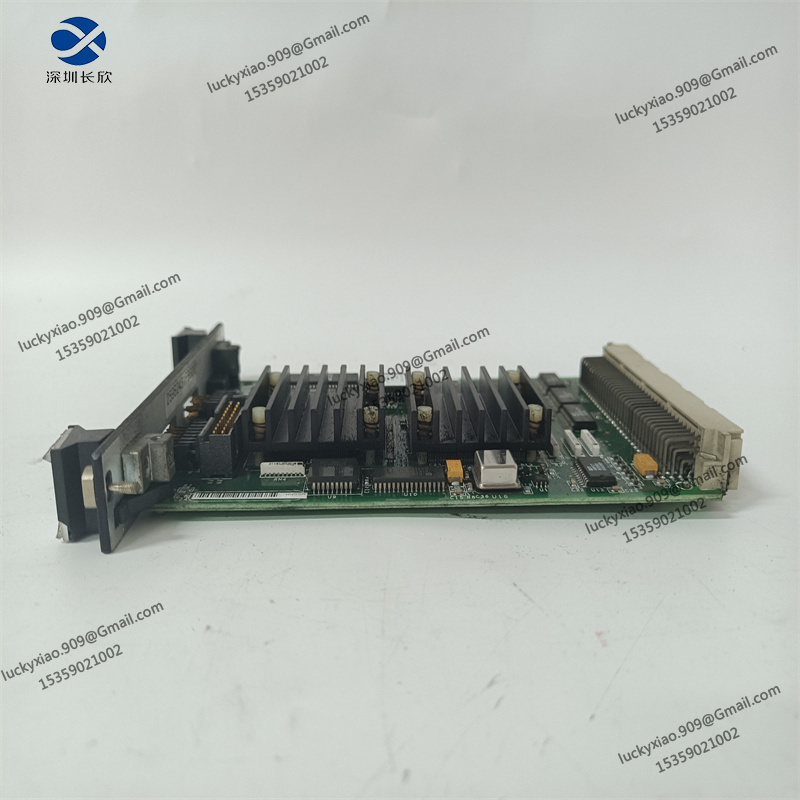

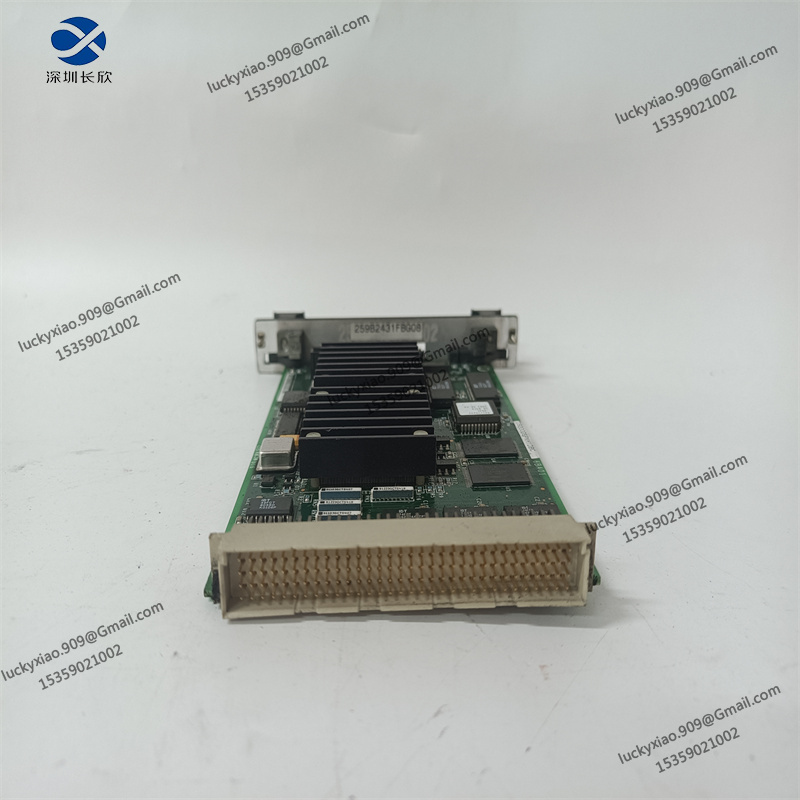

GE IS200DSPXH1DBC is a high-performance digital signal processing module under the Mark VI Speedtronic series, tailored for gas, steam and even wind turbine control systems as well as EX2100 excitation systems. It is equipped with a 32-bit DSP processor and an ASIC for custom logic functions, featuring 4 analog inputs, 2 digital inputs, and corresponding configurable outputs that support ±10V and 4–20mA signals. The module adopts advanced FFT algorithms to process vibration, temperature and speed signals with ±0.1% accuracy, and has built-in self-diagnostic functions along with red and green LED indicators for timely fault alerts. With a -40°C to +70°C operating range and conformal PCB coating, it operates stably in harsh industrial environments. Supporting Modbus RTU and optional Ethernet/IP protocols, it integrates seamlessly with Mark VI controllers, serving as a critical component in power generation and oil-gas sectors to optimize equipment maintenance and ensure system reliability.
STAI INSTALLATION:
A sheet metal carrier that is mounted on a DIN rail carries the STAI together with a plastic insulator. The STAI plus insulator can alternatively mount to a sheet metal assembly before being fastened directly to a cabinet. There are two different varieties of Euro-block terminal blocks available:
- A permanently mounted terminal block with 48 terminals is present on STAI 1.
- A right-angle header on STAI 2 accepts a variety of pluggable terminal blocks that are readily accessible and have a total of 48 terminals.
- Typically, shielded twisted pair (#18 AWG) wires are utilized. There is an I/O cable shield terminal available next to the terminal blocks.
It is possible to accept the following analog input and output types:
- Two-wire transmitter with analog input.
- Three-wire transmitter with analog input.
- Four-wire transmitter with analog input.
- An externally powered transmitter with an analog input.
- Analog input, 5 and 10 volts direct current.
- 0-20 mA current analog output.
- Analog output, current of 0-200 mA.
Stock model:
IS200STAOH2AAA
IS200TDBTH6ABC
IS200JPDDG1AAA
IS200VTCCH1CBB
IS200EPSMG2ADC
IS200EPSMG2AEC
IS200EROCH1ABB
IS200ERIOH1AAA
IS200ERDDH1ABA
IS200DSPXH1DBC
IS200DSPXH1DBD
IS200TVBAH2ACC
IS200TSVCH1AJE
IS200EXHSG3AEC
IS200TBCIH2CAA
IS200EPSMG1AEC
IS200EGPAG1BCA
IS200EPSMG1AED
IS200TRPAH2AHE
IS200TSVCH1A
IS200AEADH4ADA
