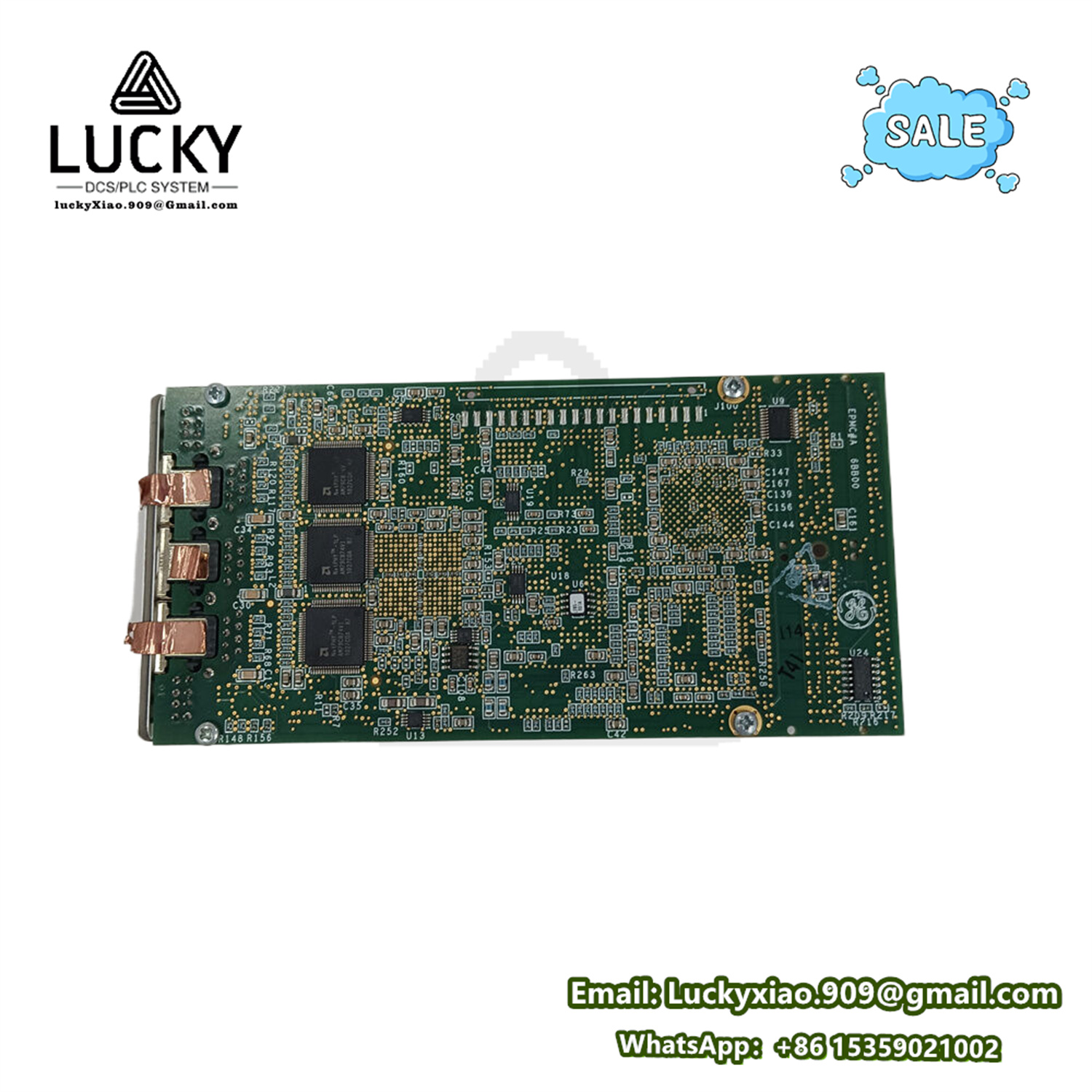

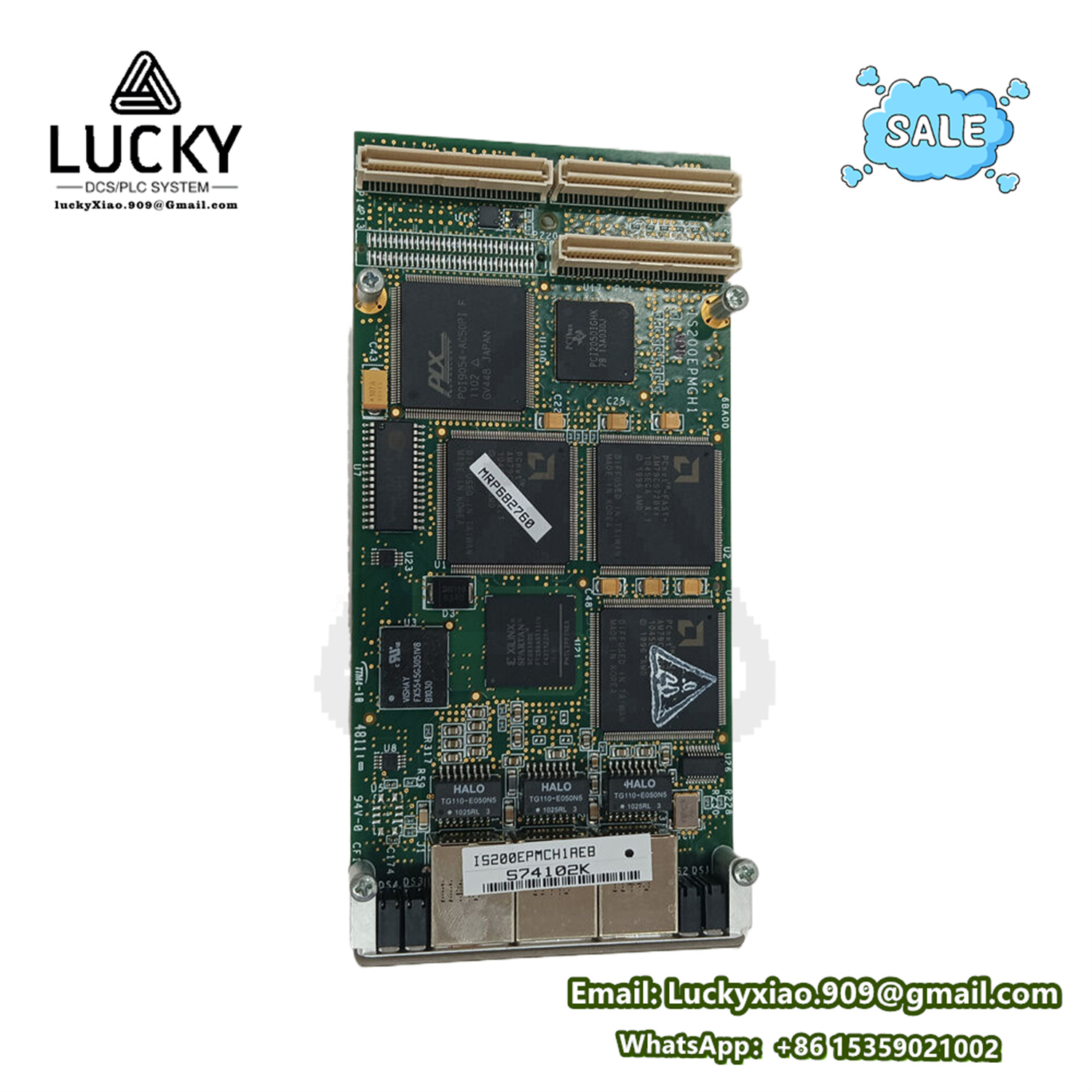

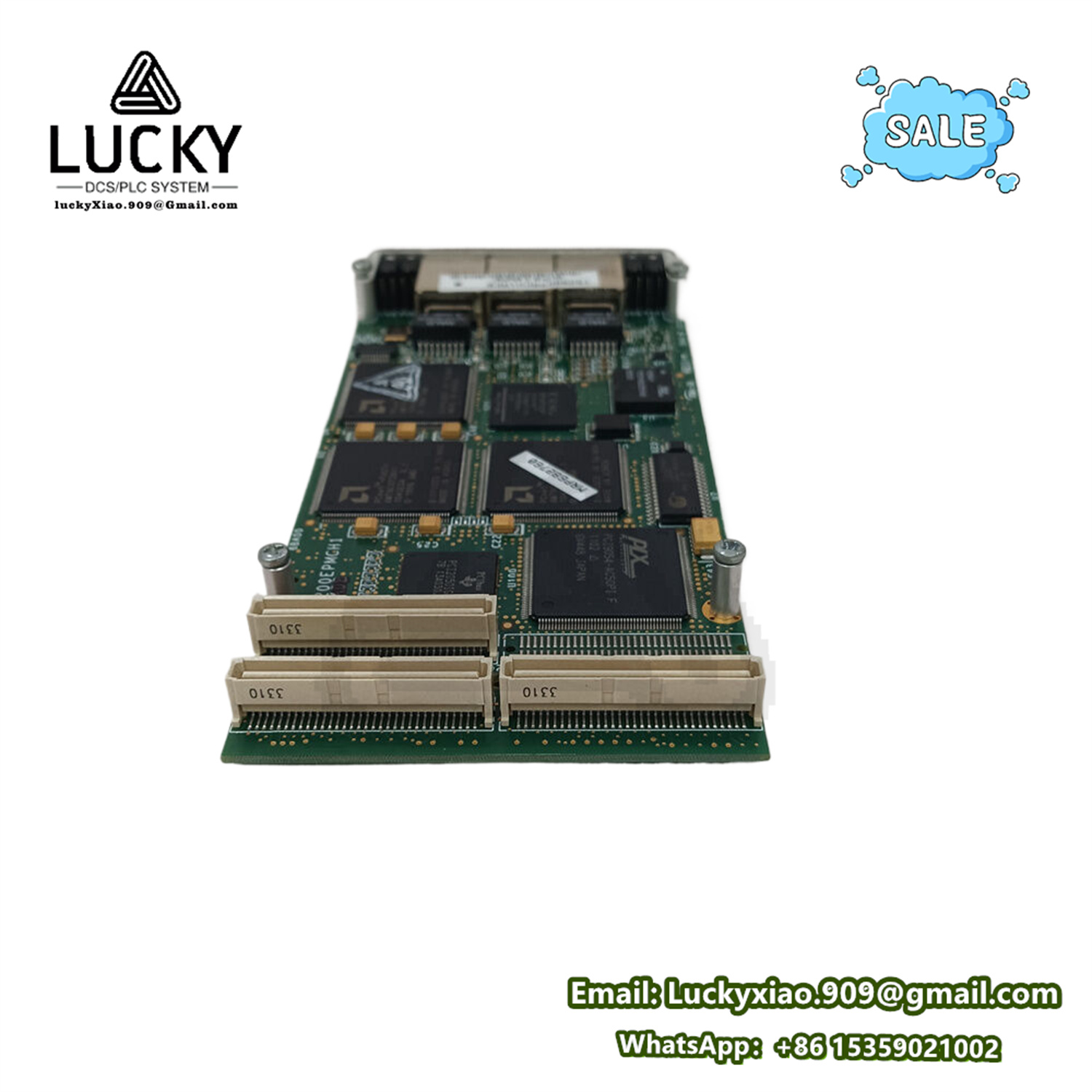

GE IS200EPMCH1 Mark VIe Turbine Expansion Module
GE IS200EPMCH1 Technical Specification
Specification
|
Attribute
|
Detail
|
|---|---|
|
Part Number
|
|
|
Manufacturer
|
General Electric (GE)
|
|
Series
|
Mark VIe Speedtronic™
|
|
Country of Origin
|
USA
|
|
Function
|
Expansion I/O Processor Module
|
Description
The GE IS200EPMCH1 is a high-performance expansion module for GE’s Mark VIe turbine control platform. It extends I/O capacity and computational power for critical monitoring/control tasks, featuring dual-redundant Ethernet communication, SIL 3-certified logic processing, and isolated signal conditioning. Designed for harsh industrial environments, it integrates seamlessly with Mark VIe controllers via high-speed backplane links.
Features
- Enhanced Processing: Dual-core PowerPC @ 1.2 GHz with 512 MB DDR3 RAM.
- I/O Scalability: Supports up to 96 channels (mix of analog/digital/RTD via expansion carriers).
- Redundant Ethernet: Dual 1 GbE ports (IEEE 1588 PTPv2 time-sync enabled).
- Functional Safety: SIL 3 (IEC 61508) certified for safety-critical applications.
- Extreme Environment: Operates at -40°C to +70°C (-40°F to +158°F) with 5–95% non-condensing humidity.
- Secure Firmware: Hardware-enforced secure boot + encrypted firmware updates.
- Diagnostics: Real-time health monitoring (voltage, temperature, memory CRC).
Electrical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Input Voltage
|
24V DC ±10% (via backplane)
|
|
Power Consumption
|
15W (typical), 28W (max)
|
|
Backplane Bandwidth
|
2 Gbps (full-duplex PCIe)
|
|
Isolation
|
1500V AC channel-to-system
|
|
Signal Compatibility
|
±10V, 4–20mA, RTD (Pt100/JPT100), TC (J/K)
|
Product Properties
|
Property
|
Specification
|
|---|---|
|
I/O Expansion Support
|
Compatible with EX2100/EX2150 carriers
|
|
Communication Protocols
|
SRTP, Modbus TCP, OPC UA, IEC 61850 GOOSE
|
|
Cybersecurity
|
IEEE 802.1X authentication, TLS 1.3 encryption
|
|
MTBF
|
250,000 hours (MIL-HDBK-217F)
|
|
Safety Certification
|
SIL 3 (IEC 61508), ATEX Zone 2, UL Class I Div 2
|
|
Dimensions
|
160 × 120 × 40 mm (6.3 × 4.7 × 1.6 in)
|
|
Weight
|
0.65 kg (1.43 lbs)
|
Performance Metrics
|
Metric
|
Value
|
|---|---|
|
Scan Cycle Time
|
10 ms (typical for 64 I/O points)
|
|
Analog Input Accuracy
|
±0.05% FS (16-bit resolution)
|
|
Digital Response Time
|
<1 ms (filter disabled)
|
|
Data Logging
|
512 kB non-volatile storage
|
Key Applications
- Turbine Control: Real-time monitoring of vibration, temperature, pressure.
- Power Grid Stability: PMU (Phasor Measurement Unit) data acquisition.
- Process Safety Systems: SIL 3 shutdown logic for refineries/chemical plants.
- Renewable Energy: Wind turbine pitch control and condition monitoring.
⚠️ Integration Notes:
- Requires Mark VIe controller (IS200/IS215) as host—cannot operate standalone.
- Firmware must match controller version (ToolboxST v8.0+ recommended).
- Expansion carriers must use CAT6 shielded Ethernet for noise immunity.
- Channel overload protection: Max 40mA per analog input.
