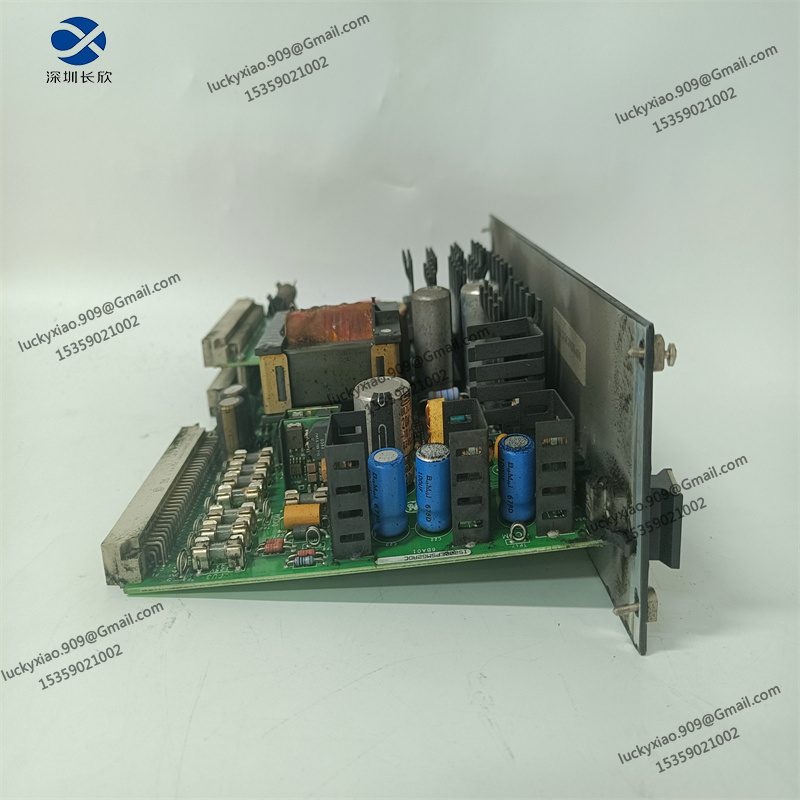

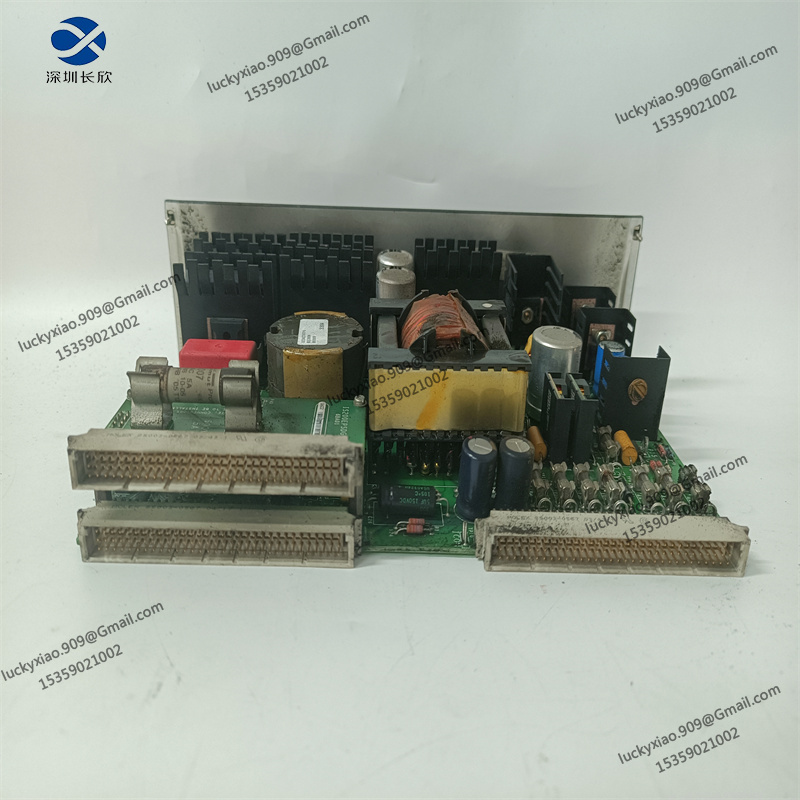

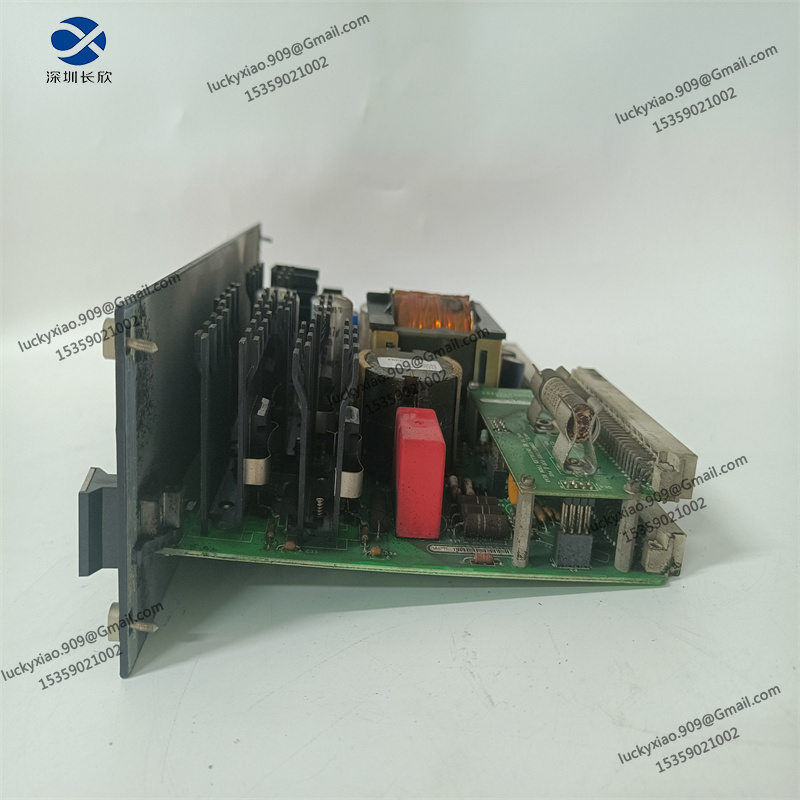

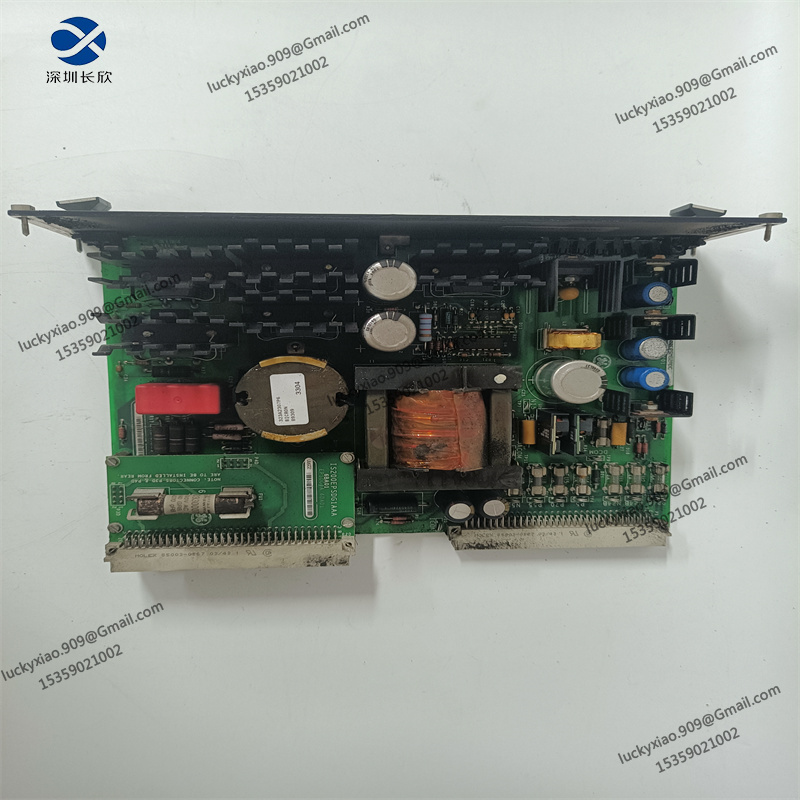

GE IS200EPSMG2ADC is a reliable exciter power supply module from GE’s Speedtronic series, specifically designed for EX2100/EX2000 excitation control systems and compatible with Mark VI turbine control platforms. It delivers a stable 24 VDC output at 2 A (10 W power consumption) to power critical excitation system components, featuring a rugged industrial design that operates seamlessly in -40°C to +85°C temperatures and 5%-95% non-condensing humidity. With built-in overvoltage, undervoltage, and short-circuit protection, plus support for RS-485 and Ethernet connectivity, it ensures safe, uninterrupted power delivery for large synchronous generators in power plants, oil & gas, and industrial automation settings, while its compact modular structure simplifies installation and maintenance.
STAI INSTALLATION:
A sheet metal carrier that is mounted on a DIN rail carries the STAI together with a plastic insulator. The STAI plus insulator can alternatively mount to a sheet metal assembly before being fastened directly to a cabinet. There are two different varieties of Euro-block terminal blocks available:
- A permanently mounted terminal block with 48 terminals is present on STAI 1.
- A right-angle header on STAI 2 accepts a variety of pluggable terminal blocks that are readily accessible and have a total of 48 terminals.
- Typically, shielded twisted pair (#18 AWG) wires are utilized. There is an I/O cable shield terminal available next to the terminal blocks.
It is possible to accept the following analog input and output types:
- Two-wire transmitter with analog input.
- Three-wire transmitter with analog input.
- Four-wire transmitter with analog input.
- An externally powered transmitter with an analog input.
- Analog input, 5 and 10 volts direct current.
- 0-20 mA current analog output.
- Analog output, current of 0-200 mA.
Stock model:
IS200TPROH1BBB
IS200TBAIH1CCC
IS200TVIBH2BBB
IS200TBCIH1BBC
IS200WETBH1ABA
IS200AEPCH1BAA
IS200SRTDH2ACB
IS215VCMIH2CA IS200VCMIH2CAA
IS200PMCIH1ABA
IS200EGDMH1ADF
IS200SPIDG1ABA
IS200EGDMH1AFF
IS200EPSMG1AED
