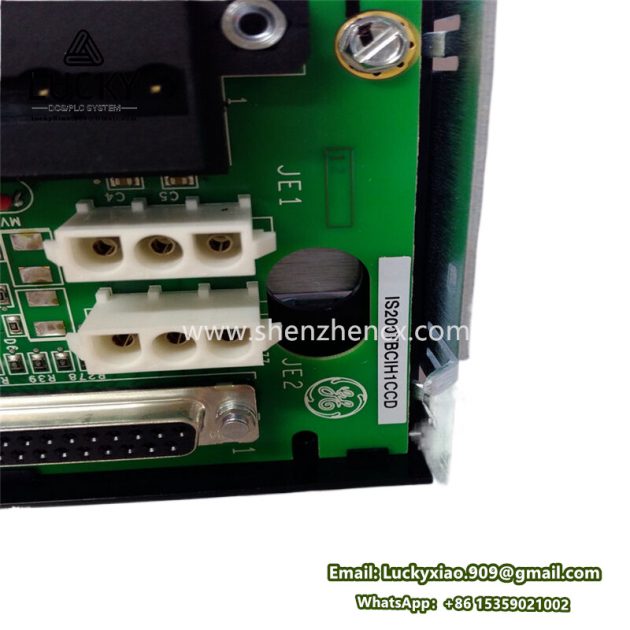

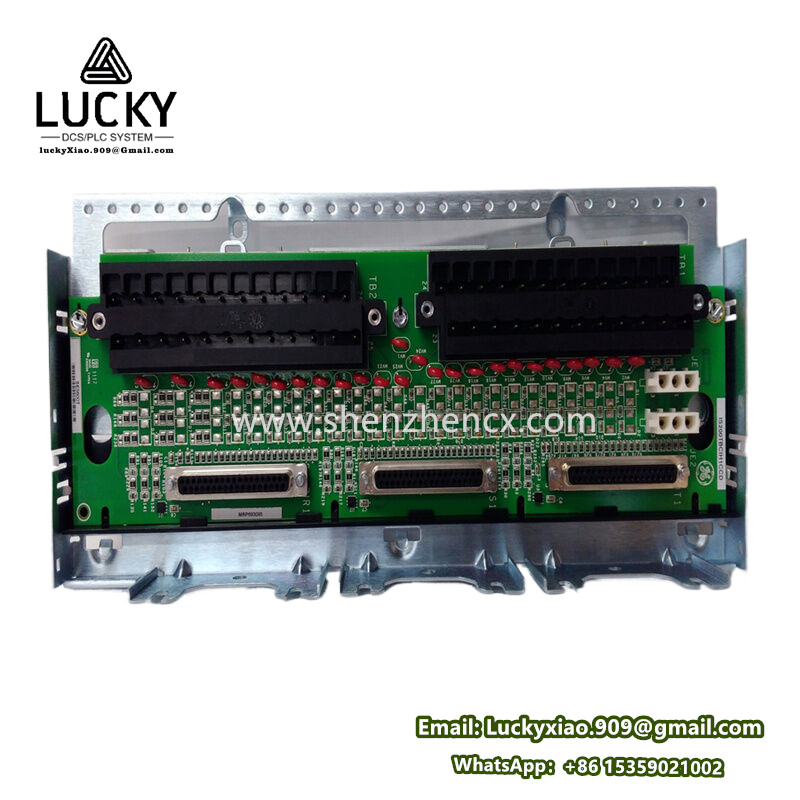

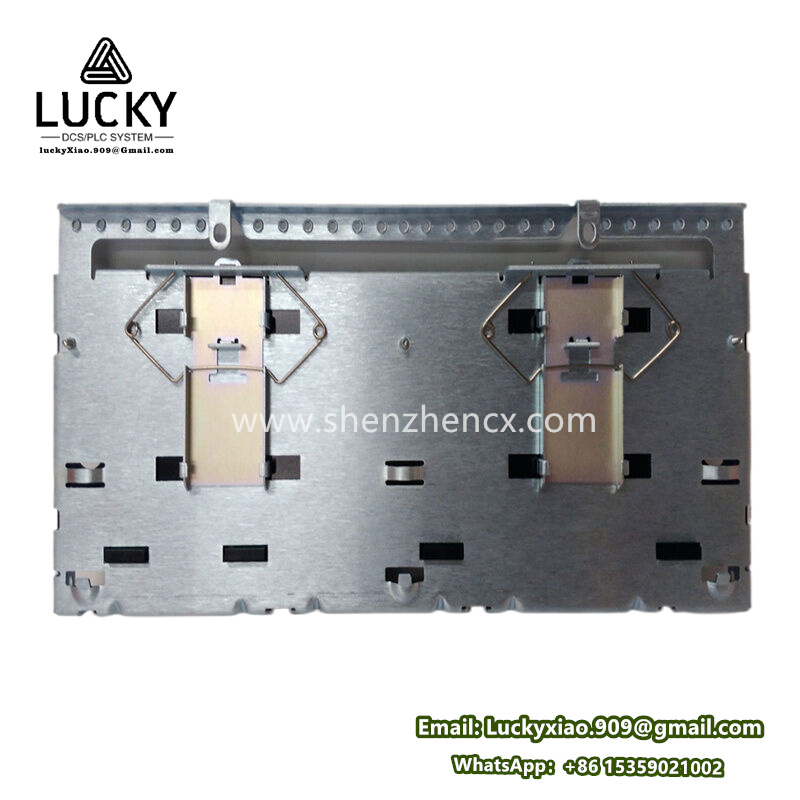

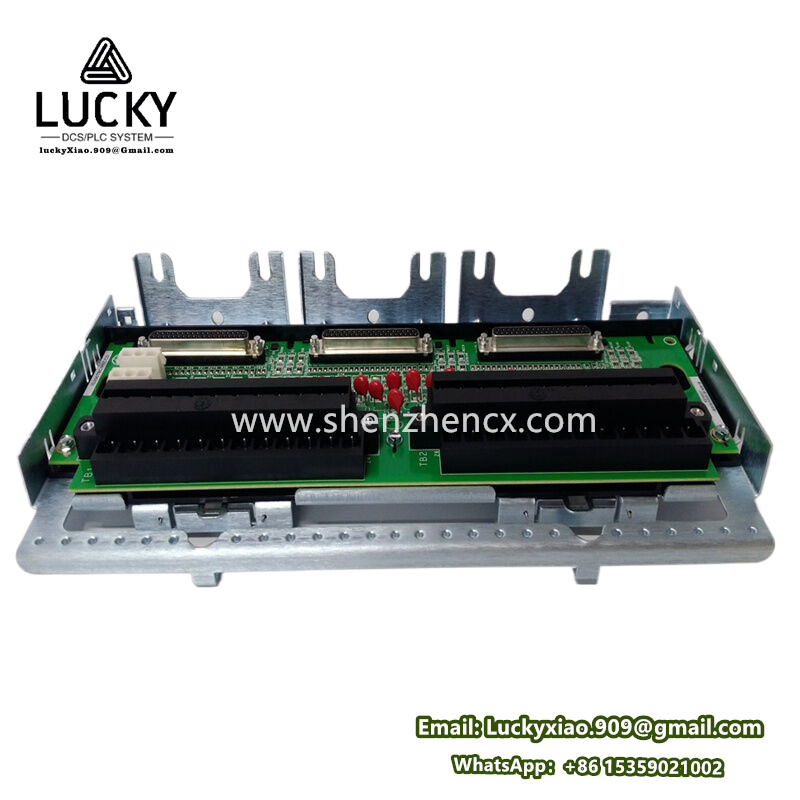

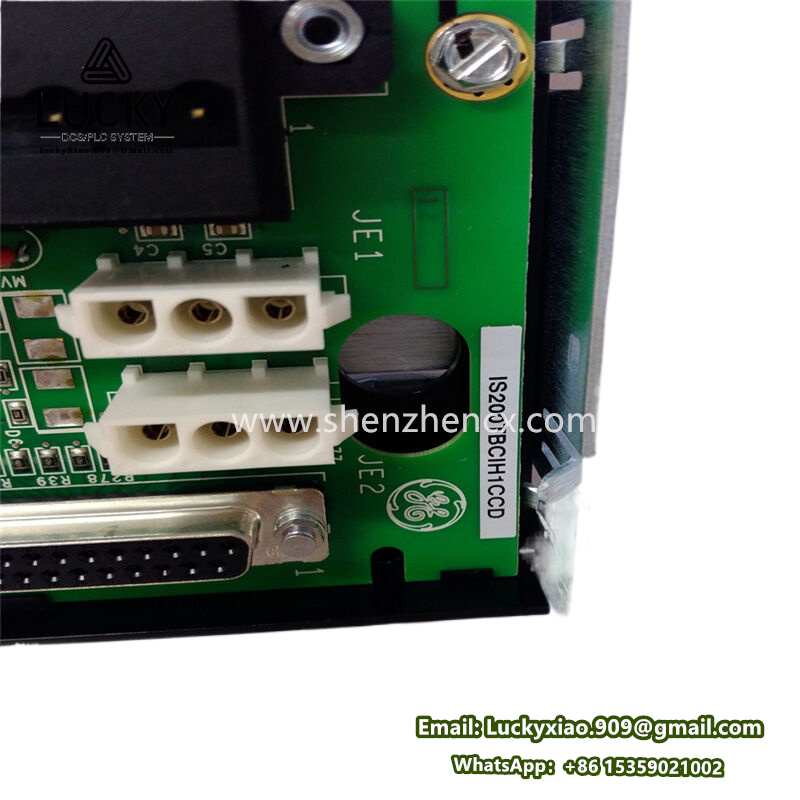

GE | IS200TBCIH1CCD | Terminal board module
Product Overview
The IS200TBCIH1CCD is a Terminal Board Module designed by GE for its Mark VIe Series industrial turbine and generator control systems. It serves as a critical interface between the controller’s I/O modules and field devices (e.g., sensors, actuators), providing signal conditioning, isolation, and secure electrical connections.
Key Specifications & Parameters
|
Category
|
Details
|
|---|---|
|
Series
|
GE Mark VIe Speedtronic™ Turbine Control System
|
|
Part Number
|
IS200TBCIH1CCD
|
|
Function
|
Terminal Board for Signal Routing & Isolation
|
|
Compatibility
|
Interfaces with GE Mark VIe I/O packs (e.g., IS200-series I/O modules)
|
|
Connector Type
|
High-density screw terminals or spring-clamp terminals
|
|
Isolation Rating
|
1500V AC/DC minimum (channel-to-channel and channel-to-ground)
|
|
Signal Types
|
Analog (4–20mA, ±10V), Digital (24VDC), Thermocouple, RTD
|
|
Operating Temp.
|
-40°C to +70°C (-40°F to +158°F)
|
|
Safety Standards
|
UL 508, CE, IEC 61131 (Industrial Control Equipment)
|
|
Mounting
|
DIN rail or panel mounting within Mark VIe rack
|
Key Features
- Signal Integrity
- EMI/RFI noise filtering and galvanic isolation protect sensitive control electronics.
- Hot-Swappable Design
- Allows replacement without system shutdown (reduces turbine downtime).
- Labeling & Traceability
- Pre-printed terminal labels and barcode for easy maintenance.
- High-Density Wiring
- Optimizes space in control cabinets.
- Built-in Diagnostics
- Supports real-time monitoring of field connections (requires compatible controller).
Purpose & Functionality
- Signal Routing: Connects field wiring to Mark VIe I/O modules.
- Electrical Isolation: Prevents ground loops and voltage surges from damaging controllers.
- Signal Conditioning: Filters noise for analog/digital inputs.
- Simplified Maintenance: Modular design enables quick troubleshooting.
Applications & Industries
This module is deployed in mission-critical environments requiring high reliability:
- Power Generation
- Gas/Steam Turbine Control, Hydroelectric Plants.
- Oil & Gas
- Compressor Control, Pipeline Monitoring.
- Industrial Manufacturing
- High-speed Machinery Protection Systems.
- Marine & Offshore
- Shipboard Power Management.
Notes for Engineers
⚠️ Critical Compatibility: Must be used with compatible Mark VIe I/O modules (e.g., IS200EPSMG2AED for power supply). Always verify configuration in GE’s ToolboxST™ software.
🔧 Maintenance: Use GE-approved static-safe procedures during handling to avoid ESD damage.
