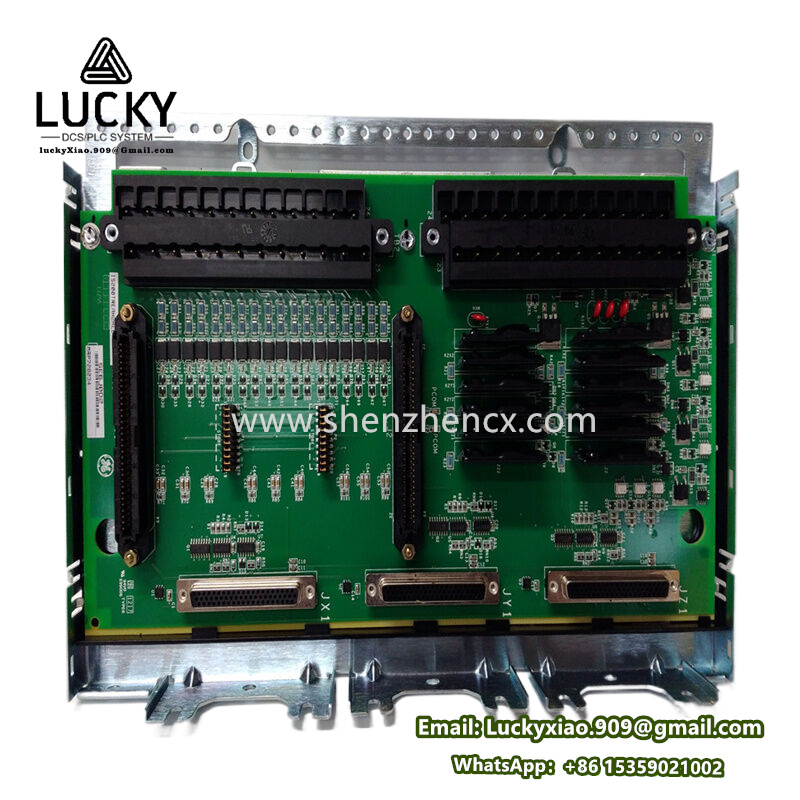

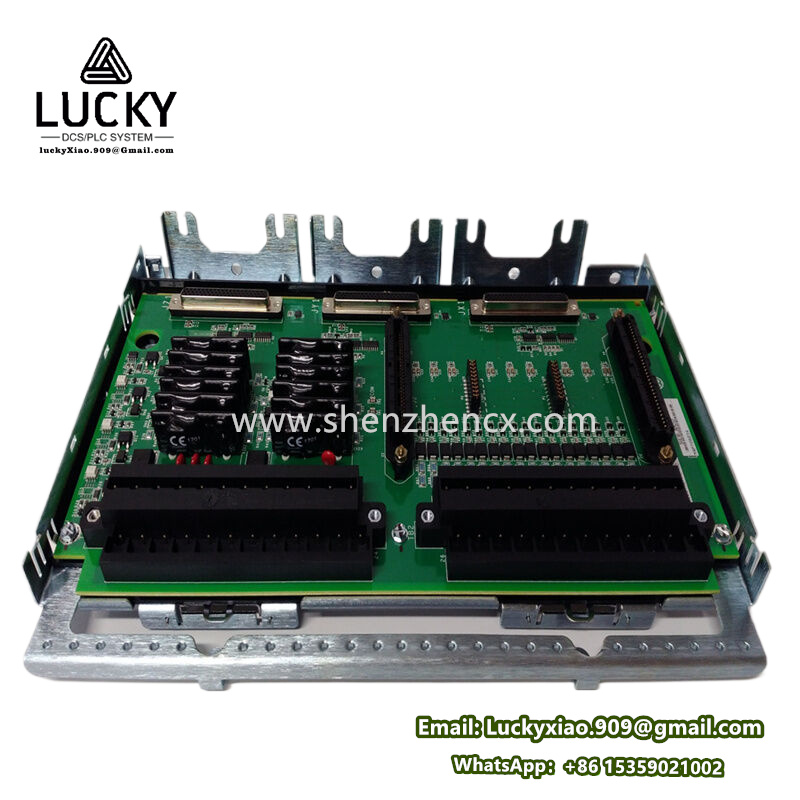

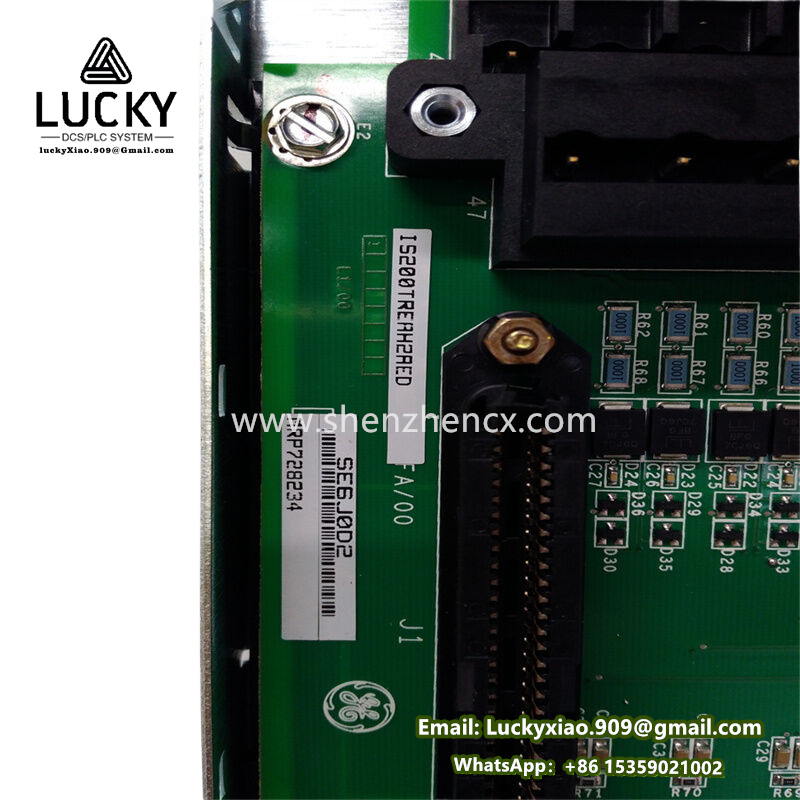

GE | IS200TREAH2AED | Mark VIe Speedtronic™ Turbine Control System
Product Description
The IS200TREAH2AED is an Exciter I/O Terminal Board designed for GE’s Mark VIe Speedtronic™ Turbine Control System. It interfaces excitation control signals between the turbine generator and the Mark VIe controller, enabling precise voltage regulation and protection.
Key Specifications
|
Parameter
|
Specification
|
|---|---|
|
Part Number
|
|
|
Series
|
GE Mark VIe Turbine Control System
|
|
Input/Output
|
Analog/digital signals for excitation control
|
|
Channels
|
16 configurable I/O points (isolated)
|
|
Voltage Range
|
±10V DC (analog), 24V DC (digital)
|
|
Isolation
|
1500V AC channel-to-channel/ground
|
|
Operating Temp.
|
-40°C to +85°C (extended industrial range)
|
|
Compatibility
|
Interfaces with IS200TBCIHx I/O packs
|
|
Suffix “AED”
|
Extended temp. rating & enhanced EMI shielding
|
|
Certifications
|
UL 508, IEC 61000-6-4 (EMC), RoHS
|
Key Features
- High-Isolation Design
- Galvanic isolation prevents ground loops in noisy electrical environments.
- Generator Protection
- Integrates over-voltage/under-frequency trip logic for excitation systems.
- Hot-Swappable
- Replaceable without turbine shutdown (reduces downtime).
- Diagnostic LEDs
- Per-channel status monitoring (fault, comms, power).
- Environmental Robustness
- Conformal coating for humidity/dust resistance (“AED” suffix).
Functional Role
- Primary Function: Converts exciter field signals (e.g., generator voltage/current) for the Mark VIe controller.
- Critical Safeguard: Triggers automatic de-excitation during grid faults to protect generators.
Applications & Industries
|
Industry
|
Use Case
|
|---|---|
|
Power Generation
|
Gas/Hydro/Steam turbine excitation control (AVR systems).
|
|
Renewable Energy
|
Wind turbine doubly-fed induction generator (DFIG) management.
|
|
Marine & Offshore
|
Shipboard power plant voltage regulation.
|
|
Industrial Plants
|
Synchronous motor excitation for compressors/pumps.
|
Integration & Compatibility
- Mounting: Installed in Mark VIe I/O Pack Carrier (e.g., IC693CHS391).
- Wiring: Requires shielded cables for analog signals (min. 22 AWG).
- Configuration: Programmed via ToolboxST™ software (GE’s engineering suite).
- Redundancy: Supports dual-channel input for critical measurements.
Precautions
⚠️ Obsolescence Alert: Verify compatibility with Mark VIeS upgrades (legacy Mark VIe part).
⚠️ ESD Sensitivity: Handle with grounded wrist straps.
⚠️ Voltage Limits: Do not exceed ±15V analog input to avoid PCB damage.
