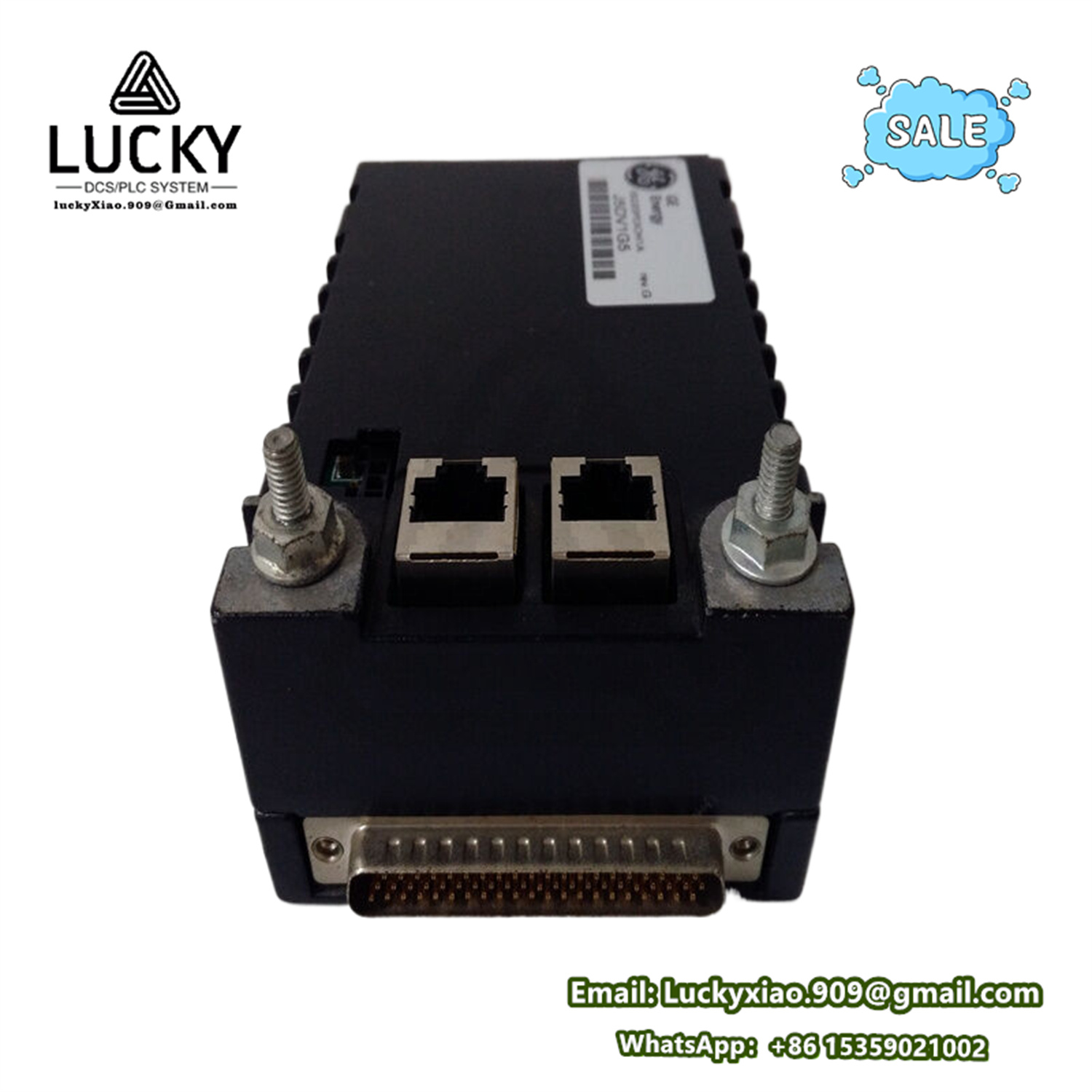

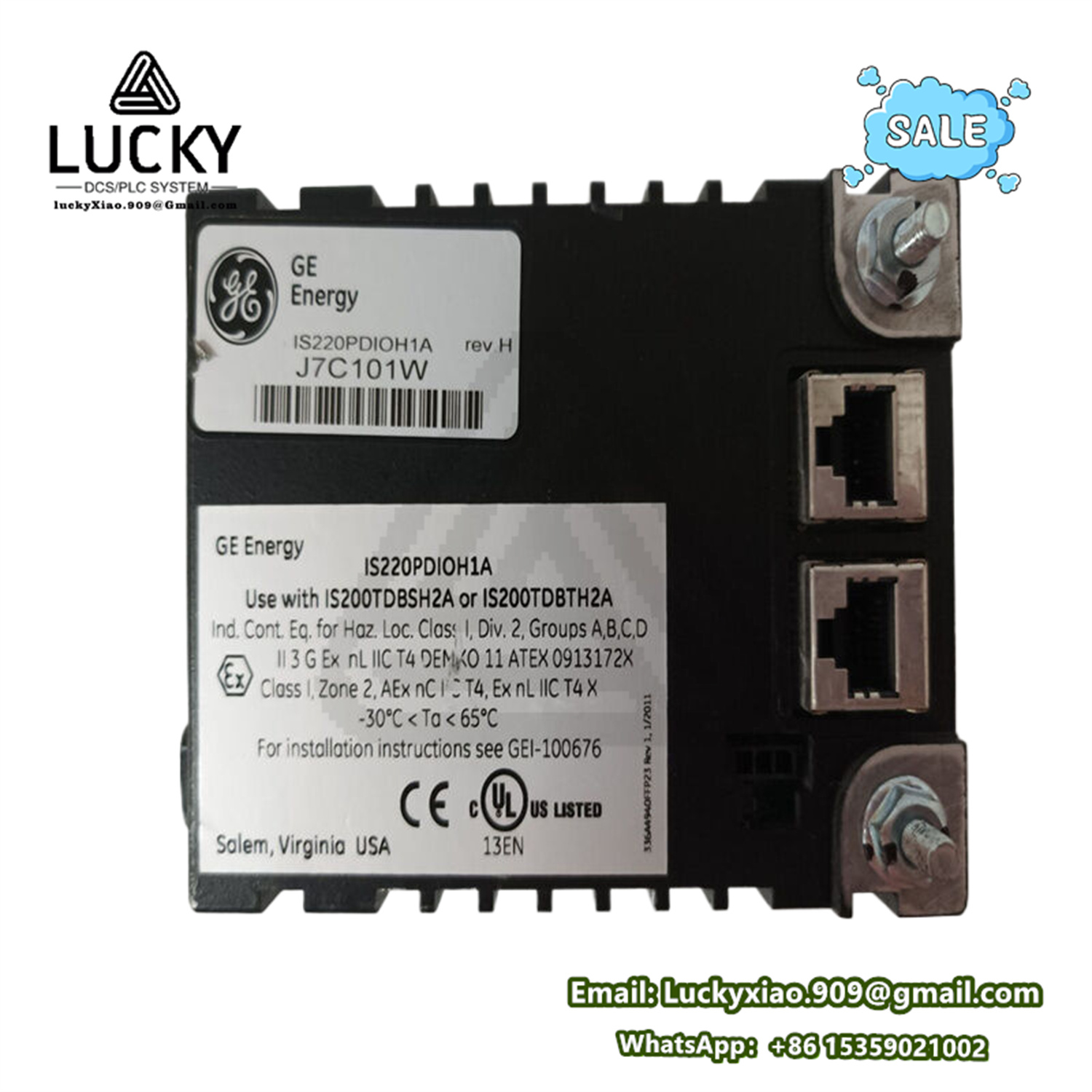

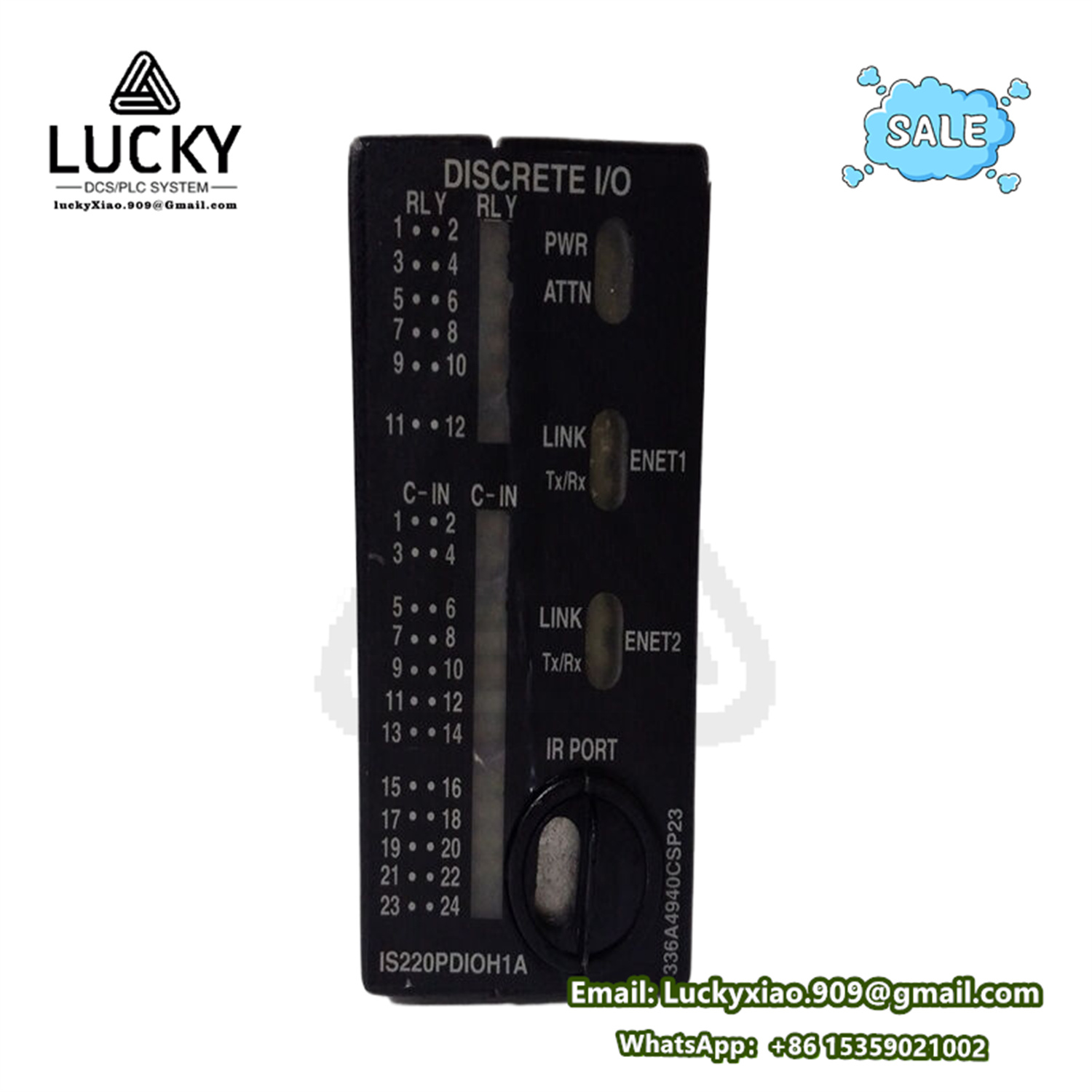

GE IS220PDIOH1A PROFIBUS DP-V1 Slave Interface Module
1. Product Description
The GE IS220PDIOH1A is a PROFIBUS DP-V1 Slave Interface Module for GE’s Mark VIe Turbine Control System. It provides high-speed industrial communication between Mark VIe controllers and PROFIBUS-enabled field devices (sensors, drives, HMIs).
2. Product Parameters & Specifications
Key Specifications Table
|
Category
|
Specification
|
|---|---|
|
Part Number
|
|
|
Series
|
Mark VIe Speedtronic™ Turbine Control System
|
|
Module Type
|
PROFIBUS DP-V1 Slave I/O Pack
|
|
Communication Protocol
|
PROFIBUS DP-V1 (IEC 61158/61784), 12 Mbps max
|
|
Interface Ports
|
1x PROFIBUS (9-pin D-Sub), 1x RJ45 (Ethernet for firmware/configuration)
|
|
Input Voltage
|
24 VDC (±10%) via backplane
|
|
Isolation
|
1500 VAC (field-to-logic)
|
|
I/O Channels
|
Slave for up to 244 bytes input + 244 bytes output data
|
|
Status Indicators
|
LEDs for power, comms, fault, and port activity
|
|
Operating Temp.
|
-40°C to +70°C (-40°F to +158°F)
|
|
Humidity
|
5–95% non-condensing
|
|
Compatibility
|
Mark VIe controllers (EX2100, LS2100), ToolboxST™ software v7.0+
|
|
Certifications
|
UL/cUL, CE, ATEX/IECEx (Zone 2), SIL2/SIL3 (system-dependent)
|
|
Obsolete Status
|
Active production (Mark VIe series)
|
3. Series & Variants
- Series: Part of GE’s IS200/IS220 I/O pack series for Mark VIe systems.
- Variant Notes:
- -A suffix denotes hardware revision (enhanced diagnostics).
- Compatible with VME64x or PCIe carrier boards (e.g., IS200VTCCH1C).
4. Key Features
- PROFIBUS DP-V1 Support: Enables cyclic data exchange, diagnostics, and alarms per PROFIBus PA/DP standards.
- Hot-Swappable: Supports online replacement without system shutdown.
- Dual-Port Memory: Redundant data handling for fault tolerance.
- Integrated Diagnostics: Self-monitoring for bus errors, short circuits, and module health.
- ToolboxST™ Integration: Configuration via GE’s engineering software.
5. Function & Role
- Acts as a slave device for PROFIBUS DP networks, transferring I/O data between field devices and Mark VIe controllers.
- Translates PROFIBUS telegrams to Mark VIe’s VME/PXIe bus protocol.
- Monitors network integrity and triggers controller alarms during faults.
- Supports DP-V1 acyclic services for parameterization/diagnostics.
6. Applications & Use Cases
Primary Application Domain
Power Generation & Industrial Automation:
|
Application
|
Function
|
|---|---|
|
Turbine Control
|
Interfaces with PROFIBUS sensors (pressure, temp) & actuators (valves, VFDs).
|
|
Process Automation
|
Connects HMIs, PLCs, and remote I/O in chemical/oil/gas plants.
|
|
Drive Systems
|
Controls motors/VSDs via PROFIBUS profile drives (e.g., Siemens, ABB).
|
|
Data Acquisition
|
Collects diagnostics from smart field instruments (flow meters, transmitters).
|
Secondary Uses
- Water/wastewater treatment control
- Compressor stations in pipelines
- Manufacturing automation (conveyors, robotics)
7. Important Notes
- Firmware Dependency: Requires compatible Mark VIe controller firmware (e.g., SR 10.0+).
- Network Limits: Supports ≤125 nodes per segment; max 244 byte I/O per slave device.
- Topology: Requires PROFIBUS terminators and shielded cabling (max 100m @ 12 Mbps).
Summary
The GE IS220PDIOH1A is a critical PROFIBUS interface for GE’s Mark VIe platforms, enabling real-time industrial communication in power generation and process control. Its robust design, diagnostic capabilities, and compliance with international standards ensure reliability in harsh environments.
