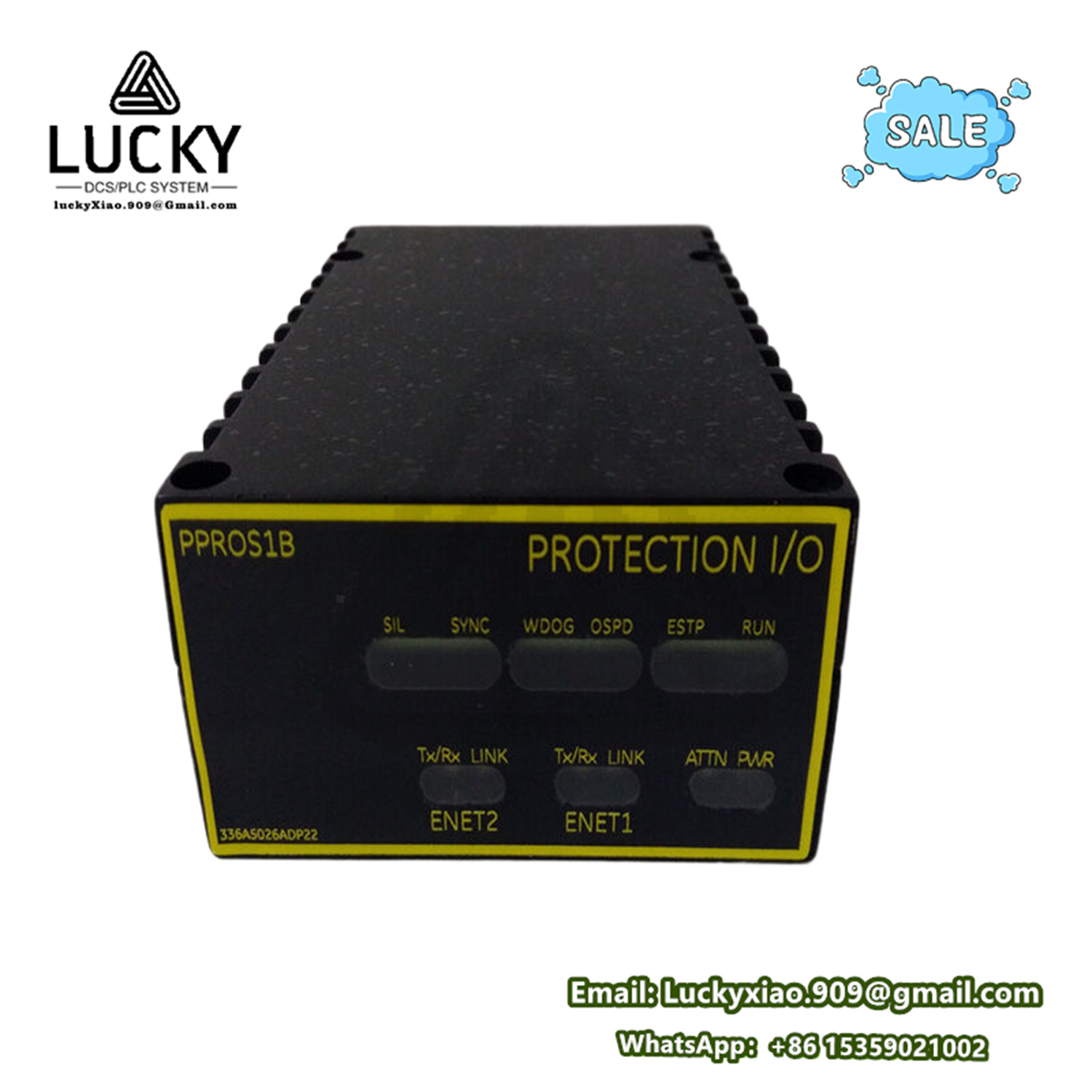

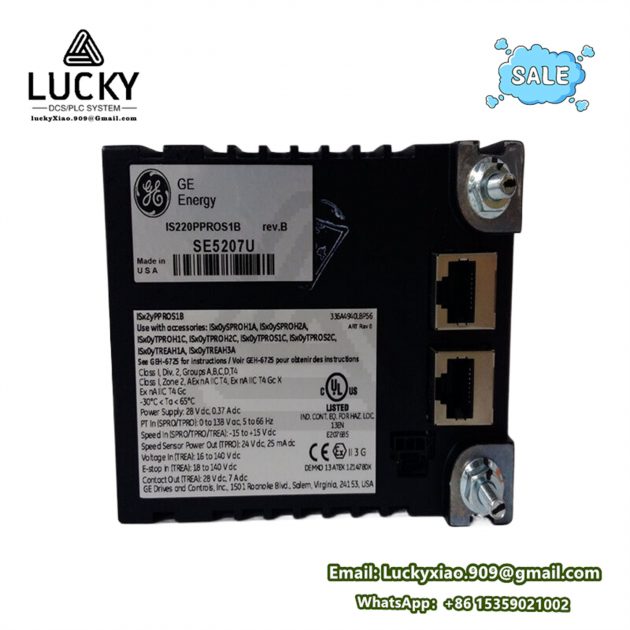

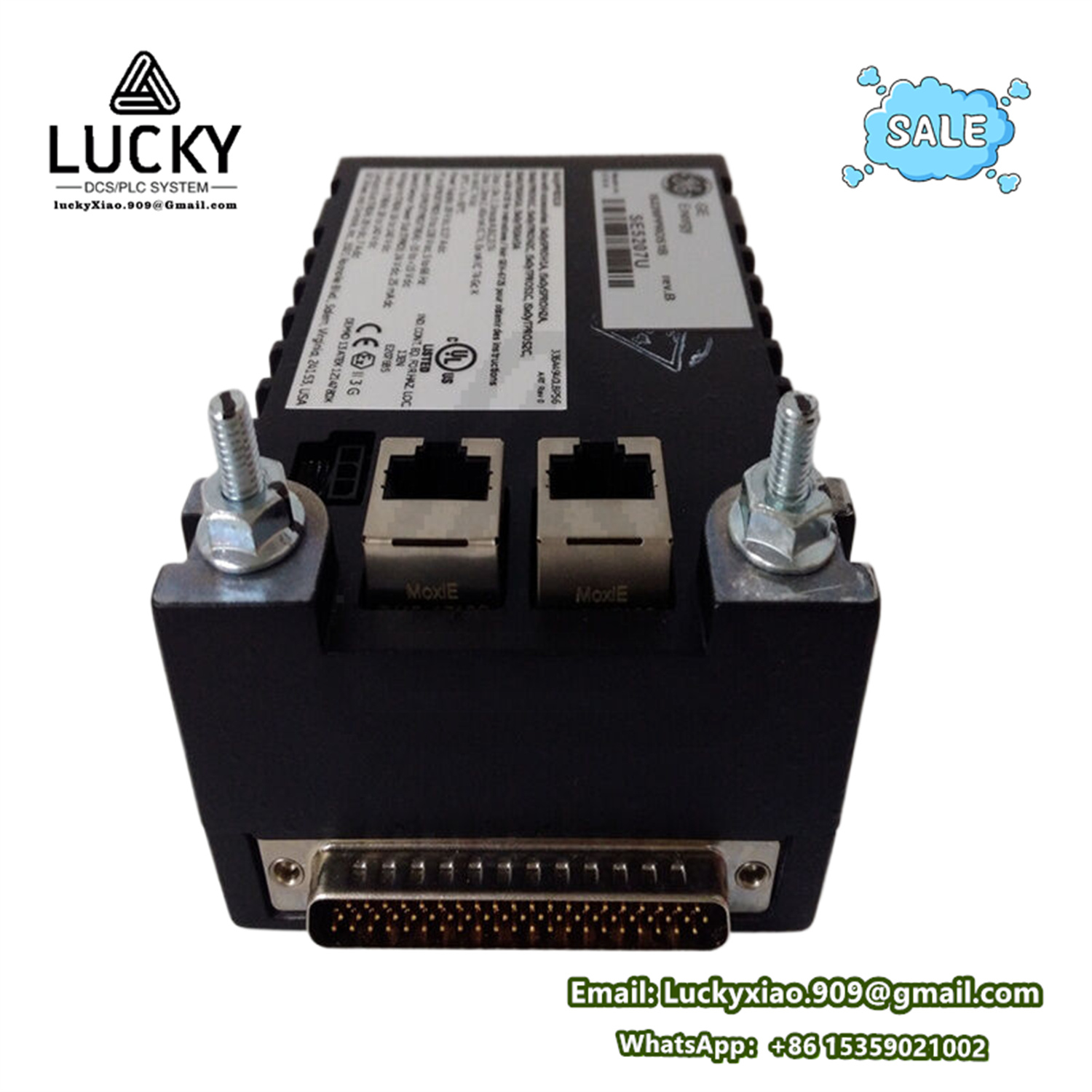

GE IS220PPROS1B TMR processor
GE IS220PPROS1B Technical Specification
Specification
|
Attribute
|
Detail
|
|---|---|
|
Part Number
|
|
|
Manufacturer
|
General Electric (GE)
|
|
Series
|
Mark VIe Speedtronic™
|
|
Country of Origin
|
USA
|
|
Function
|
Protective Processor Module (Triple Modular Redundant)
|
Description
The GE IS220PPROS1B is a high-integrity TMR (Triple Modular Redundant) processor for GE’s Mark VIe platform, engineered for critical turbine protection systems. It executes safety-rated logic (SIL 3) for overspeed detection, flame monitoring, and emergency shutdowns using three synchronized processing lanes. Features hardware-based voting logic, fault injection diagnostics, and seamless integration with Mark VIe I/O networks via PCIe backplane.
Features
- TMR Architecture: Three independent PowerPC 750GL @ 800 MHz lanes with hardware voter (2-out-of-3 consensus).
- Safety Certification: SIL 3 (IEC 61508) & IEC 61511 for functional safety applications.
- Integrated Diagnostics: Continuous self-tests (CPU, memory, voter logic) + fault injection capability.
- Secure Communication: AES-256 encrypted peer-to-peer sync (≤1 μs skew between lanes).
- Extreme Ruggedization: -40°C to +70°C operation, 5g vibration resistance (IEC 60068-2-6).
- Redundant Interfaces: Dual 1 GbE ports per lane (IEEE 1588 PTPv2) + RS-485 for legacy devices.
- Failsafe Design: Watchdog timers + independent shutdown circuitry per lane.
Electrical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Input Voltage
|
24V DC ±10% (via VME backplane)
|
|
Power Consumption
|
38W (typical), 55W (max)
|
|
Backplane Bandwidth
|
PCIe x4 (8 Gbps full-duplex)
|
|
Isolation
|
2500V AC channel-to-channel (per lane)
|
|
Sync Accuracy
|
<100 ns inter-lane skew
|
Product Properties
|
Property
|
Specification
|
|---|---|
|
I/O Compatibility
|
Works with PDIO, VDIO, TCMI I/O packs
|
|
Communication Protocols
|
SRTP, GOOSE (IEC 61850), Modbus TCP
|
|
Cybersecurity
|
FIPS 140-2 Level 2 encryption, secure bootchain
|
|
MTBF
|
350,000 hours (IEC 61709)
|
|
Safety Certifications
|
TÜV Rheinland SIL 3, UL 508, ATEX Cat 3
|
|
Dimensions
|
233 × 160 × 20 mm (9.2 × 6.3 × 0.8 in)
|
|
Weight
|
0.9 kg (2.0 lbs)
|
Performance Metrics
|
Metric
|
Value
|
|---|---|
|
Logic Scan Time
|
5 ms (typical for protection loops)
|
|
Voter Latency
|
<300 ns (critical trip signals)
|
|
Fault Detection Time
|
<100 ms (lane isolation)
|
|
Non-Volatile Storage
|
2 MB FRAM (trip event logging)
|
Key Applications
- Turbine Emergency Shutdown: Overspeed (>110% nominal), excessive vibration, lube oil failure.
- Burner Management Systems: Flame detection & permissive interlock sequencing.
- Nuclear Safety Systems: Reactor trip logic (via SIL 3 qualification).
- Compressor Stations: Surge control & high-pressure protection.
⚠️ Critical Integration Notes:
- TMR Mandatory: Requires three identical modules (e.g., IS220PPROS1B x3) with dedicated sync cabling.
- Firmware Lockstep: All lanes must run identical firmware version (ToolboxST v9.1+ recommended).
- I/O Constraints: Only safety-certified I/O cards (e.g., IS220PDIAH1A) permitted in protection loops.
- Cooling: 400 LFM airflow required; derate above 55°C ambient.
- Testing: Annual fault injection tests mandated for SIL 3 compliance.
