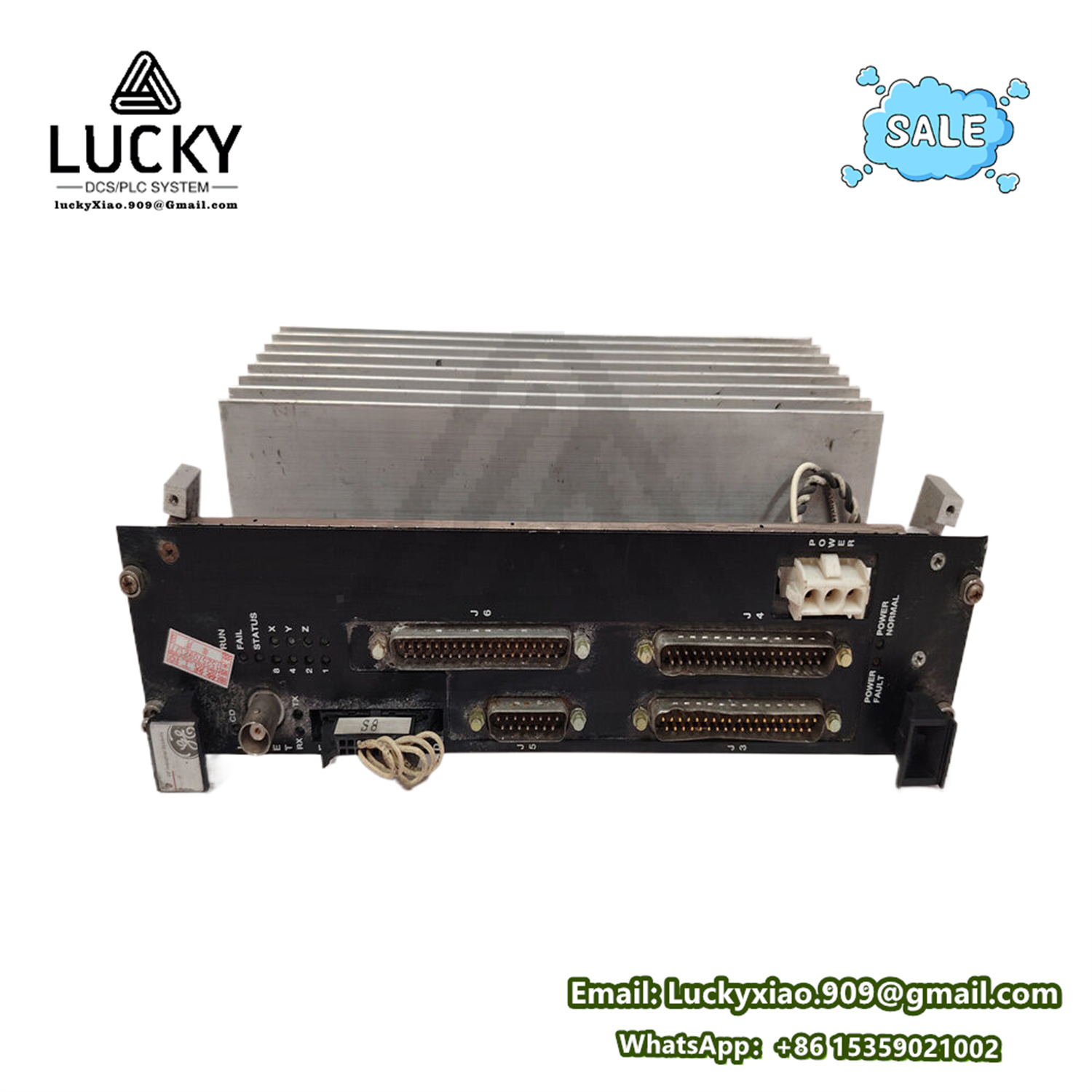

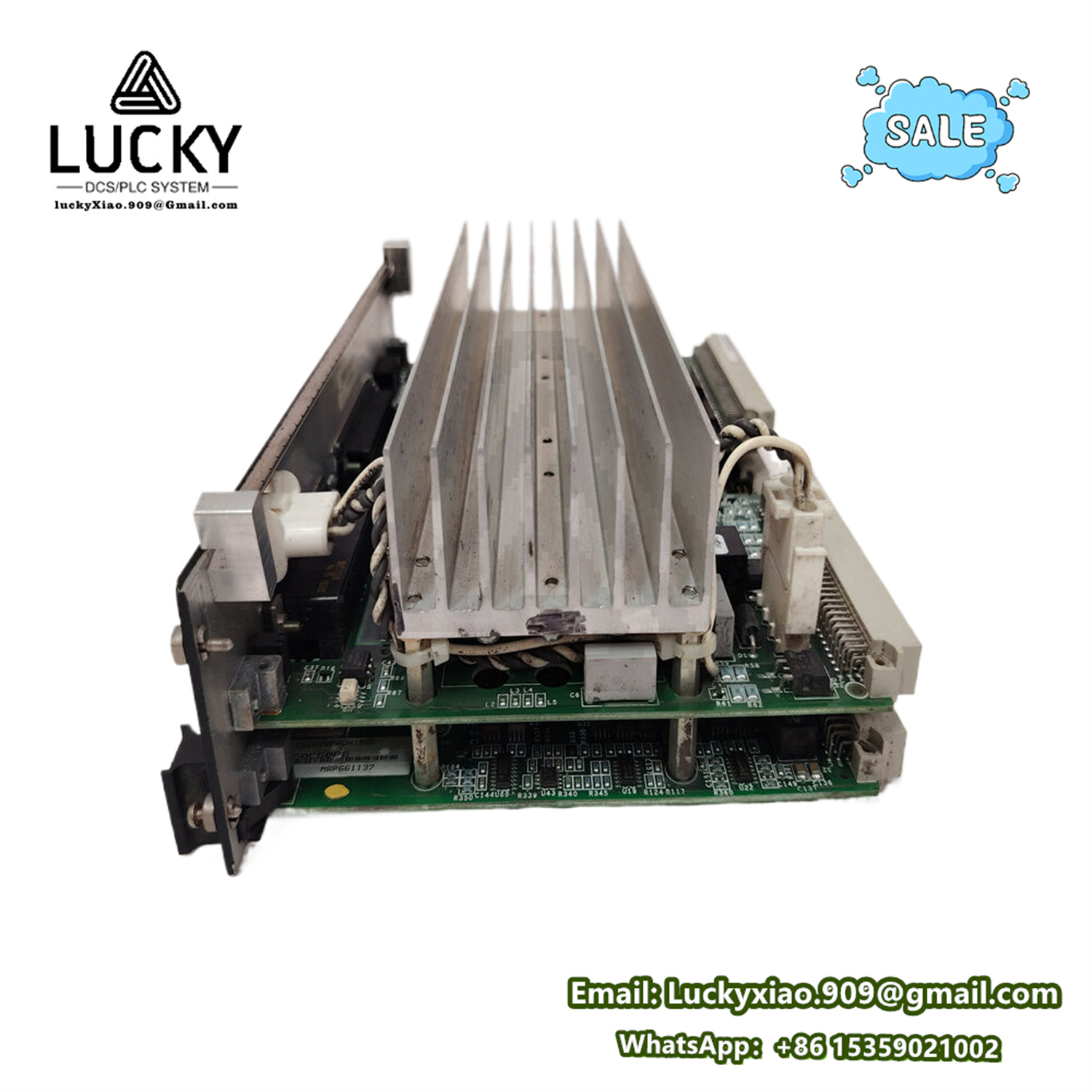

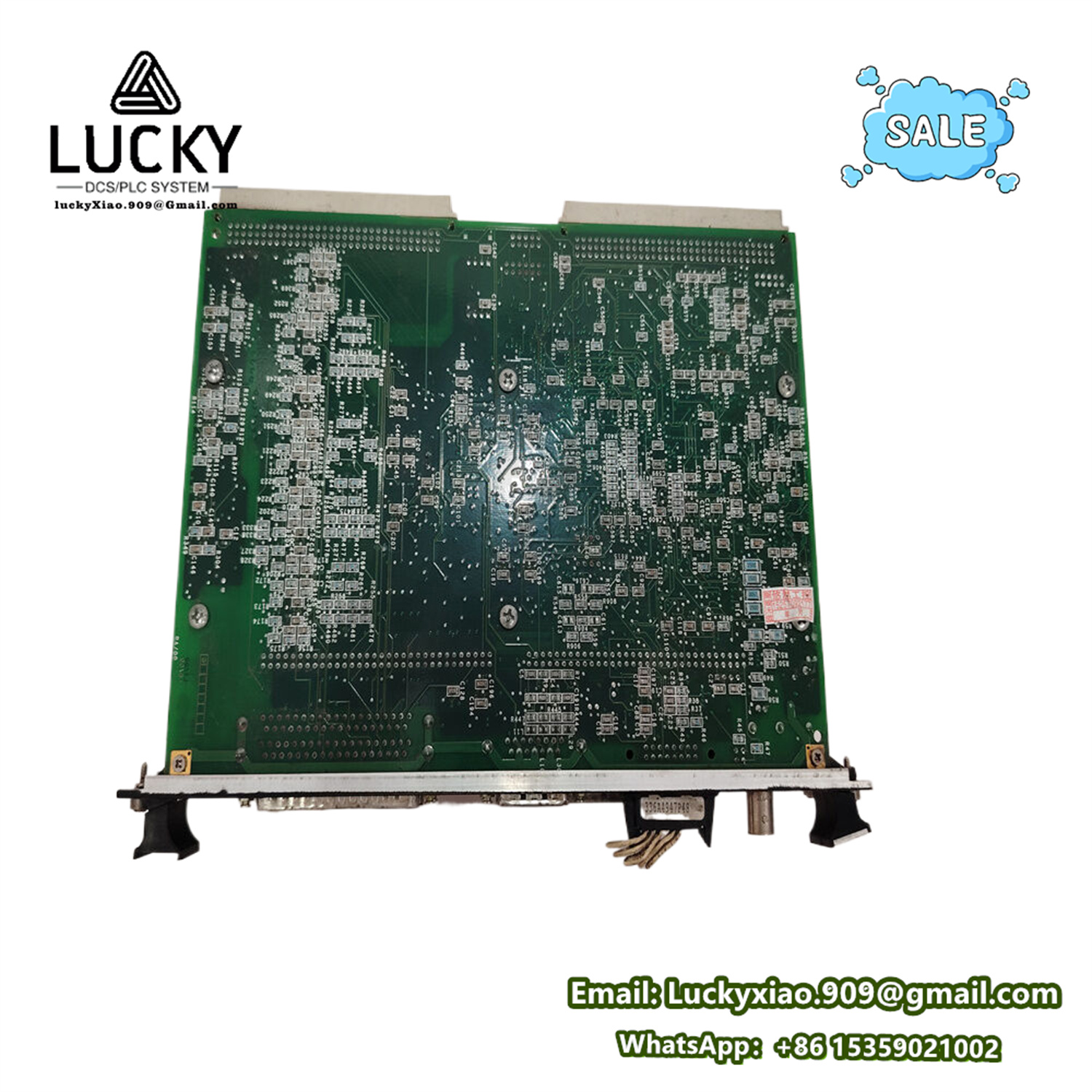

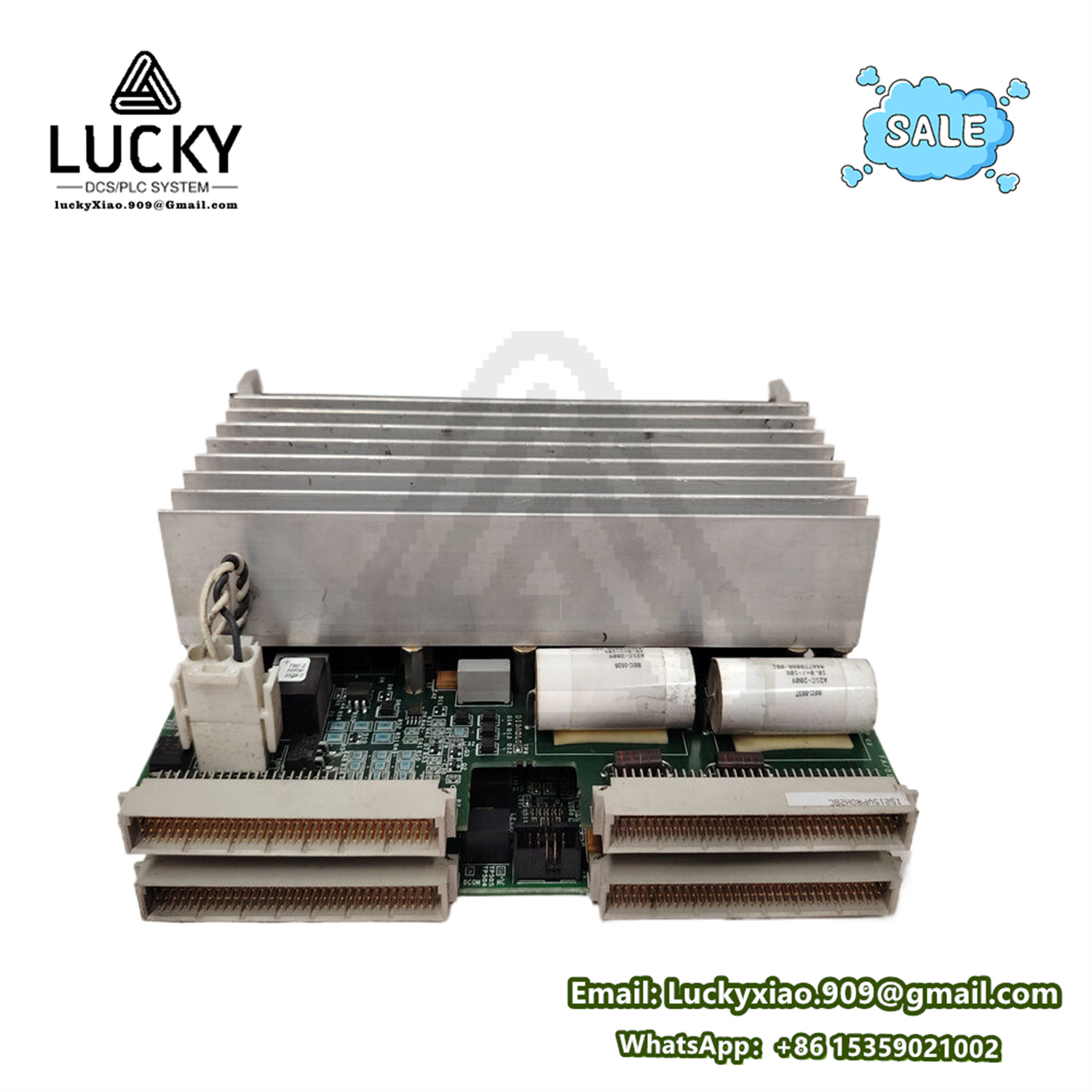

GE VPROH2B IS215VPROH2BC 16-channel voltage input module
GE IS215VPROH2BC Technical Specification
(Mark VIe Voltage Input Module)
Specification
|
Attribute
|
Detail
|
|---|---|
|
Part Number
|
IS215VPROH2BC
|
|
Functional Code
|
VPROH2B
|
|
Manufacturer
|
General Electric (GE)
|
|
Platform
|
Mark VIe Speedtronic™ Turbine Control System
|
|
Country of Origin
|
USA
|
|
Function
|
Dual-Range AC Voltage Input Module
|
Description
The GE IS215VPROH2BC is a 16-channel voltage input module for GE’s Mark VIe turbine control platform. Designed for precise measurement of generator/stator voltages (0–300V AC), it provides RMS/phasor data to the turbine controller (/) via VME backplane. Features galvanic isolation, harmonic analysis (up to 63rd order), and dual-range autoranging (20V/300V full-scale).
Features
- Voltage Inputs:
- 16× differential channels (bank-configurable)
- Dual-range: 0–20V AC (PT secondaries) or 0–300V AC (direct)
- Autoranging with OV lockout (>350V)
- Signal Processing:
- 24-bit ΔΣ ADC per channel (0.1% accuracy)
- 4-kHz sampling (per phase)
- Harmonic magnitude/phase extraction
- Protection & Diagnostics:
- Channel-wise fuse failure detection
- Overvoltage/undervoltage alarms
- Watchdog timer for DSP health
- Integration:
- VME64x backplane interface
- communication to controller
- Hot-swappable (with carrier)
Electrical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Input Voltage Range
|
Low: 0–20V AC, High: 0–300V AC
|
|
Frequency Range
|
42–68 Hz (60Hz nominal)
|
|
Input Impedance
|
>1 MΩ (all ranges)
|
|
Isolation
|
1500V AC channel-to-channel/backplane
|
|
Accuracy
|
±0.1% of reading ±0.05% full-scale (25°C)
|
|
Bandwidth
|
DC to 4 kHz (±3dB)
|
Product Properties
|
Property
|
Specification
|
|---|---|
|
Connector Type
|
Dual 34-pin HD-68 (front)
|
|
LED Indicators
|
Power/Status (green), Fault (red), per-bank alarms
|
|
Compliance
|
UL 508, IEC 61010-1, CE/ATEX Cat.3 Zone 2
|
|
Operating Temp
|
-40°C to +70°C (derate >55°C)
|
|
Humidity
|
5–95% non-condensing
|
|
Dimensions
|
233 × 30 × 160 mm (9.2 × 1.2 × 6.3 in)
|
|
Weight
|
0.5 kg (1.1 lbs)
|
Performance Metrics
|
Metric
|
Value
|
|---|---|
|
Update Rate
|
20 ms (controller cycle-synchronized)
|
|
Harmonic Analysis
|
63 orders (THD accuracy ±0.5%)
|
|
Step Response Time
|
<40 ms (90% FS)
|
|
Noise Rejection
|
80 dB CMRR @ 50/60 Hz
|
|
Drift
|
<100 ppm/°C (full-scale)
|
Key Applications
- Turbine Generator Monitoring:
- Stator voltage sync-check (25/27/59)
- VAR/power factor control
- Overexcitation (24) protection
- Power Quality:
- Voltage unbalance (47) detection
- Sub-synchronous resonance (SSR) analysis
- Grid Compliance:
- IEEE 1547 anti-islanding
- IEC 61000-3-6 harmonic limits
⚠️ Critical Integration Notes:
- PT Connections: Use twisted/shielded pairs (AWG 18 min) – shield grounded ONLY at cabinet.
- Range Selection: Configure via VPRO_SW ToolboxST™ parameter – incorrect setting damages ADC.
- Grounding: Module chassis MUST bond to star ground – noise >2% FS if floating.
- Firmware Dependency: Requires Mark VIe controller ≥R196 or VPHD faults occur.
- Slot Restrictions: Install ONLY in VME slots 2–5 of carrier (slots 1/6 disable channels).
- Harmonic Setup: Enable HARM_OPT=1 in configuration – defaults to RMS-only mode.
- Replacement Procedure: Power down ENTIRE carrier – hot-swap corrupts VME arbitration.
