1. Product Description

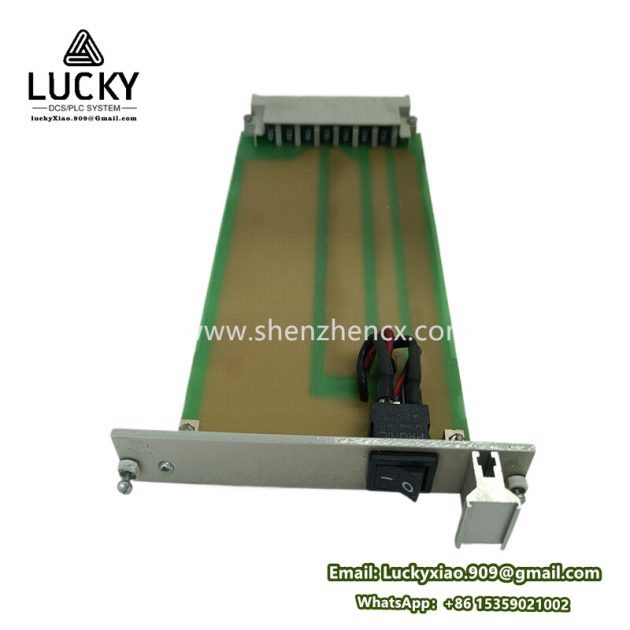

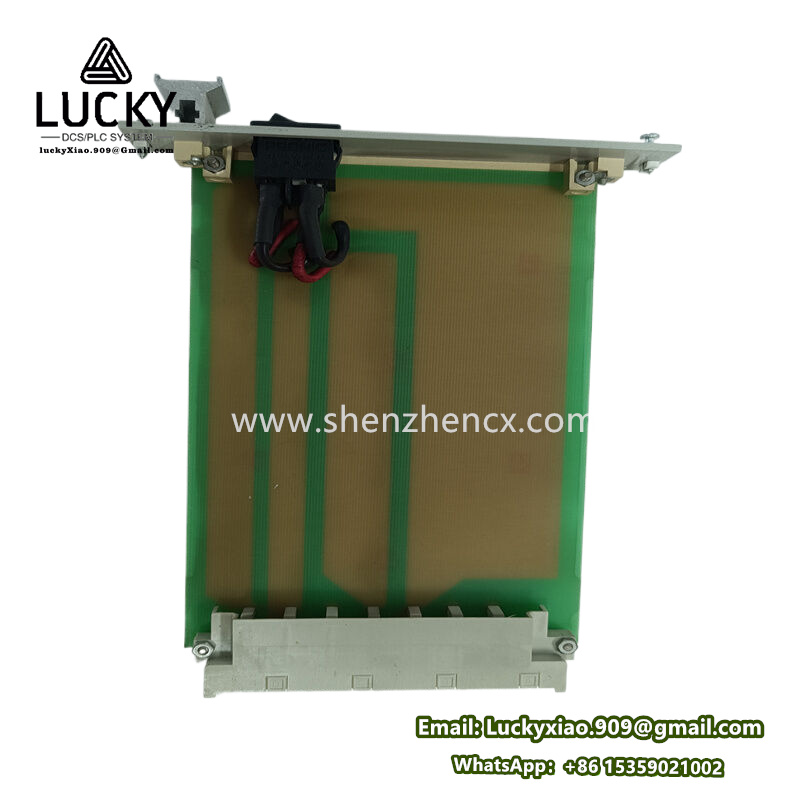

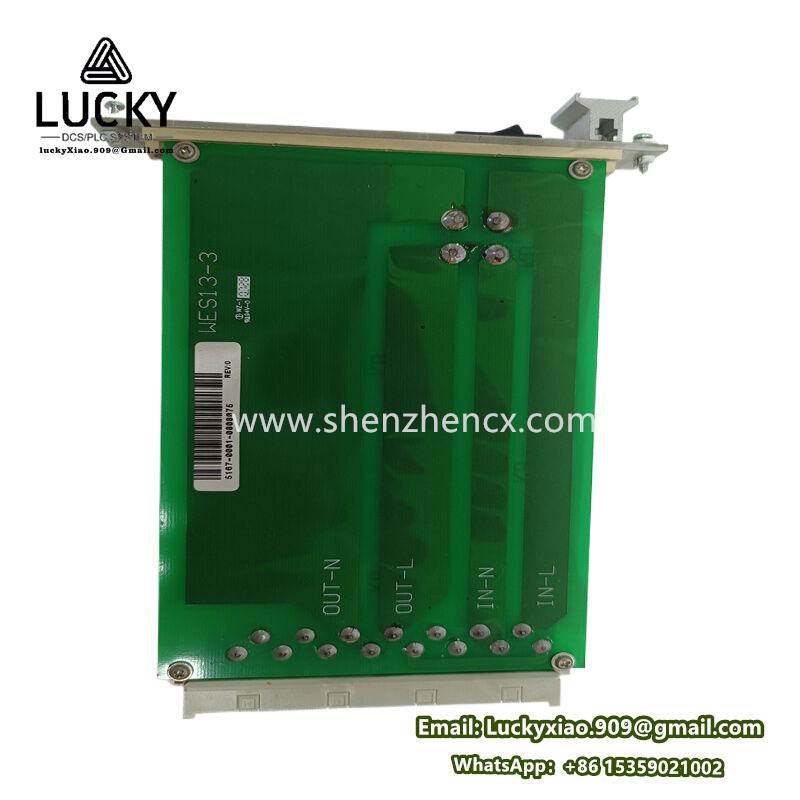

The GE WES13-3 2508-21001 is a 3-channel electromechanical relay output module for the VersaMax PLC system. It acts as an interface between low-voltage PLC control signals and high-power industrial loads (AC/DC).
2. Key Specifications
|
Parameter
|
Specification
|
|---|---|
|
Model
|
WES13-3 2508-21001 (Variant of 5167-0001-0210)
|
|
I/O Type
|
Digital Output (DO)
|
|
Channels
|
3 independent relays
|
|
Contact Form
|
SPST-NO (Form A)
|
|
Max. Switching
|
2A @ 250V AC / 2A @ 30V DC
|
|
Voltage Range
|
5–240V AC/DC (universal)
|
|
Isolation
|
1,500V AC (channel-to-channel and field-to-logic)
|
|
Response Time
|
≤10ms (on/off)
|
|
Terminal
|
Removable screw-clamp (18–12 AWG)
|
|
Status Indicators
|
Per-channel LED (green)
|
|
Operating Temp.
|
-20°C to +60°C
|
|
Certifications
|
UL 508, cUL, CE, RoHS
|
3. Series & Compatibility
- Series: GE VersaMax I/O Modules
- Compatible PLCs:
- VersaMax Micro PLCs (IC200UDRxxx)
- VersaMax Nano PLCs (IC200UDRx)
- Mounting:
- Snap-on to VersaMax base units (e.g., IC693CHS391, IC693CHS397)
- Backplane current: 70 mA max (5V DC)
4. Key Features
- Dual-Voltage Support: Directly switches AC/DC loads without external relays.
- Overload Protection: Arc suppression for inductive loads (e.g., solenoids).
- Hot-Swappable: Replace modules without system shutdown.
- High Noise Immunity: Reinforced isolation for harsh environments (ISO 10681-2).
- Diagnostics: LED per channel for quick fault tracing.
5. Function
Converts 24V DC logic signals from the PLC CPU into isolated high-power contact closures to control:
- Motors (<0.5 HP)
- Solenoids/Valves
- Heaters/Lamps
- Alarm Devices
6. Typical Applications
- Machine Control: Conveyor start/stop, spindle control.
- Process Automation: Valve sequencing in chemical/petrochem plants.
- Energy Management: Generator transfer switches, capacitor bank control.
- HVAC: Fan coil unit control, damper actuators.
- Safety Systems: Emergency stop circuit reset.
7. Target Industries
|
Industry
|
Applications
|
|---|---|
|
Manufacturing
|
Robotic cell control, press line automation
|
|
Oil & Gas
|
Pump station control, valve trees, flare systems
|
|
Water Treatment
|
Chlorine pump control, filter backwash cycles
|
|
Power Distribution
|
Feeder automation, recloser control
|
|
Pharmaceuticals
|
Mixer control, filling line actuators
|
