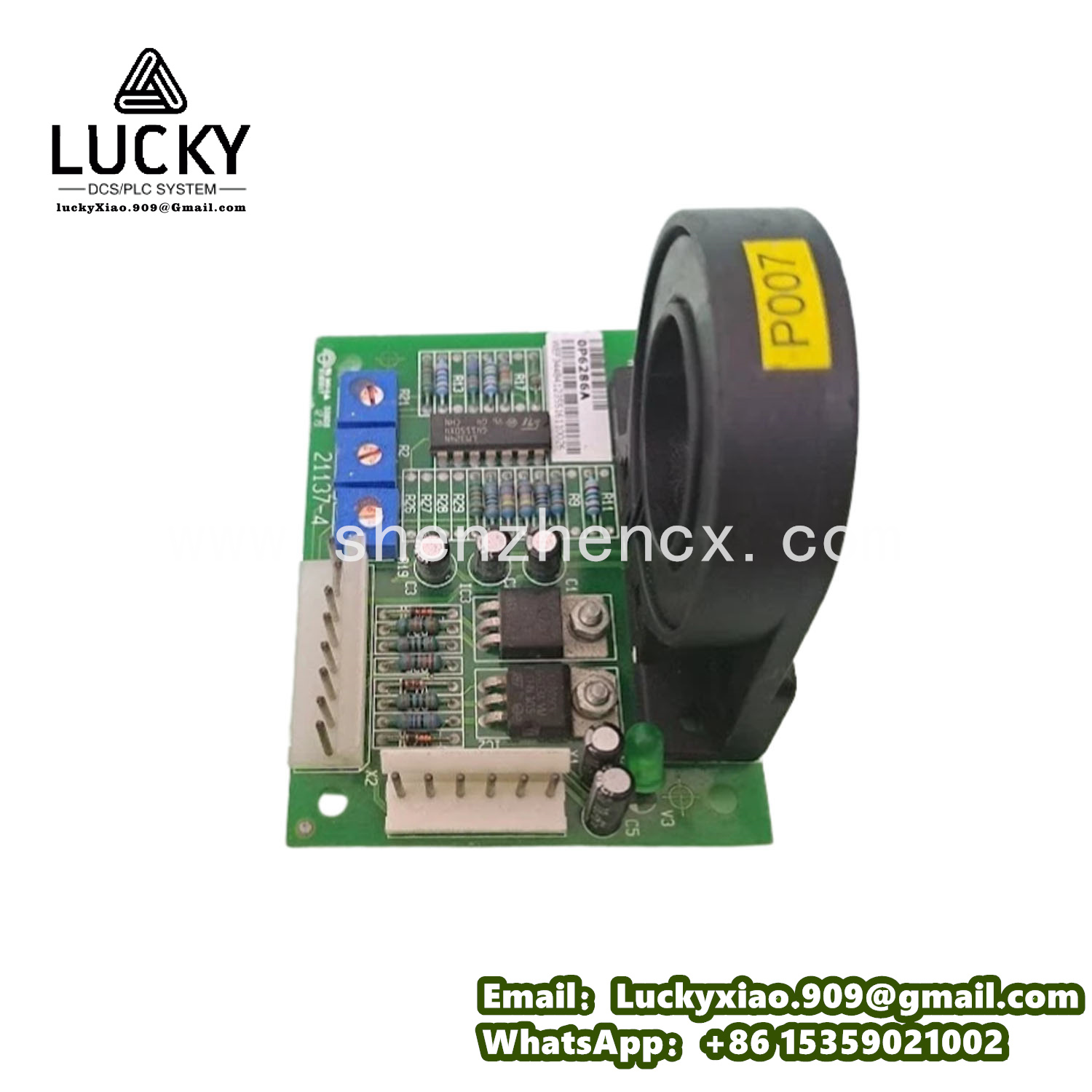

GUTOR 0P6286A Industrial-Grade Power Component
1. Product Description
GUTOR 0P6286A is an industrial-grade power monitoring and control component under Schneider Electric, built for mid-sized industrial systems that need real-time power tracking and smart load management. It’s ideal for integration into equipment like factory automation control panels, renewable energy (solar/wind) auxiliary modules, and medium-duty HVAC power units—scenarios where spotting power issues early and optimizing energy use are key.
What makes it practical:
- Dual-Function Power Management: Monitors key power metrics (voltage, current, power factor) in real time and controls loads automatically. This helps avoid overloads and cut down on unnecessary energy use.
- Compact & Easy to Fit: Slim design works in tight equipment enclosures, so it’s great for upgrading existing systems (like adding smart monitoring to old factory machines) without extra space.
- Tough for Industrial Use: Uses dust-resistant, vibration-tolerant parts that work steadily on busy factory floors or in semi-outdoor power cabinets—no frequent maintenance needed.
It’s perfect for adding smart power control to conveyor systems, small robot setups, or solar inverter auxiliary circuits, keeping operations safe and efficient.
2. Key Technical Specifications
|
Parameter Category
|
Specific Details
|
|
Monitoring Range
|
Voltage: 0-200Vdc; Current: 0-40A; Power Factor: 0-1.0
|
|
Input Signals
|
Analog (4-20mA) / Digital (Modbus RTU)
|
|
Output Control Signals
|
3× relay outputs (for load switching); 1× analog output (0-10V)
|
|
Fault Detection
|
Over-voltage, under-voltage, over-current, low power factor
|
|
Operating Temperature
|
-25°C to +105°C
|
|
Size (L×W)
|
115mm×78mm (standard PCB form factor)
|
|
Mounting
|
Screw-mount (PCB standoffs) / optional 35mm DIN rail adapter
|
|
Certifications
|
UL 61010-1, IEC 61010-1, RoHS 3.0
|
3. System Integration
The 0P6286A acts as a “power monitor and protector” in industrial systems:
- Real-Time Data Collection: Connects to voltage/current sensors in the system, gathers data (including power factor), and sends it to a linked display or central control system (like PLCs or SCADA) for easy checking.
- Auto-Fault Response: Triggers relay outputs automatically if it finds issues (like too high voltage or low power factor). This cuts off non-critical loads to protect core equipment (e.g., robot motors, control modules) from damage.
- Simple Setup: Works with standard industrial wiring for signals and power—no major rewiring needed to add it to existing systems. It also pairs easily with common control platforms via Modbus.
- Retrofit-Friendly: Fits into older equipment enclosures, making it a cost-effective way to add modern power management to legacy systems (like old factory conveyor power modules).
4. Related Models in the Same Series
|
Model
|
Key Differences & Uses
|
|
GUTOR 0P6287A
|
Higher monitoring range (voltage: 0-300Vdc; current: 0-60A) – for larger systems like small industrial crane power units.
|
|
GUTOR 0P6285A
|
Lower monitoring range (voltage: 0-150Vdc; current: 0-25A) – ideal for small-to-medium setups like HVAC fan control or portable test equipment.
|
|
GUTOR 0P6288A
|
Marine-grade (salt spray resistant) – works for shipboard systems like cargo winch power monitors or navigation auxiliary power units.
|
|
GUTOR 0P6289A
|
Extended temperature range (-40°C to +125°C) – fits cold outdoor wind turbine auxiliaries or high-heat factory areas (e.g., near furnaces).
|
|
GUTOR 0P6290A
|
Dual-loop monitoring (tracks two separate power paths) – useful for systems with main and backup power (like hospital HVAC or data center peripherals).
|
|
GUTOR 0P6291A
|
Built-in energy logging (stores 6 months of data) – great for factories needing to track energy use for efficiency reports or compliance.
|
|
GUTOR 0P6292A
|
Wireless connectivity (Bluetooth/Wi-Fi) – for remote setups where wiring is hard, like outdoor solar panel auxiliary modules.
|
