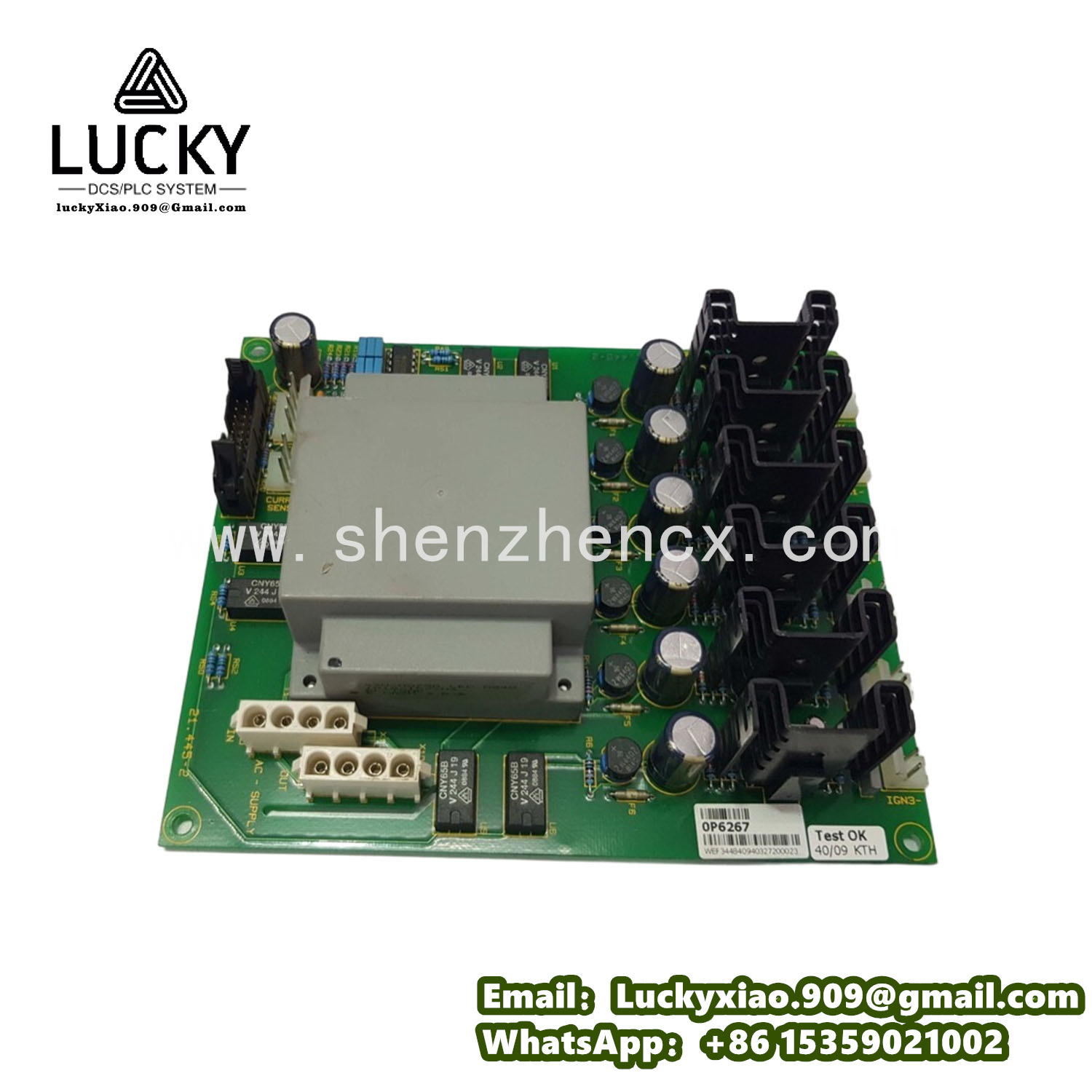

GUTOR ELECTRIC 0P6267 PCB Card
1. Product Description
GUTOR ELECTRIC 0P6267 is a dedicated industrial PCB card under Schneider Electric, designed for power monitoring and control in mid-to-large industrial power systems. It’s ideal for integrating into equipment like heavy machinery power modules, renewable energy (wind/solar) inverters, and large-scale HVAC control panels—where real-time power tracking and precise load management are needed.
What makes it practical:
- Power Monitoring & Control: Tracks key power metrics (voltage, current, power consumption) in real time and sends signals to adjust loads, preventing overloads and optimizing energy use.
- Compact & Integratable: Slim PCB design fits easily into existing equipment enclosures (no extra bulky housing), making it perfect for upgrading or retrofitting old power systems.
- Reliable Performance: Uses industrial-grade components that resist dust, vibration, and mild temperature changes—works steadily in factory floors or outdoor power cabinets.
It’s great for adding smart power control to industrial robots, conveyor systems, or solar inverter setups, ensuring safe and efficient power use.
2. Key Technical Specifications
|
Parameter Category
|
Specific Details
|
|
Monitoring Range
|
Voltage: 0-240Vdc; Current: 0-50A
|
|
Input Signals
|
Analog (4-20mA) or digital (Modbus RTU)
|
|
Output Control Signals
|
2× relay outputs (for load switching); 1× analog output (0-10V)
|
|
Operating Temperature
|
-25°C to +105°C
|
|
Size (L×W)
|
120mm×80mm (standard PCB form factor)
|
|
Mounting
|
Screw-mount (PCB standoffs) or DIN rail adapter (optional)
|
|
Certifications
|
UL 61010-1, IEC 61010-1, RoHS 3.0
|
3. System Integration
The 0P6267 PCB card acts as a “power brain” in industrial systems:
- Real-Time Tracking: Connects to sensors (voltage/current transducers) in the power system, collecting data and showing it on a linked display or central control panel.
- Load Protection: Triggers relay outputs to cut off non-critical loads if current/voltage exceeds safe limits, protecting core equipment (like robot motors) from damage.
- Easy Connection: Works with standard industrial wiring (for analog/digital signals) and integrates with existing control systems (e.g., PLCs, SCADA) via Modbus—no major system overhauls needed.
- Retrofit-Friendly: Fits into older equipment enclosures, making it cost-effective to add smart power control to legacy systems (e.g., old factory conveyors).
4. Related Models in the Same Series
|
Model
|
Key Differences & Uses
|
|
GUTOR 0P6268 PCB Card
|
Higher monitoring range (voltage: 0-480Vdc; current: 0-100A) – for large industrial systems like crane power modules.
|
|
GUTOR 0P6266 PCB Card
|
Lower monitoring range (voltage: 0-120Vdc; current: 0-20A) – ideal for small-to-medium setups like HVAC fan control.
|
|
GUTOR 0P6269 PCB Card
|
Built-in battery monitoring – tracks battery charge level, perfect for renewable energy backup systems.
|
|
GUTOR 0P6270 PCB Card
|
Marine-grade (salt spray resistant) – works for shipboard power systems like cargo winch control panels.
|
|
GUTOR 0P6271 PCB Card
|
Extended temperature range (-40°C to +125°C) – fits cold outdoor wind turbine setups or high-heat steel mill equipment.
|
|
GUTOR 0P6272 PCB Card
|
Dual-system monitoring (tracks two separate power loops) – useful for systems with main and backup power paths.
|
|
GUTOR 0P6273 PCB Card
|
Ethernet connectivity (instead of Modbus RTU) – for large-scale factories needing centralized cloud-based power monitoring.
|
