1. Product Description

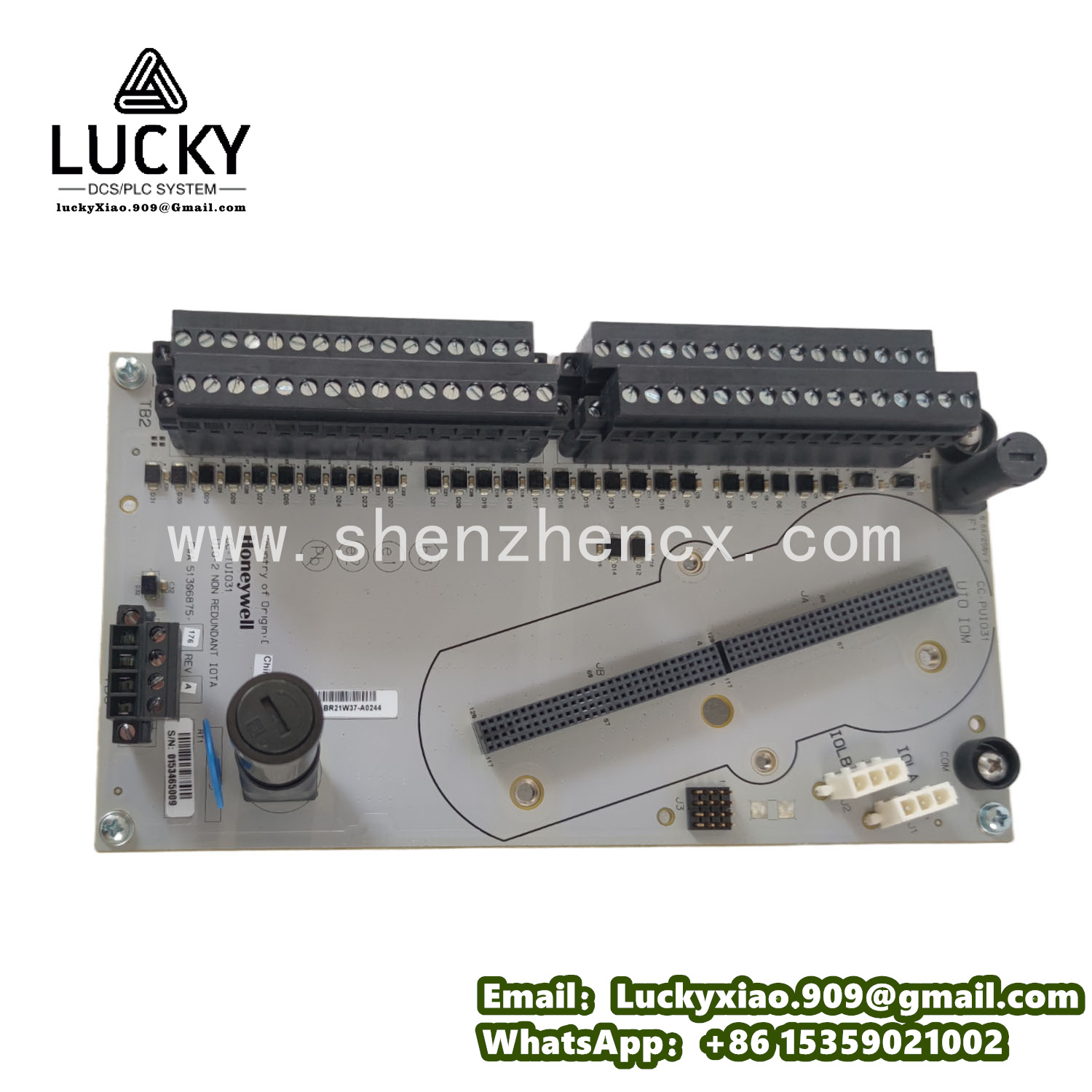

HONEWELL CC-TUIO31 is a universal I/O module designed for industrial automation control systems. It serves as a versatile interface, enabling seamless connection between various field devices (such as sensors, actuators, and transducers) and Honeywell’s control systems like Experion PKS.
With a robust build, it performs reliably in harsh industrial environments, resisting electromagnetic interference and temperature fluctuations. Its compact design allows easy integration into control cabinets, making it suitable for process plants, manufacturing facilities, and industrial machinery setups.
2. Product Technical Parameters
- Power Supply: 24V DC, with ±10% tolerance to adapt to varying power conditions.
- I/O Configuration: Supports 8 universal channels, each configurable as analog input, analog output, or digital input/output, offering flexibility for diverse applications.
- Analog Input Ranges: Compatible with standard signals like 4-20mA, 0-10V, and thermocouple/RTD inputs (e.g., J, K, T, RTD Pt100).
- Analog Output Ranges: Provides 4-20mA or 0-10V signals for controlling actuators and valves.
- Digital I/O: Accepts 24V DC signals for inputs and delivers 24V DC, 0.5A max per channel for outputs.
- Operating Temperature: -40°C to +70°C, suitable for extreme industrial environments.
- Mounting: DIN rail mounting, fitting standard 35mm industrial rails for easy installation.
- Dimensions: Approximately 130mm x 85mm x 60mm, compact to save space in control cabinets.
- Weight: Around 350 grams, lightweight for convenient handling during setup.
3. Usage Method
- Pre-installation Check: Inspect the module for physical damage. Ensure the 24V DC power supply is available and cables are in good condition.
- Mounting: Snap the module onto a 35mm DIN rail in the control cabinet, securing it firmly to avoid vibrations.
- Wiring:
-
- Connect the 24V DC power cable to the designated terminals, checking polarity to prevent damage.
-
- Wire field devices to the 8 channels based on their types (analog/digital), using shielded cables for analog signals to reduce interference.
- Configuration: Use Honeywell’s configuration software (e.g., Control Builder) to set each channel’s function (analog in/out, digital in/out) and parameter ranges (e.g., input signal type, output limits) to match field device requirements.
- Testing: Power on the system and verify communication with the control system. Check if input signals are accurately read and outputs respond correctly using diagnostic tools.
4. System Introduction
In industrial control systems, CC-TUIO31 acts as a flexible bridge between field devices and the central controller, enhancing system adaptability.
- Multi-signal Handling: Its universal channels allow it to process diverse signals, from temperature readings via thermocouples to valve control via analog outputs, reducing the need for multiple specialized modules.
- Seamless Integration: Integrates with Honeywell’s control systems to enable real-time data exchange, ensuring the controller receives accurate field data and sends precise control commands.
Common applications include chemical plants (monitoring and controlling pressure/flow), manufacturing lines (regulating machine parameters), and power plants (managing process variables). Its versatility and reliability help optimize industrial processes, improving efficiency and reducing downtime.
