Introduction to HONEWELL FC-PSU-UNI2450U
1. Product Description

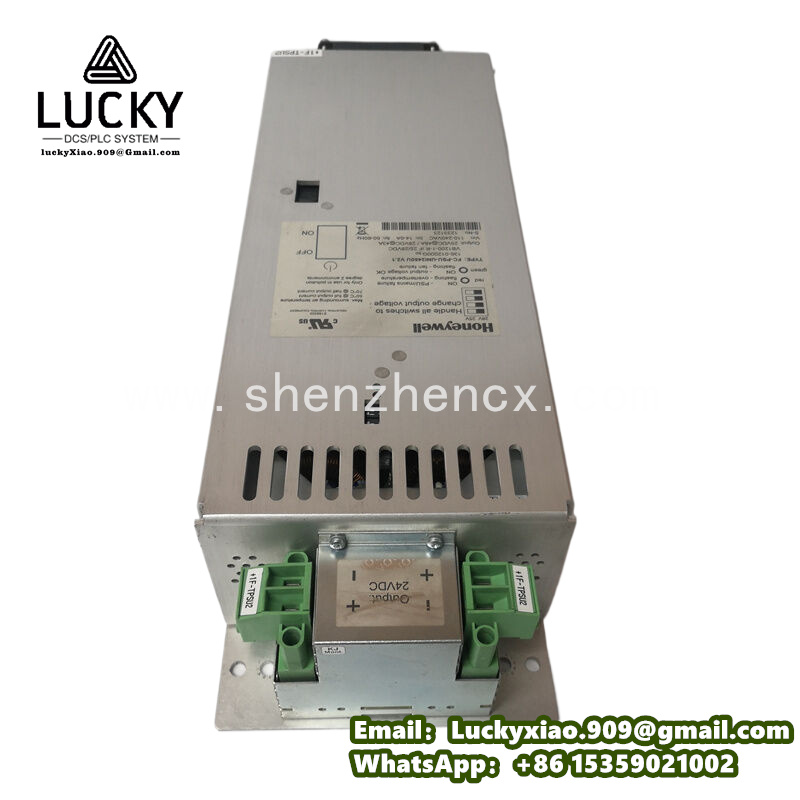

HONEWELL FC-PSU-UNI2450U is a universal industrial power supply unit, designed to provide stable and reliable power to Honeywell’s automation control modules and field devices. It serves as a critical energy source in industrial systems, ensuring consistent operation of components like input/output modules, communication devices, and sensors.
With a rugged design, it adapts to harsh industrial environments, resisting voltage fluctuations, electromagnetic interference, and temperature changes. Its compact size makes it easy to integrate into control cabinets, suitable for manufacturing plants, process facilities, and industrial automation setups.
2. Product Technical Parameters
- Input Voltage: Universal 100-240V AC, 50/60Hz, enabling use in global industrial settings.
- Output Voltage: 24V DC, with a maximum current of 5A (total power 120W), sufficient for powering multiple modules.
- Output Regulation: ±2% voltage accuracy, ensuring stable power for sensitive electronics.
- Operating Temperature: -10°C to +55°C, suitable for most industrial environments.
- Protection Features: Overload, short-circuit, and over-voltage protection to prevent damage to connected devices.
- Mounting: DIN rail mounting, compatible with standard 35mm industrial rails for easy installation.
- Dimensions: Approximately 120mm x 80mm x 100mm, compact for space-saving in control cabinets.
- Weight: Around 450 grams, lightweight for convenient handling during setup.
3. Usage Method
- Pre-installation Check: Inspect the unit for physical damage. Confirm the input power source matches 100-240V AC and cables are intact.
- Mounting: Snap the power supply onto a 35mm DIN rail in the control cabinet, ensuring a secure fit to avoid vibrations.
- Wiring:
-
- Connect the AC input cable to the designated terminals, using appropriate fuses as per local electrical codes.
-
- Link the 24V DC output to the control modules or devices via terminal blocks, checking polarity to prevent reverse connection.
- Initial Test: Power on the input AC supply and verify the 24V DC output using a multimeter. Ensure the output is stable within the ±2% range.
- Integration: Connect the output to the industrial control system, ensuring the total current of connected devices does not exceed 5A. Monitor for stable operation during system startup.
4. System Introduction
In industrial automation systems, FC-PSU-UNI2450U acts as the energy backbone, powering Honeywell’s control components and field devices.
- Stable Power Supply: It converts AC mains to regulated 24V DC, providing consistent power to modules like FC-SDIL-1608 (digital I/O) and communication gateways, preventing performance issues from voltage fluctuations.
- System Protection: Built-in safeguards (overload, short-circuit) shield connected devices from electrical faults, reducing downtime and maintenance costs.
Common applications include manufacturing lines (powering sensors and actuators), process control systems (supplying power to controllers), and industrial machinery (supporting automation electronics). Its reliable performance ensures the entire system operates continuously, enhancing industrial efficiency.
