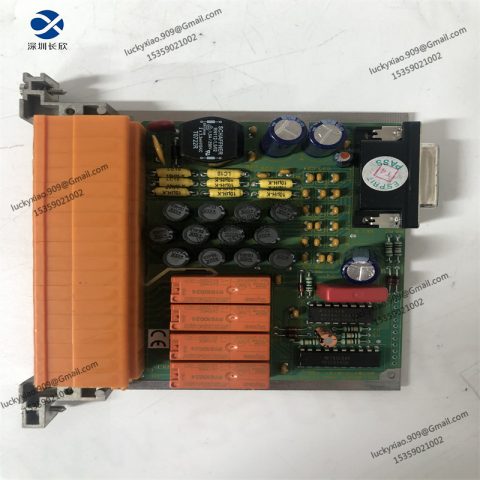

Introduction to HONEYWELL 05074-A-0122

05074-A-0122 Product Overview

05074-A-0122 Technical Specifications

• Product Model: 05074-A-0122
• Product Type: Industrial Automation Control Module
• Core Functions: Control signal processing and transmission, field device communication, real-time status monitoring, fault diagnosis and alarm, seamless integration with DCS
• Signal Specifications: Input signal type: Digital/analog (configurable); Output signal type: 4-20mA analog signal, digital switching signal; Signal response time: ≤2ms
• Power Supply: Operating voltage: 24VDC ±10%; Power consumption: ≤8W; Current consumption: ≤350mA
• Environmental Ratings: Operating temperature: -20°C to +65°C; Storage temperature: -40°C to +85°C; Relative humidity: 5% – 95% (non-condensing); Protection rating: IP20 (module) / IP65 (when installed with protective enclosure)
• Mechanical & Installation: Mounting type: DIN rail mounting; Dimensions (L×W×H): 140mm × 80mm × 65mm; Net weight: Approx. 0.4kg; Enclosure material: Flame-retardant ABS plastic
• Communication Capability: Supports Modbus RTU/ASCII communication protocol; Communication interface: RS485; Data transmission rate: 9600-19200 bps (configurable)
• Certifications: CE, UL compliant; Meets IEC 61131-2 industrial control equipment standards; Conforms to RoHS 2.0 environmental requirements
• Compatibility: Seamlessly integrates with Honeywell DCS platforms; Compatible with various industrial sensors, actuators, and controllers; Supports hot-swapping for easy maintenance
• Applications: Distributed control systems (DCS), process automation systems, petrochemical plants, power generation facilities, manufacturing production lines, industrial control cabinets, environmental monitoring systems

Recommended HONEYWELL Same-Series Models

1. HONEYWELL 05074-A-0121: Industrial control module with enhanced analog signal processing capability for high-precision measurement scenarios
2. HONEYWELL 05074-A-0131: Multi-channel control module, supporting simultaneous processing of 8 digital input/output signals
3. HONEYWELL 05704-A-0121: Integrated control and communication module, enabling Ethernet communication for remote monitoring
4. HONEYWELL 05704-A-0131: High-performance process control module, optimized for complex industrial process regulation
5. HONEYWELL 05074-B-0122: Isolated control module, enhancing anti-interference performance in high-noise industrial environments
6. HONEYWELL 05074-C-0122: Redundant control module, providing dual-channel backup for critical control applications
7. HONEYWELL 05074-A-0141: Compact control module, designed for space-constrained installation environments
8. HONEYWELL 05074-A-0151: High-temperature resistant control module, operating up to +85°C for extreme environment use
9. HONEYWELL 05074-A-0161: Smart control module with built-in self-diagnostic function and data logging capability
10. HONEYWELL 05074-A-0171: Analog input/output module, specialized in 4-20mA/0-10V signal conversion and transmission
11. HONEYWELL 05074-A-0181: Digital input/output expansion module, extending the number of control channels for large-scale systems
12. HONEYWELL 05074-A-0191: Power supply integrated control module, providing stable power for itself and peripheral devices
