Introduction to HONEYWELL 05701-A-0326
05701-A-0326 Product Introduction
The HONEYWELL 05701-A-0326 is a dedicated single-channel field interface card under the 05701 series, specifically designed to connect field sensors with Honeywell industrial automation systems like DCS. As a core data acquisition component, it focuses on sensor signal input (without relay function) and is capable of collecting and converting analog, discrete, and HART signals into processable digital data for upper-level systems. Featuring programmable input ranges and high-precision signal processing, it offers flexible configuration to adapt to diverse industrial measurement scenarios. With a compact plug-and-play design, it enables easy installation, maintenance, and seamless integration with 05701 series rack architectures.
05701-A-0326 Technical Specifications
-
Product Model: 05701-A-0326
-
Product Type: Single-channel Field Interface Card (Honeywell 05701 Series, Sensor Input Only)
-
Core Functions: Field sensor signal collection; Analog/discrete/HART signal conversion; Programmable input range configuration; High-precision data processing; Seamless integration with DCS systems
-
Signal & Connection: Input Types: Analog (voltage/current), discrete, HART; Input Range: Programmable; Connection Mode: Plug-in (compatible with 05701 series rack); Interface: Removable terminals
-
Electrical Specifications: Operating Voltage: 24VDC; Power Consumption: 5W; Accuracy: 0.5% full scale; Resolution: 16-bit; Response Time: 250ms; Certifications: CE, IEC 61010-1, EN 61010-1, CSA C22.2 No. 1010-1
-
Environmental Ratings: Operating Temperature: -40°C to +70°C; Storage Temperature: -40°C to +85°C; Relative Humidity: 5% – 95% (non-condensing); Vibration Resistance: 5g (up to 2kHz); Shock Resistance: 15g
-
Mechanical Details: Housing Material: Industrial-grade high-strength plastic; Mounting Type: DIN rail or screw mounting; Dimensions: 144mm × 72mm × 25mm; Protection Rating: IP65
-
System Compatibility: Fully compatible with Honeywell 05701 series control systems and DCS; Suitable for petroleum, chemical, power generation, water treatment, and discrete manufacturing industry setups
Recommended Honeywell Models
-
05701-A-0301: Single-channel control card supporting 4-20mA current signal processing
-
05701-A-0302: Single-channel control card designed for catalytic process control
-
05701-A-0309: Master station alarm update module kit
-
05701-A-0312: Modbus interface module supporting RS 485/RS 422 communication
-
05701-A-0313: Modbus interface module with RS 232 communication port
-
05701-A-0314: Event printing module with RS 232 interface
-
05701-A-0325: DC input card for discrete signal collection
-
05701-A-0327: Dual SPCO relay card with fault and inhibit functions
-
05701-A-0328: Triple SPCO relay card for multi-channel switching control
-
05701-A-0329: Triple DPCO relay card with dual-channel redundancy protection
-

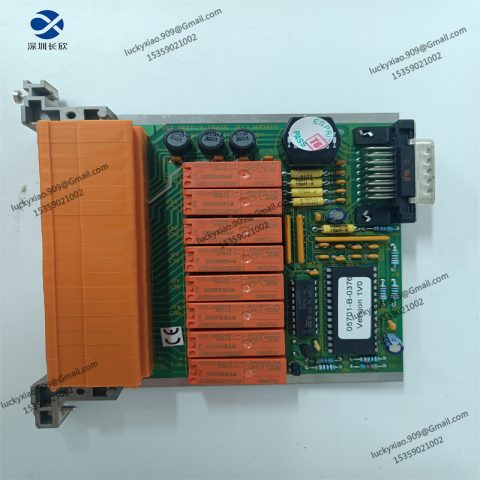

05701-A-0330: High-integrity dual SPCO relay card with fault and inhibit functions
-
05701-A-0339: Main alarm update panel
-
05701-A-0361: Engineering card for system configuration and maintenance
-
05701-A-0405: AC-DC power supply unit for 16-channel systems
-
05701-A-0406: AC-DC power supply unit for 8-channel systems
-
05701-A-0550: Calibration plug for 05701 series analysis systems
