Introduction to Honeywell 10201/2/1
10201/2/1 Product Introduction

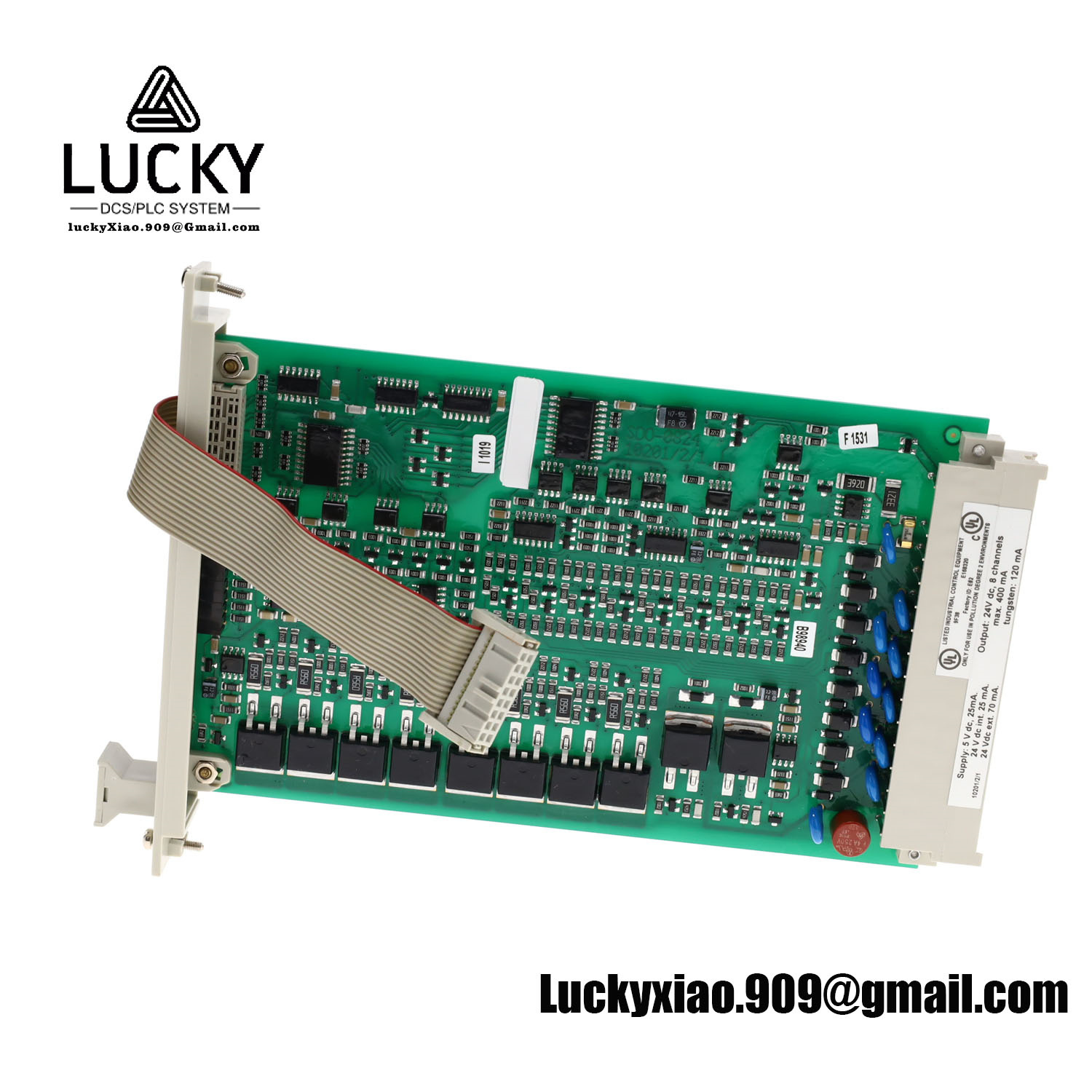

Honeywell 10201/2/1 is a high-reliability digital output (DO) module, specifically engineered as a key component for industrial automation and distributed control systems (DCS). It serves as a critical interface between central controllers and field executive devices, converting digital control signals from the controller into actionable commands to drive external equipment such as relays, solenoid valves, and indicator lights. Designed with stable output performance and robust anti-interference capabilities, the module ensures accurate and timely execution of control instructions even in harsh industrial environments with electrical noise, vibration, and temperature fluctuations. Its modular structure facilitates easy installation, maintenance, and system expansion, while excellent compatibility enables seamless integration with Honeywell’s industrial control system bus architecture. Widely applied in manufacturing, petroleum, chemical, and power generation industries, it provides reliable digital output solutions for process control and equipment operation management.
10201/2/1 Technical Parameters
-
Product Model: 10201/2/1
-
Product Type: Digital Output (DO) Module (Honeywell Industrial Automation Series)
-
Core Functions: Digital control signal conversion and output; Driving external executive devices; Stable signal transmission; Anti-electromagnetic interference; Seamless integration with industrial control bus
-
Connection & Installation: Compatible with Honeywell industrial control system bus; Standard industrial terminal connections; Modular mounting design; Easy configuration and debugging
-
Electrical Specifications: Power Supply: 24VDC (±10%); Output Channels: 8 digital output channels; Output Signal Type: Relay contact (SPDT/DPDT, configurable); Maximum Output Current: 3A per channel; Communication Interface: Bus-based communication; Certifications: CE, UL compliant
-
Environmental Ratings: Operating Temperature: -10°C to 60°C; Storage Temperature: -40°C to 85°C; Relative Humidity: 5% – 95% (non-condensing); Protection Rating: IP65
-
Mechanical Details: Housing Material: Industrial-grade high-strength metal; Dimensions: 110mm × 75mm × 32mm; Weight: Approximately 0.28kg
Recommended Honeywell Same-Series Models
-
10101/2/1: Digital input (DI) module for discrete signal collection
-
10205/2/1: Fail-safe analog output module for safety-critical applications
-
10001/R/1: Vertical bus driver module for system bus expansion
-
10020/1/2: CPU module for industrial control system core processing
-
10100/2/1: Horizontal bus driver module for bus signal transmission
-
51304907-200: SPC II series I/O card for extended I/O capacity
-
51401052-100: SPCI series printed wiring assembly for system control
-
CC-TDIL01: 16/32-channel selectable digital input module with anti-interference design
-
CC-PDOB01: 32-channel 24VDC bussed digital output module
-
FC-SPWR-2405: 24VDC redundant power supply module for I/O systems
-
FC-SCOM-01: Communication module for I/O system & DCS data exchange
-
SDO-0824: 8-channel fail-safe digital output module for safety-critical scenarios
-
RIOM-A08: Rail-mounted remote I/O module for distributed control
-
CIOM-A16: Rack-mounted I/O module compatible with Honeywell DCS
-
FC-SDIAG-01: Real-time fault monitoring module for I/O components
-
HiCTB08-HON-0220-4S-PL: Termination board matched with digital I/O modules
