Introduction to HONEYWELL 51196655-100 (ACX633)
51196655-100 Product Overview

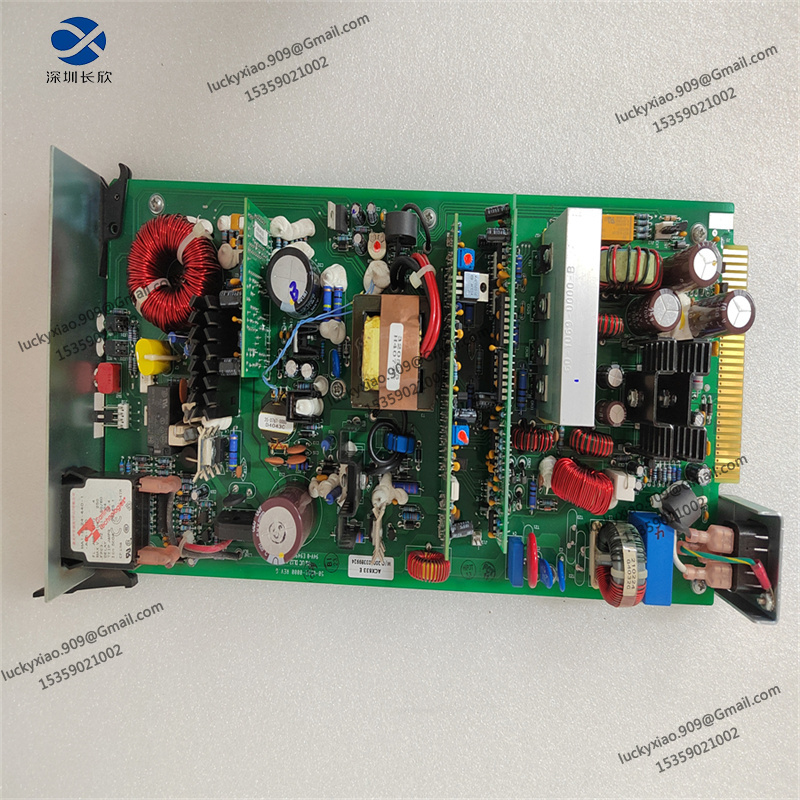

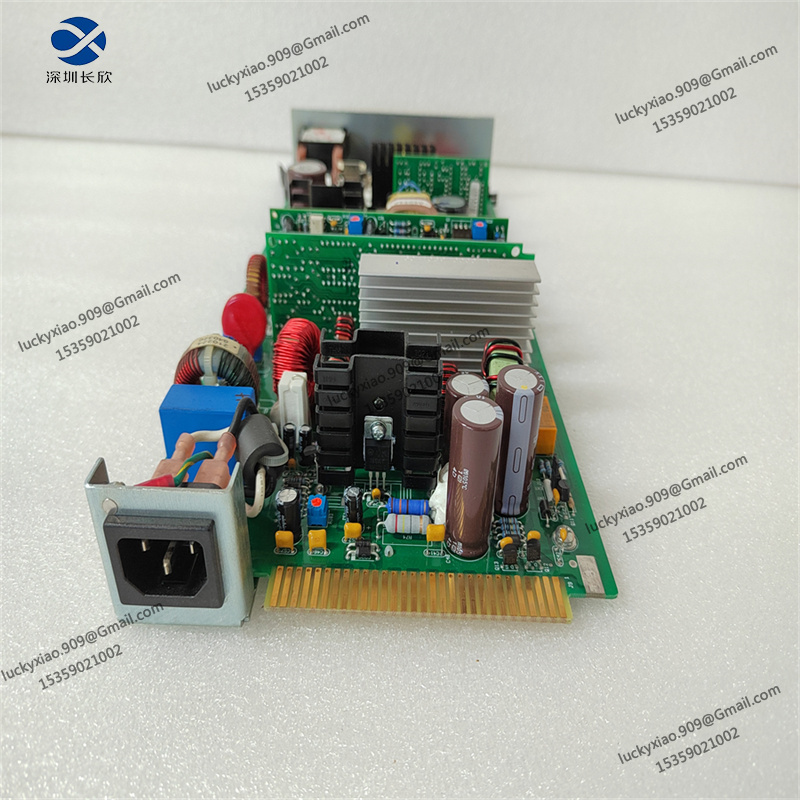

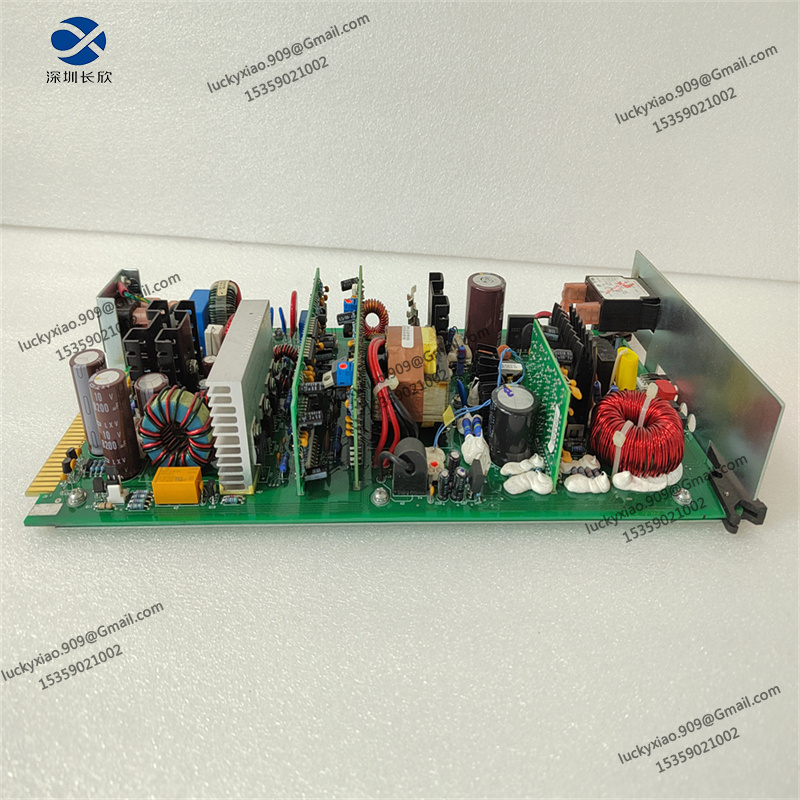

The HONEYWELL 51196655-100, also designated as ACX633, is a high-reliability power supply module belonging to the ACX product series. Specifically engineered for Distributed Control Systems (DCS) and Safety Instrumented Systems (SIS), it serves as a critical power component to deliver stable and regulated DC power to core industrial automation components. Adopting premium components and advanced circuit design, this module features excellent voltage regulation, high efficiency, and multiple protection mechanisms, ensuring long-term stable operation even in harsh industrial environments with electromagnetic interference, temperature fluctuations, and high humidity. Its modular design facilitates easy installation and maintenance, enabling seamless integration with Honeywell’s TDC 3000 system and other automation platforms. Widely applied in nuclear power plants, oil and gas, chemical processing, and manufacturing industries, it plays a vital role in safeguarding the reliable operation of industrial control and safety systems.
51196655-100 Technical Specifications
-
Product Model: 51196655-100 (Alternate ID: ACX633)
-
Product Type: Power Supply Module (ACX Series)
-
Core Functions: Provides stable DC power for DCS/SIS components, voltage regulation, power management, supports Modbus communication via RS485 interface
-

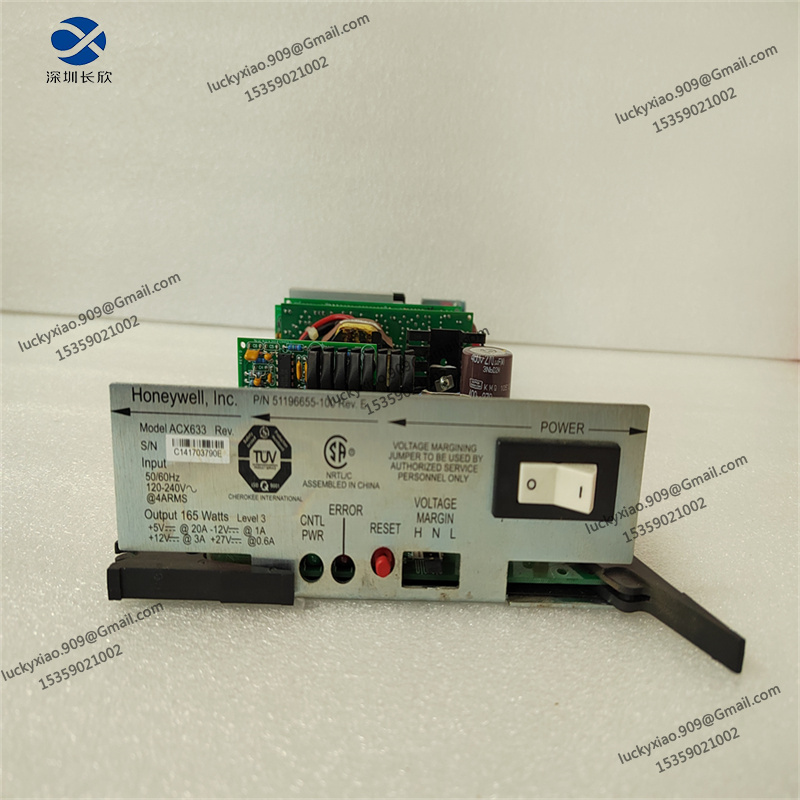

Power Specifications: Input voltage: AC 100~240V; Input frequency: 50-60Hz; Input current: 4A RMS; Output power: 165W; Output voltage: +5VDC (20A), ±12VDC (3A/1A), +27VDC (0.6A)
-
Protection Features: Over-voltage protection, over-current protection, short-circuit protection; Equipped with excellent heat dissipation performance
-
Environmental Limits: Operating temperature: -25°C to +55°C; Storage temperature: -40°C to +85°C; Relative humidity: 5% – 95% (non-condensing)
-
Mechanical Details: Mounting type: Standard rack mounting; Net weight: Approx. 2.18kg; Enclosure material: Flame-retardant plastic (94V0 rating)
-
Compatibility & Certifications: Seamlessly integrates with Honeywell TDC 3000 DCS and other automation platforms; Certifications: CE, UL, RoHS Compliant; Assembled in Irvine, USA
Recommended HONEYWELL Same-Series Models
-
HONEYWELL 51109684-100 (ACX631): ACX series power supply module for PLC and control system power supply, with overload and short-circuit protection
-
HONEYWELL ACX632: ACX series dual-output power supply module, supporting 24VDC and 12VDC output for multi-component power supply
-
HONEYWELL ACX634: High-power ACX series power supply module, 300W output for large-scale DCS system power demand
-
HONEYWELL 51198947-100: Power supply module compatible with Honeywell DCS components, ensuring stable power transmission
-
HONEYWELL CC-PWRR02: Redundant power supply module with 24V backup, suitable for high-reliability DCS power systems
-
HONEYWELL CU-PWPR20: 20A redundant power supply module, providing stable power for industrial automation system components
-
HONEYWELL 51401469-100: Power supply module dedicated for TDC 3000 system, matching ACX633’s compatibility with TDC series
-
HONEYWELL 05701-A-0405: 16-way AC-DC power supply unit, suitable for multi-module centralized power supply scenarios
-
HONEYWELL SPS5710 51199929-100: Redundant power supply module for industrial automation, enhancing system power supply reliability
-
HONEYWELL CC-PWRS01 51405039-175: Single-channel power supply module for non-redundant DCS applications, cost-effective power solution
-
HONEYWELL 8C-PWR001: High-load industrial power supply module, adapting to heavy-duty automation equipment power demand
-
HONEYWELL TC-PWR01: Power supply module for Experion PKS system, compatible with Honeywell mainstream automation platforms
