Introduction to HONEYWELL 51305072-300
51305072-300 Product Overview

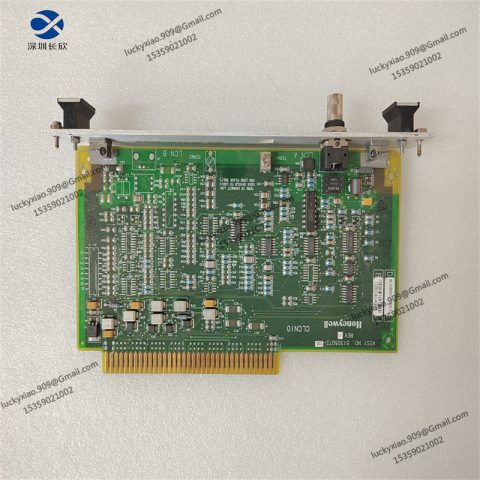

The HONEYWELL 51305072-300 (CLCN-B) is a high-reliability communication board designed for dual-node racks, serving as a core component in Honeywell distributed control systems (DCS) and programmable logic controllers (PLC). It acts as a critical interface between LCN (Local Control Network) and LCN “B” cables, enabling stable and high-speed data transmission within the control system. Equipped with 16 input and 16 output channels, this module supports both digital and analog signal conversion, allowing seamless connection with various field sensors and actuators for precise control and data acquisition. It supports long-distance communication via twisted pair, coaxial cable, or optical fiber, and can even achieve global connectivity through modems and the Internet, significantly expanding system communication coverage. With a robust industrial-grade design, it ensures stable operation in harsh environments with electromagnetic interference and temperature fluctuations, widely applicable in manufacturing, energy, and chemical industries.
51305072-300 Technical Specifications
-
Product Model: 51305072-300 (CLCN-B)
-
Product Type: Communication Board (Honeywell CLCN Series)
-
Core Functions: LCN and LCN “B” cable interface; High-speed data transmission; Digital & analog signal conversion; 16-channel input & 16-channel output; Remote communication support
-
Signal & Connection: Interface Type: LCN, LCN “B”, PCI Express; Communication Medium: Twisted pair, coaxial cable, optical fiber; Remote Communication: Modem & Internet compatible; Connection Mode: Rack-mounted
-
Electrical Specifications: Operating Voltage: 24VDC; Output Current: 1A; Communication Speed: 300Mbps; Isolation Protection: Enhanced anti-EMI isolation; Certification: CE certified
-
Environmental Ratings: Operating Temperature: -20°C to +60°C; Storage Temperature: -40°C to +85°C; Relative Humidity: 5% – 95% (non-condensing); Protection Rating: IP20 (in standard control cabinet)
-
Mechanical Details: Housing Material: Industrial-grade corrosion-resistant plastic; Mounting Type: Dual-node rack mounting; Dimensions: 120mm × 80mm × 20mm; Net Weight: 200g (0.2kg)
-
System Compatibility: Fully compatible with Honeywell DCS and PLC systems; Suitable for manufacturing, energy, chemical, and power generation industry control setups
Recommended HONEYWELL Similar Series Models
-
51305072-200: CLCN series communication module for LCN network connection
-
51196655-100: Automation system spare part module for system expansion and maintenance
-
51401583-100: Communication interface module for stable industrial control data transmission
-
51304511-100: I/O expansion module for enhancing DCS/PLC signal processing capability
-
51402167-100: High-reliability power communication module for Honeywell control systems
-
CC-IP0101: Gateway module for data exchange between Honeywell DCS and external networks
-
TC-CCR014: Redundant network interface module ensuring stable system communication
-
CC-PDIL01: 32-channel digital I/O module for discrete signal acquisition and control
-
CC-PAIH01: Analog input module with HART protocol for intelligent sensor data collection
-
CC-PAOX01: Analog output module for stable actuator control signals
-
CC-PCNT01: C300 control processor module for core industrial process control
-
CC-TCNT01: C300 controller backplane for module mounting and power supply
-
MC-PDIY22: 32-channel digital input module for large-scale discrete signal collection
-
MC-PDOY22: 32-channel digital output module for simultaneous field device control
-
TC-IDD321: 32-channel high-density digital input module for industrial process monitoring
-
TC-ODD321: 32-channel high-density digital output module for multi-device driving
-
TC-FTEB01: FTE bridge module for C300 system network redundancy
-
CC-PAIX02: Non-HART analog input module for high-precision process parameter acquisition
-
CC-PDIS01: Digital input module with SOE function for event sequence recording
-
CC-SCMB02: C300 memory backup battery module with built-in battery
