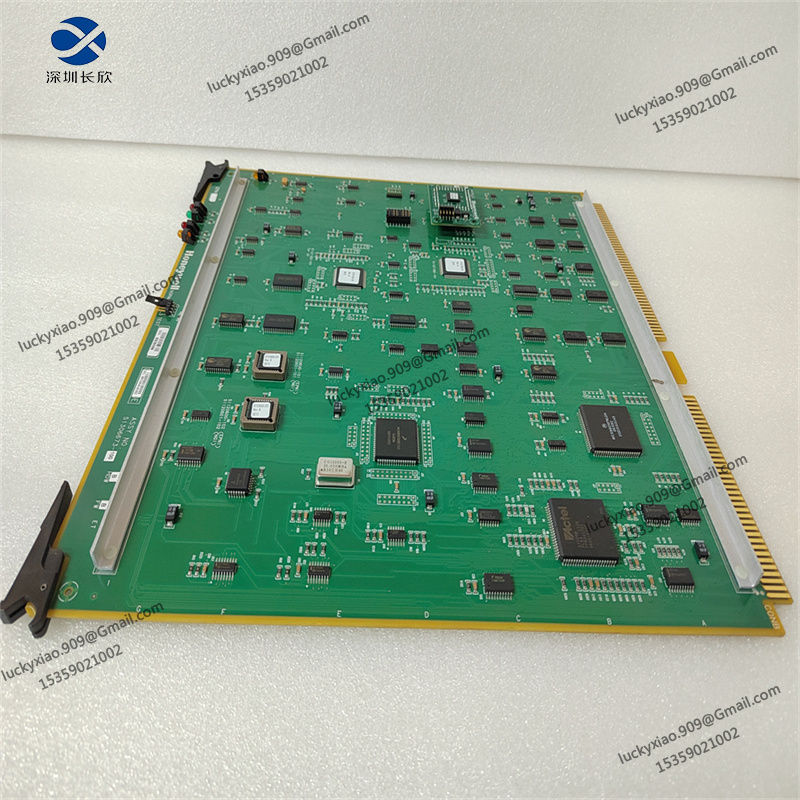

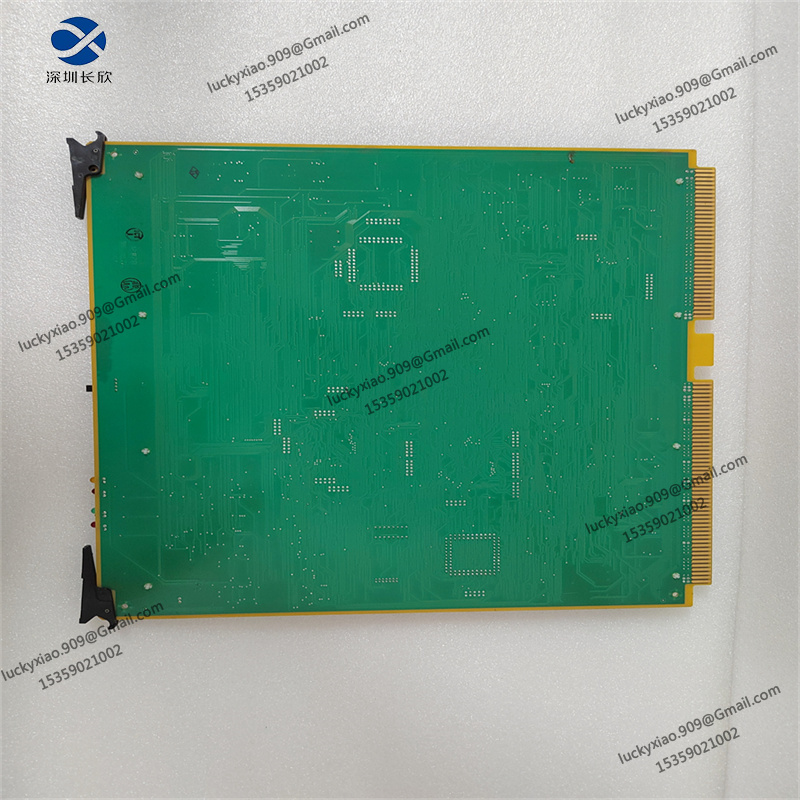

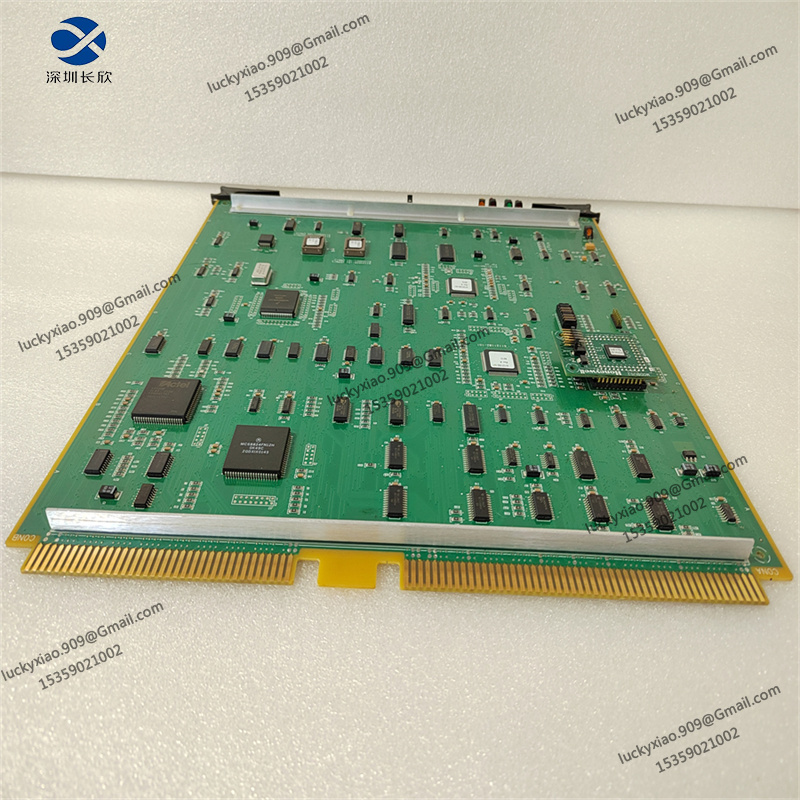

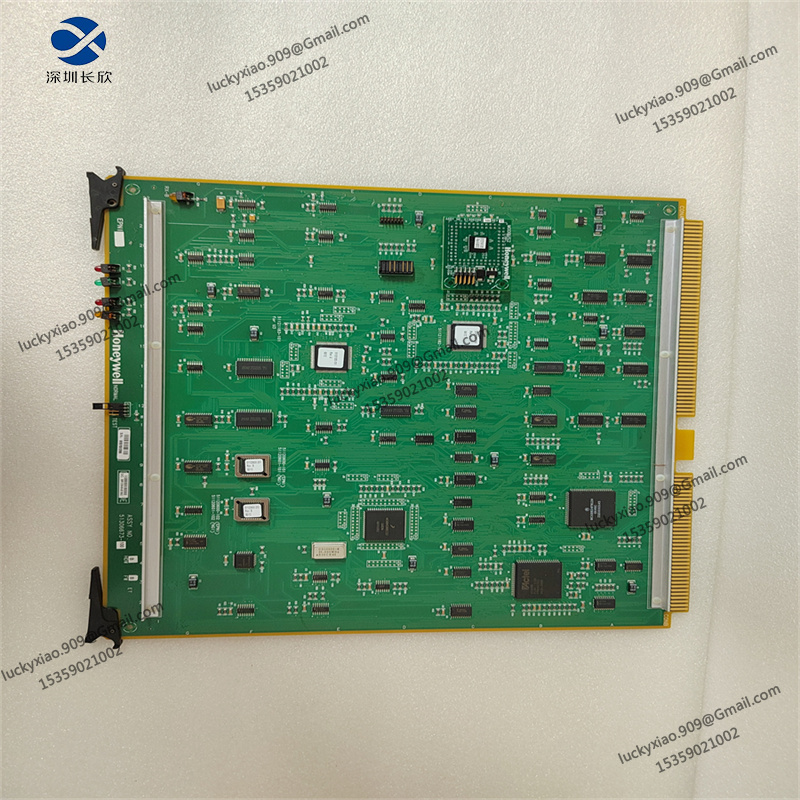

Introduction to HONEYWELL 51306673-100
51306673-100 Product Overview
The HONEYWELL 51306673-100 is a high-reliability digital input module belonging to the 5130 product series, specifically engineered for Honeywell distributed control systems (DCS). As a key component in industrial automation signal acquisition, it is designed to collect and transmit digital signals from on-site sensors and switches to the central control unit, ensuring real-time and accurate data feedback for industrial processes. Manufactured with rugged industrial-grade materials and equipped with advanced anti-interference technology, this module maintains stable performance in harsh industrial environments with electromagnetic interference, temperature fluctuations, and humidity variations. Its modular design facilitates easy installation and maintenance, seamlessly integrating with existing Honeywell DCS configurations. Widely applied in oil and gas, chemical processing, power generation, and manufacturing industries, it plays a vital role in enhancing the stability and efficiency of industrial control systems.
51306673-100 Technical Specifications
-
Product Model: 51306673-100
-
Product Type: Digital Input Module (5130 Series, DCS Compatible)
-
Core Functions: On-site digital signal acquisition, signal filtering and conditioning, data transmission to central controller, fault self-diagnosis, status monitoring
-
Signal Specifications: Input channels: 16 digital input channels; Supported signal type: 24VDC discrete signals; Input impedance: ≥10kΩ; Signal response time: ≤1ms
-
Power Supply: Operating voltage: 24VDC ±10%; Power consumption: Typical 5W, Maximum 8W; Current consumption: ≤333mA
-
Protection Features: Short-circuit protection for input channels; Over-voltage protection; Reverse polarity protection; Anti-interference: Complies with IEC 61000-4 standards
-
Environmental Limits: Operating temperature: -20°C to +65°C; Storage temperature: -40°C to +85°C; Relative humidity: 5% – 95% (non-condensing); Protection rating: IP40
-
Mechanical Details: Mounting type: DIN rail mounting / Honeywell DCS standard rack mounting; Dimensions (L×W×H): 132mm × 82mm × 58mm; Net weight: Approx. 0.38kg; Enclosure material: Flame-retardant ABS
-
Compatibility & Certifications: Seamlessly integrates with Honeywell DCS systems; Compatible with various Honeywell 5130 series modules; Certifications: CE, UL, RoHS Compliant; 12-month warranty
