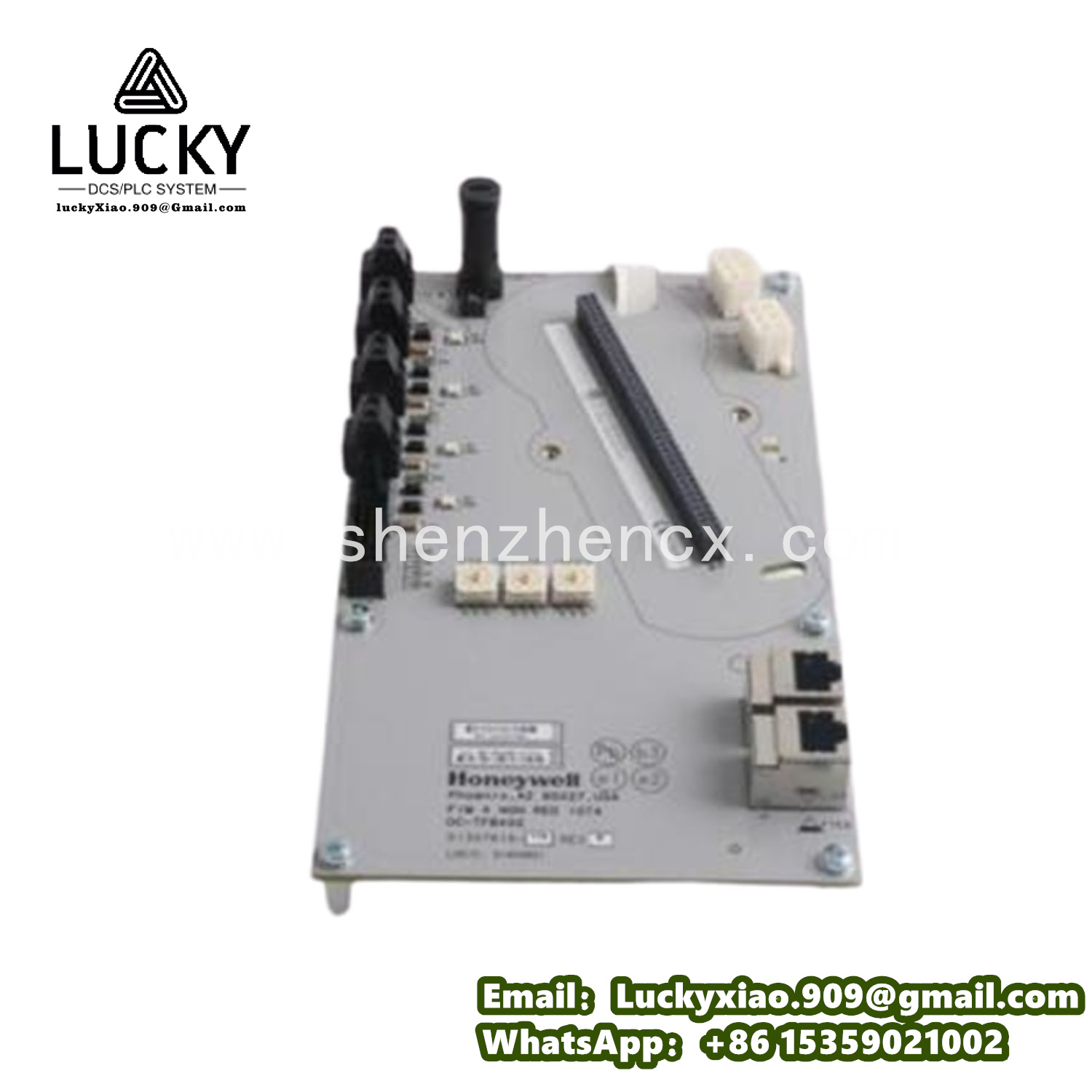

HONEYWELL 51307601-176 DC-TAIL51 Product Specification
1. Product Overview
The Honeywell 51307601-176 DC-TAIL51 is a high-reliability digital control module designed for Honeywell’s TDC 3000 and Experion PKS distributed control systems (DCS). As a key component in industrial process control, it executes discrete control logic, data acquisition, and signal conditioning, enabling precise monitoring and regulation of industrial processes. Widely applied in oil & gas, petrochemical, and chemical processing industries, this module ensures stable operation of critical equipment like valves, pumps, and heaters, supporting safe and efficient production.
Compliant with international standards including IEC 61508 (SIL 2) and ANSI/ISA 50.00.01, the DC-TAIL51 features a fault-tolerant design, high anti-interference performance, and seamless DCS integration. It maintains reliable operation in harsh industrial environments with electromagnetic noise, temperature fluctuations, and vibration, meeting the stringent reliability requirements of process control systems.
2. Technical Parameters & Specifications
|
Category
|
Details
|
|
Product Model
|
Honeywell 51307601-176 DC-TAIL51
|
|
Product Type
|
Digital Control Module (Discrete I/O + Control Logic)
|
|
Compatible Systems
|
Honeywell TDC 3000 DCS, Experion PKS DCS
|
|
I/O Channels
|
16 DI (24 V DC); 8 DO (24 V DC, 1 A per Channel); 4 AI (4–20 mA)
|
|
Control Logic Capacity
|
Up to 1000 Ladder Logic Rungs
|
|
Communication Interface
|
Honeywell LCN (Local Control Network); RS-485 (Backup)
|
|
Response Time
|
≤10 ms (Discrete I/O); ≤50 ms (Analog I/O)
|
|
Power Supply
|
24 V DC ±15% (Redundant Input); Power Consumption: ≤25 W
|
|
Isolation
|
Channel-to-Channel: 500 V DC; Channel-to-Ground: 1000 V DC
|
|
Environmental Ratings
|
Operating Temp: 0°C–60°C; Humidity: 5%–95% (Non-Condensing); Vibration: ≤2 g
|
|
Certifications
|
IEC 61508 (SIL 2); ANSI/ISA 50.00.01; UL 508; CE; RoHS
|
3. Key Features
3.1 Integrated I/O & Control Capability
Combining 16 DI, 8 DO, and 4 AI channels in a single module, the DC-TAIL51 eliminates the need for separate I/O and control units, simplifying system architecture. With support for up to 1000 ladder logic rungs, it executes complex discrete control tasks like sequential valve operations and interlock protection without additional controllers.
3.2 SIL 2 Safety Compliance
Certified for SIL 2 operation, the module integrates built-in fault detection (FDT) and self-diagnostic functions, ensuring ≥99.5% fault coverage. It supports redundant power input and communication paths, preventing system failures in safety-critical applications like chemical reactor temperature control and emergency shutdown systems.
3.3 Fast Response & Real-Time Control
With a discrete I/O response time of ≤10 ms and analog I/O response time of ≤50 ms, the module ensures real-time monitoring and control of process variables. This fast response enables rapid intervention in abnormal process conditions, reducing the risk of production accidents and quality deviations.
3.4 Robust Anti-Interference Performance
Featuring high-voltage galvanic isolation (1000 V DC channel-to-ground) and enhanced EMC performance, the module resists interference from industrial electrical noise, voltage surges, and radio frequency signals. Its rugged design ensures stable operation in harsh petrochemical and oil & gas environments with heavy electrical equipment.
4. Related Honeywell Products
-
Honeywell 51307601-177 DC-TAIL52: Enhanced control module with 24 DI/12 DO channels, suitable for large-scale discrete control systems.
-
Honeywell C300 Controller: Core controller of Experion PKS DCS, integrating DC-TAIL51 for centralized process control.
-
Honeywell 51304650-100 AI Module: 16-channel analog input module, expanding process variable acquisition for DC-TAIL51.
-
Honeywell 51304651-100 AO Module: 8-channel analog output module, transmitting control signals from DC-TAIL51 to field actuators.
-
Honeywell Experion HMI: Human-machine interface, enabling real-time monitoring and parameter configuration of the DC-TAIL51 module.
