Honeywell 51403776-100 Product Introduction
1. Product Description

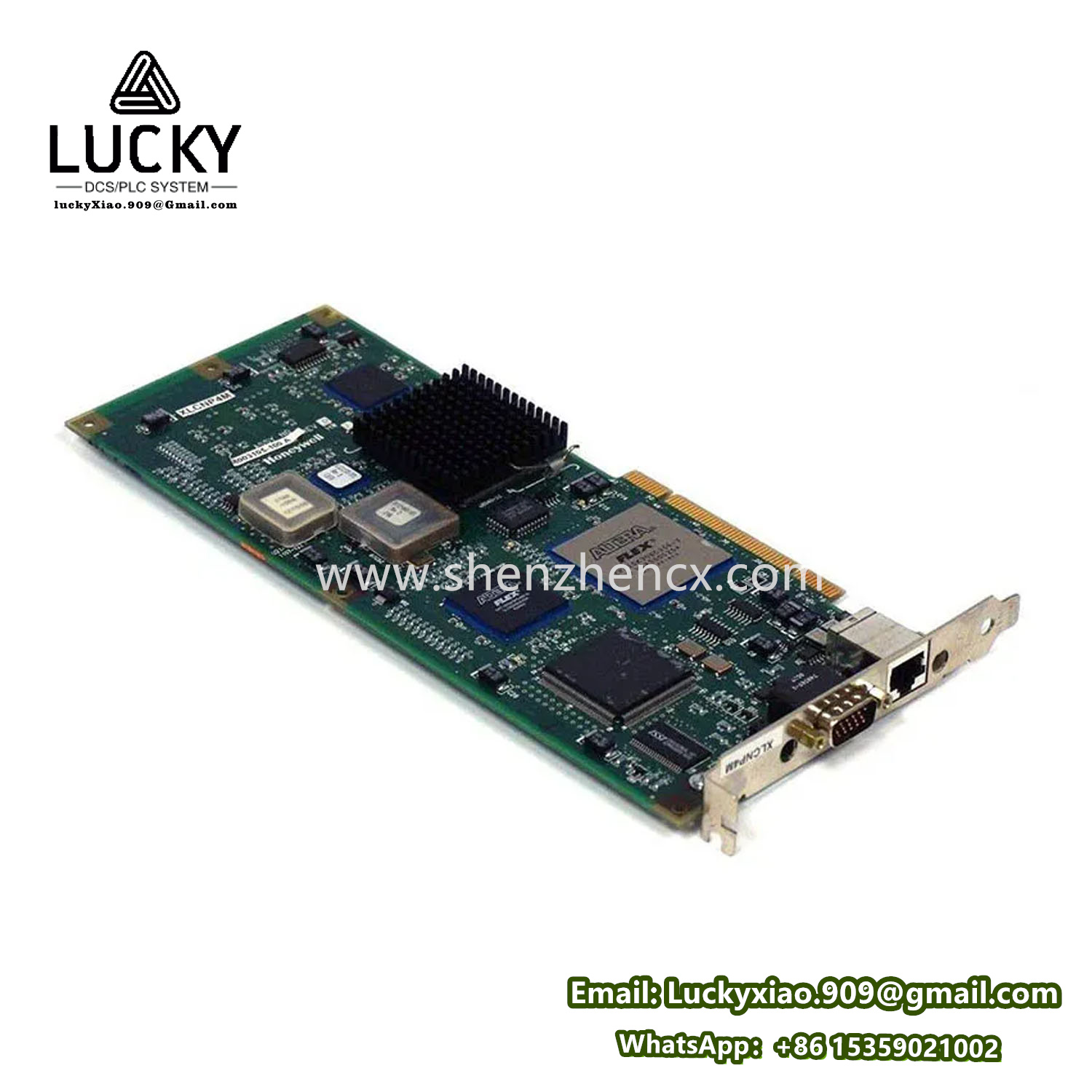

The Honeywell 51403776-100 is a high-reliability analog input module, designed as a critical component in industrial automation and control systems. As part of Honeywell’s TDC 3000 series, a legacy lineup of distributed control systems (DCS), this module is engineered to collect and process analog signals from various field sensors, converting them into digital data that can be analyzed and utilized by the central control system. Its robust construction and advanced signal processing capabilities ensure accurate and stable data acquisition in harsh industrial environments, making it essential for monitoring critical process parameters.
2. Product Parameters
|
Parameter
|
Details
|
|
Input Channels
|
8 independent analog input channels, allowing simultaneous monitoring of multiple process variables
|
|
Input Signal Types
|
Supports standard industrial analog signals: 4-20 mA DC current signals and 1-5 V DC voltage signals for versatile sensor compatibility
|
|
Signal Resolution
|
12-bit analog-to-digital conversion resolution, ensuring precise measurement of small signal variations
|
|
Accuracy
|
Typical accuracy of ±0.1% of full scale, minimizing measurement errors for reliable process monitoring
|
|
Isolation
|
Channel-to-channel and channel-to-ground isolation (typically 250 V AC) to prevent signal interference and enhance system safety
|
|
Power Supply
|
Operates on 24V DC power supply with a typical current consumption of 100 mA, compatible with standard industrial power systems
|
|
Operating Temperature Range
|
0°C to 60°C, suitable for operation in most industrial control room and cabinet environments
|
3. Product Specifications
- Physical Dimensions: Compact design with dimensions approximately 150 mm (width) × 100 mm (height) × 80 mm (depth), optimized for installation in TDC 3000 system racks.
- Mounting Method: Rack mounting, specifically designed to fit into Honeywell TDC 3000 system enclosures for seamless integration with other system components.
- Enclosure Material: High-quality industrial-grade plastic and metal components, providing durability and protection against dust and minor mechanical stress.
- Environmental Ratings: Designed to withstand relative humidity of 5% to 95% (non-condensing) and vibration up to 0.5 g, ensuring stable performance in industrial settings.
- Certifications: Complies with industrial standards such as IEC 61010 for electrical safety in measurement, control, and laboratory equipment.
4. Series
The 51403776-100 belongs to Honeywell’s TDC 3000 series, a pioneering distributed control system (DCS) that has been widely used in industrial process automation for decades. The TDC 3000 series encompasses a range of modules, including input/output modules, controllers, and communication interfaces, designed to work together to provide comprehensive process control and monitoring capabilities for large-scale industrial facilities.
5. Features
- Multi-Channel Input: Equipped with 8 independent channels, enabling simultaneous monitoring of multiple process parameters such as temperature, pressure, flow, and level, reducing the need for multiple standalone modules.
- High Accuracy and Resolution: 12-bit resolution and ±0.1% accuracy ensure precise signal measurement, providing reliable data for critical process control decisions.
- Electrical Isolation: Channel-to-channel and channel-to-ground isolation minimizes interference from electrical noise and ground loops, ensuring signal integrity in complex industrial environments.
- Easy Integration: Designed specifically for the TDC 3000 system, offering plug-and-play compatibility with other system components, simplifying installation and system configuration.
- Industrial Durability: Built to withstand the rigors of industrial environments, including temperature fluctuations, humidity, and vibration, ensuring long-term reliable operation.
6. Function
The primary function of the Honeywell 51403776-100 is to acquire analog signals from field sensors (such as temperature transmitters, pressure transducers, and flow meters), convert these analog signals into digital data through analog-to-digital conversion, and transmit the digital data to the central controller of the TDC 3000 system. This data serves as the basis for real-time process monitoring, control algorithms, and alarm generation, enabling operators and the control system to make informed decisions to maintain stable and efficient process operation.
7. Use
In industrial control systems, the 51403776-100 is used to collect critical process data from various sensors distributed throughout the facility. For example, in a chemical plant, it can measure the temperature and pressure of reactants in a reactor, the flow rate of raw materials into the process, and the level of liquid in storage tanks. This data is transmitted to the TDC 3000 controller, which uses it to adjust control valves, pumps, and other actuators to maintain process parameters within desired ranges. It also provides essential data for operators to monitor process status, diagnose issues, and perform maintenance.
8. Application Fields
- Chemical Processing: Used in chemical production plants to monitor and control parameters such as reactor temperature, pressure, chemical concentration, and flow rates, ensuring safe and efficient production of chemicals and pharmaceuticals.
- Oil and Gas Industry: Applied in refineries, petrochemical plants, and offshore platforms to monitor crude oil and gas processing parameters, including pipeline pressure, separator levels, and distillation column temperatures, supporting optimal process efficiency and safety.
- Power Generation: Utilized in thermal power plants to monitor boiler temperature, steam pressure, feedwater flow, and turbine parameters, providing data for the control system to optimize power generation and ensure equipment reliability.
- Pulp and Paper Manufacturing: Deployed in pulp mills and paper factories to monitor parameters such as pulp consistency, temperature in drying sections, and chemical dosing levels, enabling precise control of the papermaking process to ensure product quality.
- Water and Wastewater Treatment: Used in water treatment facilities to monitor water quality parameters (such as pH, turbidity, and dissolved oxygen), flow rates, and tank levels, supporting the control of treatment processes and ensuring compliance with water quality standards.
