8C-PCNT01 Product Overview

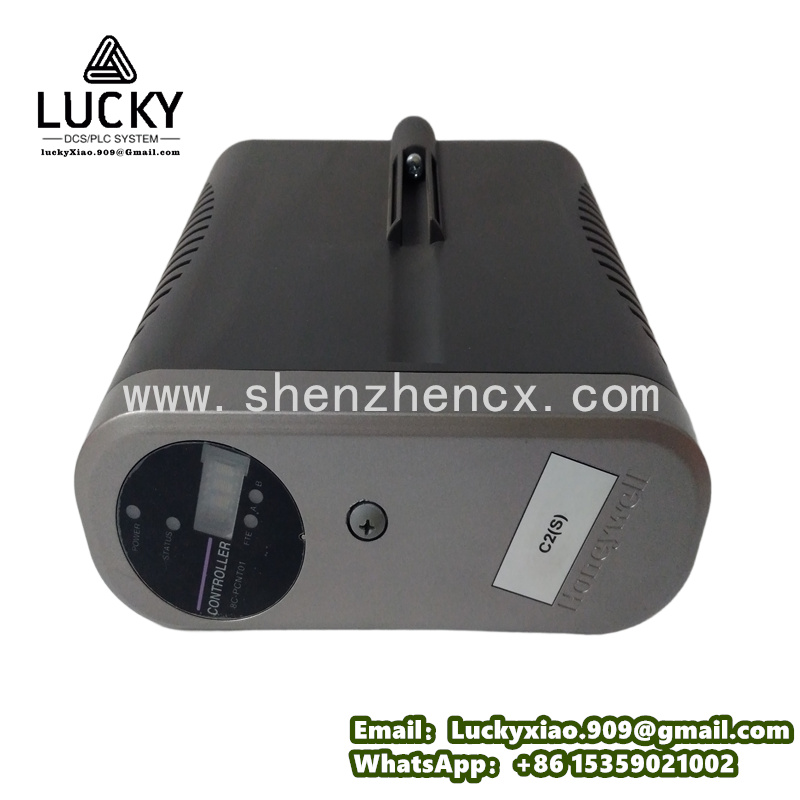

The HONEYWELL 8C-PCNT01 is a high-precision pulse counting module under the 8C series, specifically designed for Honeywell PlantCruise DCS systems. As a key component in industrial automation, it specializes in collecting and processing pulse signals from field devices like encoders and flow meters, converting them into digital data for C300 process controllers. Featuring advanced anti-interference technology, this module ensures stable and accurate counting performance in harsh industrial environments. Its unique vertical tilt design enhances heat dissipation, facilitates wiring, and saves over 30% of installation space. The module supports easy vertical wiring, reducing cable routing and bending, which shortens the average wiring time per point by 3 minutes. With intuitive status indicators and seamless integration with Honeywell control systems, it simplifies on-site maintenance and is widely applicable in manufacturing, chemical, and power industries.
8C-PCNT01 Technical Specifications
-
Product Model: 8C-PCNT01
-
Product Type: Pulse Counting Module (Honeywell 8C Series for PlantCruise DCS)
-
Core Functions: High-precision pulse signal collection and processing; Compatibility with C300 process controllers; Anti-interference signal filtering; Real-time status indication
-
Counting Specifications: Maximum Counting Frequency: 1MHz; Counting Mode: Configurable up/down counting; Input Signal Type: Differential signal
-
Power Supply: Operating Voltage: 24VDC (±10%); Power Consumption: Typical 4W
-
Environmental Ratings: Operating Temperature: -20°C to +60°C; Relative Humidity: 5% – 95% (non-condensing); Protection Rating: IP20
-
Mechanical Details: Mounting Type: 35mm standard DIN rail; Design Feature: Vertical tilt design; Wiring Mode: Vertical wiring; Space Saving: Over 30% installation space reduction
-
System Compatibility: Compatible with Honeywell PlantCruise DCS system and C300 process controllers; Supports Profibus DP communication
