Introduction to HONEYWELL CC-PAIX01
CC-PAIX01 Product Introduction

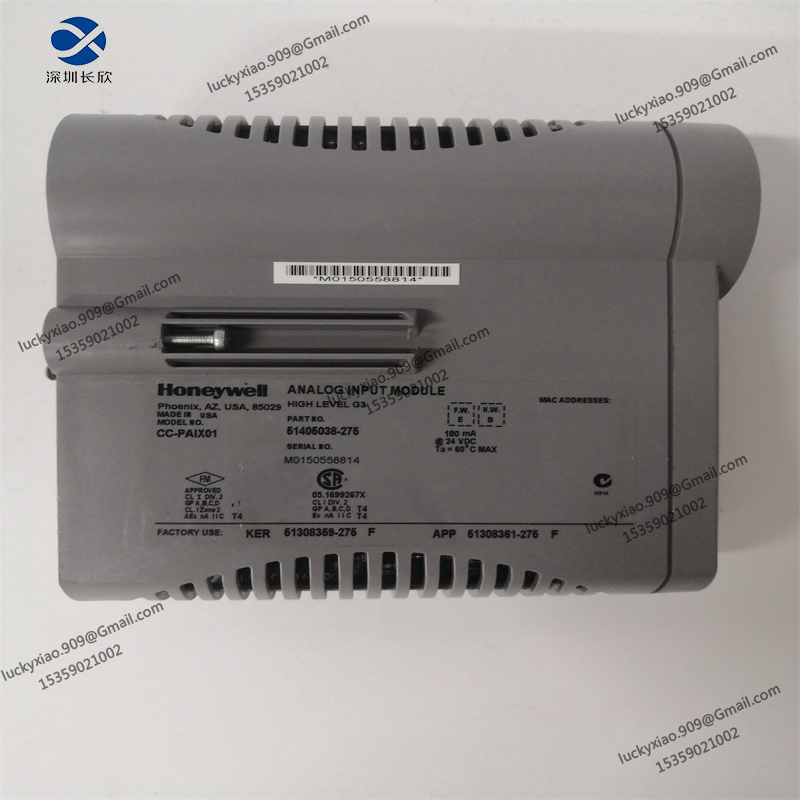

The HONEYWELL CC-PAIX01 is a high-precision analog input module tailored for Honeywell’s C300 control system and Experion PKS DCS, serving as a vital front-end component in industrial automation data acquisition. It specializes in collecting analog signals from on-site sensors (temperature, pressure, flow, liquid level, etc.) and converting them into digital signals via advanced 16-bit A/D conversion technology, enabling accurate transmission to upper-level controllers for real-time monitoring and precise process control. With 16 flexible input channels (12 single-ended, 4 differential), it adapts to diverse sensor connection requirements in complex industrial environments. Boasting excellent anti-interference performance (70dB common-mode rejection ratio from DC to 60Hz), it effectively filters electromagnetic interference to ensure signal stability. Equipped with overvoltage and overcurrent protection and a wide operating temperature range, it maintains reliable operation in extreme conditions, making it ideal for petroleum refining, chemical processing, power generation, and pharmaceutical manufacturing industries.
CC-PAIX01 Technical Specifications
-
Product Model: CC-PAIX01
-
Product Type: High-Precision Analog Input Module (Honeywell C300 Control System Series)
-
Core Functions: High-precision analog signal acquisition; 16-bit A/D conversion; Flexible channel configuration (single-ended/differential); Anti-interference signal processing; Overvoltage/overcurrent protection
-
Signal & Connection: Input Signal Types: 4-20mA current signal, 0-5V/1-5V voltage signal; Number of Input Channels: 16 channels (12 single-ended, 4 differential); Input Impedance: >10MΩ (for voltage input); Connection Mode: Plug-in terminal connection; Installation Mode: Rack-mounted (compatible with C300 system chassis)
-
Electrical Specifications: Power Supply: 24VDC; Signal Accuracy: ±0.075% full scale (at 23.5°C), ±0.15% full scale (0-60°C); Resolution: 16-bit; Input Scan Rate: 50ms; Common-Mode Rejection Ratio: 70dB (DC to 60Hz); Normal-Mode Rejection Ratio: 19dB (at 60Hz); Maximum Input Voltage: ±30V (differential input); Certifications: CE, UL
-
Environmental Ratings: Operating Temperature: -40°C to +85°C; Storage Temperature: -40°C to +85°C; Relative Humidity: 5% – 95% (non-condensing); Vibration Resistance: 5g (10-2000Hz); Shock Resistance: 20g (11ms)
-
Mechanical Details: Housing Material: Industrial-grade high-strength plastic; Dimensions: Approx. 120mm × 80mm × 60mm; Net Weight: Approx. 300g; Protection Rating: IP20
-
System Compatibility: Fully compatible with Honeywell C300 controller and Experion PKS DCS system; Suitable for integration into petroleum refining, chemical processing, power generation, pharmaceutical manufacturing, and process manufacturing industry control setups
Recommended Honeywell Models
-
CC-PAIH01: Analog input module with HART protocol for intelligent sensor data collection and remote configuration
-
CC-PAOX01: 4-channel analog output module for stable actuator control signal transmission
-
CC-PDIS01: Digital input module with SOE function for event sequence recording
-
CC-PDOB01: 24VDC digital output module for driving field switching devices
-
CC-PCNT01: C300 control processor module for core industrial process control
-
CC-PWRR01: 20A redundant DC power module for cabinet-level power protection
-
CC-PAOH01: 8-channel analog output module with HART protocol support
-
CC-PDIL01: 24VDC digital input module for discrete signal collection
-
CC-PAIM01: Low-level analog input module for RTD and thermocouple signal acquisition
-
CC-TAIX01: Analog input module baseplate compatible with CC-PAIX01
-
CC-TAOX01: Analog output module baseplate for C300 system
-
CC-TDIL01: 24VAC digital input module baseplate
-
CC-TDOB01: 24VDC digital output module baseplate
-
CC-PCF901: Control firewall module for C300 system security protection
-
CC-SCMB02: Memory backup module for C300 system data protection
-
CC-TAIM01: Baseplate for low-level analog input module
-
CC-TCNT01: Controller baseplate for C300 control system
