Introduction to HONEYWELL CC-PAON01 51410070-175
CC-PAON01 51410070-175 Product Introduction

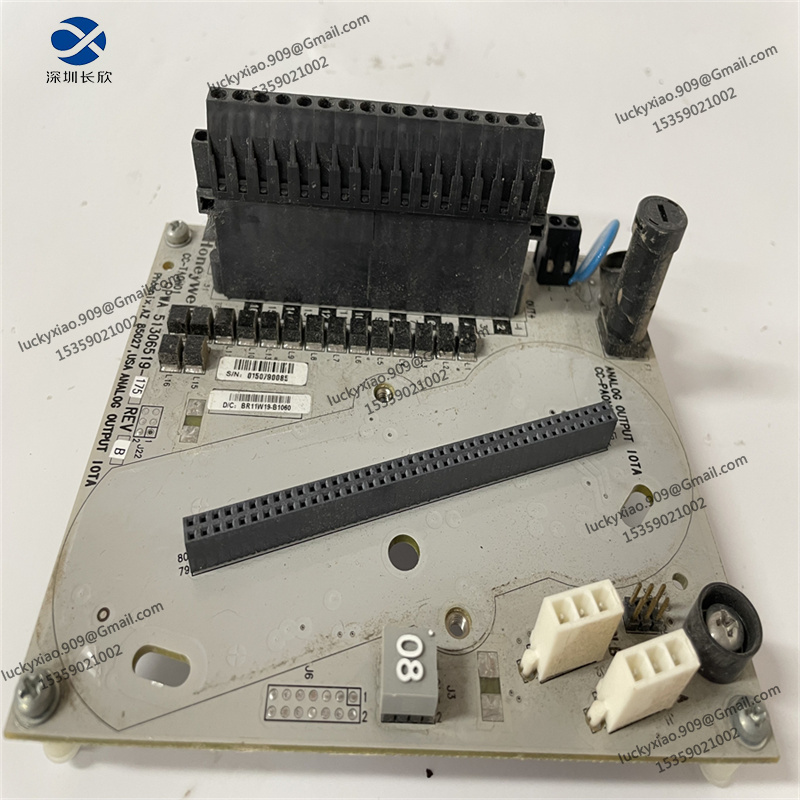

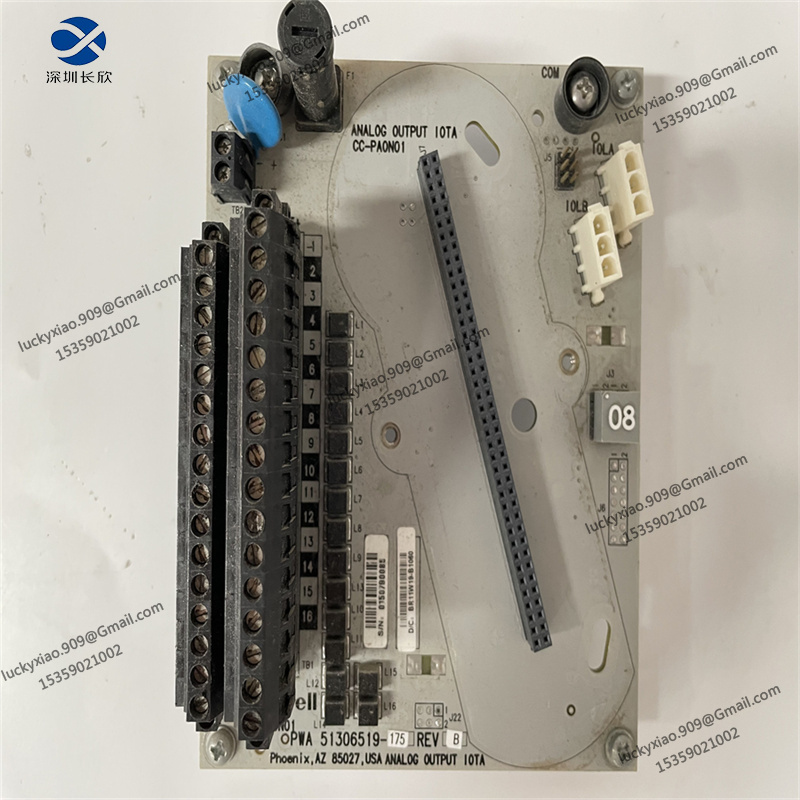

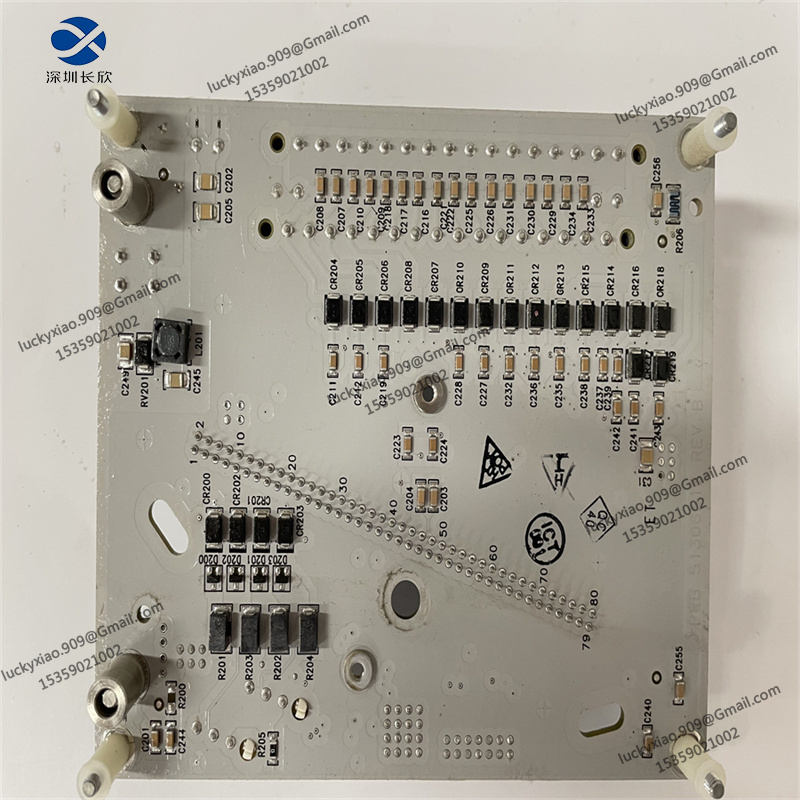

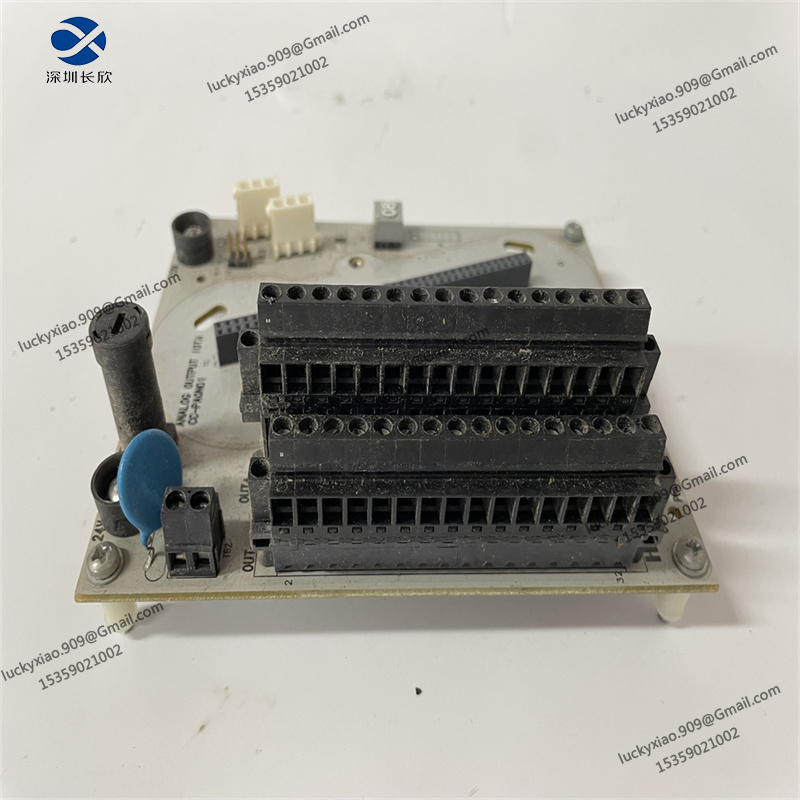

The HONEYWELL CC-PAON01 (Part Number: 51410070-175) is a high-performance analog output module designed for Honeywell’s industrial automation control systems. As a critical interface component between the control unit and field actuators, it efficiently converts digital control signals from the system into precise analog output signals (4-20mA current signals), enabling accurate regulation of industrial equipment such as control valves, pumps, and motors. Equipped with 16 independent output channels, this module supports simultaneous control of multiple devices, making it suitable for complex industrial scenarios with diverse control requirements. It features 2500VDC output isolation technology, which effectively suppresses electromagnetic interference in harsh industrial environments and ensures stable and reliable signal transmission. With a programmable design and RS-485 communication interface, it allows for flexible parameter configuration and remote monitoring, simplifying system setup and maintenance.
CC-PAON01 51410070-175 Technical Parameters
-
Product Model: CC-PAON01 (51410070-175)
-
Product Type: Analog Output Module (Honeywell Industrial Automation Series)
-
Core Functions: Digital-to-analog signal conversion; 16-channel independent analog output control; 2500VDC output isolation; RS-485 communication; Programmable parameter configuration; Real-time fault detection and diagnosis
-
Connection Specifications: Compatible with Honeywell industrial control systems; RS-485 communication interface; Standard terminal connection; Installation Mode: Rack-mounted (system chassis compatible)
-
Electrical Specifications: Power Supply: 9-32VDC (wide voltage input); Input Current: 15mA typical; Output Signal Type: 4-20mA current signal; Output Resolution: 12-bit; Output Accuracy: ±0.5% full scale; Output Impedance: 100Ω; Certifications: Compliant with industrial safety and EMC standards
-
Environmental Ratings: Operating Temperature: -40°C to +85°C; Storage Temperature: -40°C to +85°C; Relative Humidity: 10% – 90% (non-condensing); Electromagnetic Interference Resistance: Excellent
-
Mechanical Details: Housing Material: Industrial-grade high-strength plastic; Dimensions: 100mm × 60mm × 20mm; Weight: 0.2kg; Protection Rating: IP20
-
System Compatibility: Fully compatible with Honeywell industrial automation control systems; Suitable for integration into petroleum refining, chemical processing, power generation, food and beverage production, and other process control setups
