Introduction to HONEYWELL CC-PAOX01
CC-PAOX01 Product Introduction

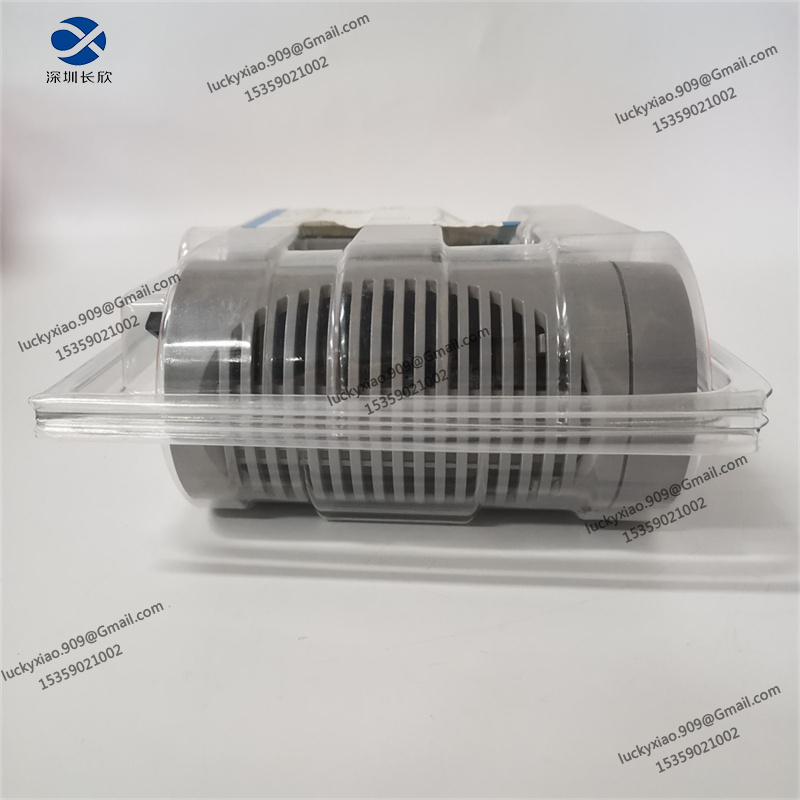

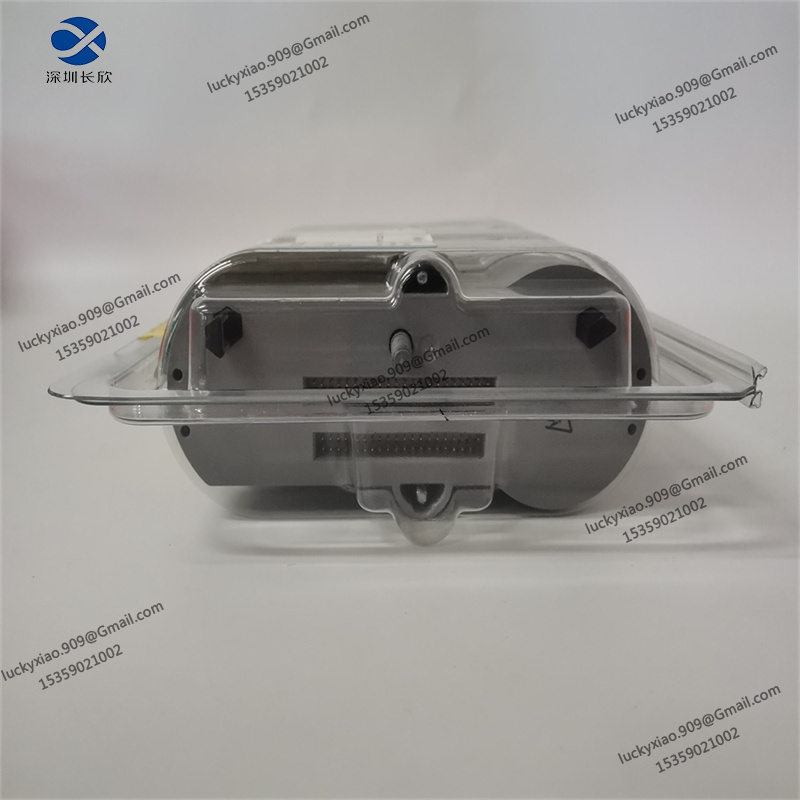

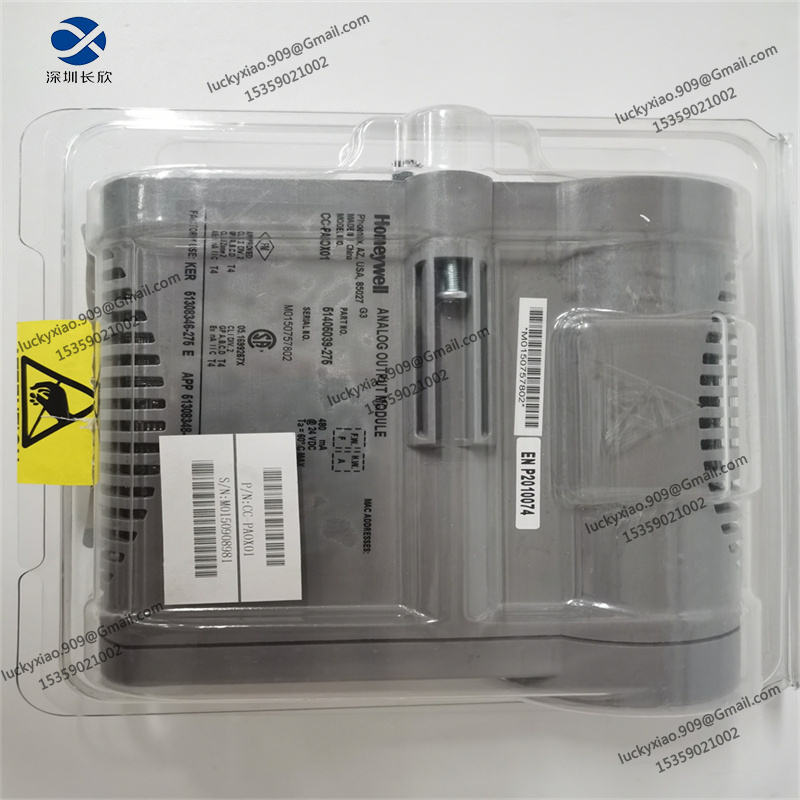

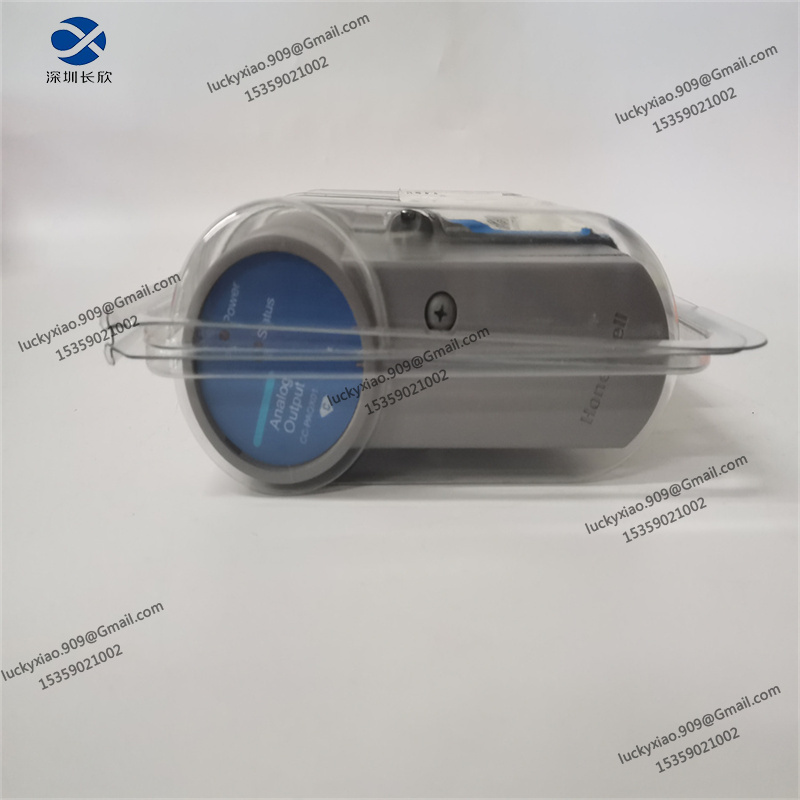

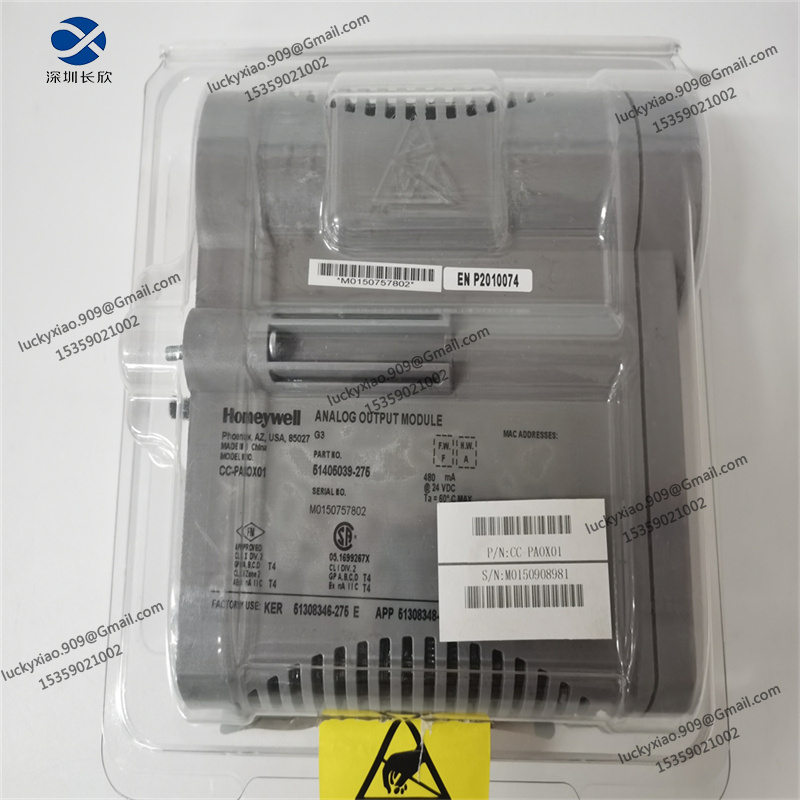

The HONEYWELL CC-PAOX01 is a high-precision analog output module, specifically designed to work with Honeywell’s C300 control system in industrial automation processes. As a critical component for control signal transmission, it converts digital control commands from the C300 controller into stable analog signals, which are then sent to field actuators such as control valves, variable frequency drives, and regulators. This ensures precise regulation of industrial processes like flow, pressure, and temperature. The module features excellent signal stability and anti-interference performance, effectively minimizing signal distortion even in complex industrial environments. Equipped with comprehensive self-diagnostic functions and status indicators, it enables maintenance personnel to quickly identify issues such as open circuits or short circuits, reducing system downtime. Its modular design allows for easy installation and hot swapping, facilitating system expansion and maintenance.
CC-PAOX01 Technical Specifications
-
Product Model: CC-PAOX01
-
Product Type: Analog Output Module (Honeywell C300 Control System Series)
-
Core Functions: Digital-to-analog signal conversion; Stable analog signal output; Comprehensive self-diagnosis; Status monitoring and indication; Hot-swappable support
-
Signal & Connection: Output Signal Types: 4-20mA current signal, 0-10V voltage signal (configurable); Number of Output Channels: 4 independent channels; Connection Mode: Plug-in terminal connection; Installation Mode: Rack-mounted (compatible with C300 system chassis)
-
Electrical Specifications: Power Supply: 24VDC (±10%); Power Consumption: ≤8W per channel; Signal Accuracy: ±0.1% full scale; Response Time: ≤100ms; Output Load: 250-600Ω (for 4-20mA); Certifications: CE, UL, IEC 61010-1
-
Environmental Ratings: Operating Temperature: -40°C to +70°C; Storage Temperature: -40°C to +85°C; Relative Humidity: 5% – 95% (non-condensing); Vibration Resistance: 5g (10-2000Hz); Shock Resistance: 20g (11ms)
-
Mechanical Details: Housing Material: Industrial-grade high-strength plastic; Dimensions: 100mm × 150mm × 30mm; Net Weight: Approx. 180g; Protection Rating: IP20
-
System Compatibility: Fully compatible with Honeywell C300 controller and Experion PKS DCS system; Suitable for integration into petroleum refining, chemical processing, power generation, water treatment, and process manufacturing industry control setups
Recommended Honeywell Models
-
CC-PAIH01: Analog input module with HART protocol for intelligent sensor data collection
-
CC-PDIS01: Digital input module with SOE function for event sequence recording
-
CC-PDOX01: Digital output module for driving field switching devices
-
CC-PCNT01: C300 control processor module for core industrial process control
-
CC-PWRR01: 20A redundant DC power module for cabinet-level power protection
-
TC-FTEB01: FTE bridge module for C300 system network redundancy
-
CC-PAOH01: High-density analog output module with 8 channels for large-scale control systems
-

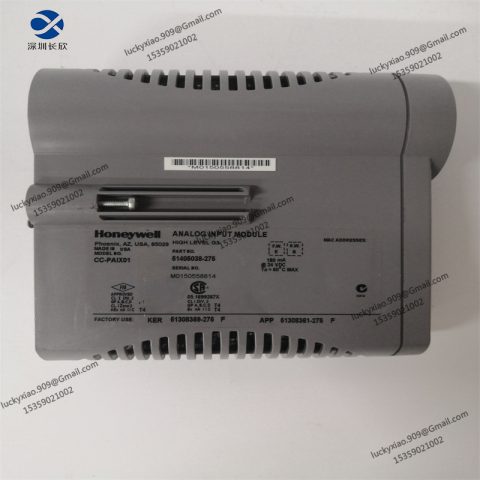

CC-PAIX01: Multi-channel analog input module for high-precision signal acquisition
-
MC-PFBS01: Fieldbus interface processor module for multi-network integration
-
51305072-200: CLCN series communication module for LCN network connection
-
CC-PRGS01: Process history module for real-time data recording and playback
-
CC-PLUS01: Expansion module for extending C300 system I/O capacity
-
51196655-100 ACX633: ACX series power supply module for reliable system power support
-
CC-PDIO01: Mixed digital input/output module for flexible signal processing
-
CC-PHYS01: Physical I/O module for direct connection with field devices
