Introduction to HONEYWELL CC-PCF901
CC-PCF901 Product Overview

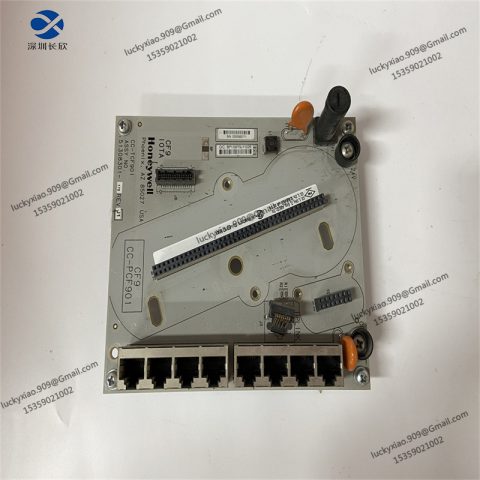

The HONEYWELL CC-PCF901 is a high-reliability process control firewall module specifically designed for Honeywell C300 Distributed Control Systems (DCS). As a core security component in industrial process control architectures, it serves as a dedicated security barrier between process control networks and external systems, effectively isolating critical control components from potential cyber threats. This module integrates specialized industrial security protocols and deep packet inspection technology, which enables precise identification and filtering of non-compliant network traffic, ensuring the integrity and confidentiality of control system data. With a compact and rugged industrial design, it maintains stable operation in harsh industrial environments characterized by temperature fluctuations, electromagnetic interference, and high humidity. Its modular plug-and-play structure facilitates easy installation, configuration, and maintenance, seamlessly integrating with existing Honeywell C-series automation system setups.
CC-PCF901 Technical Specifications
-
Product Model: CC-PCF901
-
Product Type: Process Control Firewall Module (C300 DCS Compatible)
-
Core Functions: Establishes secure boundary between process control networks; Supports industrial-specific security protocol filtering; Performs deep packet inspection for control system traffic; Prevents unauthorized access and data tampering; Enables real-time security event monitoring
-
Network Specifications: Port Quantity: 6 x 10/100/1000Base-T Ethernet ports; Firewall Throughput: Up to 800 Mbps; Maximum Concurrent Sessions: 128,000; Supported Protocols: Modbus TCP, DNP3, IPsec, SSH; VLAN Support: IEEE 802.1Q compliant
-
Power Supply: Operating Voltage: 24VDC ±10%; Power Consumption: Typical 15W, Maximum 20W; Redundant power supply support
-
Protection Features: Electrical isolation between input/output ports; Anti-surge and anti-static protection; Automatic fault recovery function
-
Environmental Limits: Operating Temperature: -40°C to +70°C; Storage Temperature: -40°C to +85°C; Relative Humidity: 5% – 95% (non-condensing)
-
Mechanical Details: Mounting Type: C-series cabinet rail mounting; Dimensions (L×W×H): Approx. 11.8cm × 14.2cm × 4.5cm; Net Weight: Approx. 1.8kg
-
Compatibility & Certifications: Seamlessly integrates with Honeywell C300 DCS; Compatible with Honeywell Experion PKS system; Complies with IEC 62443 industrial security standard; RoHS Compliant
Recommended Honeywell Same-Series Models
-
HONEYWELL CC-TCF901: 9-port control firewall IOTA for multi-port security deployment in C300 systems
-
HONEYWELL CC-TCF902: Enhanced control firewall with higher throughput for large-scale process control networks
-
HONEYWELL CC-IP0101: Industrial Ethernet switch module for secure data transmission in control systems
-
HONEYWELL CC-PWRR01: 20A redundant power supply assembly for cabinet-level power backup
-
HONEYWELL CC-PCNT01: C300 control processor module for core process control logic execution
-
HONEYWELL CC-PAIH01: HART analog input module with secure signal acquisition capability
-
HONEYWELL CC-PAOX01: Analog output module for secure control signal transmission to field devices
-
HONEYWELL CC-TAIX01: Analog input IOTA backplane compatible with multiple C-series AI modules
-
HONEYWELL 51405038-175: High-performance analog input module for harsh industrial environments
-
HONEYWELL DC-TCF901: Control firewall backplane matching C-series firewall module functions
-
HONEYWELL CC-TCNT01: 4-loop base module for C-series I/O module integration
-
HONEYWELL 51198685-100: Power module dedicated for C-series security and control components
