Introduction to HONEYWELL CC-PCNT01 51405046-175
CC-PCNT01 51405046-175 Product Overview

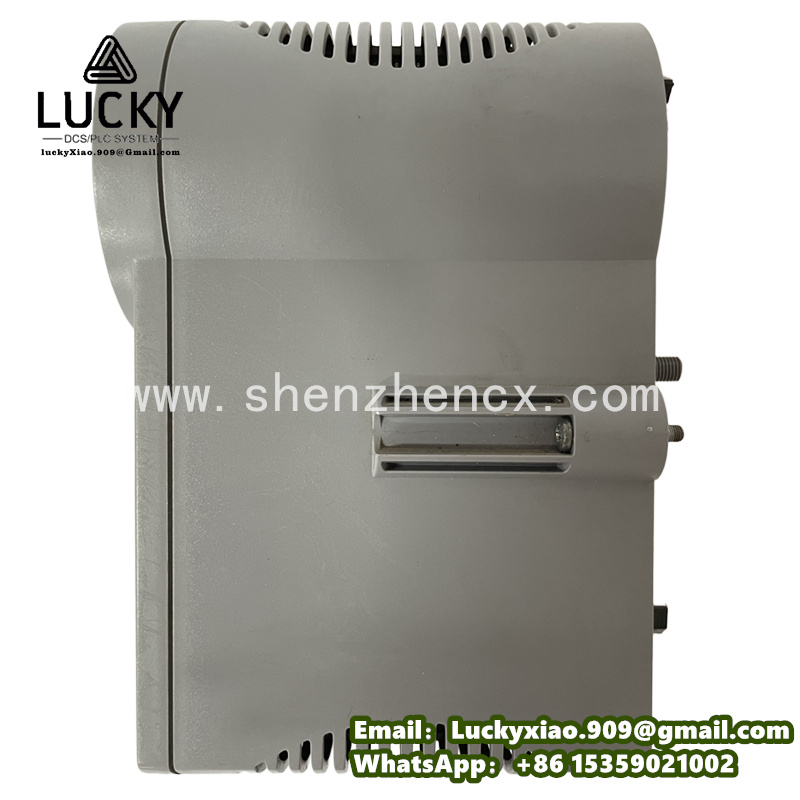

The HONEYWELL CC-PCNT01 51405046-175 is a high-precision pulse counting module belonging to the Experion PKS C300 series, specifically engineered for industrial automation and process control systems. As a core component for pulse signal processing, it is designed to receive and accurately count pulse signals from sensors, encoders, and other field devices, enabling precise measurement of parameters such as frequency, rotation speed, and flow rate. This module features a high-speed counting capability with a maximum input frequency of up to 100kHz and supports both single-pulse and dual-pulse input modes, adapting to diverse industrial measurement requirements. Equipped with advanced anti-interference technology and optical isolation protection, it effectively suppresses electromagnetic interference, ensuring stable and reliable operation in harsh industrial environments with temperature fluctuations and electrical noise—common in petroleum, chemical, power generation, and manufacturing industries. It seamlessly integrates with Honeywell C300 controllers and Experion PKS DCS, facilitating real-time data transmission and system integration.
CC-PCNT01 51405046-175 Technical Specifications
-
Product Model: CC-PCNT01 51405046-175
-
Product Type: Pulse Counting Module (Honeywell Experion PKS C300 Series)
-
Core Functions: High-precision pulse signal counting; Frequency, speed and flow measurement; Single/dual pulse input support; Real-time data transmission; Channel-level status monitoring; Built-in self-diagnosis
-
Signal & Connection: Input Signal: Pulse signals from sensors/encoders; Maximum Input Frequency: 100kHz; Input Voltage Range: 0-35VDC; Input Impedance: ≥70kΩ; Minimum Pulse Width: 3μs; Connection Type: Screw terminals
-
Electrical Specifications: Operating Voltage: 24VDC; Isolation Protection: 1000VDC optical isolation; Counting Accuracy: ±0.001% of reading
-
Environmental Ratings: Operating Temperature: -25°C to +60°C (up to +65°C with forced ventilation); Storage Temperature: -40°C to +85°C; Relative Humidity: 5% – 95% (non-condensing); Protection Rating: IP00 (IP20 with optional shield)
-
Mechanical Details: Housing Material: Industrial-grade plastic; Mounting Type: DIN rail mounting; Dimensions (L×W×H): 68mm × 162mm × 165mm; Net Weight: Approx. 0.48kg
-
System Compatibility: Fully compatible with Honeywell C300 controllers and Experion PKS DCS; Suitable for integration into petroleum, chemical, power generation, manufacturing, and transportation industry control setups
