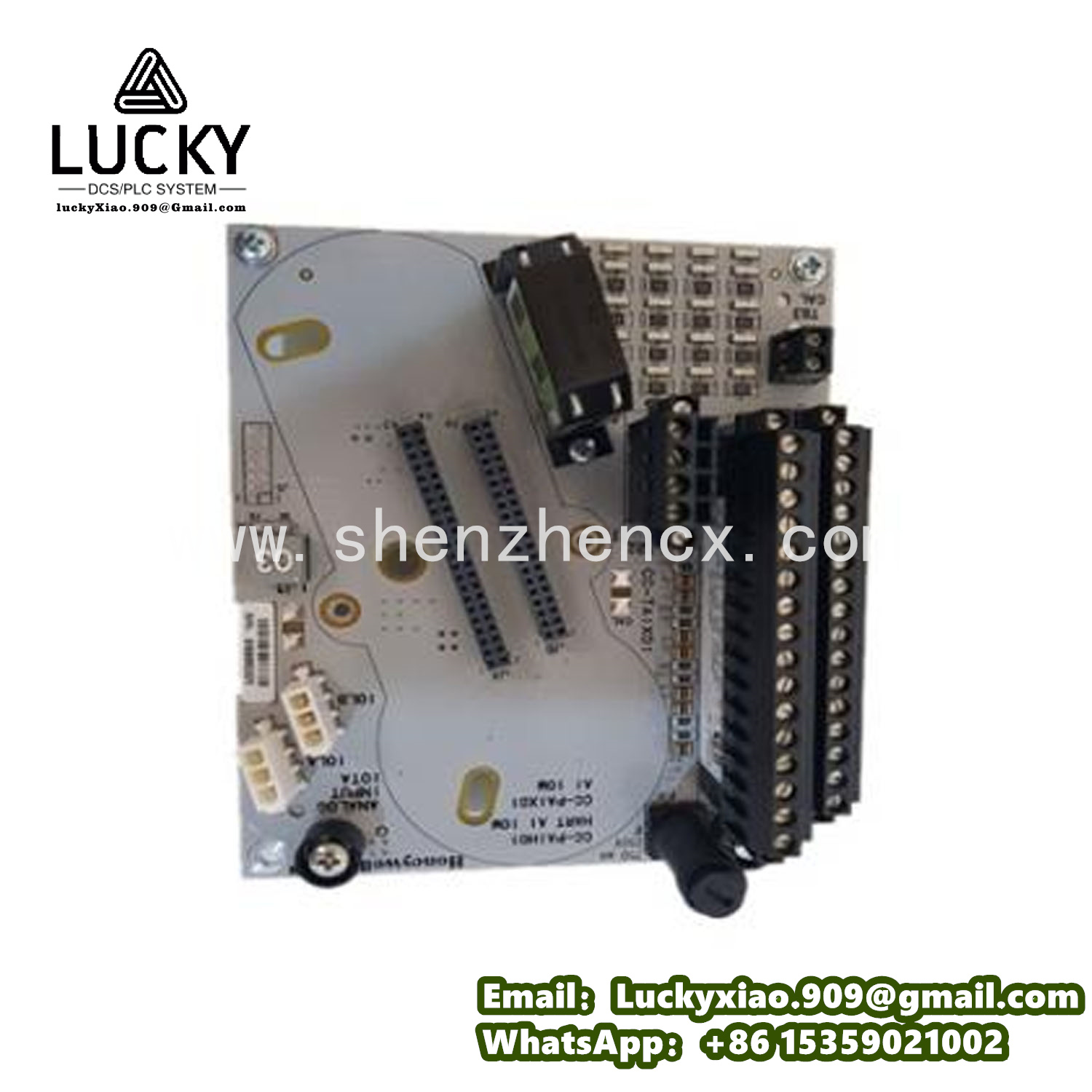

HONEYWELL CC-TAIX01 Product Specification
1. Product Overview
The HONEYWELL CC-TAIX01 is a multi-functional analog input module designed exclusively for Honeywell ControlEdge PLC and Experion PKS C300 control systems. As a critical data acquisition component in industrial automation, it specializes in collecting, conditioning, and converting various analog signals—including 4–20 mA current signals and 0–10 V voltage signals—from field sensors (e.g., pressure, temperature, flow, and level transmitters) into digital signals for the control system. Widely applied in oil & gas, petrochemical, chemical, and water treatment industries, this module ensures accurate and real-time signal transmission, providing a reliable basis for precise process control and operational optimization.
Integrated with advanced signal conditioning technology and dual-layer isolation design, the CC-TAIX01 maintains exceptional measurement accuracy and strong anti-interference performance even under harsh industrial conditions (electromagnetic interference, temperature fluctuations, and voltage instability). It complies with IEC 61131-2 and UL 508 industrial standards, ensuring seamless integration with Honeywell’s control systems and meeting strict safety and reliability requirements of industrial sites.
2. Technical Parameters & Specifications
|
Category
|
Details
|
|
Product Type
|
8-Channel Analog Input Module (Current/Voltage, HART-Compatible)
|
|
Compatible Systems
|
HONEYWELL ControlEdge PLC, Experion PKS C300 Control Systems
|
|
Input Channels
|
8 Isolated Channels (Configurable per Channel)
|
|
Input Signal Types
|
4–20 mA DC (2-wire/4-wire); 0–10 V DC; HART 7.0 Compatible
|
|
Accuracy
|
Current: ±0.05% FS; Voltage: ±0.1% FS; Temp Drift: ≤±0.01%/°C (0°C–60°C)
|
|
Sampling Rate
|
50 Samples/Second per Channel (Simultaneous Sampling)
|
|
Isolation
|
Channel-to-Channel: 500 V DC; Channel-to-System: 1500 V DC
|
|
Power Supply
|
From System Backplane: 5 V DC ±5%; Power Consumption: ≤10 W
|
|
Environmental Ratings
|
Operating Temp: 0°C–60°C; Humidity: 5%–95% (Non-Condensing); Vibration: ≤2 g
|
|
Mechanical Dimensions
|
150 mm × 100 mm × 25 mm (L×W×H); Backplane-Mounted
|
|
Certifications
|
IEC 61131-2; UL 508; CSA C22.2 No. 14; CE; RoHS
|
3. Key Features
3.1 Multi-Signal Compatibility
Each channel can be independently configured for 4–20 mA current or 0–10 V voltage input via system software, adapting to diverse field sensor types. This eliminates the need for multiple dedicated modules, reducing equipment costs and simplifying system configuration—ideal for mixed-signal monitoring scenarios like chemical plant multi-parameter detection.
3.2 HART Integration & Smart Diagnostics
Compliant with HART 7.0 protocol, the module enables bidirectional communication with HART-enabled smart transmitters. This supports remote configuration of transmitters, retrieval of diagnostic data (e.g., sensor health, calibration status), and adjustment of measurement ranges without on-site operations. Built-in self-diagnostics also monitor channel faults, open circuits, and power anomalies in real time.
3.3 High Precision & Anti-Interference
With ±0.05% FS accuracy for current signals and ±0.1% FS for voltage signals, the module ensures precise signal conversion. Dual-layer isolation design and surge protection (IEC 61000-4-5) effectively suppress electromagnetic interference and signal cross-talk, maintaining stable performance in noisy industrial environments like power generation plants.
4. Related HONEYWELL Products
-
HONEYWELL CC-TAOX01: 8-channel analog output module (4–20 mA/0–10 V), paired with CC-TAIX01 for complete control loops.
-
HONEYWELL CC-TDIX01: 16-channel digital input module, collecting discrete signals for mixed-signal control systems.
-
HONEYWELL CC-TDOX01: 16-channel digital output module, driving solenoid valves, pumps, and indicator lights.
-
HONEYWELL ControlEdge 900: High-performance PLC, fully integrated with CC-TAIX01 for distributed control applications.
-
HONEYWELL C300 Controller: Core controller for Experion PKS, supporting CC-TAIX01 in large-scale process control systems.
