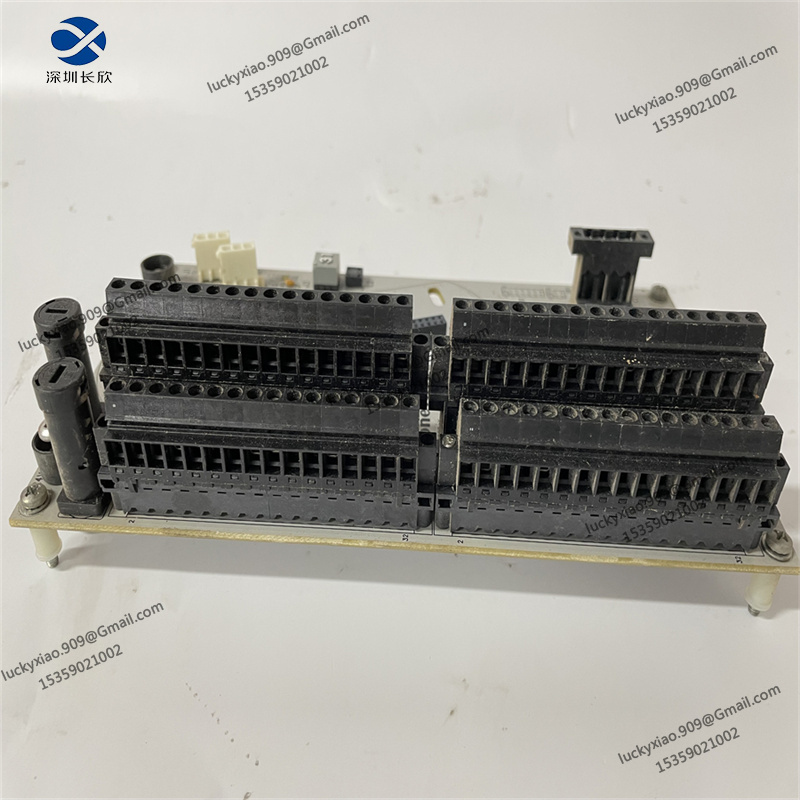

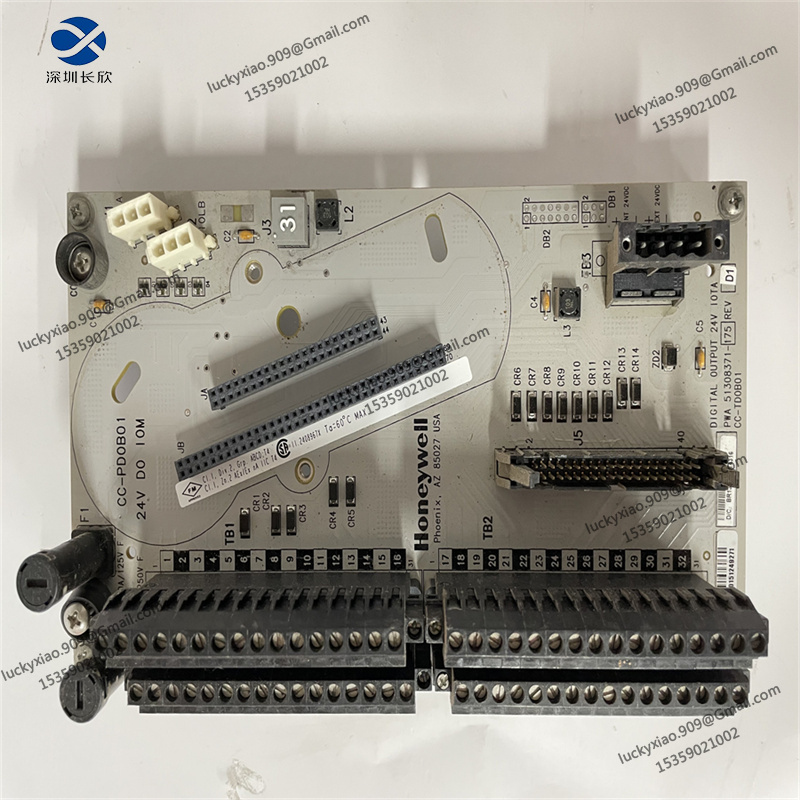

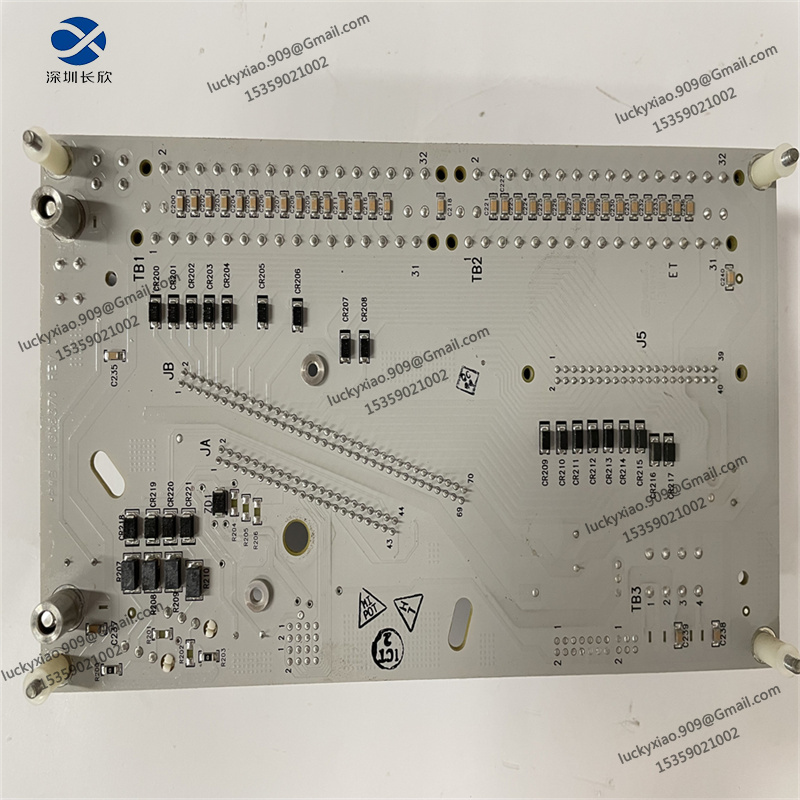

Introduction to HONEYWELL CC-TDOB01 51308371-175
CC-TDOB01 51308371-175 Product Overview
The HONEYWELL CC-TDOB01 51308371-175 is a high-reliability digital output module specifically designed for industrial automation and process control systems. As a key component in discrete control loops, it receives digital control commands from upper-level controllers and converts them into stable physical output signals to drive a wide range of field devices, including relays, solenoid valves, motors, and indicator lights. This module features multiple independent output channels, enabling simultaneous control of multiple devices and adapting to diverse industrial application scenarios that require centralized control. Equipped with advanced electrical isolation technology, it effectively suppresses electromagnetic interference from industrial environments, preventing signal distortion and module damage caused by voltage surges. Its programmable configuration capability allows users to customize output parameters according to specific application requirements, enhancing operational flexibility.
CC-TDOB01 51308371-175 Technical Specifications
-
Product Model: CC-TDOB01 51308371-175
-
Product Type: Digital Output Module (Honeywell Industrial Automation Series)
-
Core Functions: Multi-channel discrete signal output; Driving various field executive devices; Programmable parameter configuration; Electrical isolation protection; Real-time output status monitoring; Fault self-diagnosis
-
Signal & Connection: Output Signal: 24VDC discrete signals; Connection Type: Screw terminals; Output Channels: Multiple independent channels (configurable)
-
Electrical Specifications: Operating Voltage: 24VDC; Load Voltage Range: 18-30VDC; Maximum Load Current: 0.5A per channel; Isolation Rating: 1500VAC RMS (channel to channel)
-
Environmental Ratings: Operating Temperature: -40°C to +70°C; Storage Temperature: -40°C to +85°C; Relative Humidity: 5% – 95% (non-condensing); Protection Rating: IP20 (when installed in standard control cabinet)
-
Mechanical Details: Housing Material: Industrial-grade corrosion-resistant plastic; Mounting Type: DIN rail mounting; Dimensions (L×W×H): Conforming to standard industrial I/O module specifications; Net Weight: Approx. 0.25kg
-
System Compatibility: Fully compatible with Honeywell PKS series DCS and related controllers; Suitable for integration into petroleum, chemical, power generation, manufacturing, and metallurgical industry control setups
Recommended HONEYWELL Similar Series Models
-
CC-TDIL01: Digital input module for collecting 24VDC discrete signals from sensors and switches
-
CC-TDOX01: 4-loop digital output module for precise control of small-scale field devices
-
CC-PDOB01: 32-channel digital output module for large-scale discrete control applications
-
CC-PDIL01: 32-channel digital I/O module for comprehensive signal acquisition and control
-
TC-IDD321: 32-channel high-density digital input module for industrial process monitoring
-
TC-ODD321: 32-channel high-density digital output module for driving multiple devices
-
CC-PAIH01: Analog input module supporting HART protocol for intelligent sensor data collection
-
CC-PAOX01: Analog output module for stable control signal output to actuators
-
CC-PCNT01: High-precision pulse counting module for frequency and speed measurement
-
CC-TCNT01: 4-loop base unit module for mounting and powering multiple I/O modules
-
TC-IAH161: 16-channel high-level analog input module for process parameter acquisition
-
TC-OAH061: 6-channel analog output module for precise actuator control
-
MC-PDIY22: 32-channel digital input module for large-scale discrete signal collection
-
MC-PDOY22: 32-channel digital output module for simultaneous control of multiple field devices
-
TC-CCR014: Redundant network interface module ensuring stable system communication
