Introduction to HONEYWELL CC-TDOB01
CC-TDOB01 Product Overview

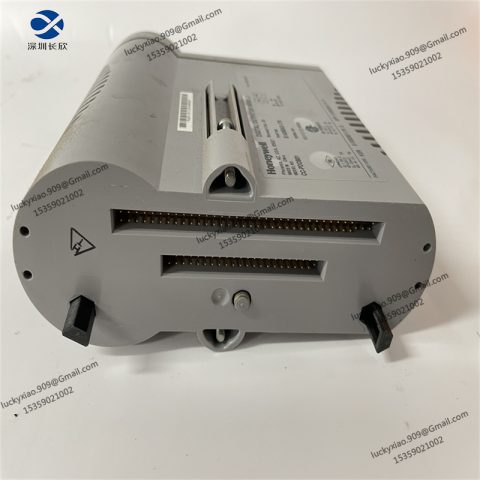

The HONEYWELL CC-TDOB01 is a high-performance 32-channel digital output module belonging to the ControlEdge™ PLC series. As a key execution component in industrial automation systems, it is specifically designed to convert digital signals from PLC controllers into switching signals that can drive on-site actuators, such as relays, solenoid valves, contactors, and indicator lights. This module features a high-channel density design, which effectively reduces the cost per output point and saves cabinet space while simplifying wiring work. Equipped with reliable transistor (NPN) output components, it has the advantages of contactless operation, long service life, and fast response, ensuring stable and precise control of on-site equipment. With built-in short-circuit protection, overload protection, and electrical isolation between channels, it can resist harsh industrial environments with electromagnetic interference, ensuring the safety and reliability of the system.
CC-TDOB01 Technical Specifications
-
Product Model: CC-TDOB01
-
Product Type: Digital Output Module (ControlEdge™ PLC Series)
-
Core Functions: Converts PLC digital signals to switching output signals; Drives on-site switch-type actuators; Enables multi-channel simultaneous control; Provides real-time fault monitoring
-
Output Specifications: Number of Output Channels: 32; Output Type: Transistor (NPN); Rated Output Voltage: 24VDC; Maximum Output Current per Channel: 0.5A; Surge Current Capacity: 1A per channel (duration < 10ms); Response Time (ON to OFF/OFF to ON): Typical 0.1ms
-
Power Supply: Operating Voltage: 24VDC; Power Consumption: Typical 5W
-
Protection Features: Short-circuit protection and overload protection; Electrical isolation: 500VDC (between channels and between channels and system)
-
Environmental Limits: Operating Temperature: -40°C to +70°C; Storage Temperature: -40°C to +85°C; Relative Humidity: 5% – 95% (non-condensing)
-
Mechanical Details: Mounting Type: DIN rail mounting; Protection Rating: IP20
-
Compatibility & Certifications: Seamlessly integrates with Honeywell ControlEdge™ PLC systems; Compatible with Honeywell Experion® PKS DCS; RoHS Compliant
Recommended Honeywell Same-Series Models
-
HONEYWELL CC-TDOB11: 32-channel digital output module with 1500V AC/DC electrical isolation for high anti-interference scenarios
-
HONEYWELL CC-TDIL01: Digital input module for receiving digital signals from on-site devices
-
HONEYWELL CC-TAIM01: Analog input module for acquiring analog signals from field instruments
-
HONEYWELL CC-TAON01: Analog output module for transmitting analog control signals to actuators
-
HONEYWELL CC-PDOB01: Digital output module with enhanced load capacity for heavy-duty industrial applications
-
HONEYWELL ControlEdge™ PLC Controller: Core processor unit for executing control logic and generating output signals
-
HONEYWELL CC-PAIH01: HART analog input module for high-precision process signal acquisition
-
HONEYWELL CC-PAOX01: Analog output module for standardized control signal transmission
-
HONEYWELL CC-PWRR01: 20A redundant power supply assembly for stable power supply of PLC systems
-
HONEYWELL CC-TAIX01: Analog input IOTA backplane compatible with multiple C-series AI modules
-
HONEYWELL CC-TCNT01: 4-loop base module for integrating C-series I/O modules
-
HONEYWELL 51198685-100: Power module dedicated for ControlEdge™ PLC system components
