Introduction to HONEYWELL CC-TDOB11 51308373-175
CC-TDOB11 51308373-175 Product Introduction

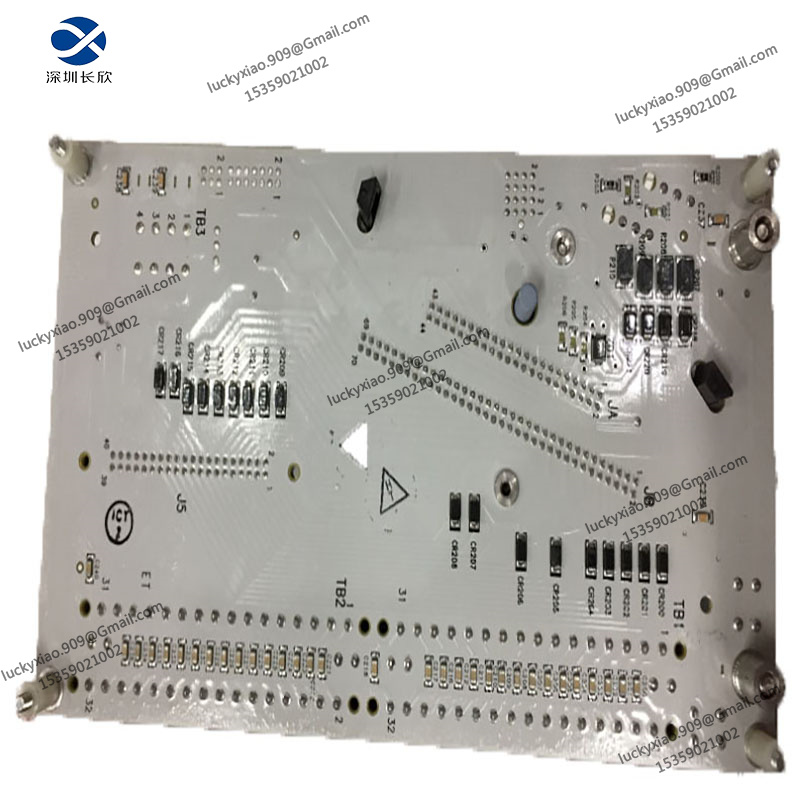

The HONEYWELL CC-TDOB11 (Part Number: 51308373-175) is a high-reliability redundant digital output IOTA terminal board tailored for Honeywell’s industrial DCS systems. As a key component in I/O terminal assemblies, it establishes a stable connection between digital output modules and field switching devices, ensuring reliable transmission of control signals to drive relays, contactors, solenoid valves, and other industrial devices. Its redundant design greatly enhances system availability and fault tolerance, effectively avoiding production downtime caused by single-point failures in critical processes. The standardized IOTA module structure enables seamless integration with other Honeywell I/O modules, simplifying installation, configuration, and maintenance. With excellent anti-interference performance and industrial-grade protection, it maintains stable signal transmission in harsh industrial environments with electromagnetic interference, temperature fluctuations, and high humidity, making it ideal for chemical processing, power generation, petroleum refining, and other industries requiring high-reliability process control.
CC-TDOB11 51308373-175 Technical Parameters
-
Product Model: CC-TDOB11 (51308373-175)
-
Product Type: Redundant Digital Output IOTA Terminal Board (Honeywell Industrial DCS Series)
-
Core Functions: Stable connection between digital output modules and field devices; Reliable control signal transmission; Redundant design for fault tolerance; Anti-interference signal processing
-
Connection Specifications: Compatible with Honeywell digital output modules; Standard terminal connection; Installation Mode: Rack-mounted (DCS system chassis compatible); Terminal Type: Industrial-grade standard terminals
-
Electrical Specifications: Power Supply: Compatible with Honeywell DCS system power; Signal Compatibility: 24VDC digital output signals; Load Capacity: Up to 2A per channel; Certifications: Compliant with IEC 61010-1, CE, UL
-
Environmental Ratings: Operating Temperature: -40°C to +70°C; Storage Temperature: -40°C to +85°C; Relative Humidity: 5% – 95% (non-condensing); Electromagnetic Compatibility: Meets EN 55022 Class A, EN 55024
-
Mechanical Details: Housing Material: Industrial-grade high-strength plastic; Dimensions: 135mm × 105mm × 42mm (standard IOTA size); Protection Rating: IP20
-
System Compatibility: Fully compatible with Honeywell DCS systems (e.g., Experion PKS); Suitable for chemical processing, power generation, petroleum refining, and process manufacturing
Recommended Honeywell Same-Series Models
-
CC-TDOB01: Non-redundant 24VDC digital output IOTA terminal board for general applications
-
CC-TDOB61: High-density 24VDC digital output terminal board for large-scale DCS systems
-

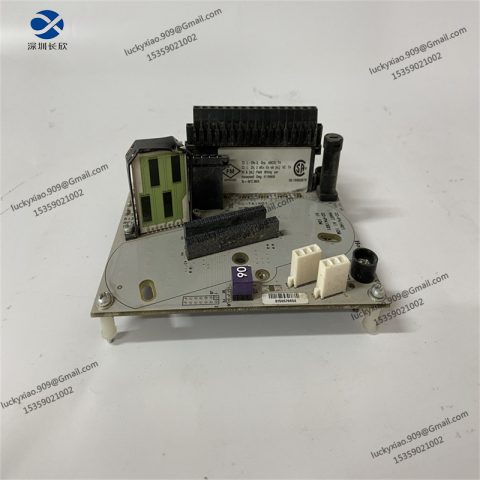

CC-TAIX01 (51308363-175): Analog input IOTA terminal board for high-precision sensor signal acquisition
-
CC-TAIX11 (51308365-175): Redundant analog input IOTA terminal board for critical process monitoring
-
CC-TAOX01: Analog output IOTA terminal board for non-redundant system configurations
-
CC-TAOX11 (51308353-175): Redundant analog output IOTA terminal board for enhanced system availability
-
CC-TDIL01: 24VAC digital input terminal board for discrete signal collection
-
CC-TDIL11: High-density digital input terminal board with SOE function
-
CC-TDIL51: 24VAC digital input terminal board with surge protection function
-
CC-TDIL61: High-density 24VAC digital input terminal board for large-scale DCS systems
-
CC-TDOR11: Relay output terminal board for high-load field device control
-
CC-TAON01: Analog input/output combination terminal board for mixed signal systems
-
CC-TAON11: Redundant analog input/output combination terminal board
-
CC-TCNT01: Controller baseplate compatible with CC-TDOB series terminal boards
-
CC-TDOR01: Non-redundant relay output terminal board for general high-load applications
-
CC-TAIX61: High-density analog input IOTA terminal board for large-scale control systems
-
CC-TAOX61: High-density analog output terminal board for large-scale DCS systems
-
CC-TDOB21: 24VDC digital output terminal board with fault alarm function
-
CC-TAIX21: Analog input terminal board with signal isolation function
-
CC-TAOX21: Analog output terminal board with signal isolation function
