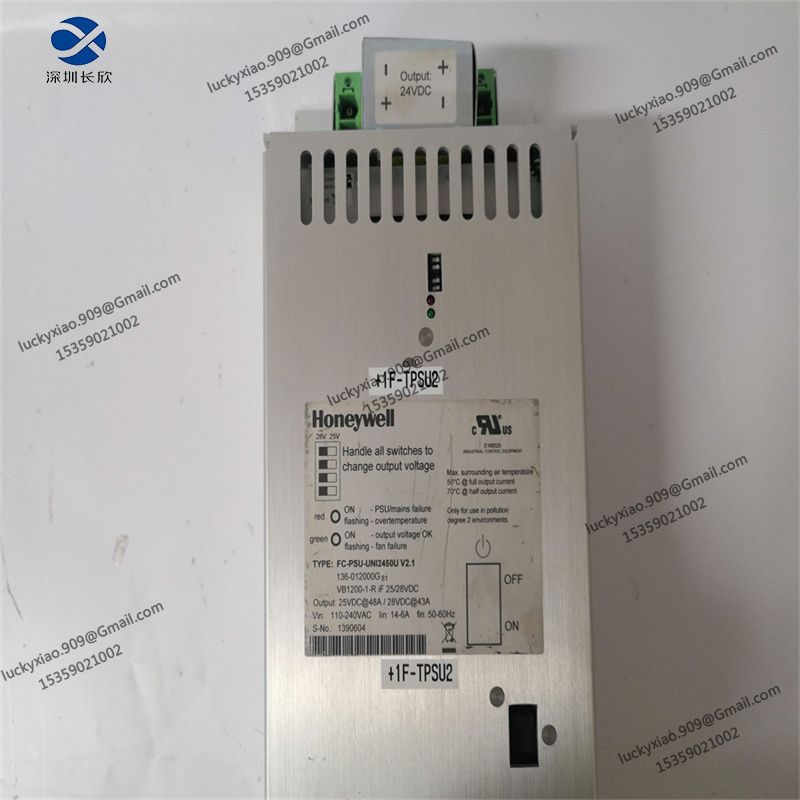

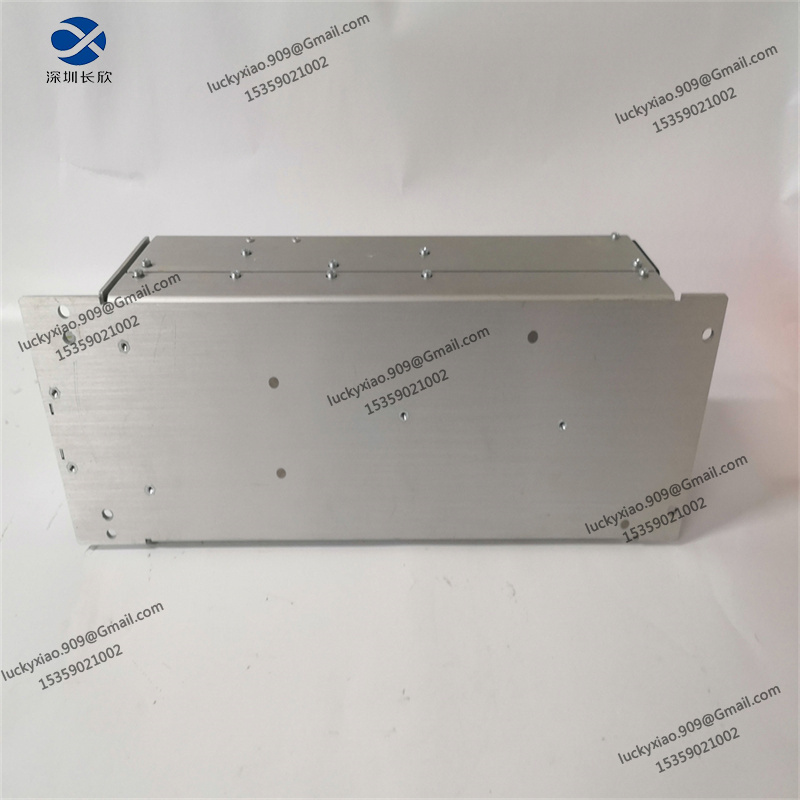

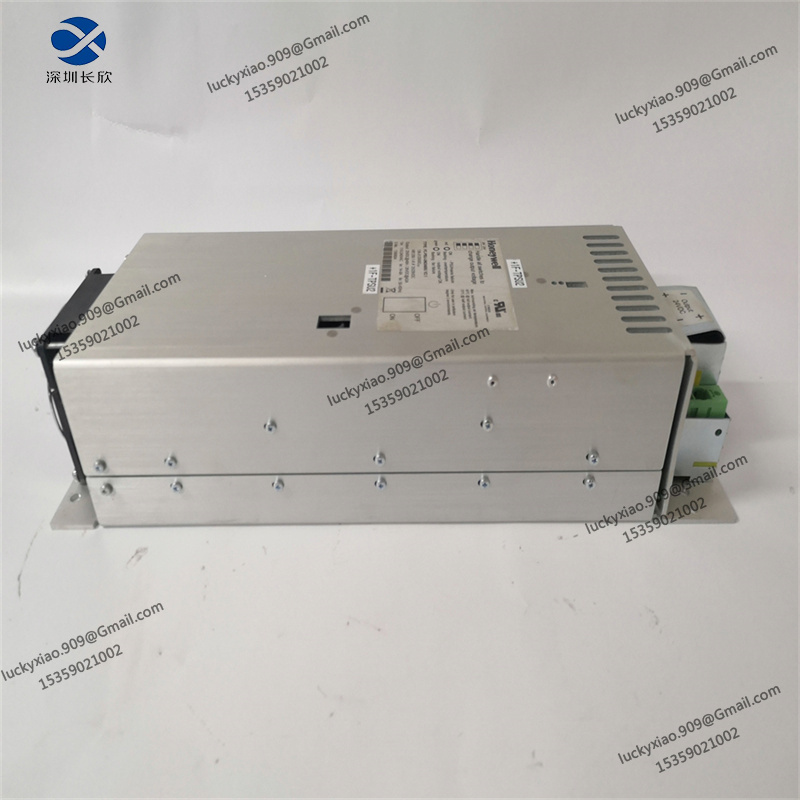

Introduction to HONEYWELL FC-PSU-UNI2450U
FC-PSU-UNI2450U Product Overview
The HONEYWELL FC-PSU-UNI2450U is a high-reliability industrial power supply module specifically designed for Honeywell FC-series industrial automation and safety management systems. As a critical power supply component, it is dedicated to providing stable and continuous DC power for on-site devices such as sensors, actuators, controllers, and safety-related equipment in industrial control systems. This module features a wide input voltage range, enabling it to adapt to grid fluctuations in different regions and ensuring stable operation under various power supply environments. Equipped with multiple protection mechanisms including over-voltage, short-circuit, and over-temperature protection, it effectively prevents damage to the module and connected devices caused by abnormal working conditions. With high power conversion efficiency and low noise design, it reduces energy loss while avoiding interference with sensitive industrial equipment. Its compact and modular structure facilitates easy installation, maintenance, and replacement, and it is fully compatible with Honeywell DCS systems such as PKS and C300.
FC-PSU-UNI2450U Technical Specifications
-
Product Model: FC-PSU-UNI2450U (Available in V1.0, V2.1 and other versions)
-
Product Type: Industrial Power Supply Module (FC-series Automation Power Supply Series)
-
Core Functions: Provide stable 24VDC power for industrial control devices; Adapt to wide input voltage range; Implement multiple protection mechanisms (over-voltage, short-circuit, over-temperature); Support redundant configuration for uninterrupted power supply; Ensure high-efficiency power conversion
-
Input Specifications: Input Voltage Range: AC 100-240V, 50/60Hz; Some versions support 85-264VAC or 110-370VDC
-
Output Specifications: Output Voltage: 24VDC; Output Current: Up to 50A (varies by version); Conversion Efficiency: ≥85% (up to 88% for V2.1 version)
-
Protection Features: Over-voltage protection; Short-circuit protection; Over-temperature protection; Over-current protection; Under-voltage protection
-
Environmental Limits: Operating Temperature: -40°C to +70°C; Storage Temperature: -40°C to +85°C; Relative Humidity: 5% – 95% (non-condensing)
-
Mechanical Details: Mounting Type: DIN rail mounting; Protection Rating: Industrial-grade design; Dimensions (L×W×H): Approx. 126mm × 88mm × 31mm (V1.0), 166mm × 112mm × 36mm (other versions); Net Weight: Approx. 1.3kg
-
Compatibility & Certifications: Seamless integration with Honeywell PKS, C300 and other DCS systems; Complies with UL508 standard; CE, UL and RoHS Compliant
Recommended Honeywell Same-Series Models
-
HONEYWELL FC-PSU-UNI2450U V2.1: Enhanced version power supply module with higher conversion efficiency (≥88%) and redundant output card configuration
-
HONEYWELL FC-TSAI-1620M: Analog input module for collecting industrial process analog signals
-
HONEYWELL FC-QPP-0002: System configuration module for FC-series automation system parameter setting and management
-
HONEYWELL FC-PDIO01: Digital input/output module for switching signal acquisition and control signal output
-
HONEYWELL CC-IP0101 51410056-175: Communication interface module for FC-series system network interconnection
-
HONEYWELL CC-TAOX11: Analog output module for transmitting precise control signals to actuators
-
HONEYWELL CC-MCAR02: Controller auxiliary module for enhancing FC-series controller performance
-
HONEYWELL CC-TCF901: Control firewall module for securing FC-series industrial control network communication
-
HONEYWELL CC-PDOB01: Digital output module with enhanced load capacity for heavy-load equipment control
-
HONEYWELL CC-PCNT01: C300 control processor module compatible with FC-series power supply system
-
HONEYWELL CC-PAIH01: HART analog input module for high-precision process signal acquisition and communication
-
HONEYWELL CC-PAOX01: Standard analog output module for stable 4-20mA/0-10V signal transmission
-
HONEYWELL CC-TDIL01: Standard digital input module for general industrial signal acquisition scenarios
-
HONEYWELL 51198685-100: Power module dedicated for FC/C-series control and I/O components
-
HONEYWELL 51405038-175: High-performance analog input module for harsh industrial environment applications
