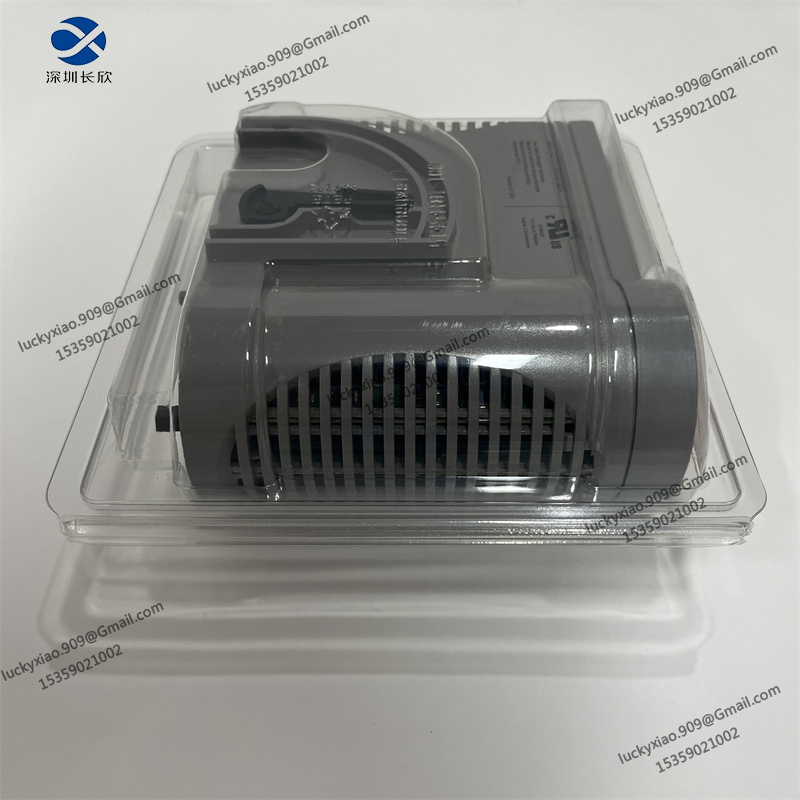

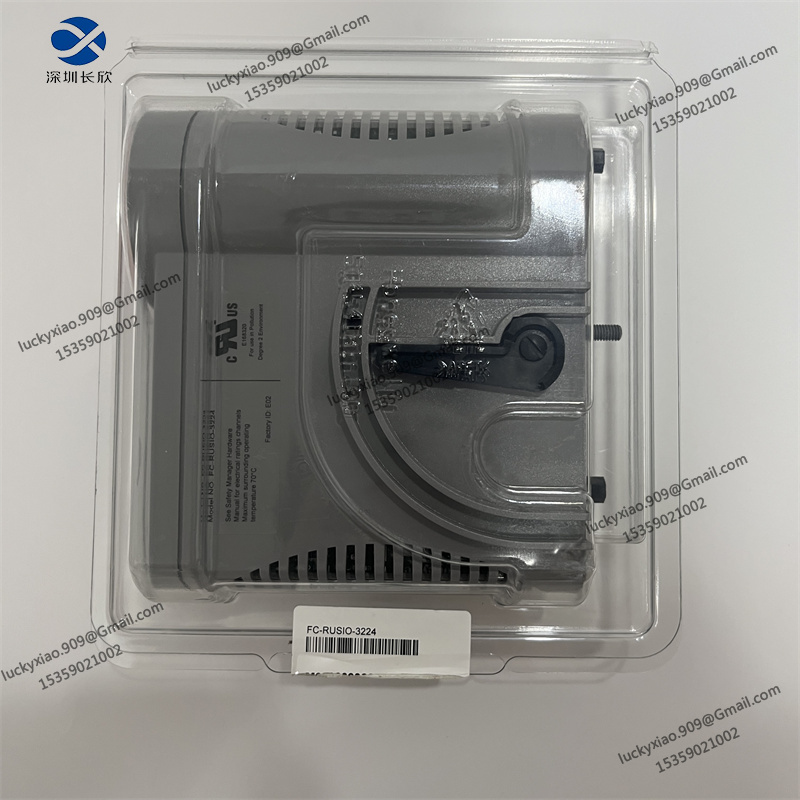

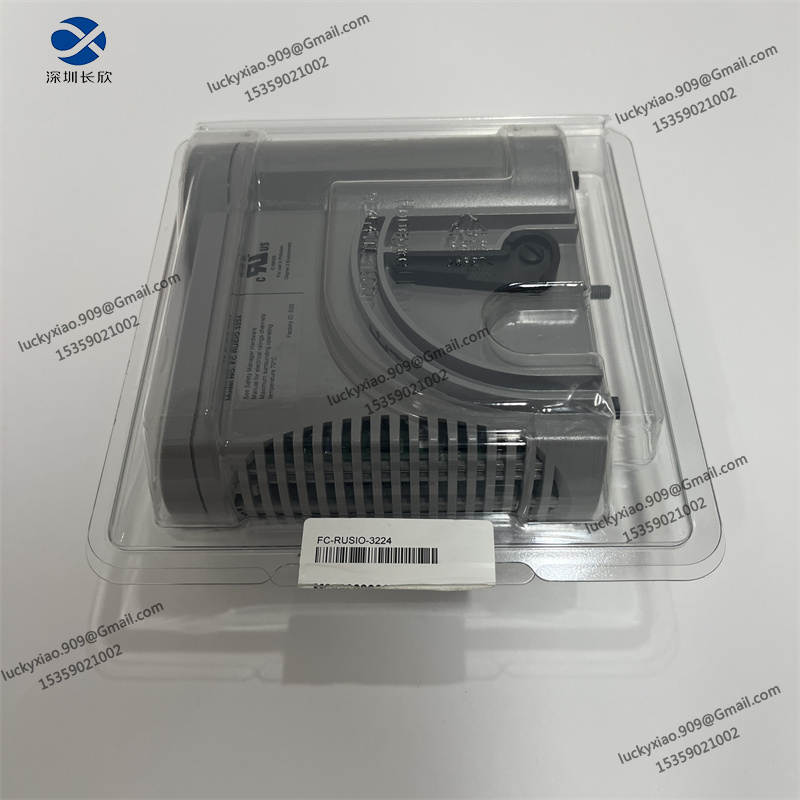

Introduction to HONEYWELL FC-RUSIO-3224
FC-RUSIO-3224 Product Introduction
The HONEYWELL FC-RUSIO-3224 is a high-performance remote universal safety I/O module under the Honeywell Safety Manager series, tailored for industrial automation and safety control systems. As a vital interface bridging remote field devices and the central control system, it integrates 32 input and 24 output channels, enabling efficient acquisition of diverse field signals (e.g., voltage, current) and precise output of control signals to regulate on-site equipment. Equipped with advanced optical isolation technology, it effectively mitigates electrical interference, ensuring stable signal transmission in harsh industrial settings. Supporting mainstream industrial communication protocols like EtherNet/IP and Modbus TCP/RTU, it facilitates seamless remote monitoring, management, and data exchange with upper-level systems. Its compact modular design simplifies installation, maintenance, and system expansion, while multiple protection mechanisms (overcurrent, overvoltage, short circuit) and redundant operation enhance overall system reliability.
FC-RUSIO-3224 Technical Parameters
-
Product Model: FC-RUSIO-3224
-
Product Type: Remote Universal Safety I/O Module (Honeywell Safety Manager Series)
-
Core Functions: 32-channel input & 24-channel output signal processing; Remote monitoring and diagnosis; Multi-protocol support (EtherNet/IP, Modbus TCP/RTU); Optical isolation anti-interference; Overcurrent/overvoltage/short circuit protection; Redundant parallel operation
-
Connection Specifications: Compatible with Honeywell Safety Manager and Experion PKS systems; Ethernet interface for remote communication; Standard industrial terminals; Support for Control Builder graphical configuration
-
Electrical Specifications: Power Supply: 24VDC (-15% to +30%); Max Supply Current: 300mA (no field load); Reverse Polarity Protection: Parallel diode (fuse blow); Certifications: CE, UL (TUV pending)
-
Environmental Ratings: Operating Temperature: -40°C to +70°C (external), -40°C to +90°C (internal); Storage Temperature: -40°C to +85°C; Relative Humidity: 10% – 95% (non-condensing); Pollution Degree: Level 2 and above
-
Mechanical Details: Housing Material: Industrial-grade high-strength plastic; Dimensions: 7.24 cm × 16.51 cm × 14.5 cm; Weight: 0.7 kg; Protection Rating: IP65
-
System Compatibility: Fully compatible with Honeywell Safety Manager series and industrial DCS; Suitable for petrochemical, power generation, manufacturing, and pharmaceutical industry control setups
Recommended Honeywell Same-Series Models
-
FC-IOTA-R24: IOTA terminal board compatible with FC-RUSIO series modules
-
FC-PSU-240516: 24VDC power supply module for I/O system power support
-
FC-TSAI-1620M: 16-channel high-precision safety analog input module
-
FC-SDO-0824: 8-channel fail-safe digital output module for safety-critical applications
-
FC-SAI-0824: 8-channel analog input module for high-precision signal acquisition
-
FC-SAO-0824: 8-channel analog output module for reliable control signal output
-
FC-SPWR-2405: 24VDC redundant power supply module for system power protection
-
FC-SCOM-01: Communication module for data exchange between DCS and upper-level systems
-
FC-SDIAG-01: System diagnostic module for real-time fault monitoring and alarm
-
FE-USI-0002: Universal safety interface module for connecting safety devices to controllers
-
FC-IOCHAS-0002S: I/O chassis module for system expansion
-
FC-TDILA1: Digital input module for discrete signal collection
-
FC-TDODA1: Digital output module for driving field switching devices
-
FC-SREL-08: 8-channel relay output module for high-load device control
-
FC-SMON-01: Safety system monitoring module for centralized status management
-
FC-LNK-01: Communication link module for redundant system data transmission
-
FC-QPP-0001: Quad-core processor module for core computing in safety systems
-
TC-IAH161: I/O module for seamless input-output data exchange
-
FC-RUSIO-1616: 16-input 16-output remote universal safety I/O module
-
FE-USI-0001: Basic universal safety interface module for safety system connection
